Power Window Schematics

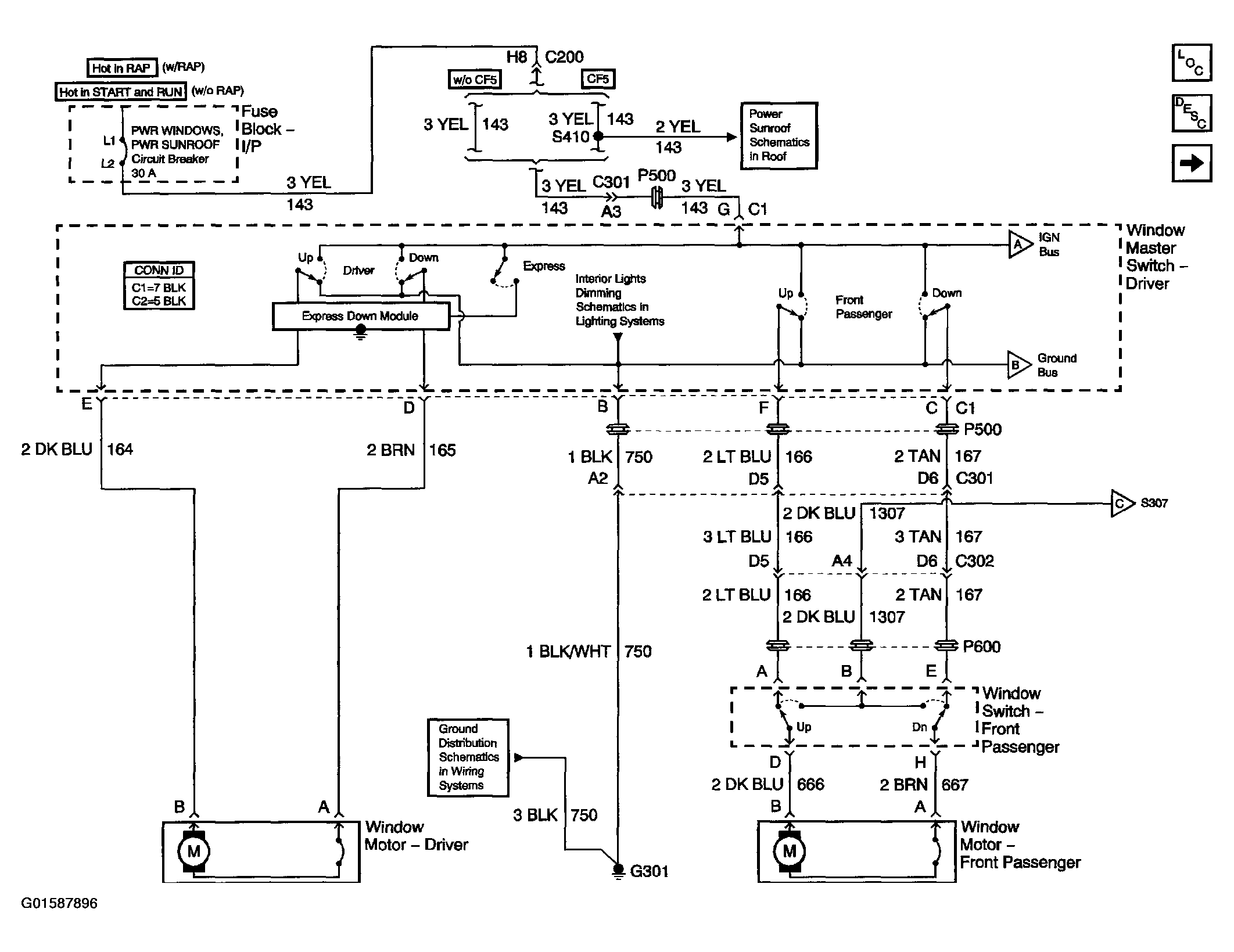

Fig 1: Front Window Diagram
G01587896Courtesy of GENERAL MOTORS CORP.

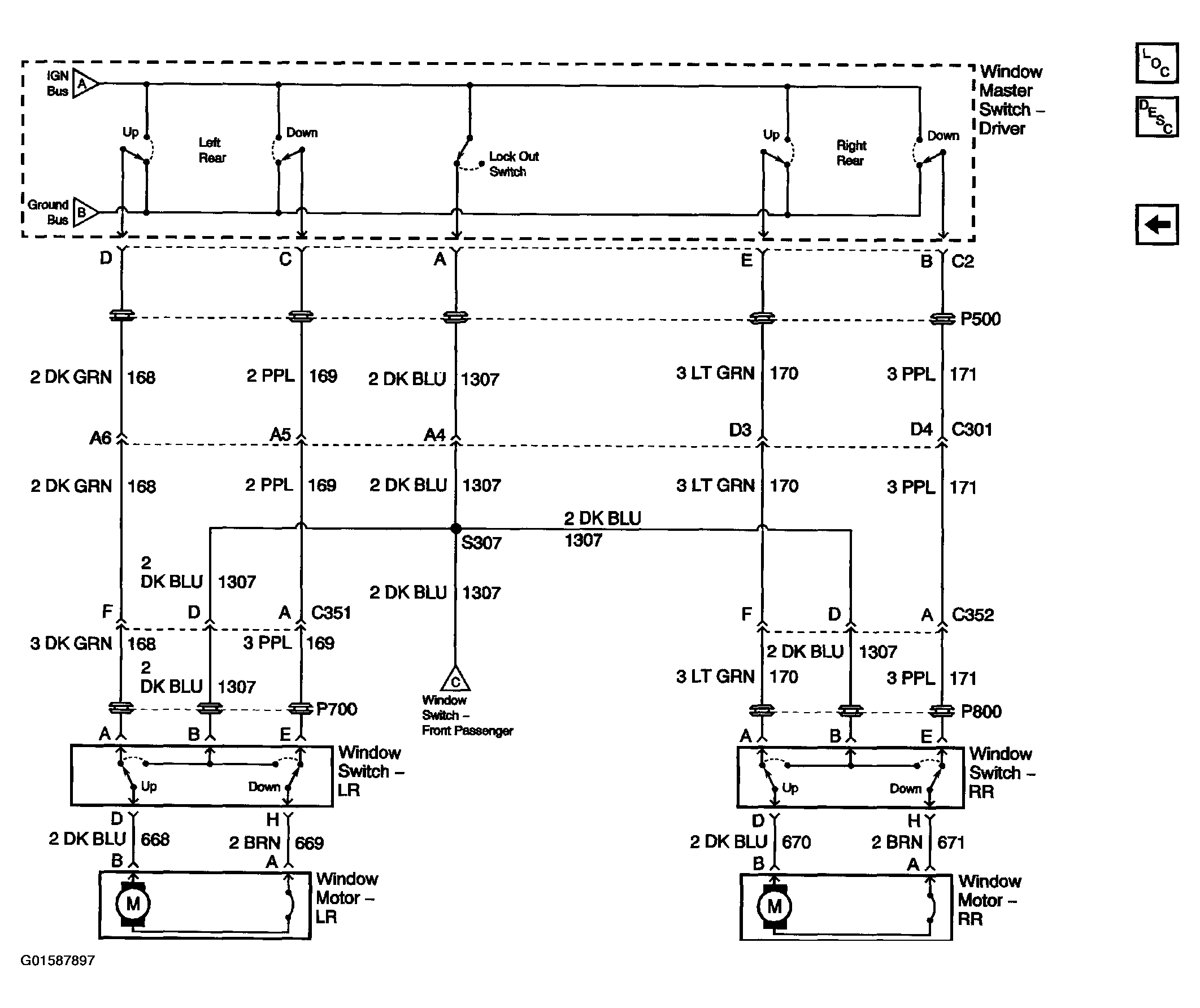

Fig 2: Rear Window Diagram
G01587897Courtesy of GENERAL MOTORS CORP.
