ABS Connector End Views

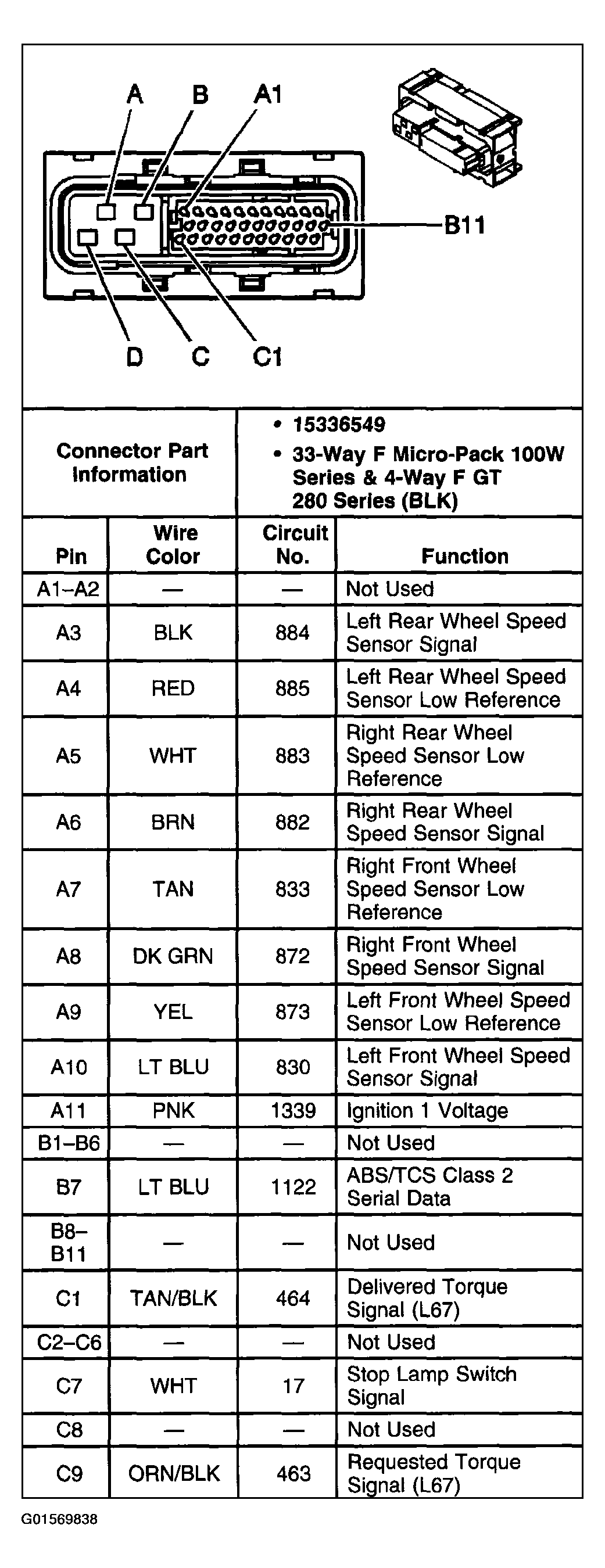

Fig 1: Electronic Brake Control Module (EBCM) Connector End View (1 Of 2)
G01569838Courtesy of GENERAL MOTORS CORP.

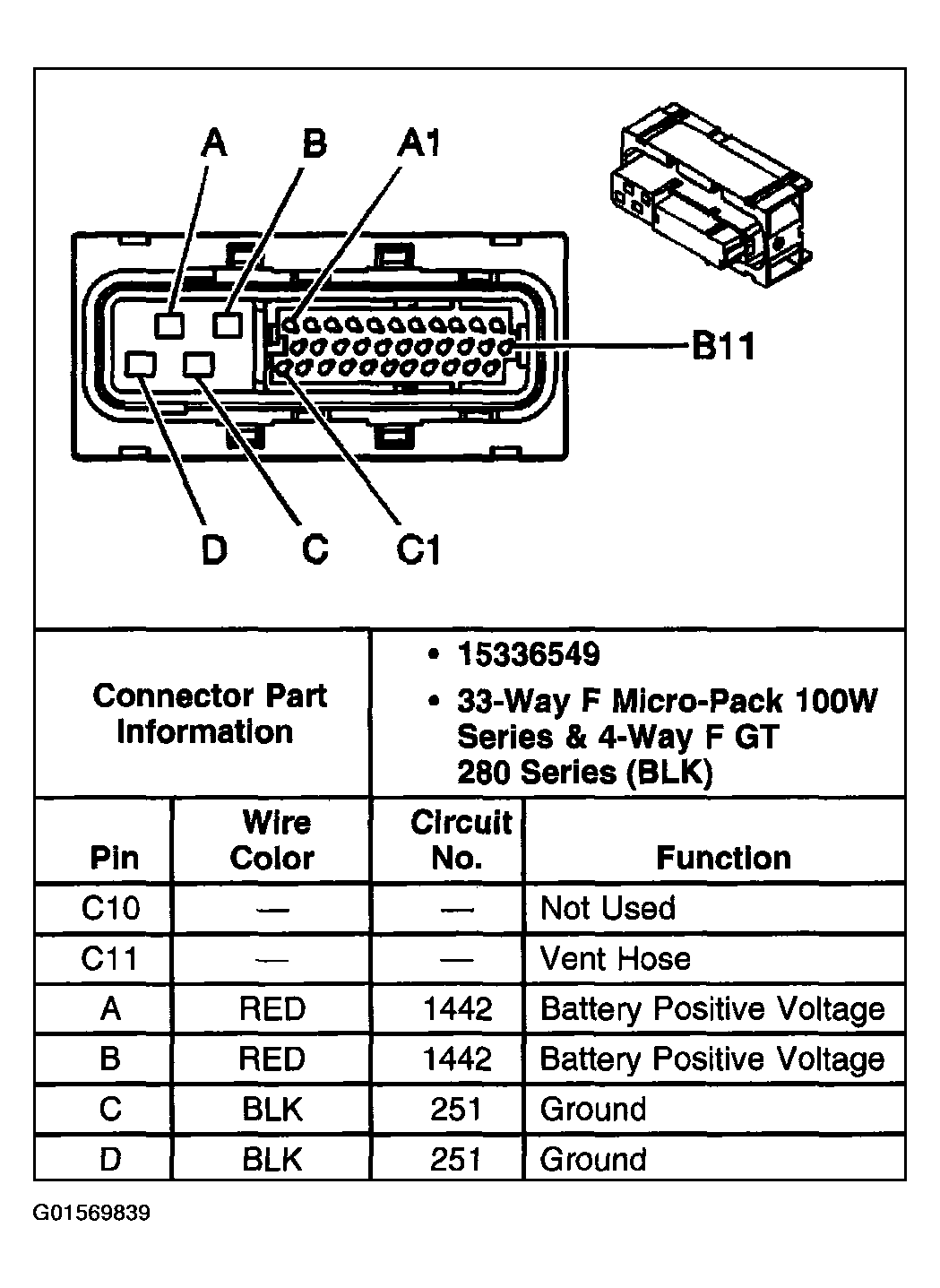

Fig 2: Electronic Brake Control Module (EBCM) Connector End View (2 Of 2)
G01569839Courtesy of GENERAL MOTORS CORP.

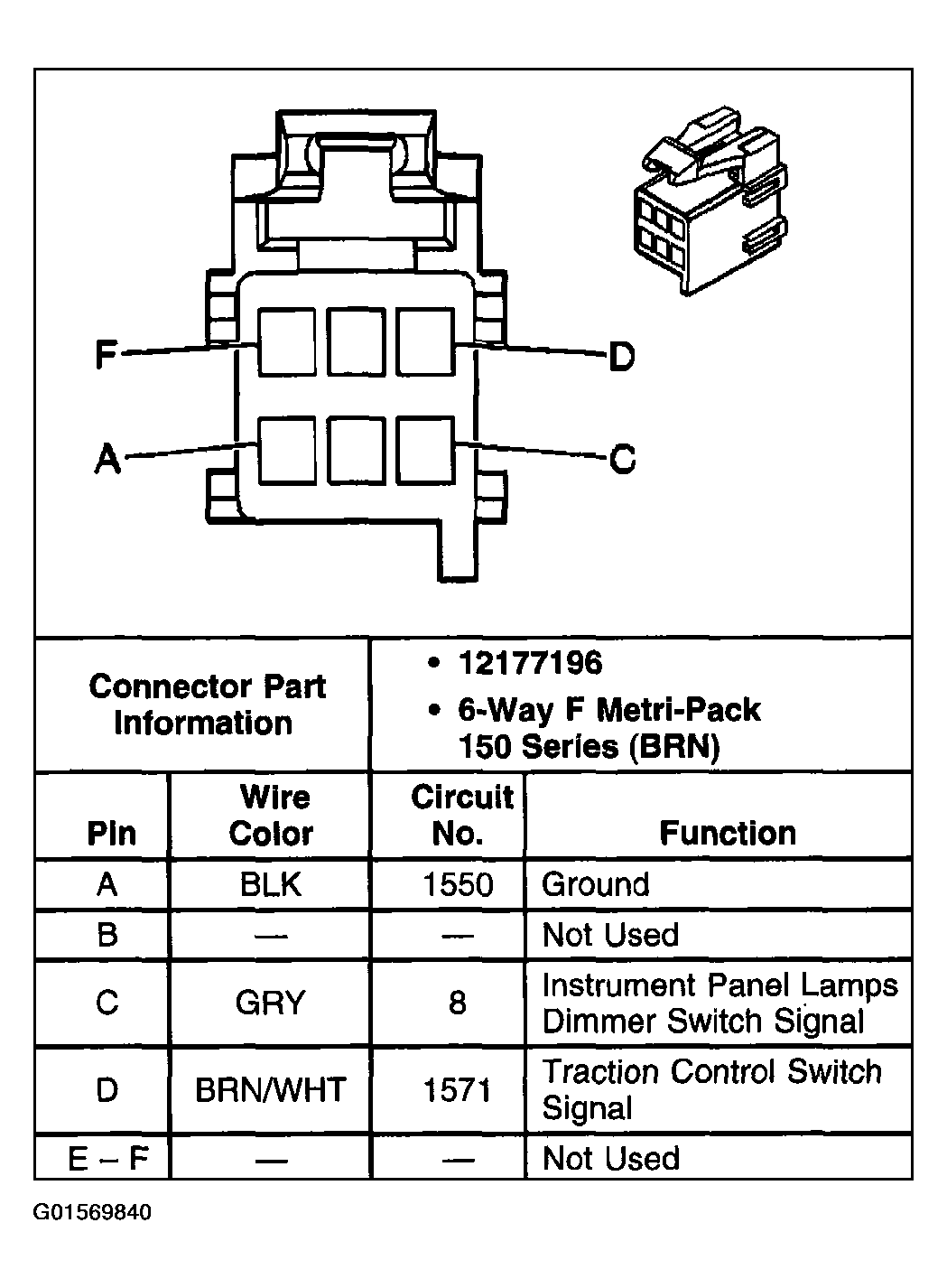

Fig 3: Traction Control Switch Connector End View
G01569840Courtesy of GENERAL MOTORS CORP.

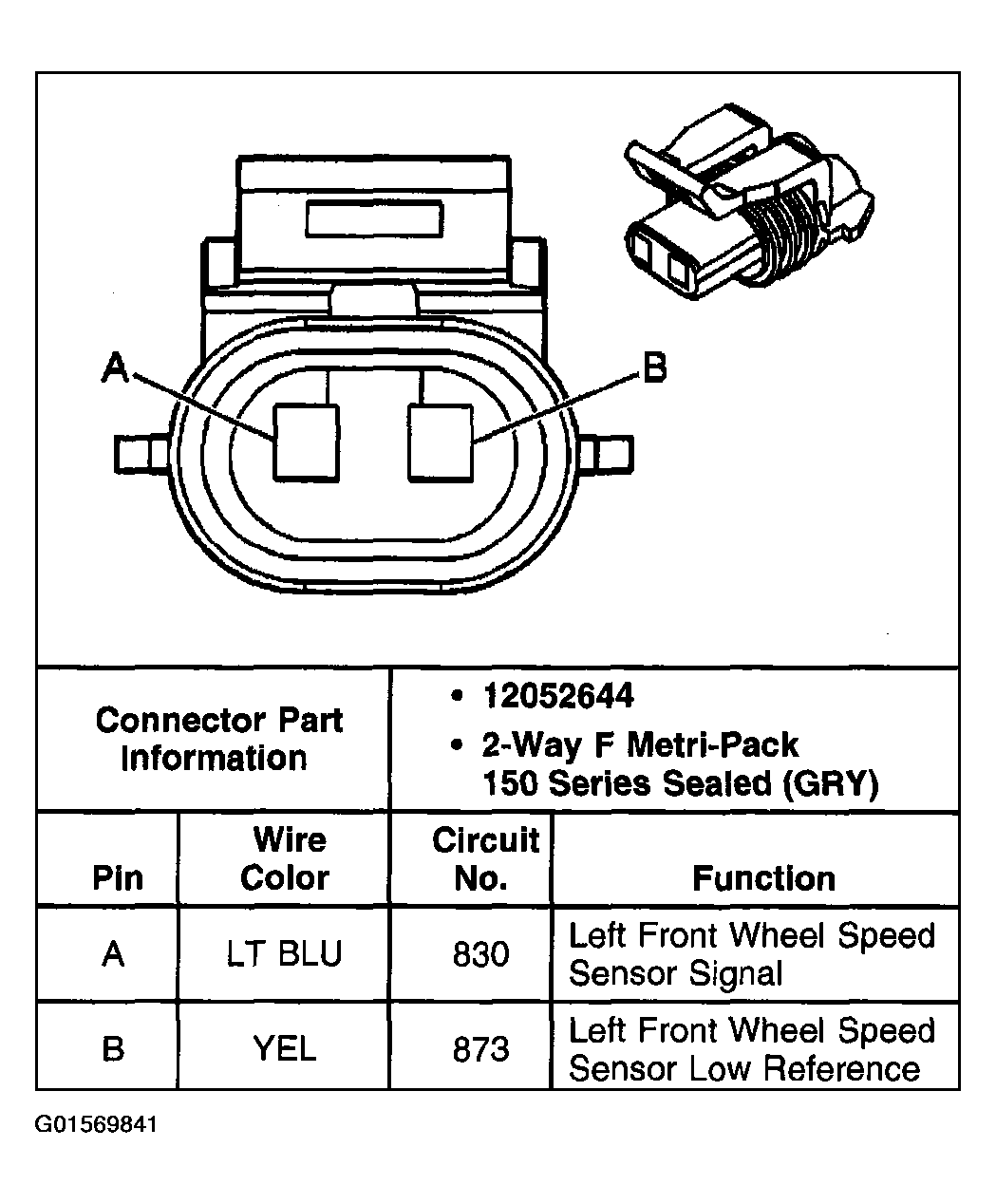

Fig 4: Wheel Speed Sensor (WSS) - LF Connector End View
G01569841Courtesy of GENERAL MOTORS CORP.

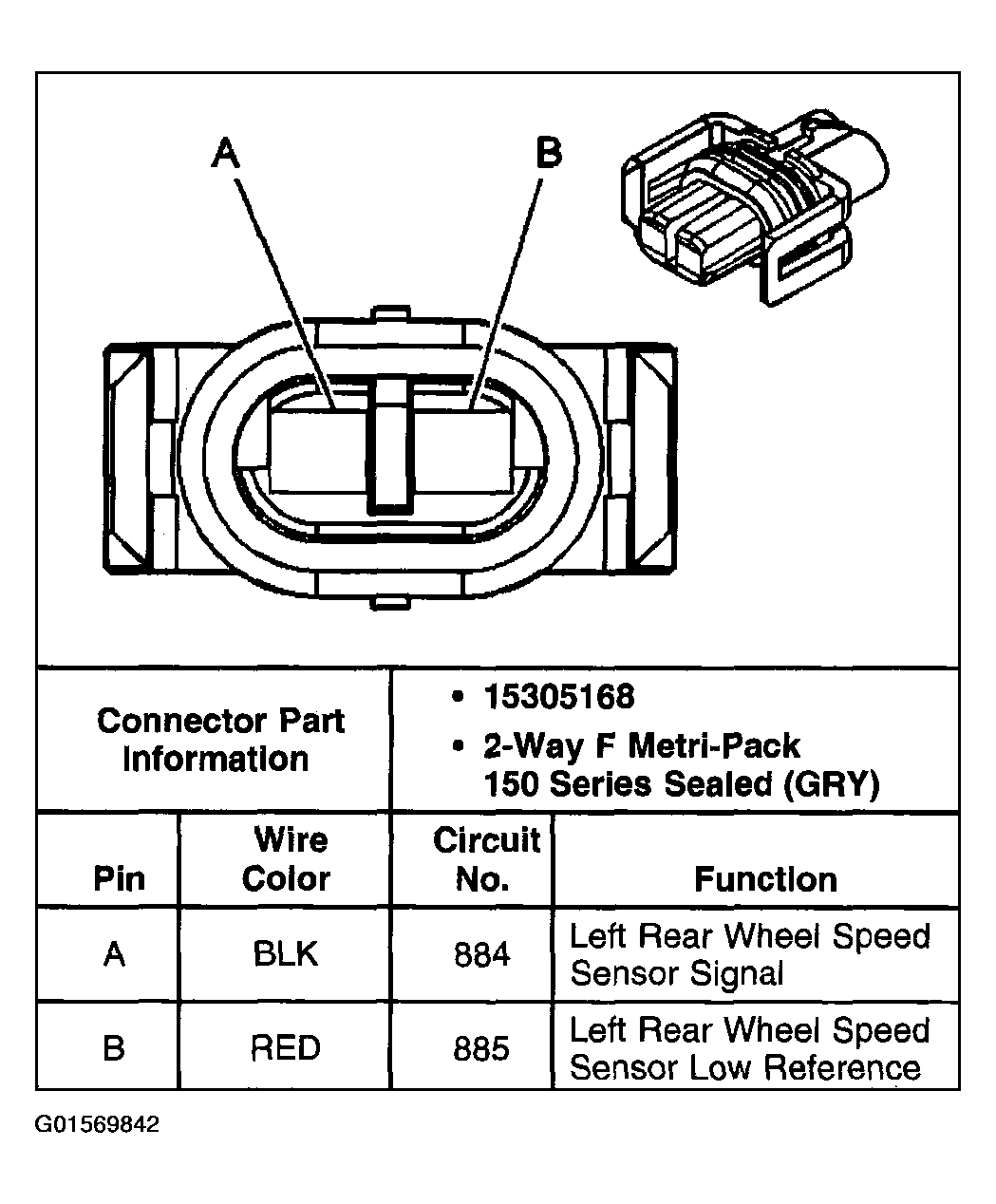

Fig 5: Wheel Speed Sensor (WSS) - LR Connector End View
G01569842Courtesy of GENERAL MOTORS CORP.

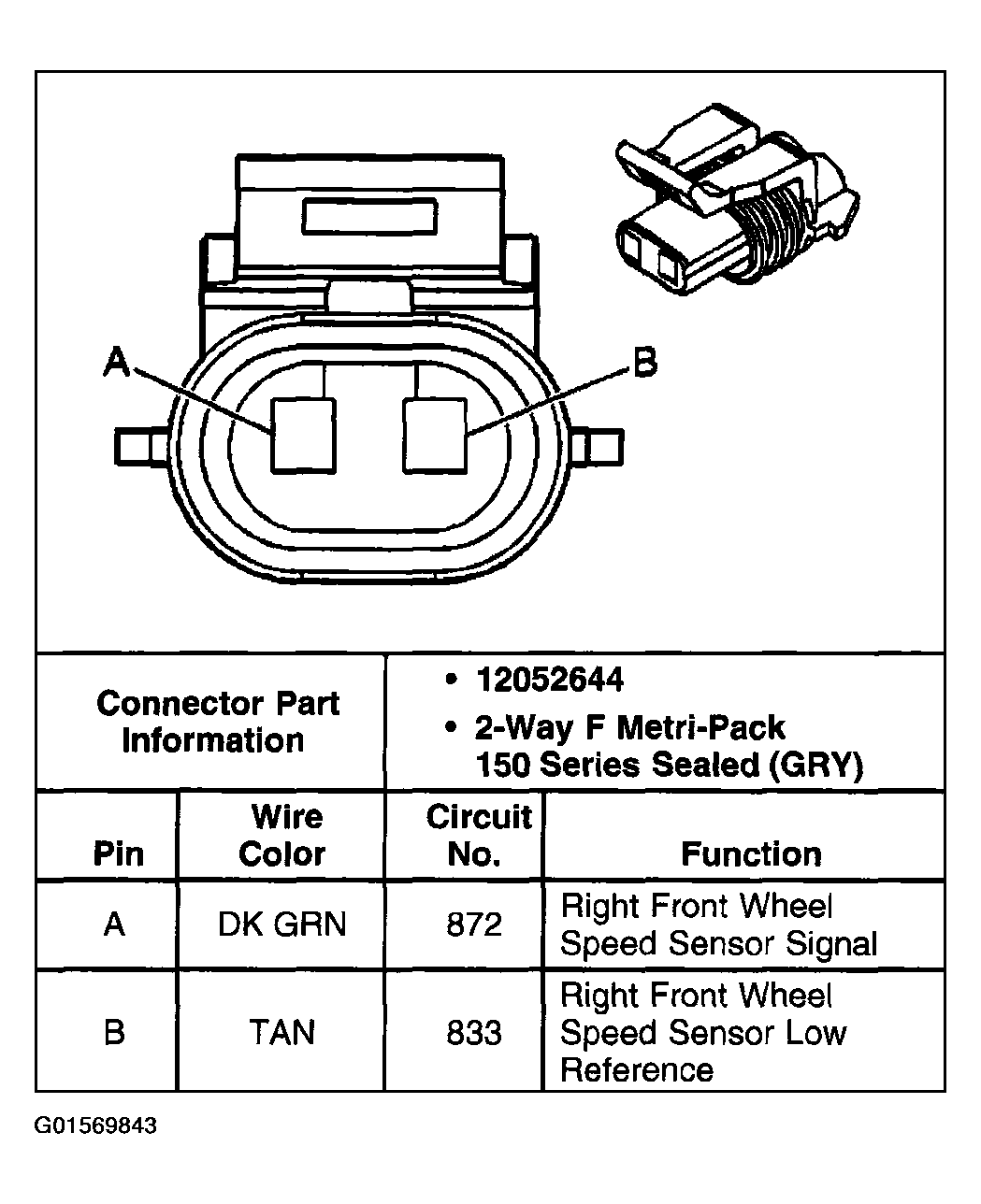

Fig 6: Wheel Speed Sensor (WSS) - RF Connector End View
G01569843Courtesy of GENERAL MOTORS CORP.

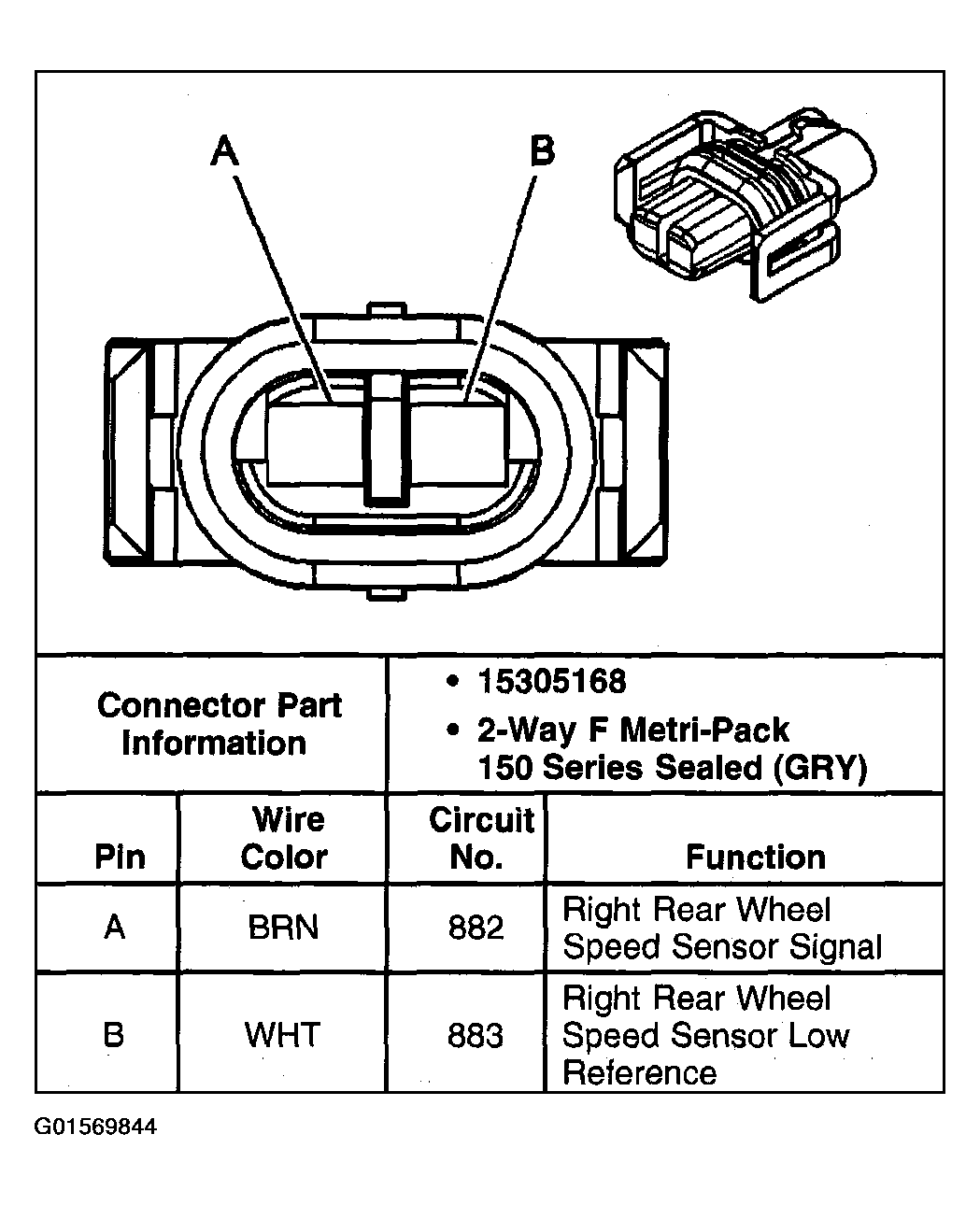

Fig 7: Wheel Speed Sensor (WSS) - RR Connector End View
G01569844Courtesy of GENERAL MOTORS CORP.
