Scan Tool Data List

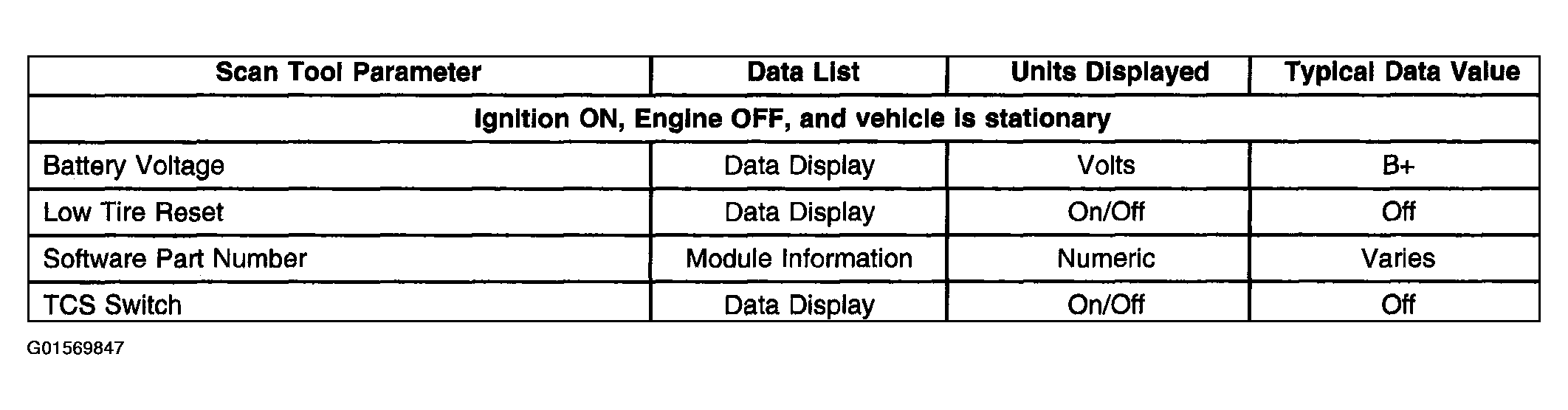

Fig 1: Body Control Module (BCM)

Courtesy of GENERAL MOTORS CORP.

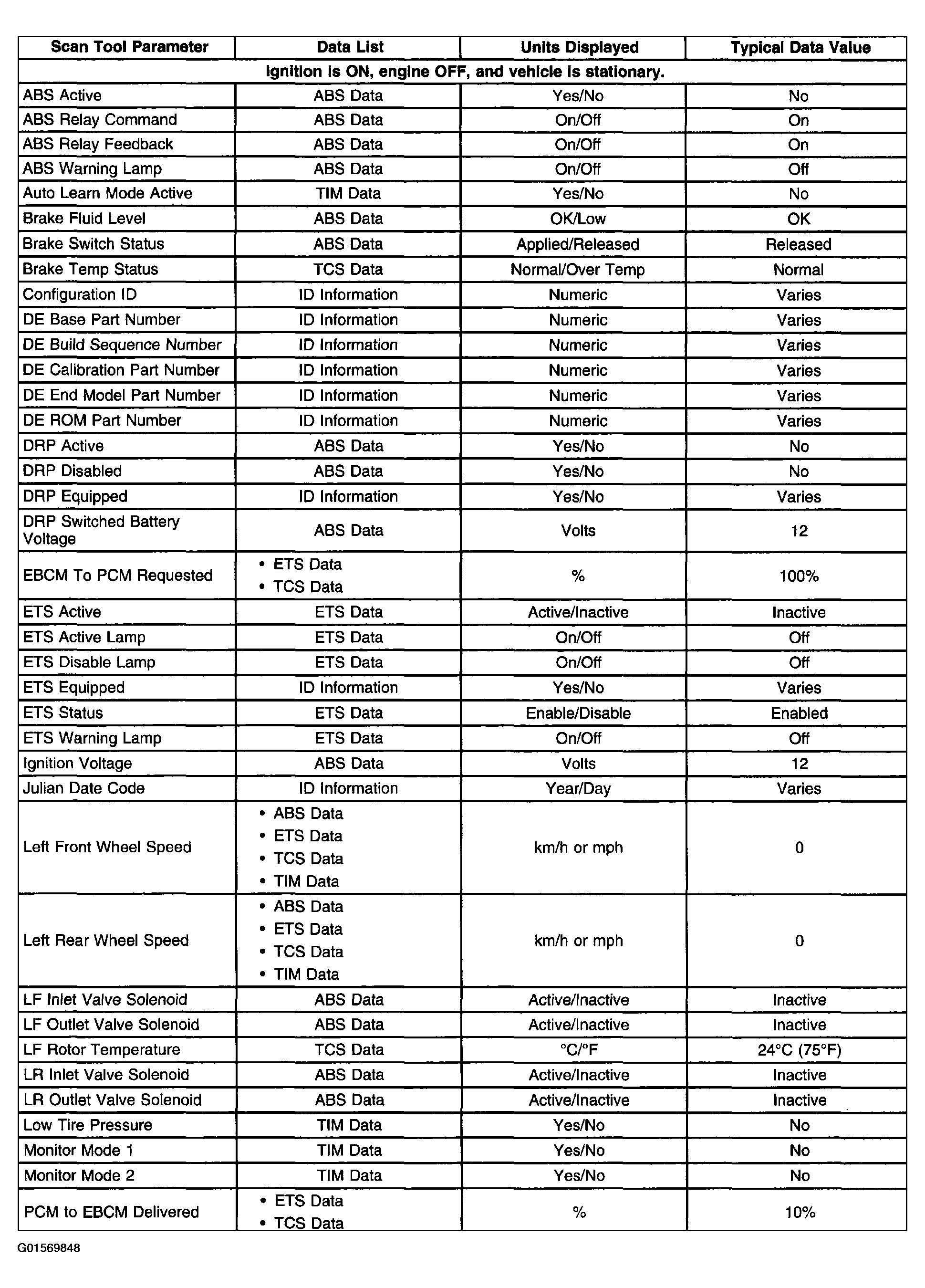

Fig 2: Electronic Brake Control Module (EBCM) - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

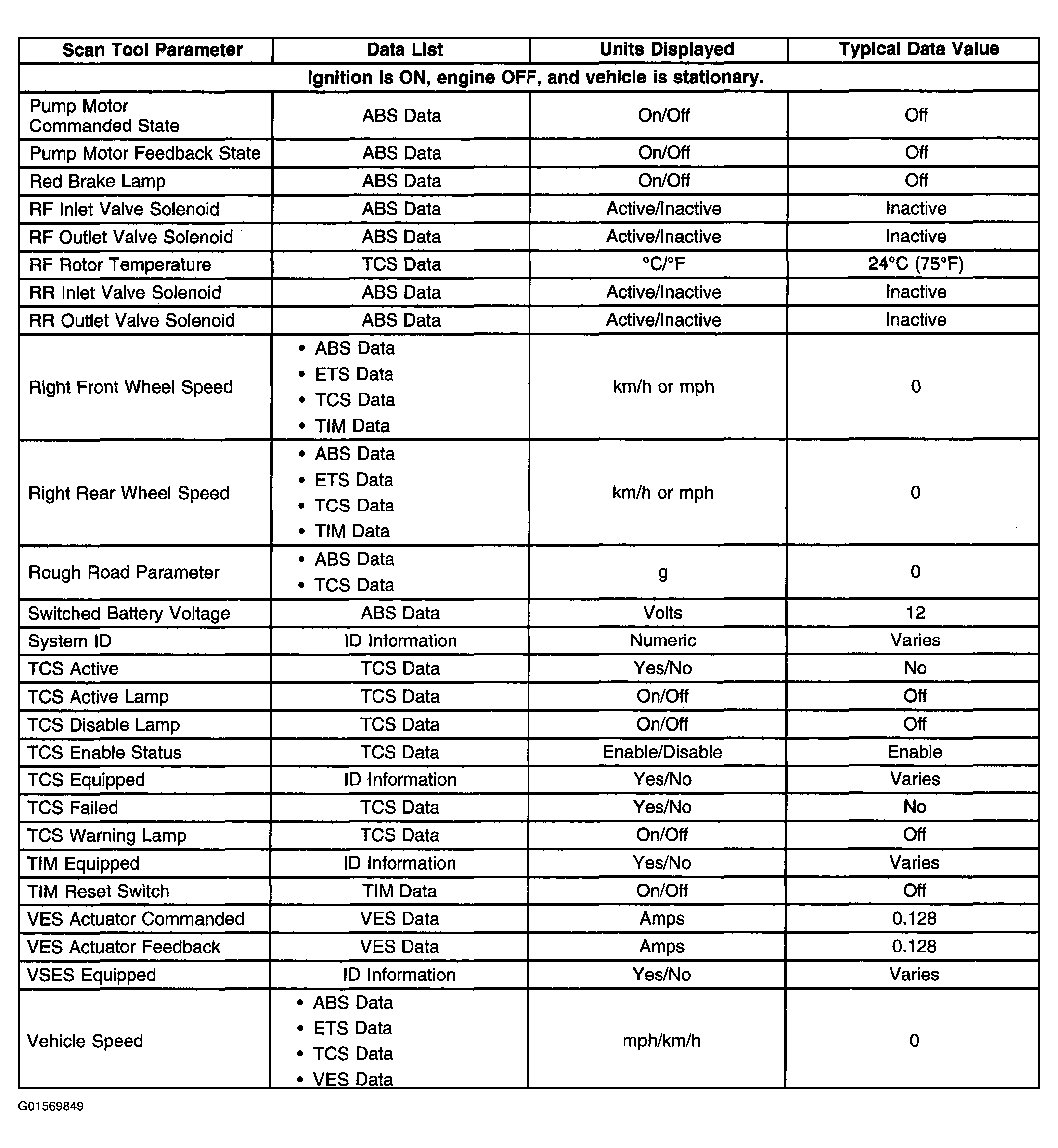

Fig 3: Electronic Brake Control Module (EBCM) - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

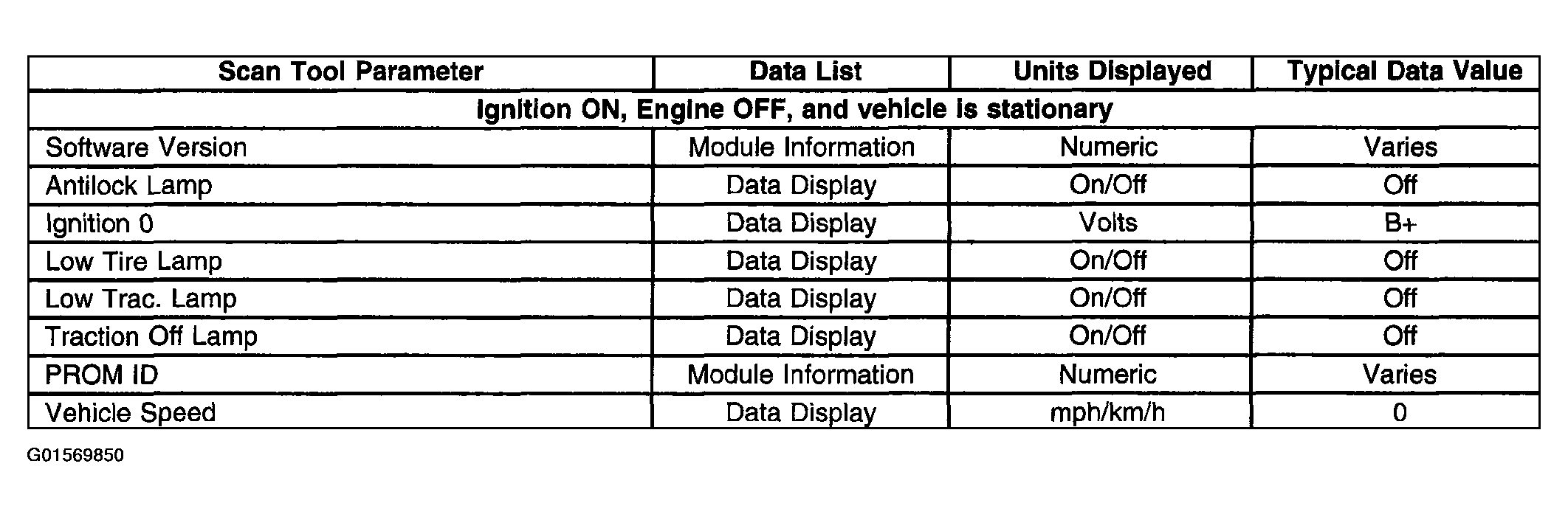

Fig 4: Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

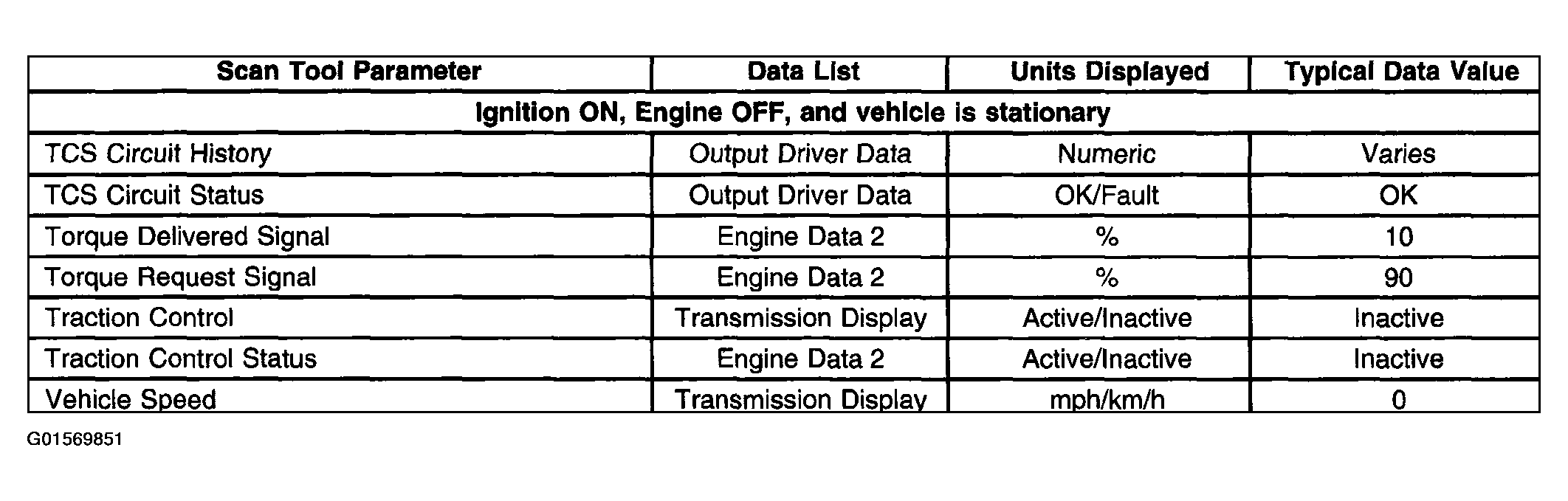

Fig 5: Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.
