ABS Schematics

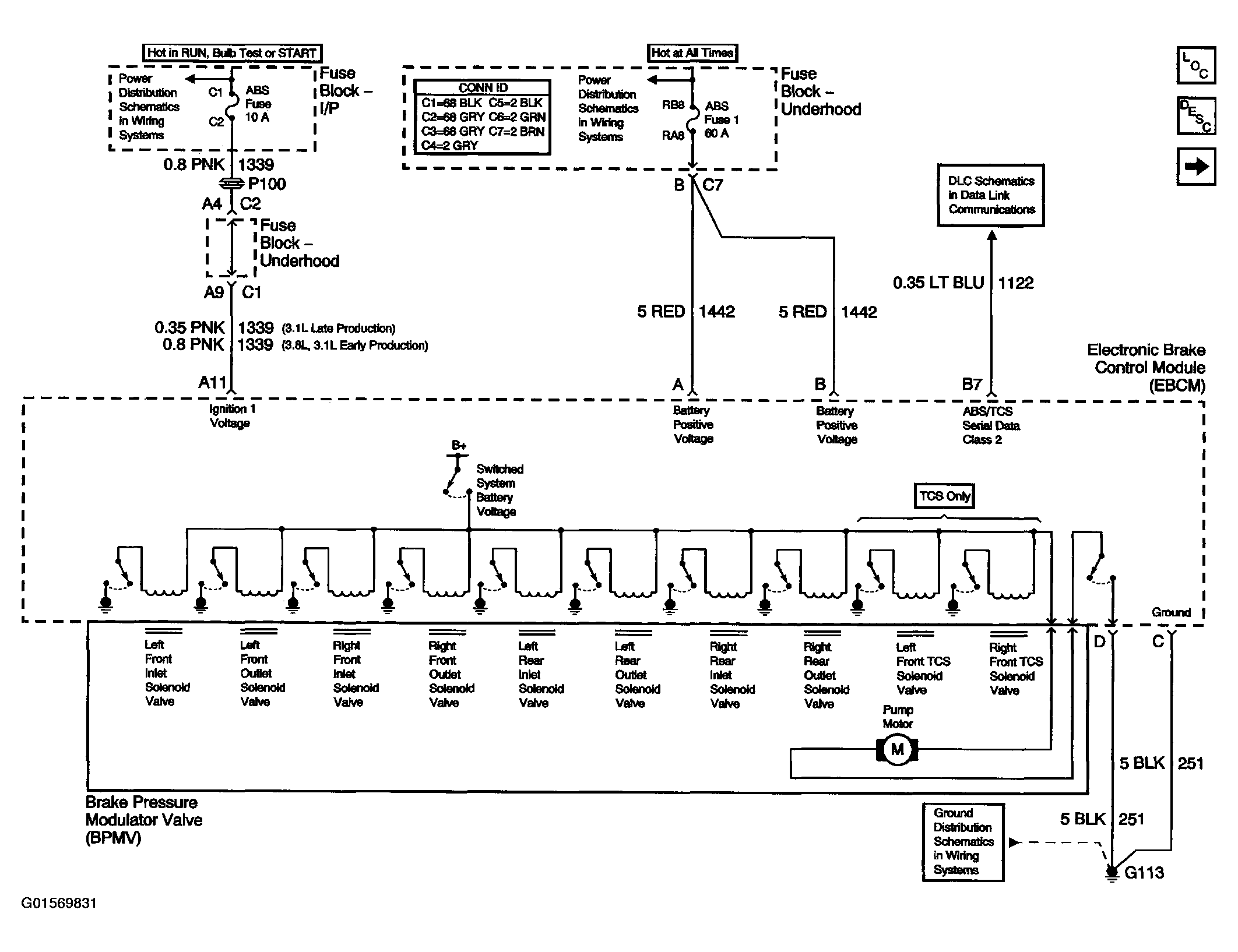

Fig 1: ABS Schematics (Power, Ground, and Serial Data)

Courtesy of GENERAL MOTORS CORP.

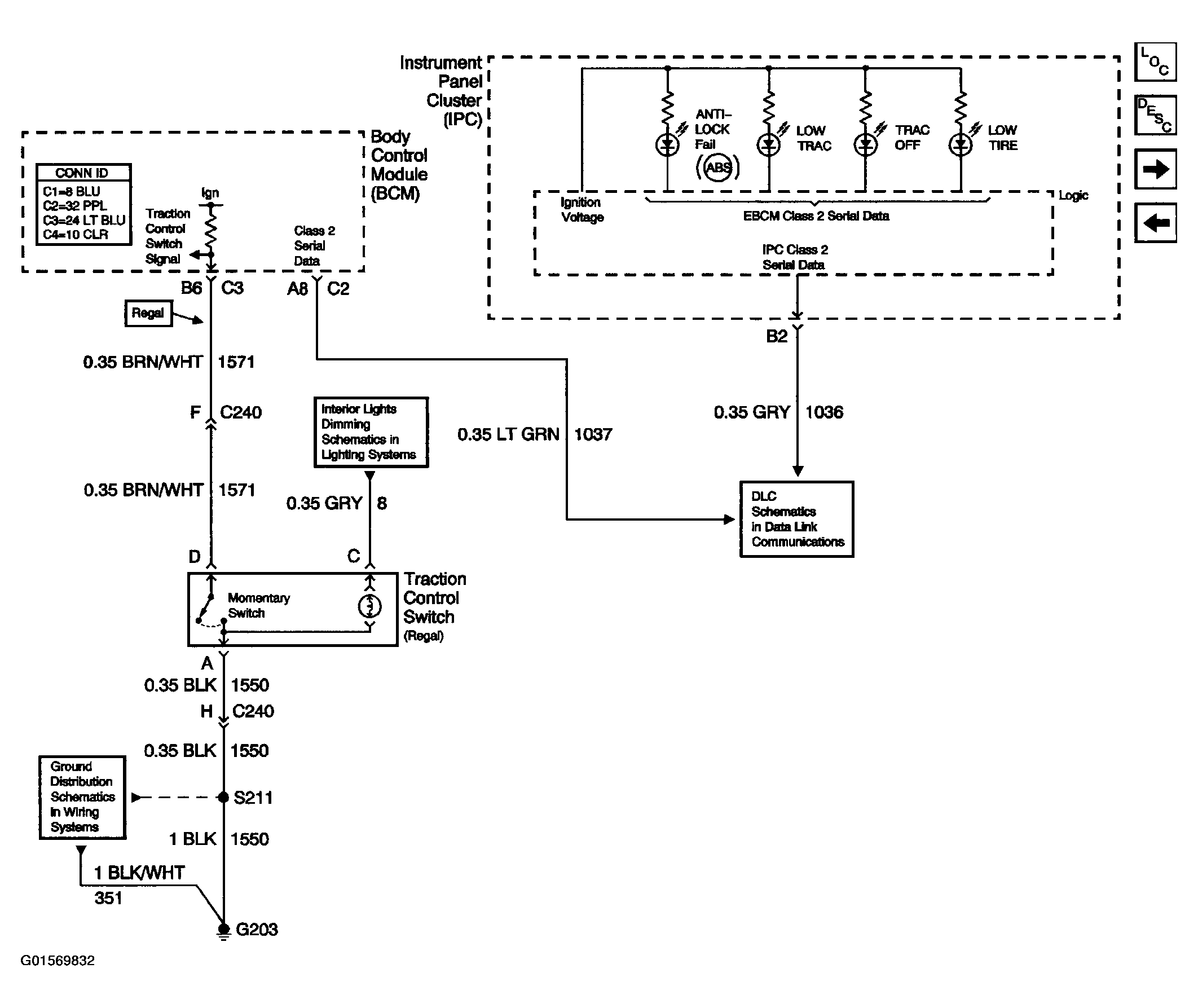

Fig 2: ABS Schematics (Indicators)

Courtesy of GENERAL MOTORS CORP.

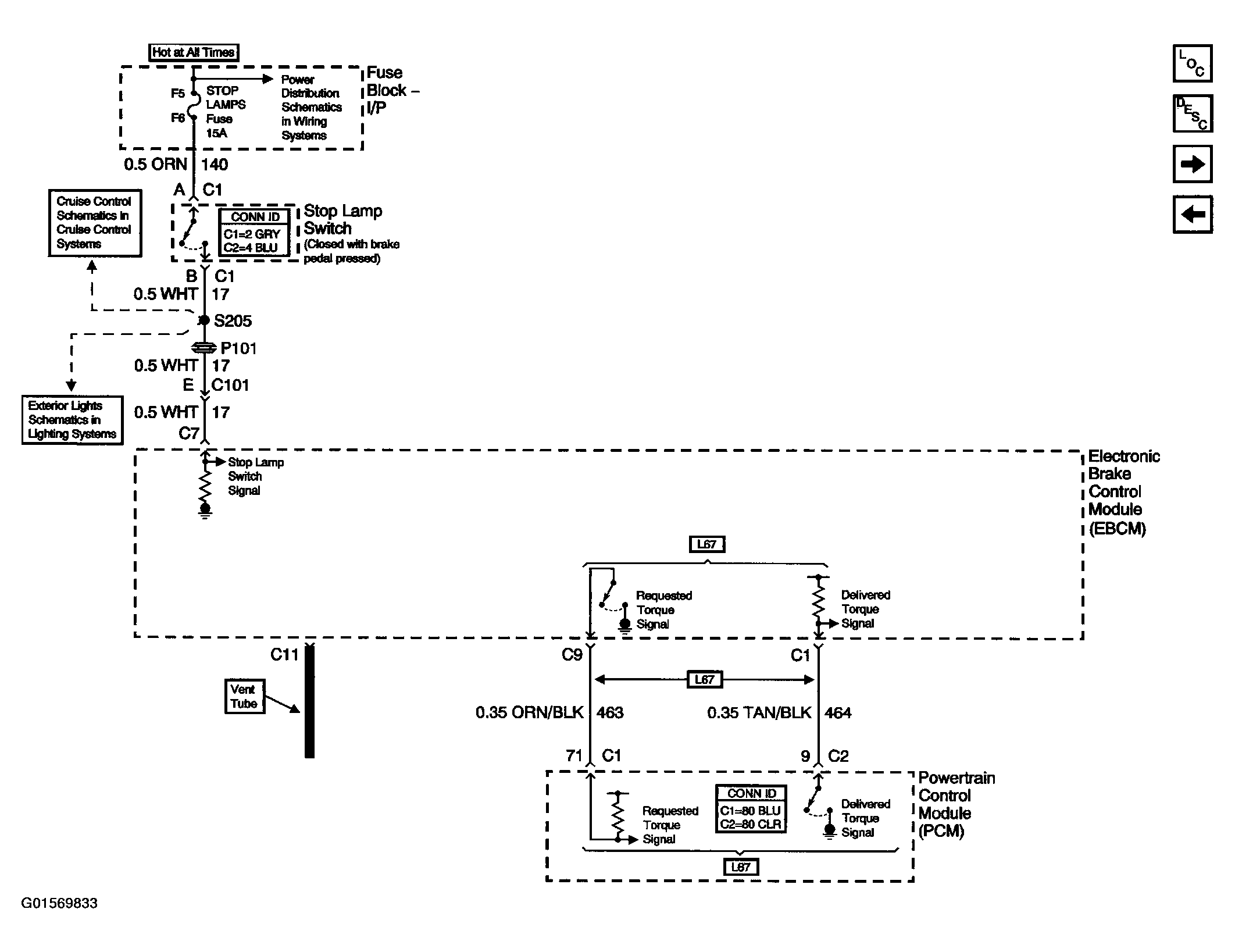

Fig 3: ABS Schematics (Stop Lamp and Torque Signals)

Courtesy of GENERAL MOTORS CORP.

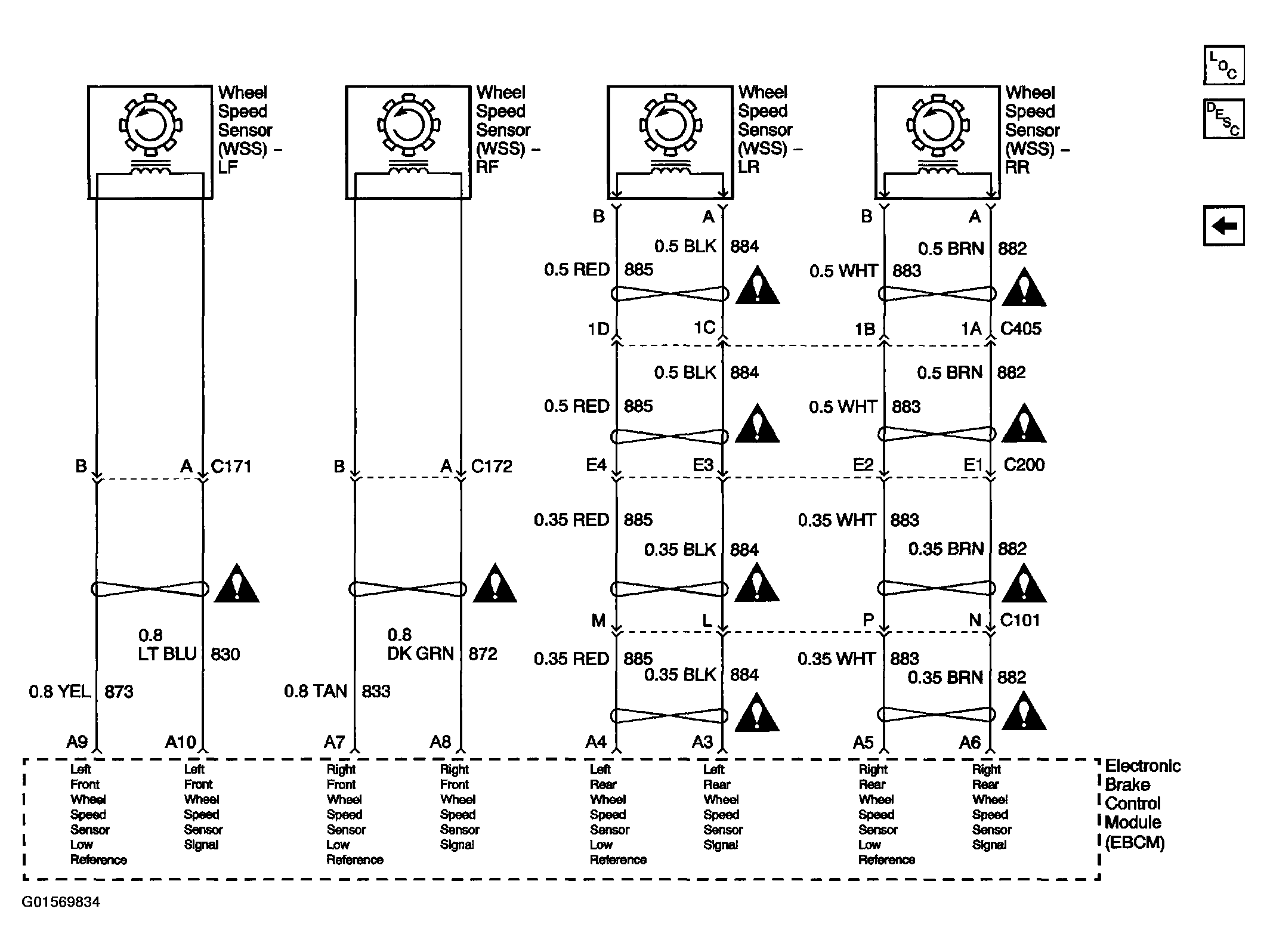

Fig 4: ABS Schematics (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.
