Installation Procedure

Important:

• Never use a hammer to install the power steering pulley.
• The face of the power steering pulley hub must be flush with the end of the power steering pump driveshaft.

1. Using J 25033-C  install the power steering pump pulley to the power steering pump.

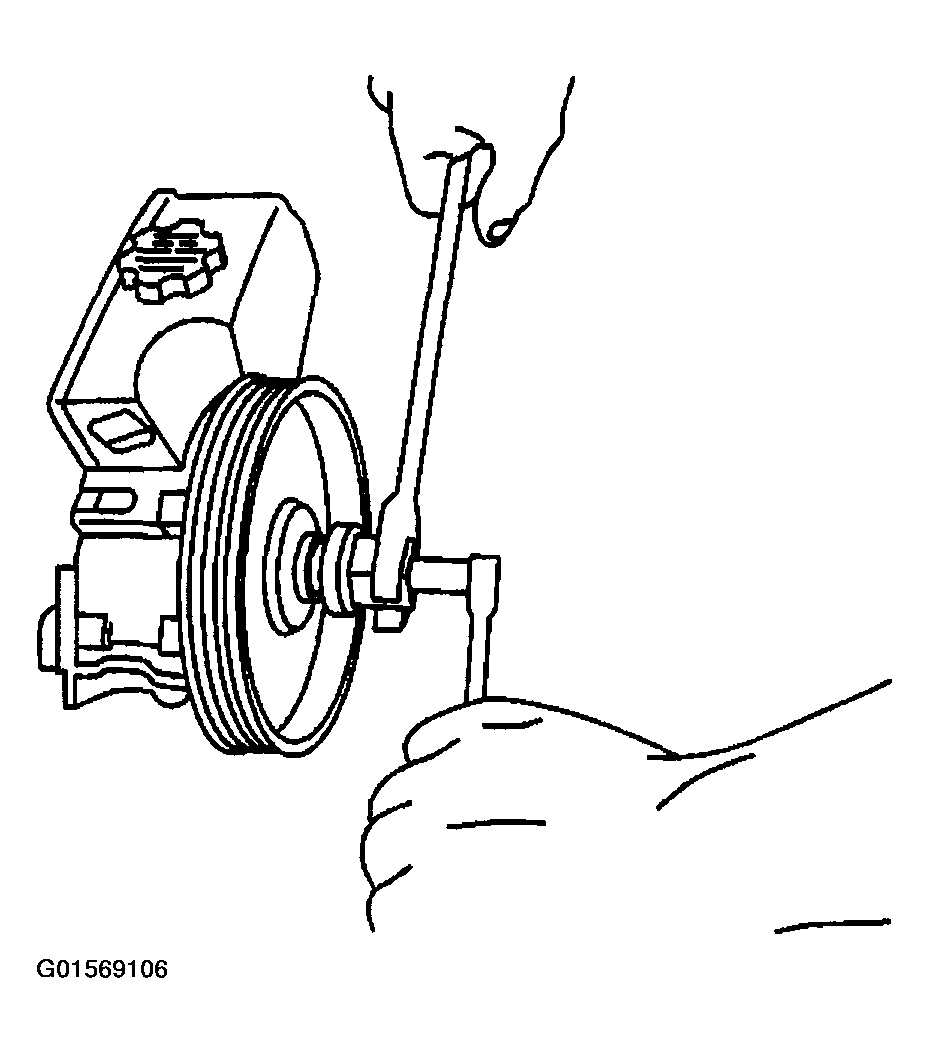

   Fig 1: Installing Power Steering Pump Pulley

   Courtesy of GENERAL MOTORS CORP.
2. Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical-3.1L.
3. Fill the power steering system. Refer to CHECKING AND ADDING POWER STEERING FLUID  .
4. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
5. Inspect the power steering system for leaks. Refer to POWER STEERING FLUID LEAKS  .
