Installation Procedure

Important:

• Never use a hammer to install the power steering pulley.
• The face of the power steering pulley hub must be flush with the end of the power steering pump driveshaft.

1. Using J 25033-C  install the power steering pump pulley to the power steering pump.

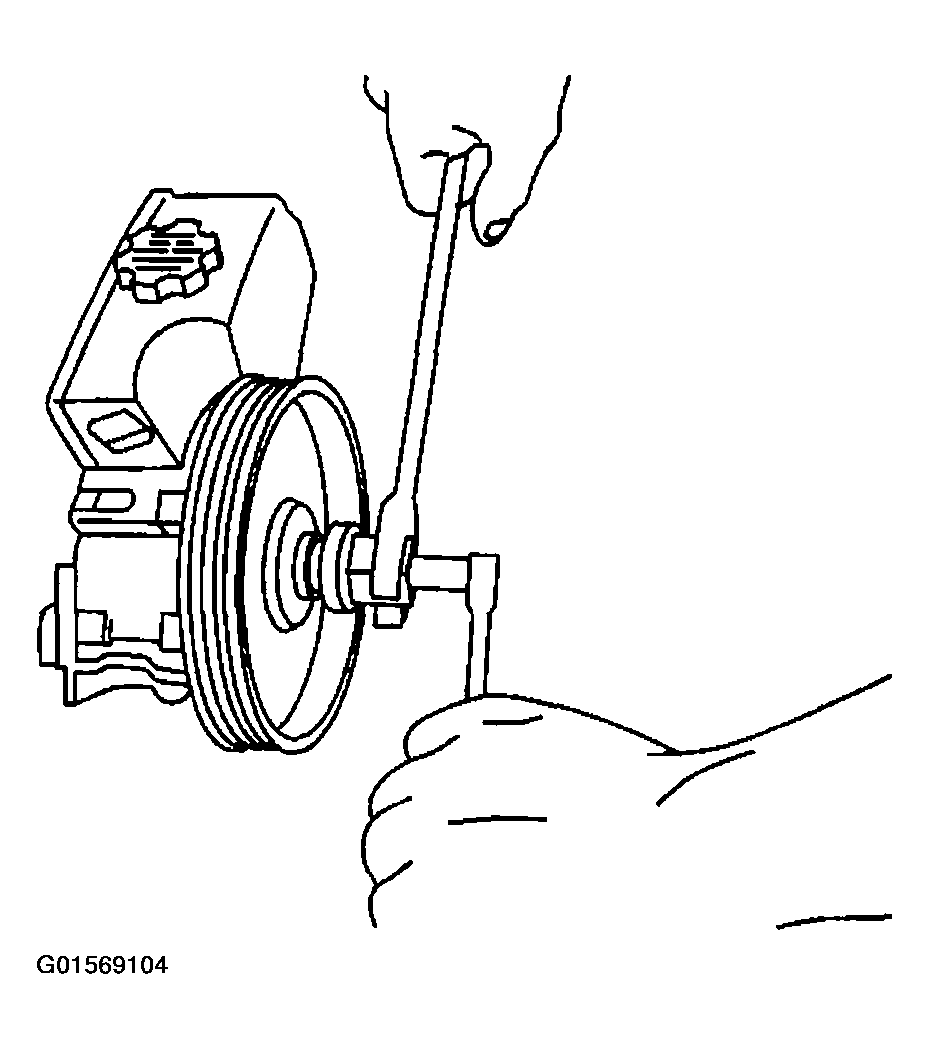

   Fig 1: Installing Power Steering Pump Pulley

   Courtesy of GENERAL MOTORS CORP.
2. Install the power steering pump to the engine. Refer to POWER STEERING PUMP REPLACEMENT (3.8L)  or POWER STEERING PUMP REPLACEMENT (3.1L)  .
3. Fill the power steering system. Refer to CHECKING AND ADDING POWER STEERING FLUID  .
4. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
5. Inspect the power steering system for leaks. Refer to POWER STEERING FLUID LEAKS  .
