Lock System Does Not Lock

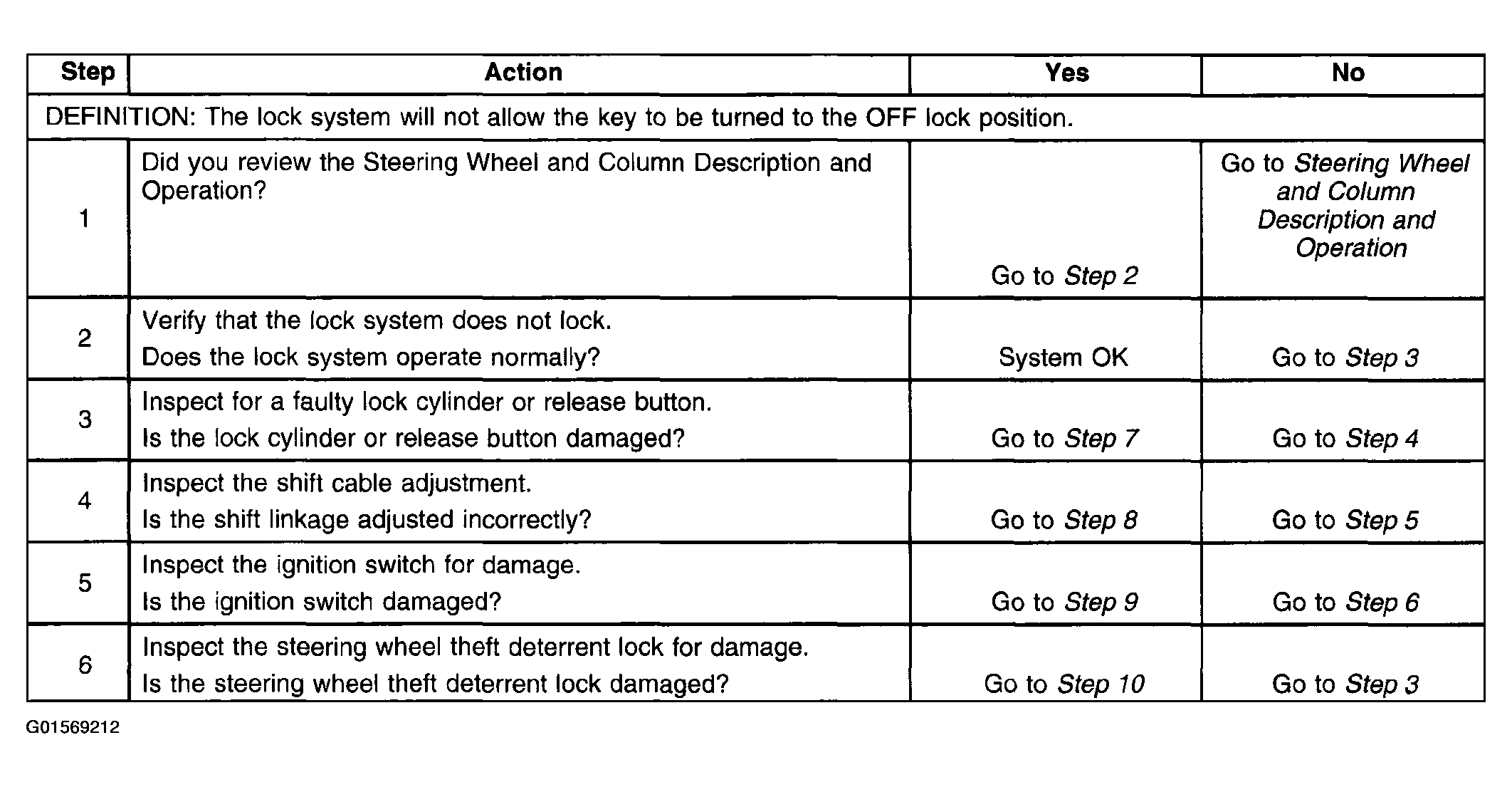

Fig 1: Lock System Does Not Lock (Steps 1-6)
G01569212Courtesy of GENERAL MOTORS CORP.

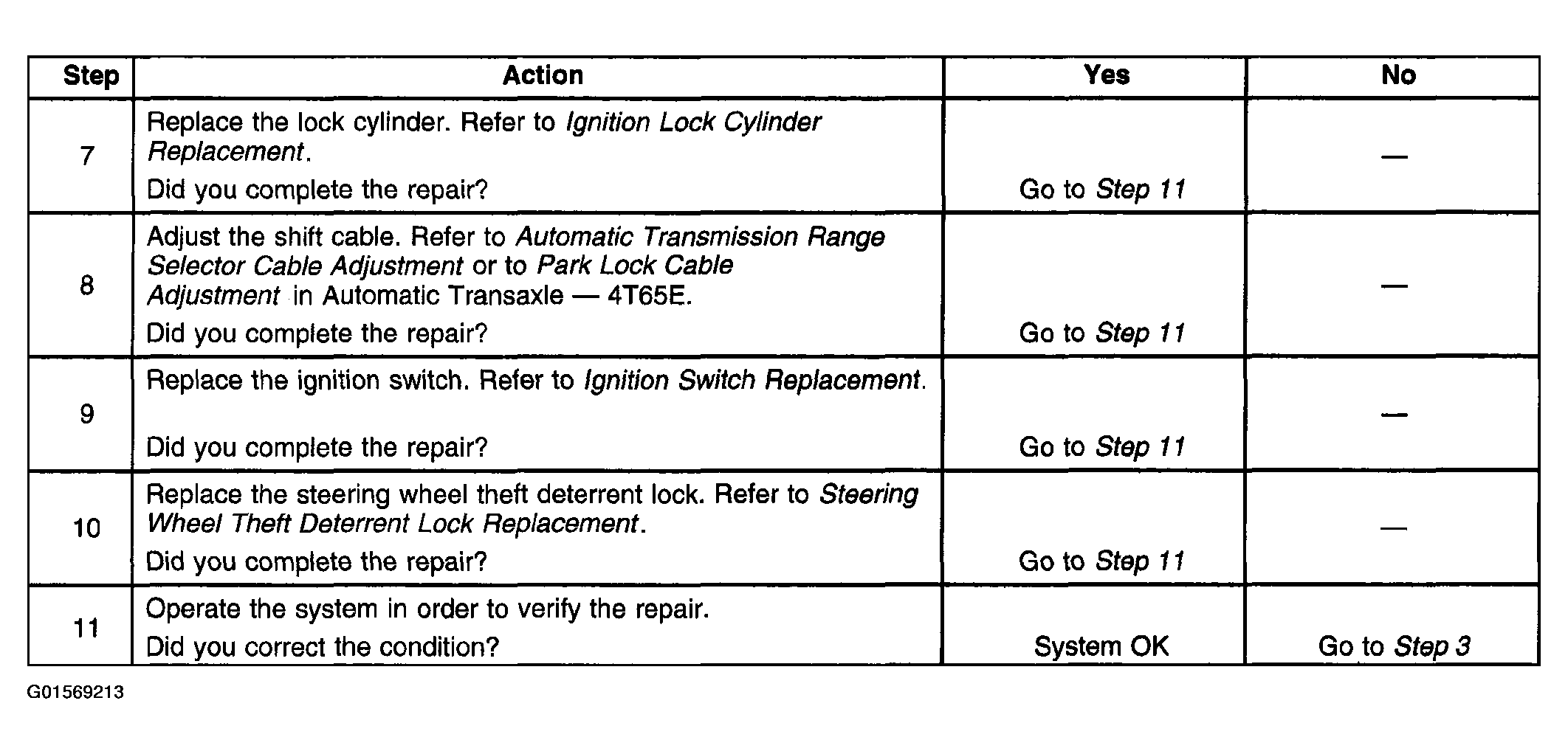

Fig 2: Lock System Does Not Lock (Steps 7-11)
G01569213Courtesy of GENERAL MOTORS CORP.
