Installation Procedure

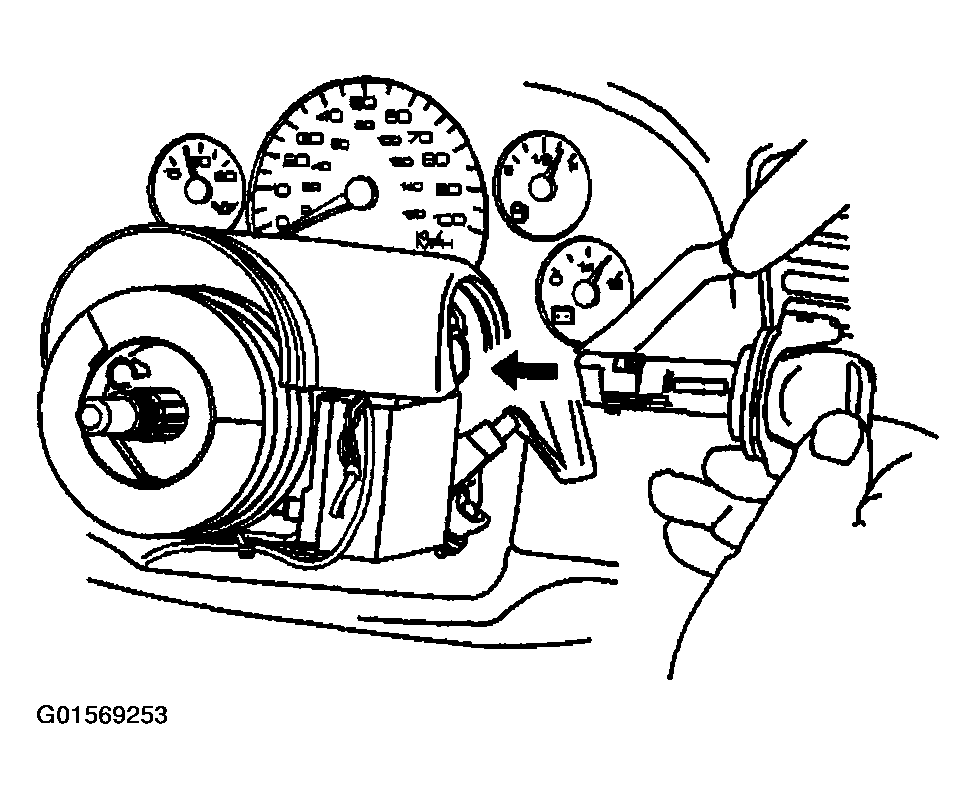

- Install the ignition lock cylinder by performing the following procedure:
- 1.1. Align the positioning locking tab slot on the lock module to the positioning tab on the ignition lock cylinder.
- 1.2. Push the lock cylinder in until the tab locks in the lock module.
Courtesy of GENERAL MOTORS CORP.
- Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT
.
- Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM
in Air Bag Restraint Systems.
- Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE
in Battery.
- Perform the Passlock learn procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS
in Theft Deterrent.
