Engine Oil Level Sensor Connector End View (If Equipped)

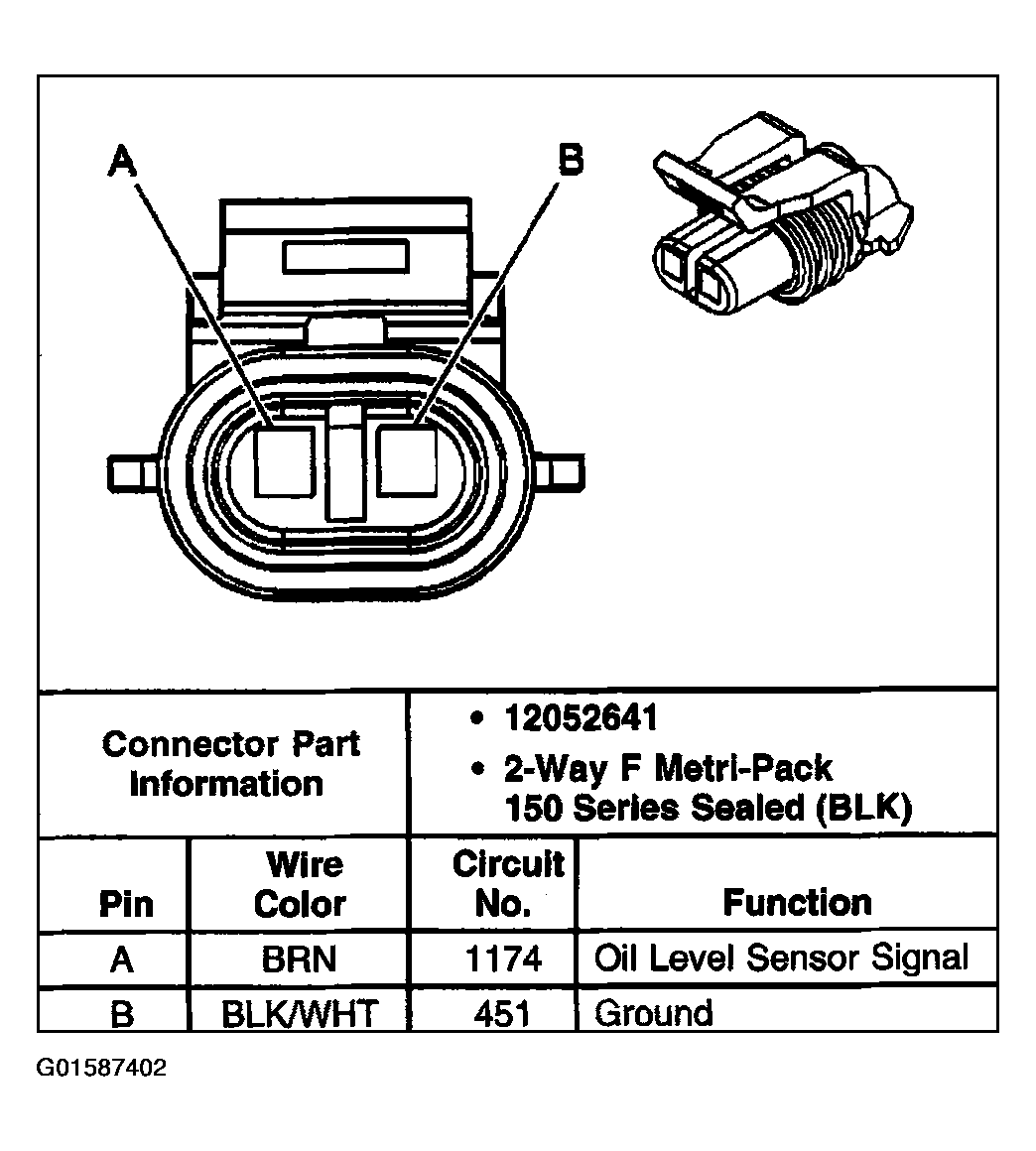

Fig 1: Engine Oil Level Sensor Connector End View (If Equipped)
G01587402Courtesy of GENERAL MOTORS CORP.
