Fuel Pump And Sender Assembly Connector End View

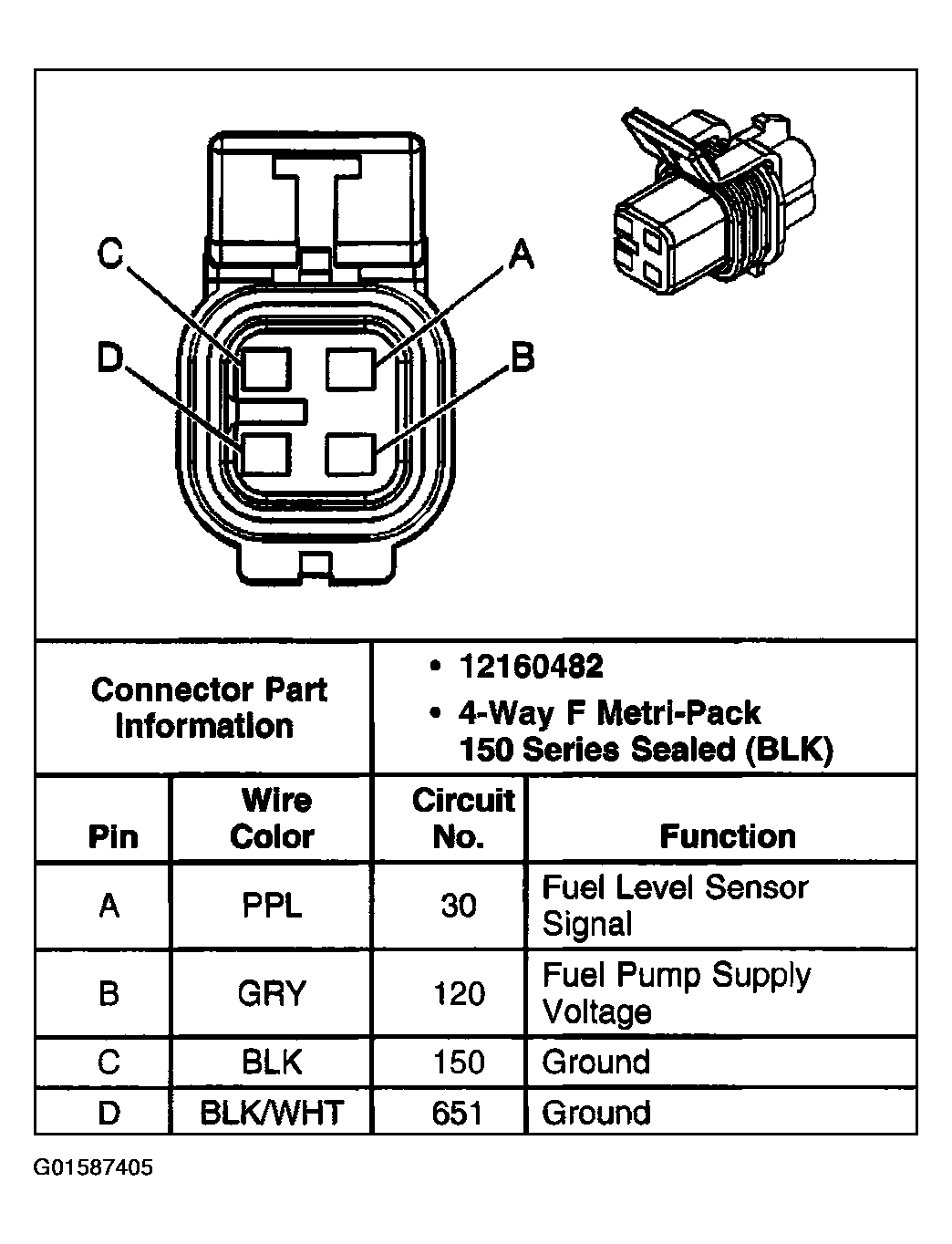

Fig 1: Fuel Pump And Sender Assembly Connector End View
G01587405Courtesy of GENERAL MOTORS CORP.
