Identifying Seat Belt Switch Connector End View - Driver

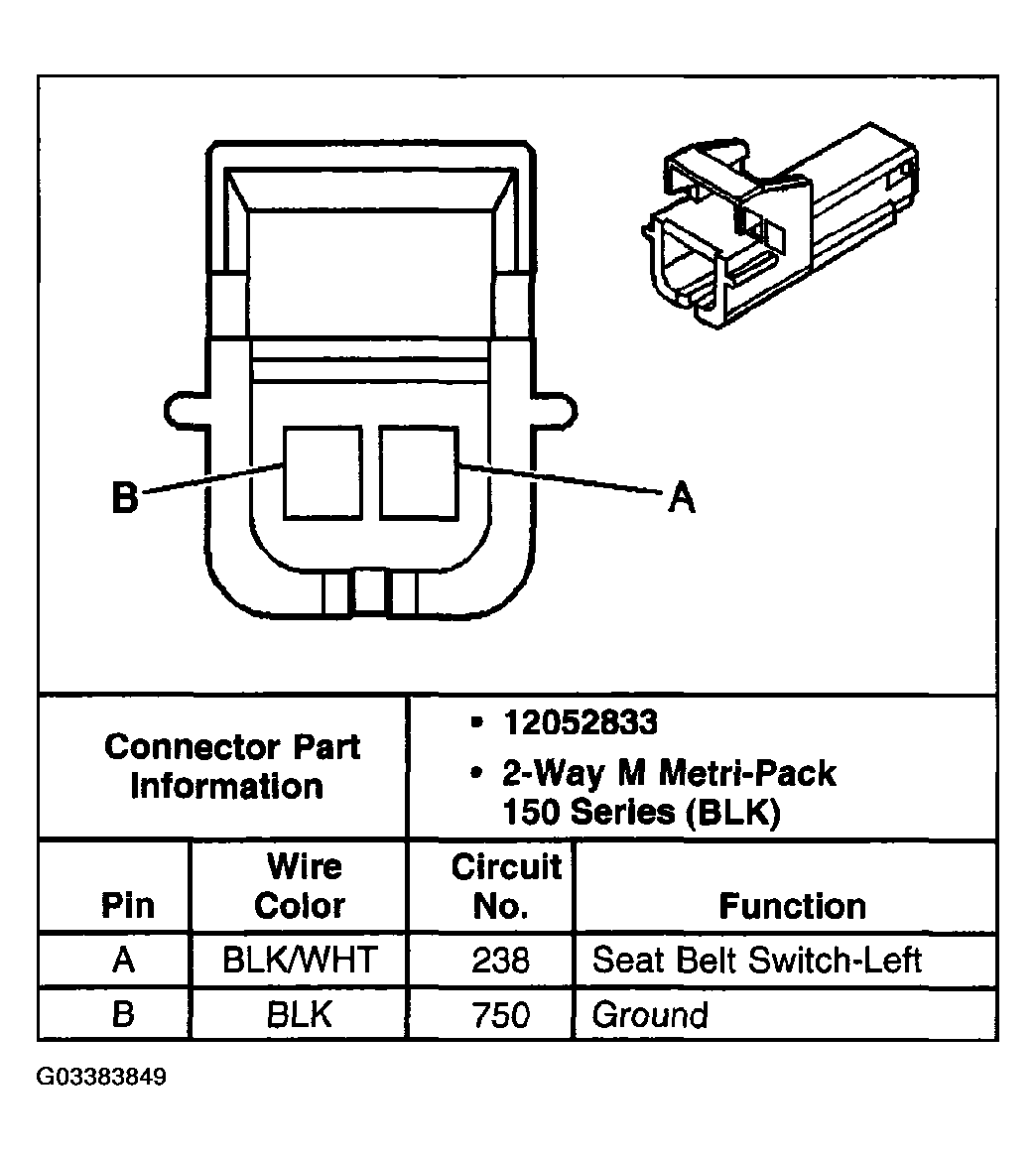

Fig 1: Identifying Seat Belt Switch Connector End View - Driver
G03383849Courtesy of GENERAL MOTORS CORP.
