Horns Component Views

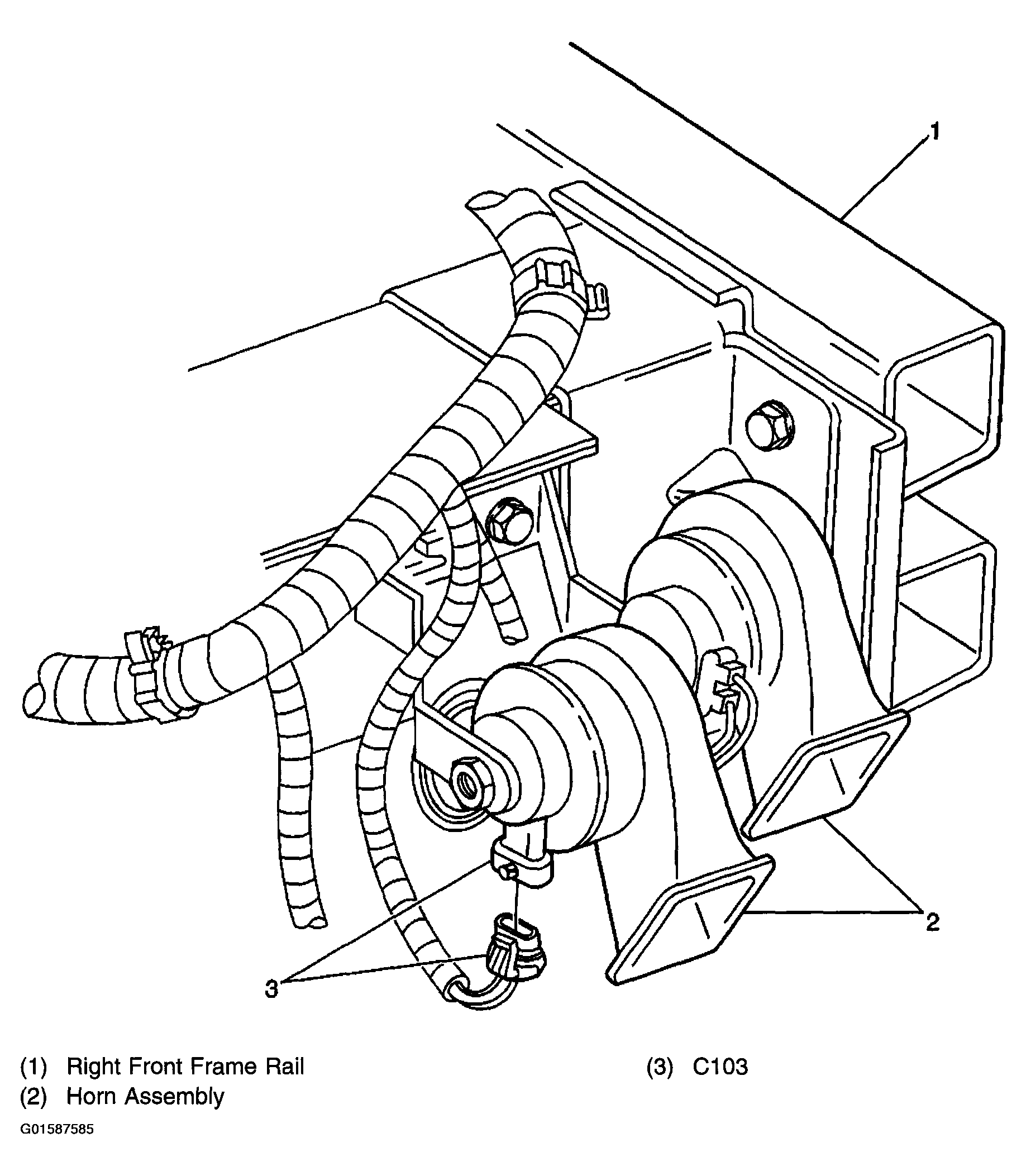

Fig 1: RF Of Vehicle
G01587585Courtesy of GENERAL MOTORS CORP.

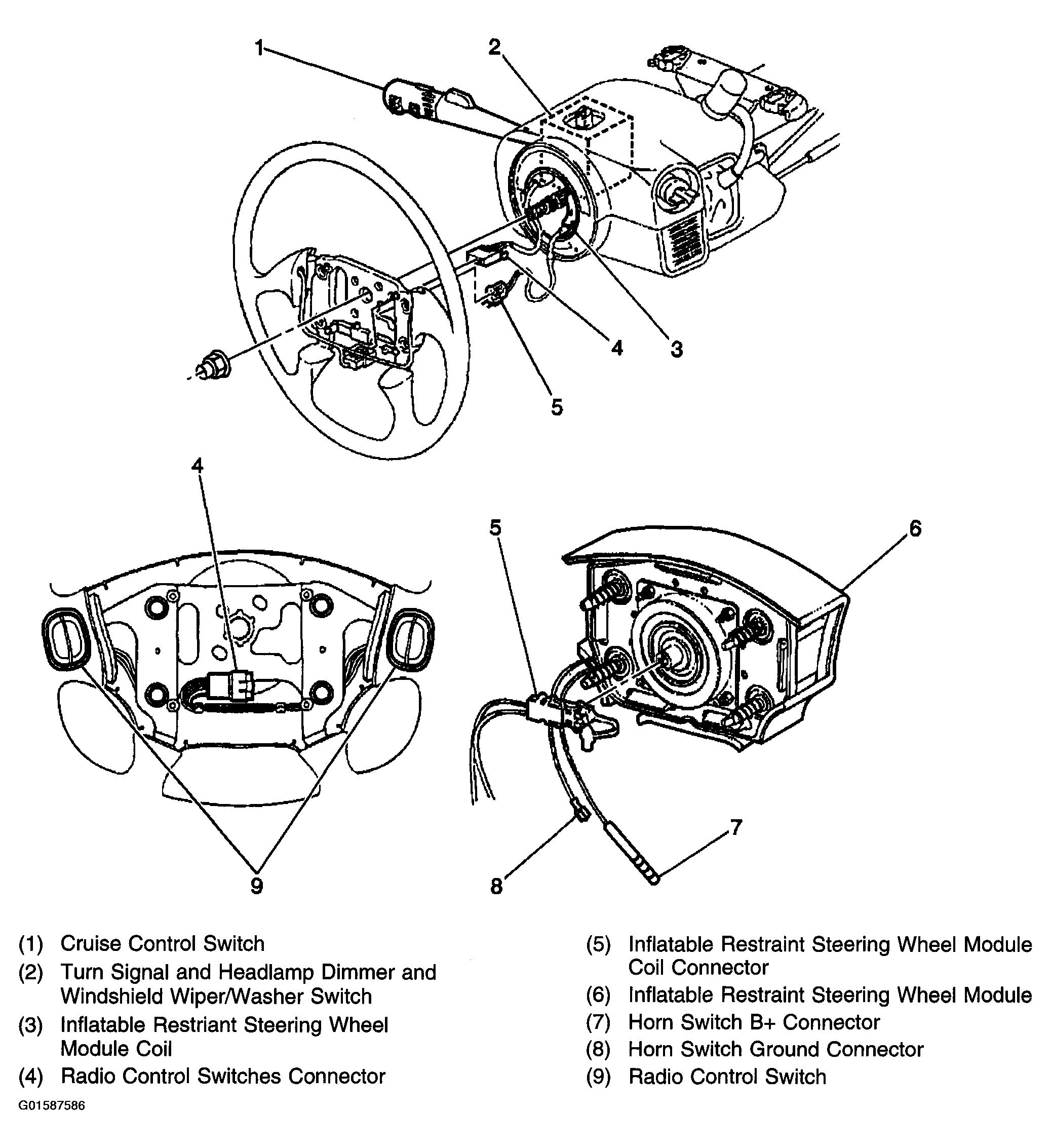

Fig 2: Steering Wheel Component View
G01587586Courtesy of GENERAL MOTORS CORP.
