Keyless Entry Connector End Views

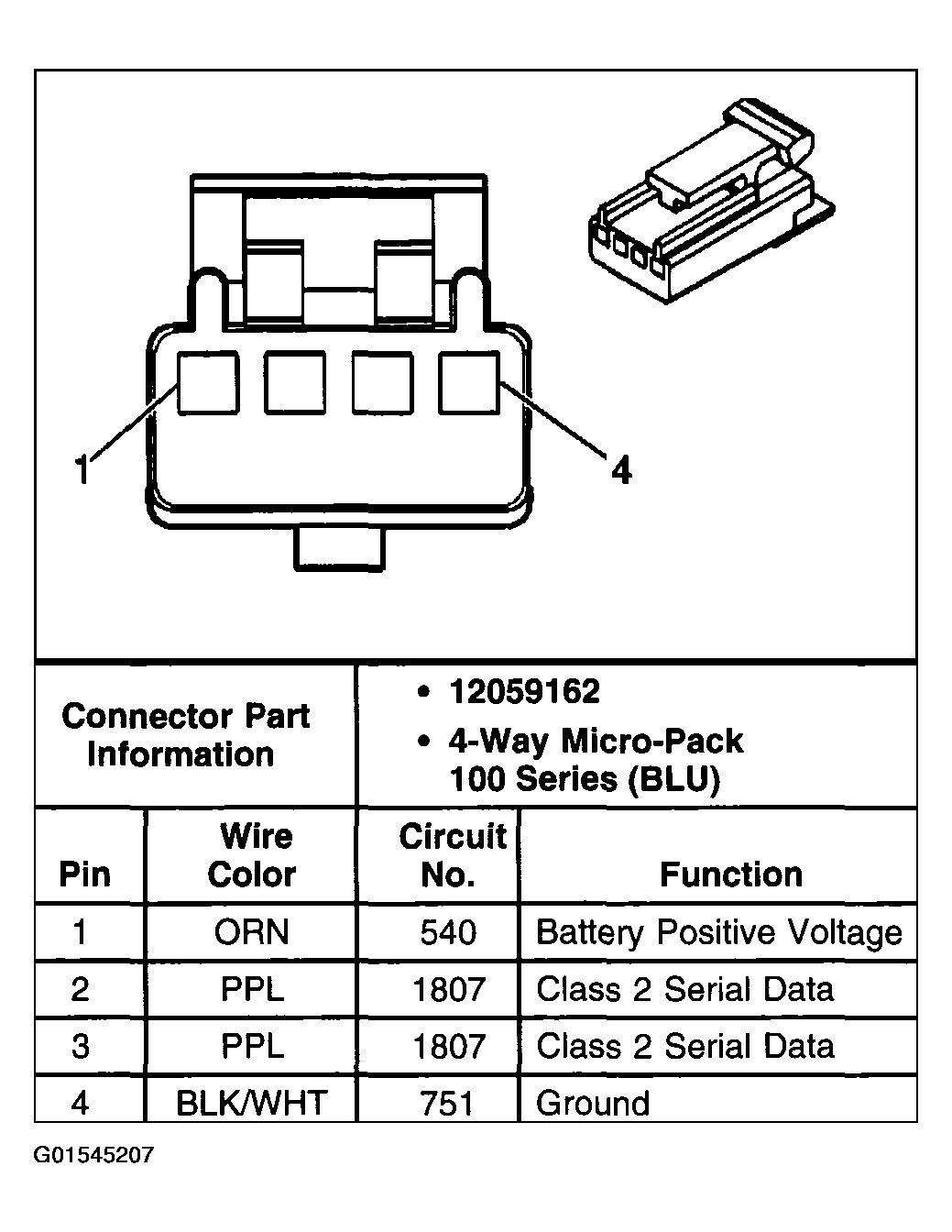

Fig 1: Keyless Entry Connector End Views - Remote Control Door Lock Receiver (RCDLR)
G01545207Courtesy of GENERAL MOTORS CORP.
