Installation Procedure

  1. Install the battery (2) with the positive (+) side down.

    Use one 3 V CR2032 battery (or the equivalent).

  2. Close the transmitter case (6, 4).

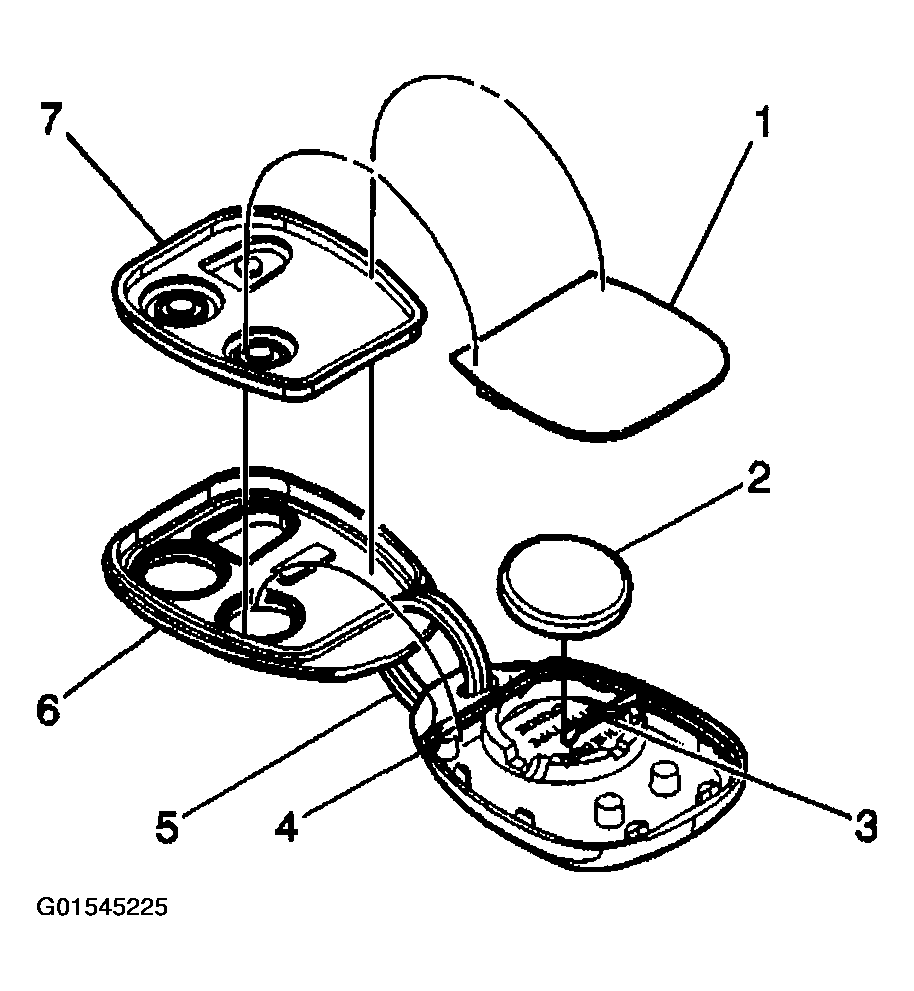

    Fig 1: Installing Battery
    G01545225Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the seal is in position. Align the two halves of the case and snap the two halves together.
  4. Reprogram the transmitter. Refer to TRANSMITTER PROGRAMMING  .

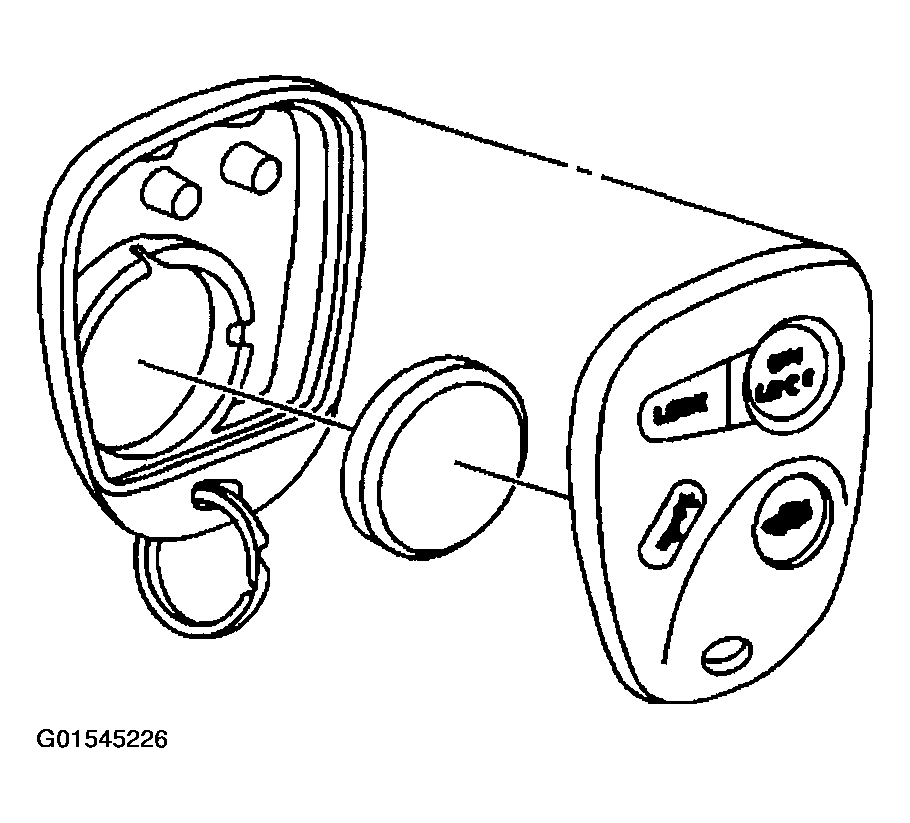

    Fig 2: Installing Transmitter Case
    G01545226Courtesy of GENERAL MOTORS CORP.
