ABS Connector End Views

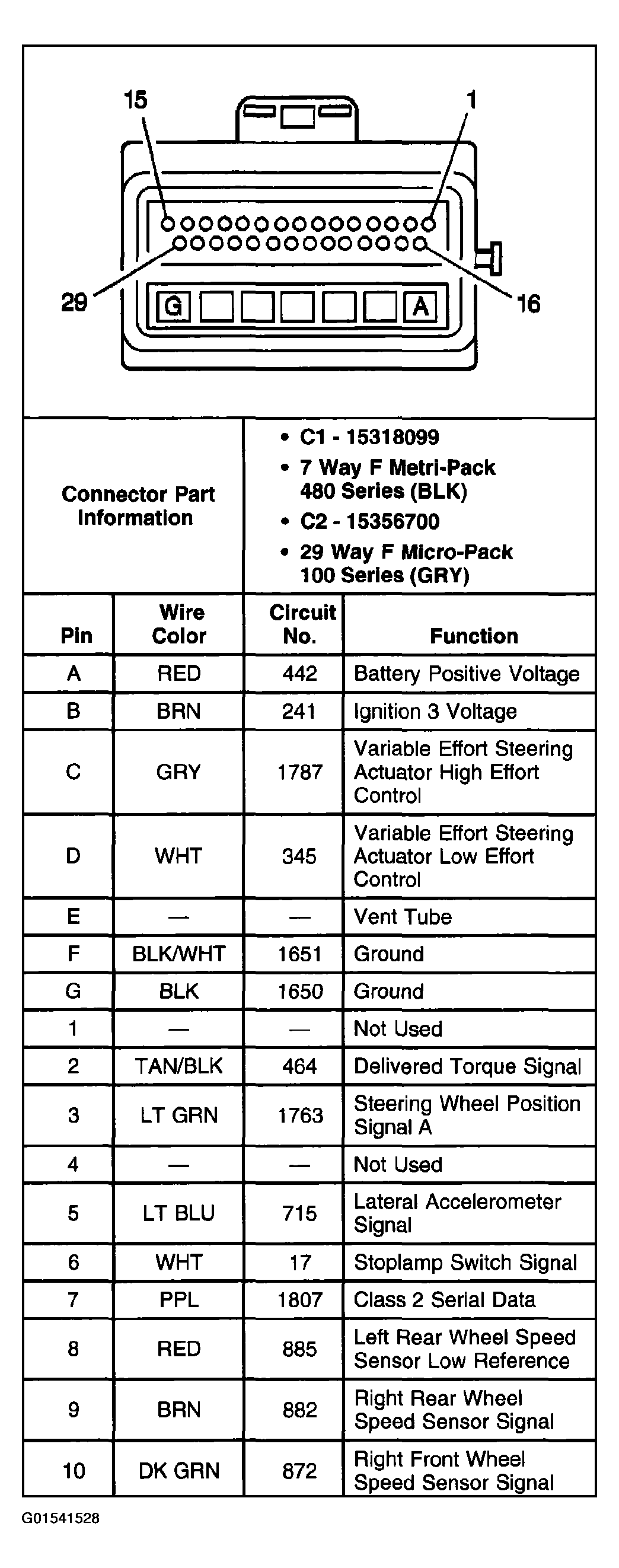

Fig 1: Identifying Electronic Brake Control Module (EBCM) Connector Terminals (1 Of 2)
G01541528Courtesy of GENERAL MOTORS CORP.

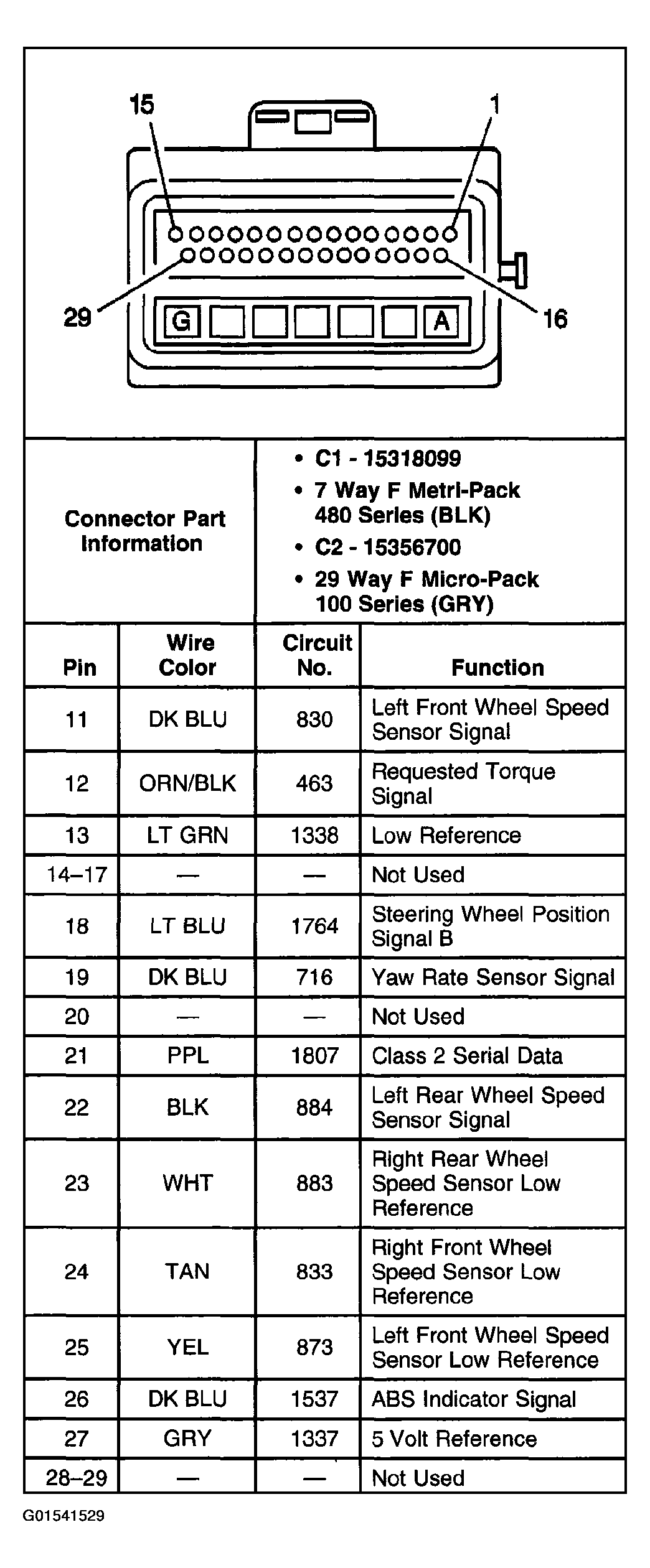

Fig 2: Identifying Electronic Brake Control Module (EBCM) Connector Terminals (2 Of 2)
G01541529Courtesy of GENERAL MOTORS CORP.

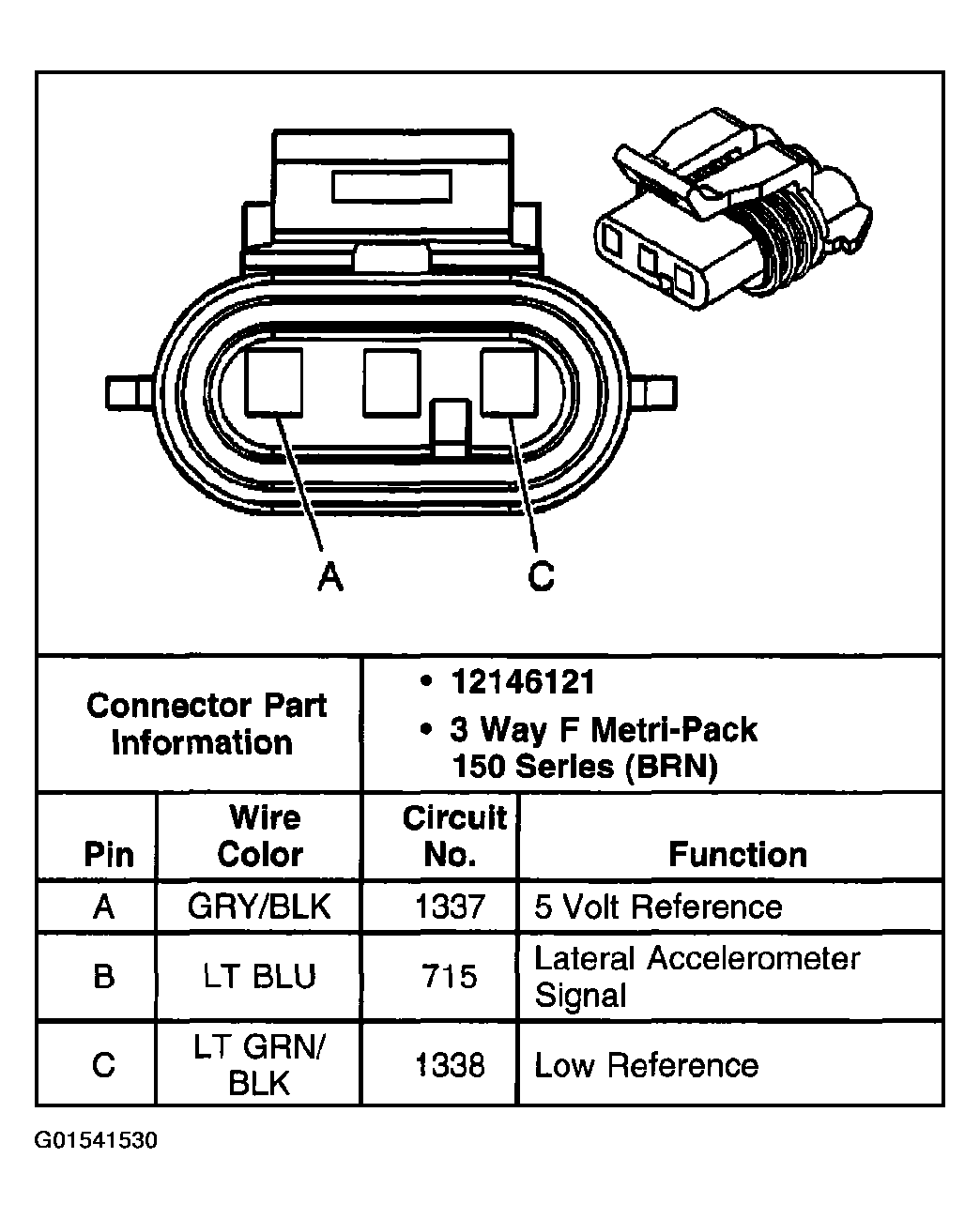

Fig 3: Identifying Lateral Accelerometer Sensor Connector Terminals
G01541530Courtesy of GENERAL MOTORS CORP.

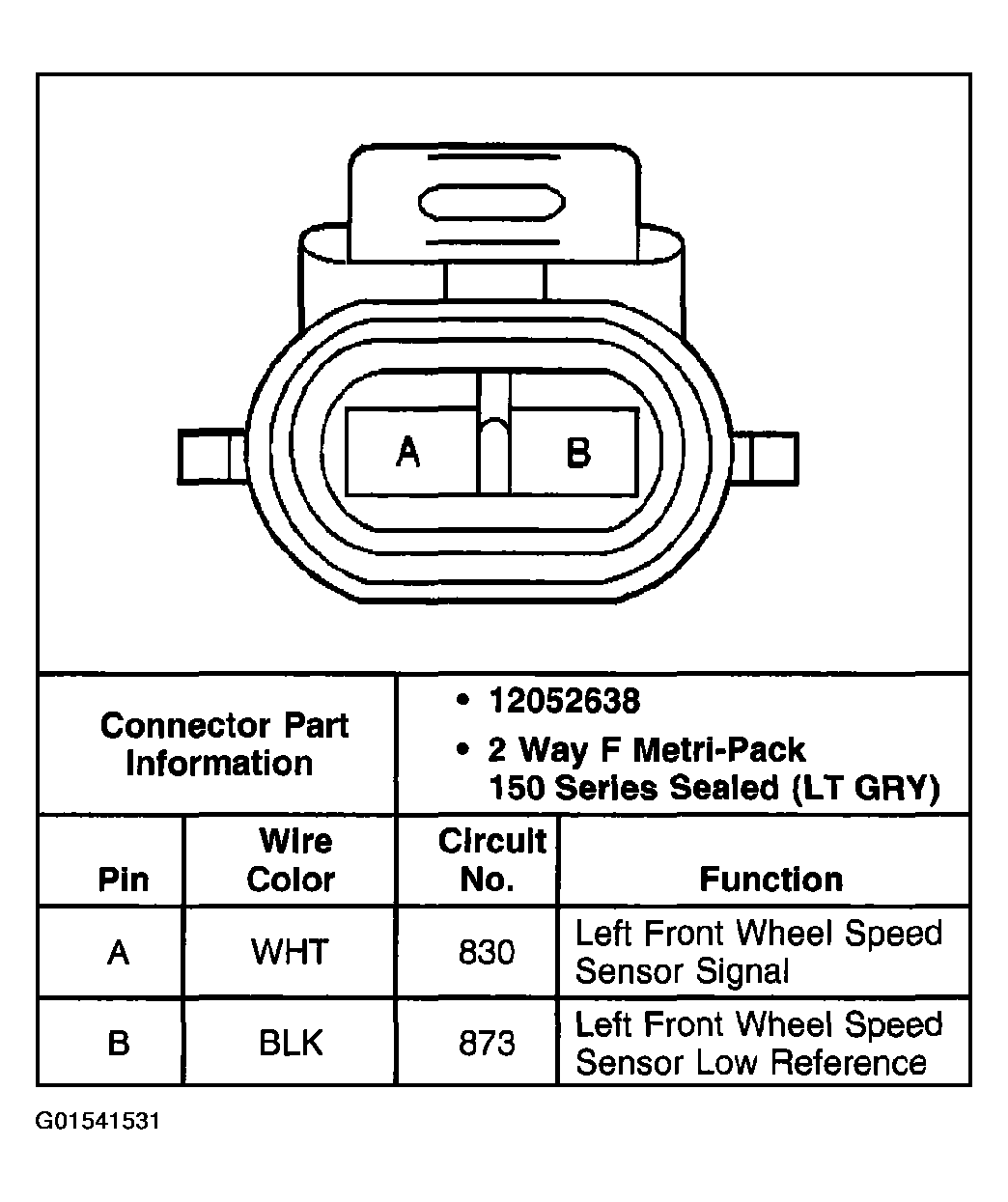

Fig 4: Identifying Wheel Speed Sensor (WSS) LF Connector Terminals
G01541531Courtesy of GENERAL MOTORS CORP.

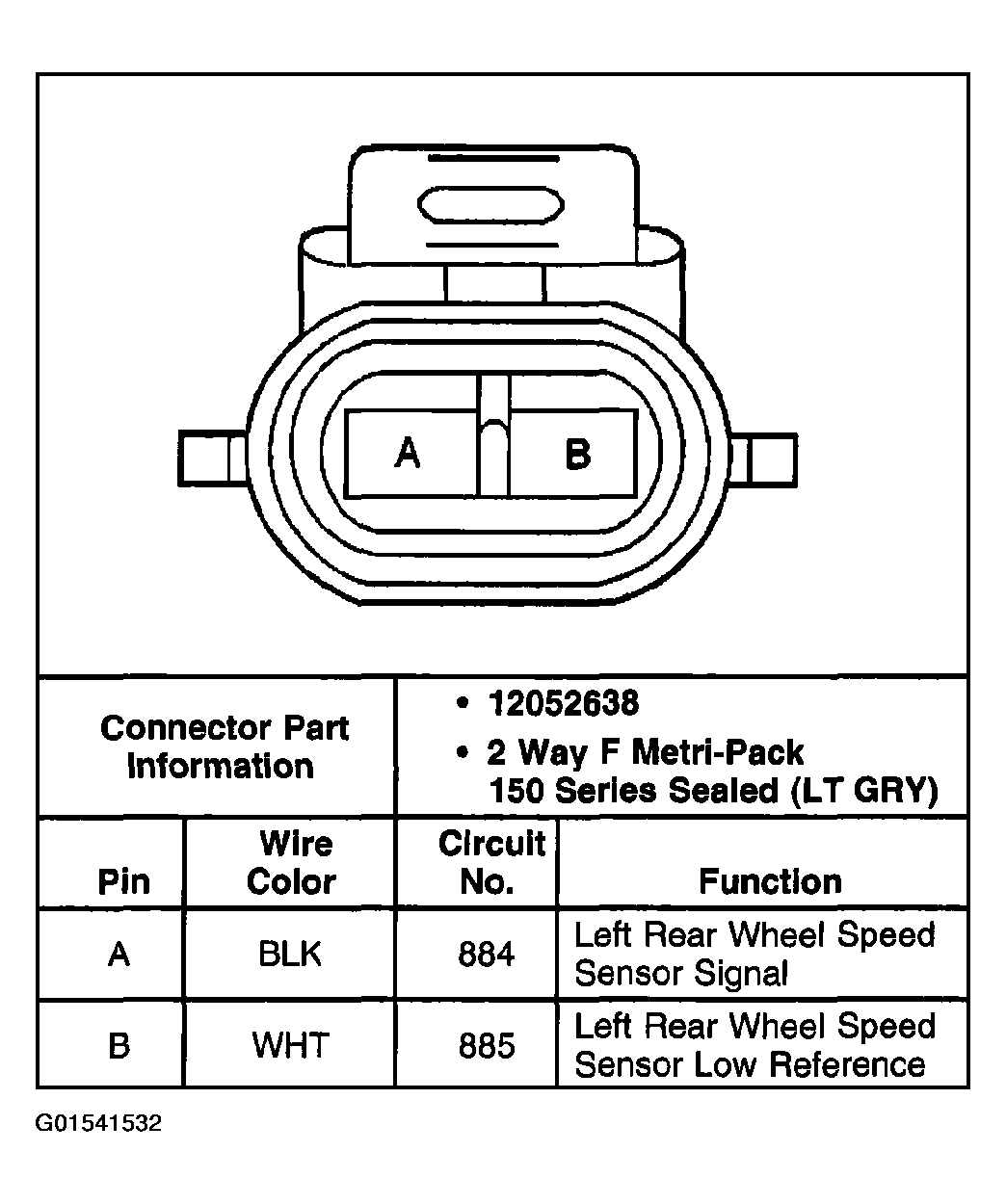

Fig 5: Identifying Wheel Speed Sensor (WSS) LR Connector Terminals
G01541532Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying Wheel Speed Sensor (WSS) RF Connector Terminals
G01541533Courtesy of GENERAL MOTORS CORP.

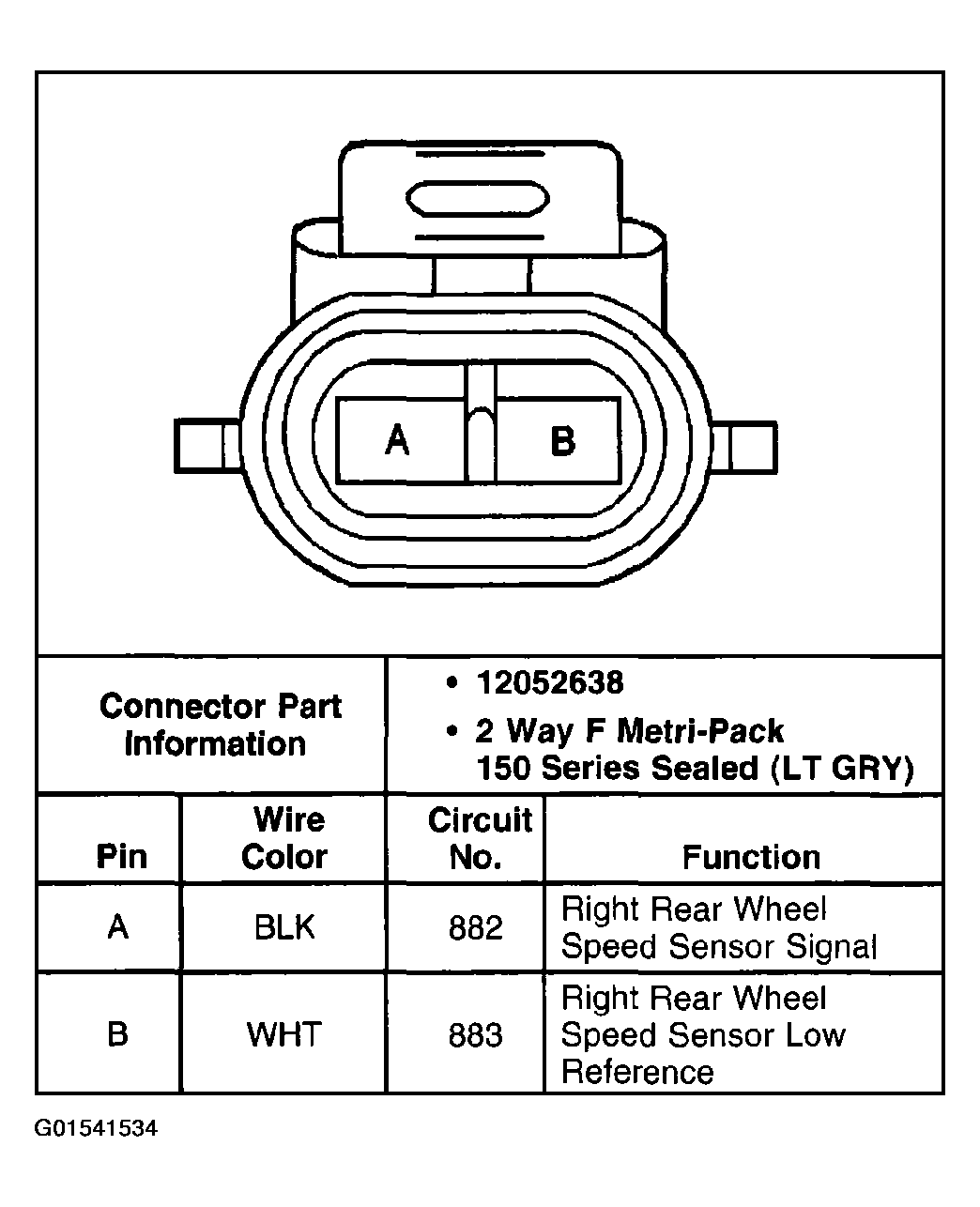

Fig 7: Identifying Wheel Speed Sensor (WSS) RR Connector Terminals
G01541534Courtesy of GENERAL MOTORS CORP.

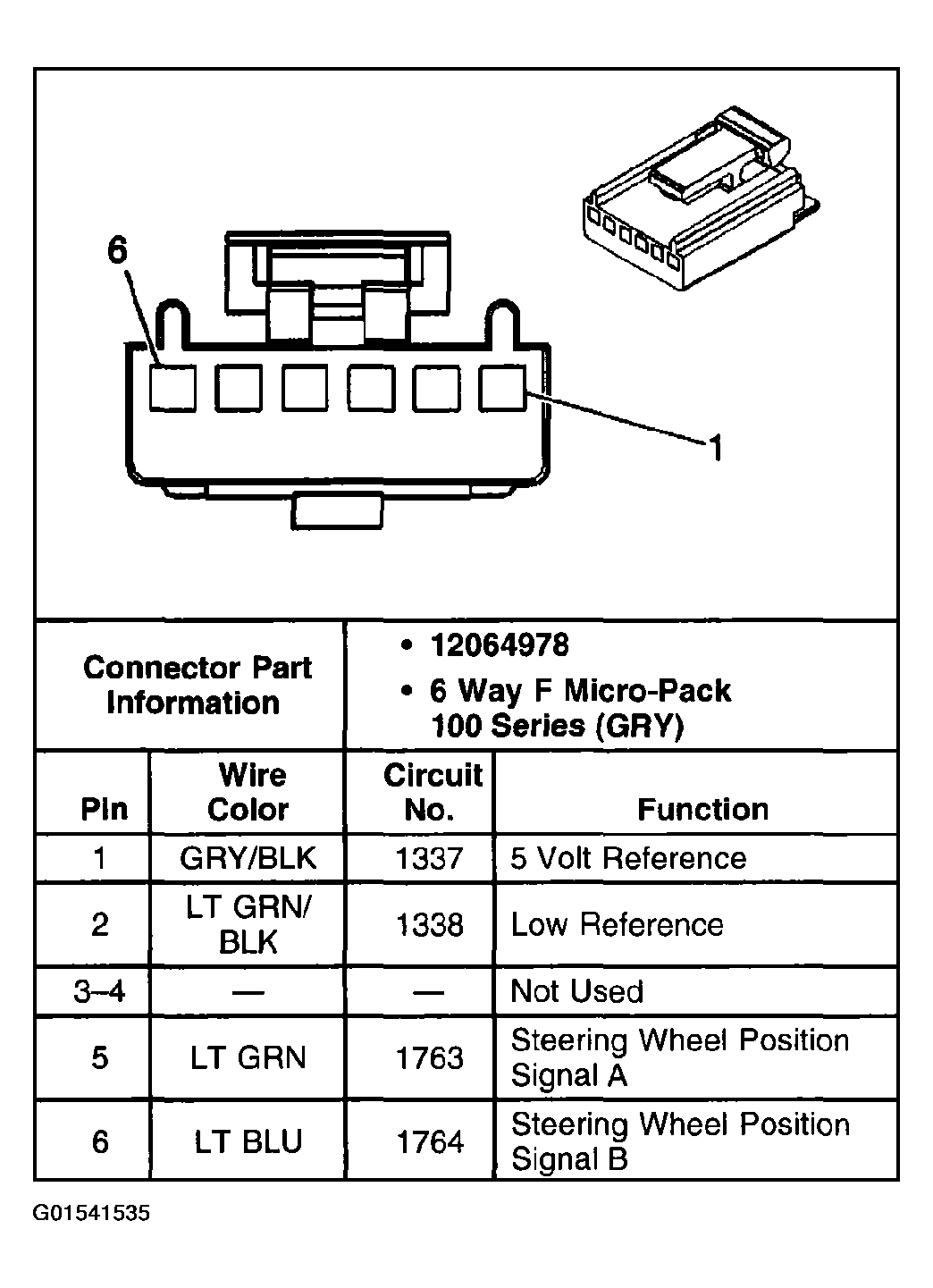

Fig 8: Identifying Steering Wheel Position Sensor (SWPS) Connector Terminals
G01541535Courtesy of GENERAL MOTORS CORP.

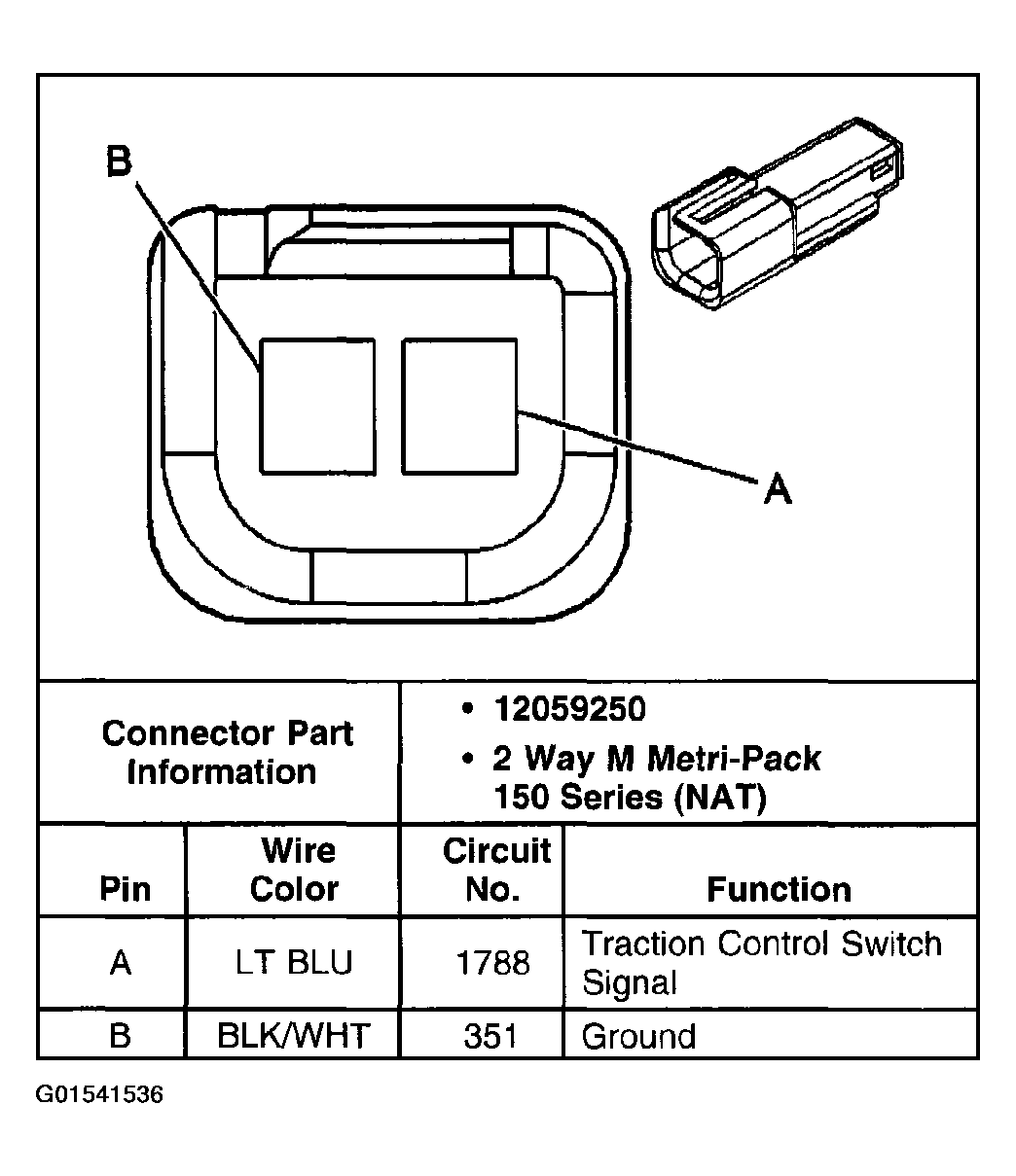

Fig 9: Identifying Traction Control Switch Connector Terminals
G01541536Courtesy of GENERAL MOTORS CORP.

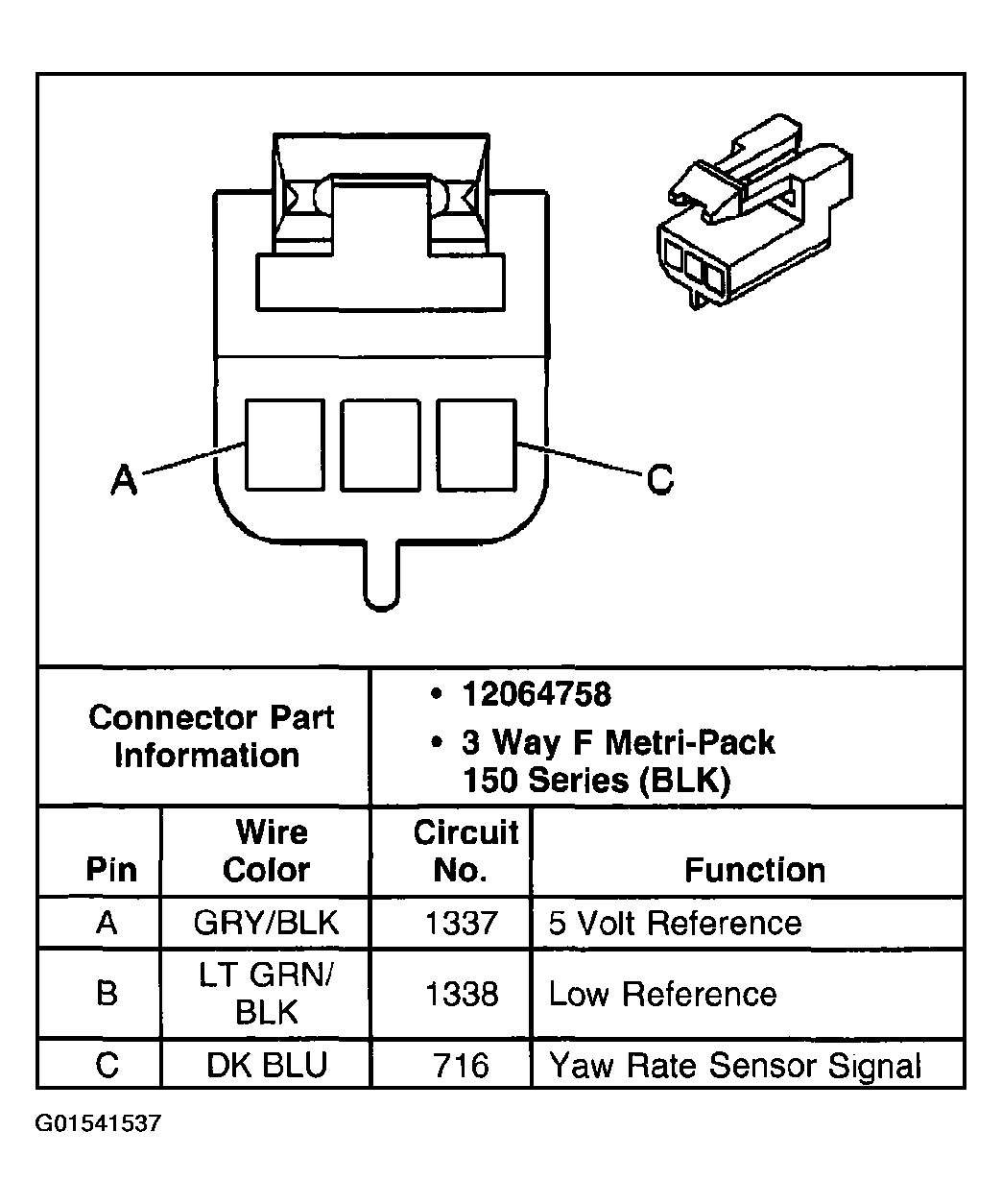

Fig 10: Identifying Yaw Rate Sensor Connector Terminals
G01541537Courtesy of GENERAL MOTORS CORP.
