Body Control System Component Views

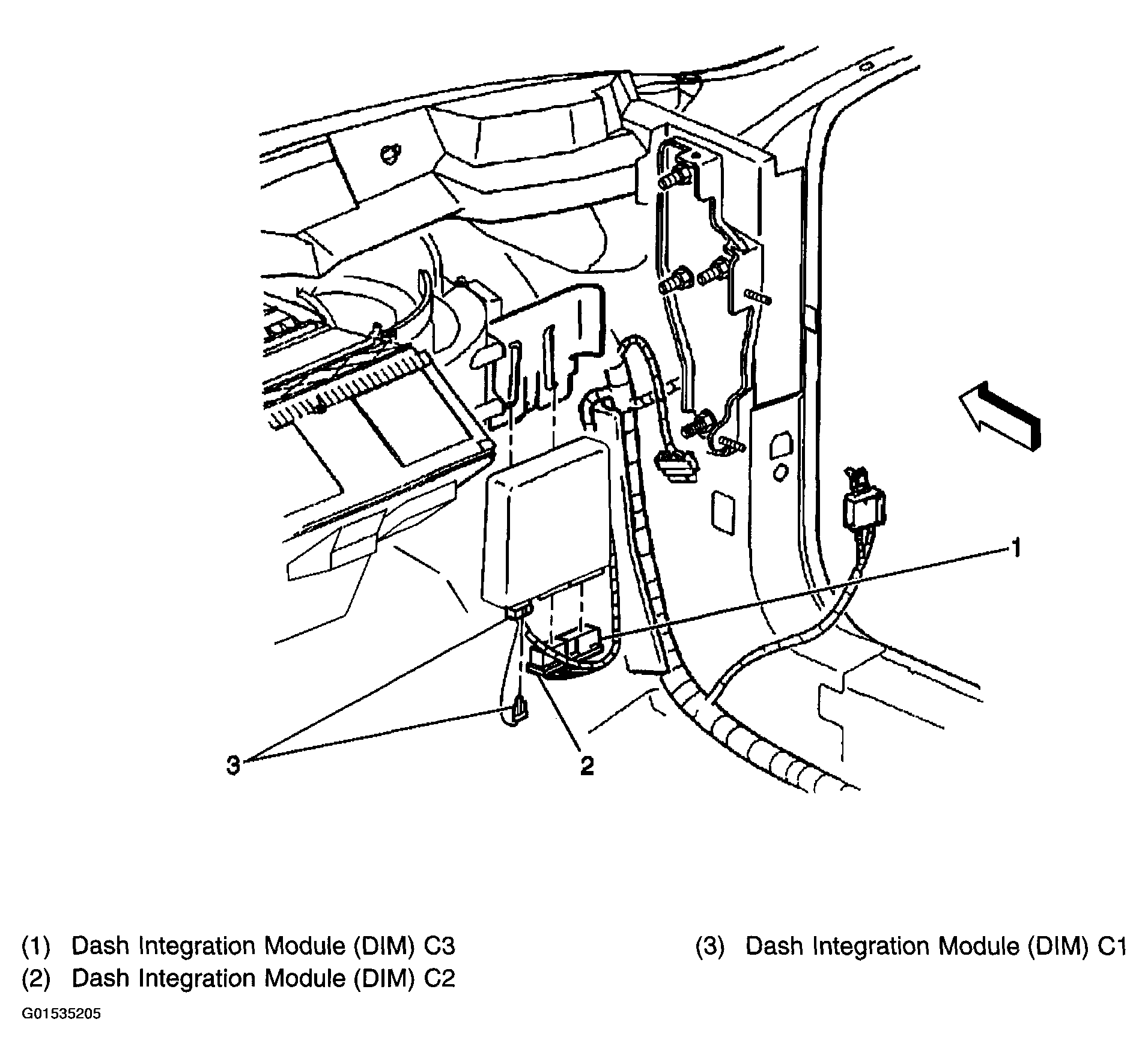

Fig 1: Removing Dash Integration Module (C1,C2,C3)
G01535205Courtesy of GENERAL MOTORS CORP.

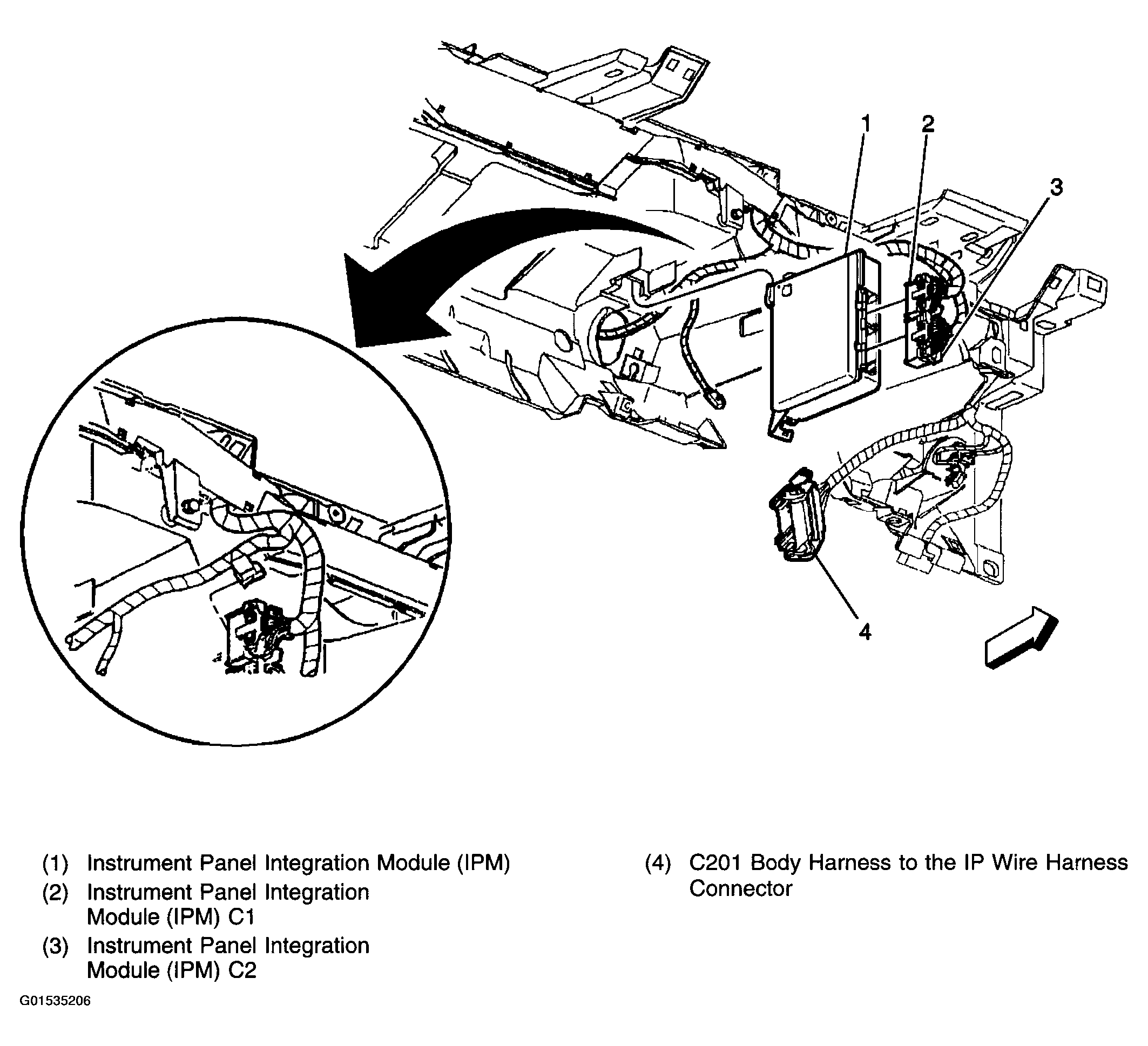

Fig 2: Removing Instrument Panel Integration Module
G01535206Courtesy of GENERAL MOTORS CORP.

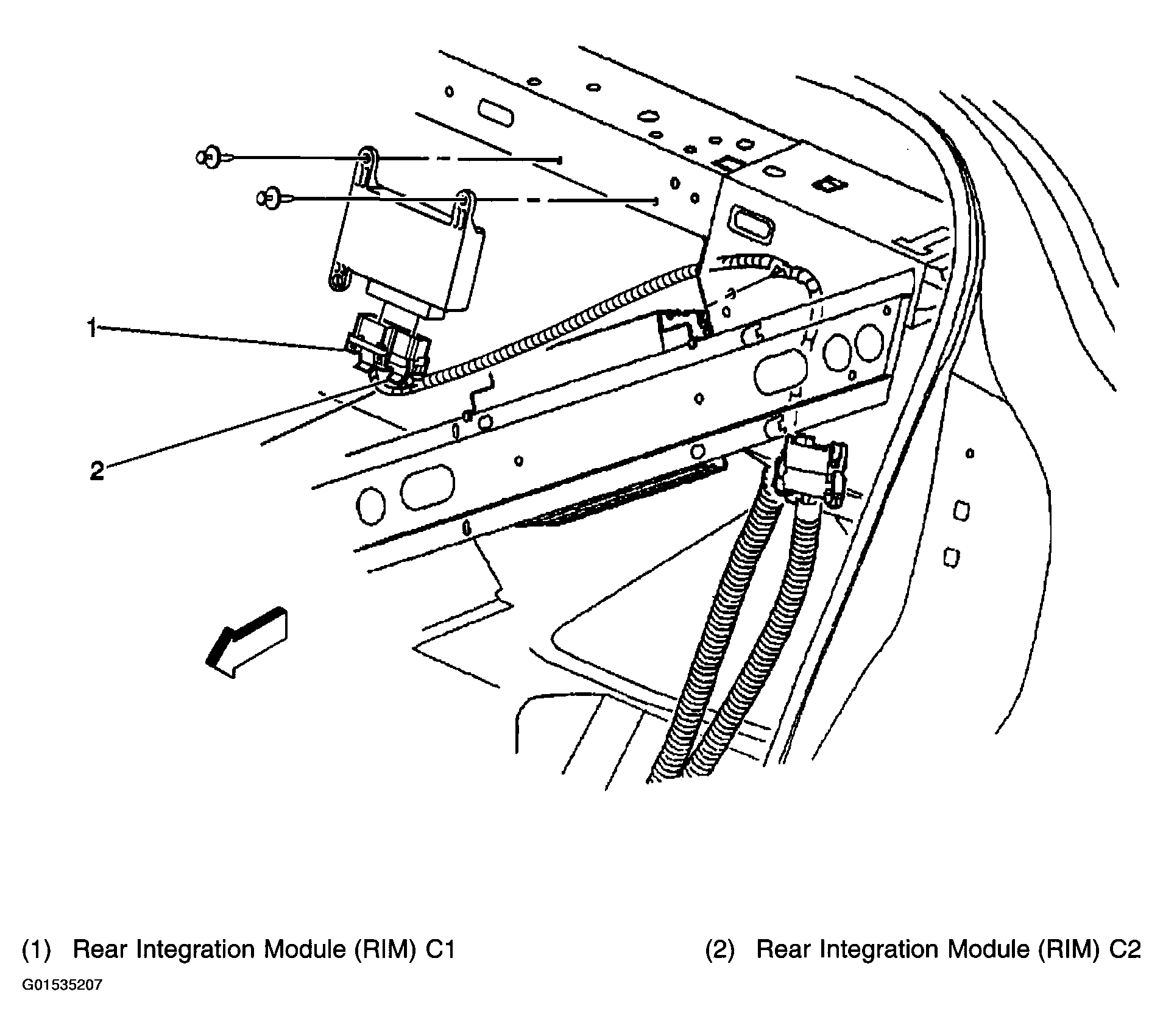

Fig 3: Removing Rear Integration Module (C1,C2)
G01535207Courtesy of GENERAL MOTORS CORP.
