Removal Procedure

  1. Before replacement, record the personalization settings to transfer to the new module (if they are available). Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (IPM)  .
  2. Remove the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  3. Remove the dash integration module (DIM) from the bracket by releasing the tab behind the module and pulling downward.
  4. Disconnect the electrical connectors (1).

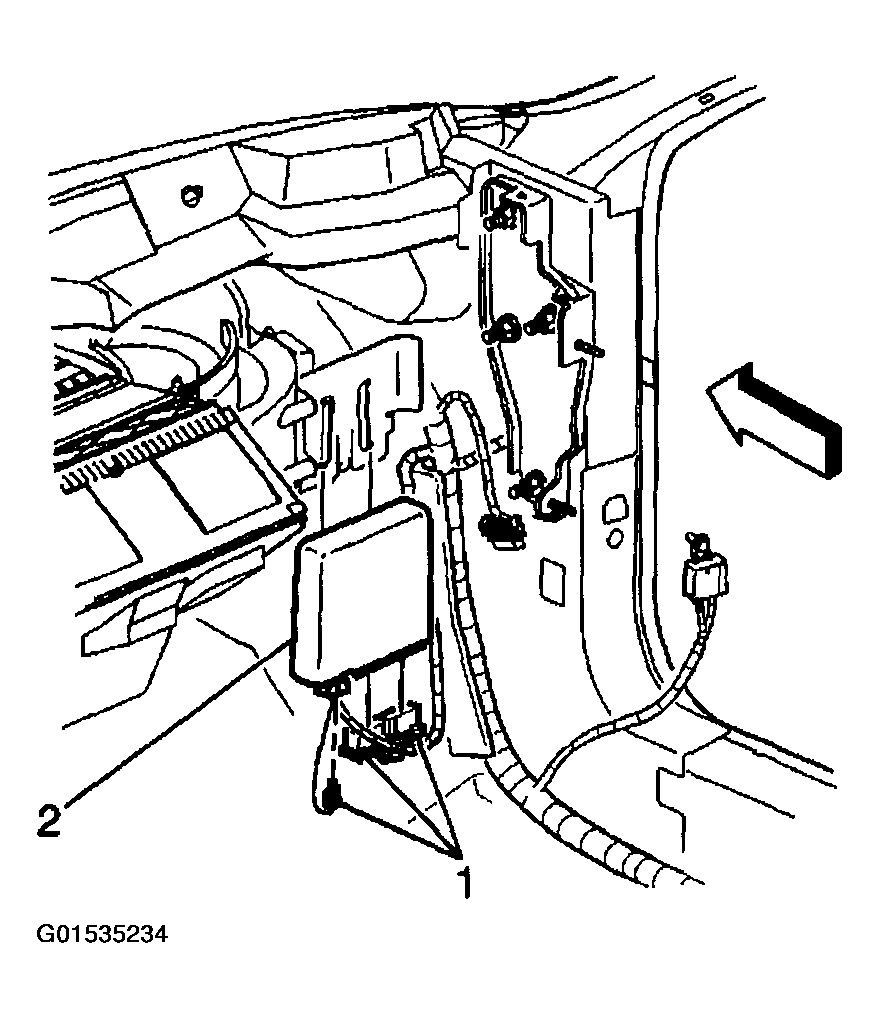

    Fig 1: Disconnecting Electrical Connectors
    G01535234Courtesy of GENERAL MOTORS CORP.
