Installation Procedure

  1. Install the instrument panel module (IPM) (1) to the vehicle.
  2. Connect the electrical connectors to the IPM (1).
  3. Install the IPM (1) to the IP retainer by inserting the top tab of the module into the slot on the IP retainer and rotating down.
  4. Install the fastener.

    Tighten

    Tighten fastener to 2 N.m (18 lb in)

  5. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.

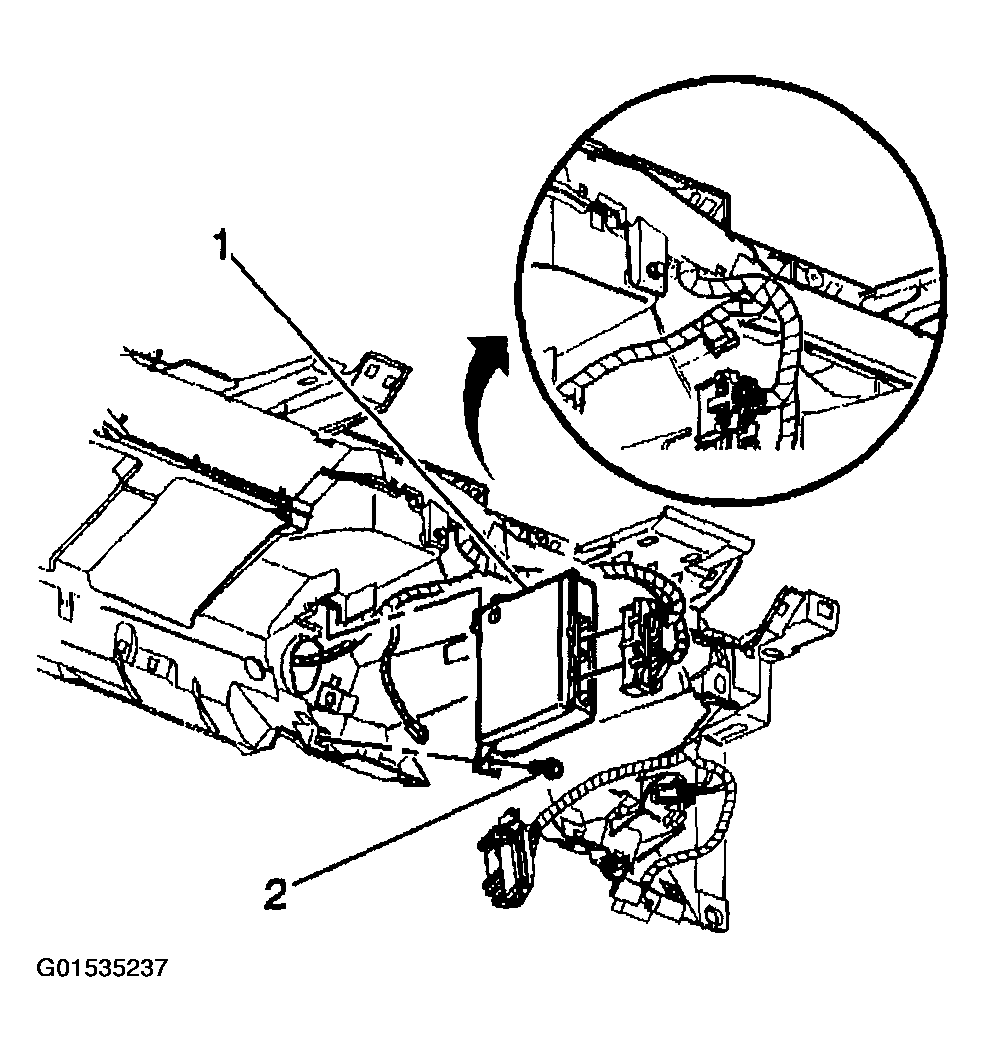

    Fig 1: Installing Instrument Panel Module (IPM) To Vehicle
    G01535237Courtesy of GENERAL MOTORS CORP.
