Control Module References

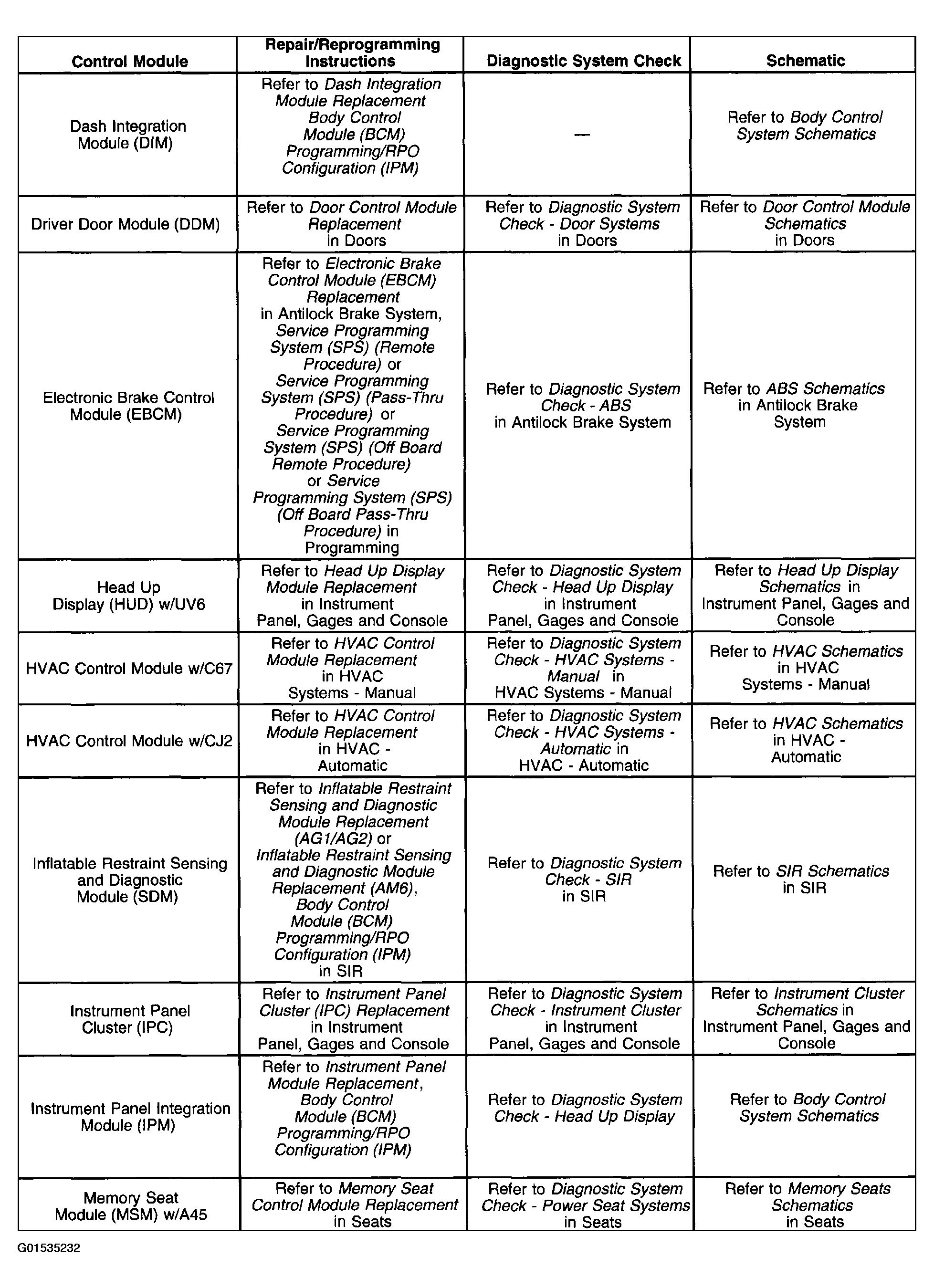

Fig 1: Diagnostic System Check - Control Module References (1 Of 2)
G01535232Courtesy of GENERAL MOTORS CORP.

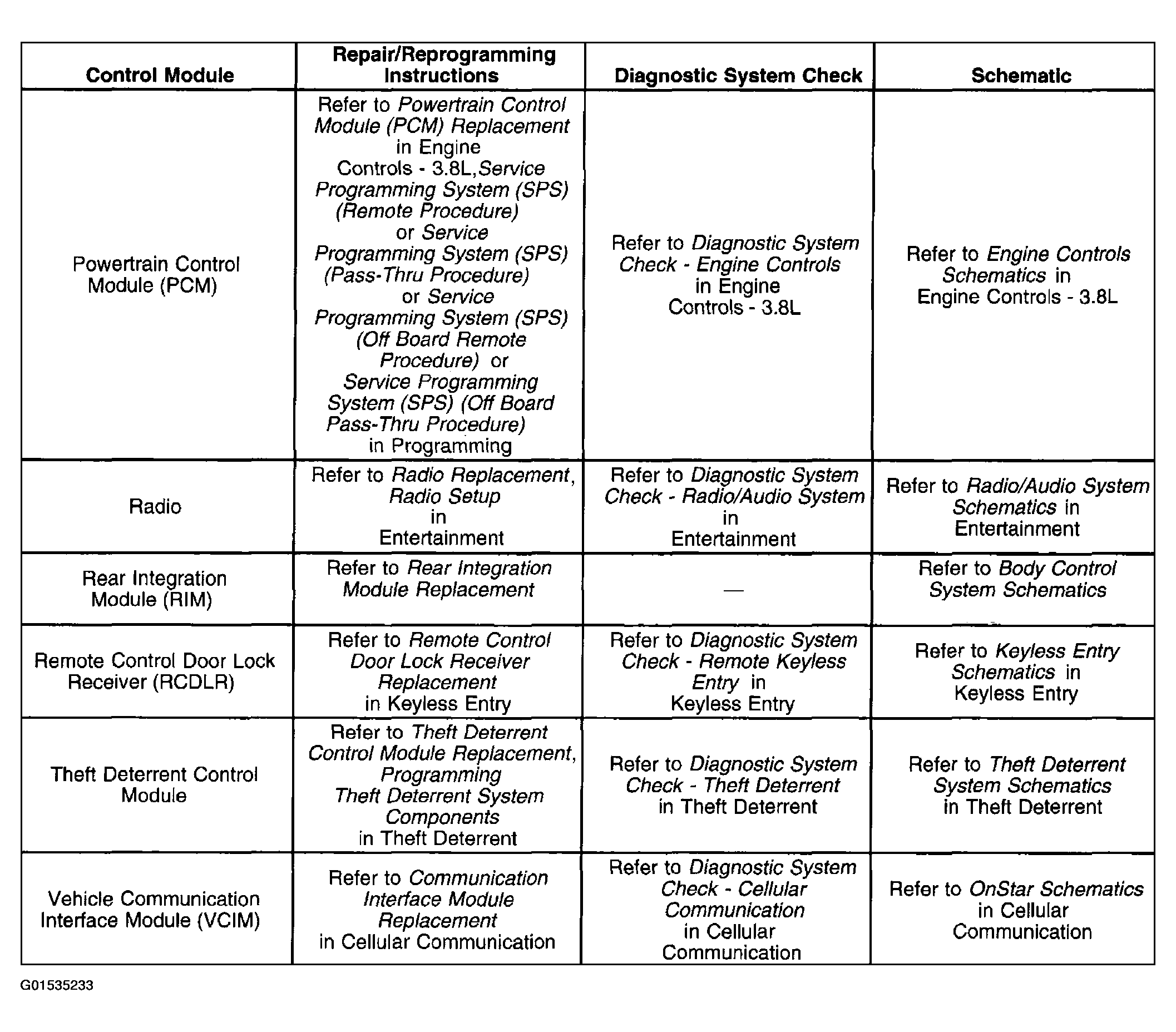

Fig 2: Diagnostic System Check - Control Module References (2 Of 2)
G01535233Courtesy of GENERAL MOTORS CORP.
