Removal Procedure

  1. Remove the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Remove the fastener (2) from the instrument panel module (IPM).
  3. Rotate the IPM up and off of the IP retainer.
  4. Disconnect the electrical connectors from the IPM (1).
  5. Remove the IPM (1) from the vehicle.

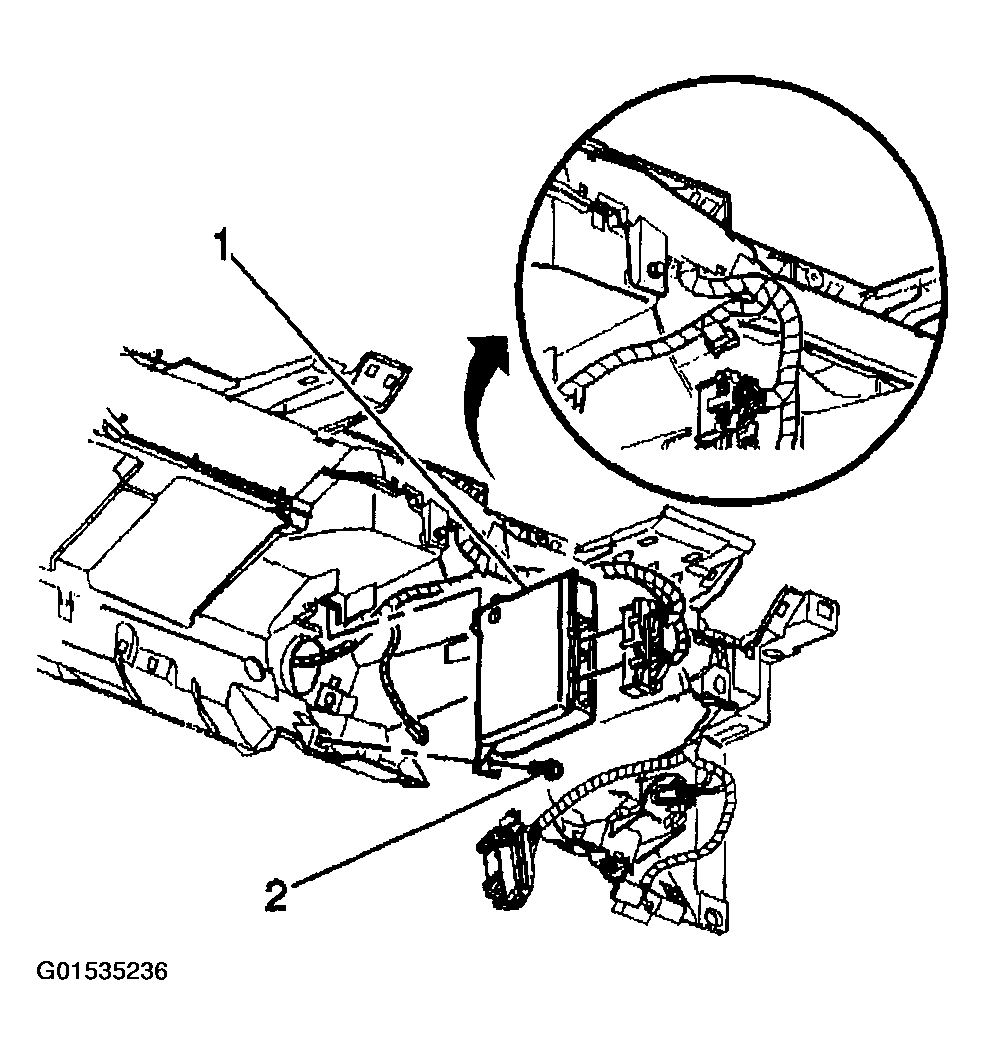

    Fig 1: Removing Instrument Panel Module (IPM) From Vehicle
    G01535236Courtesy of GENERAL MOTORS CORP.
