Cruise Control Component Views

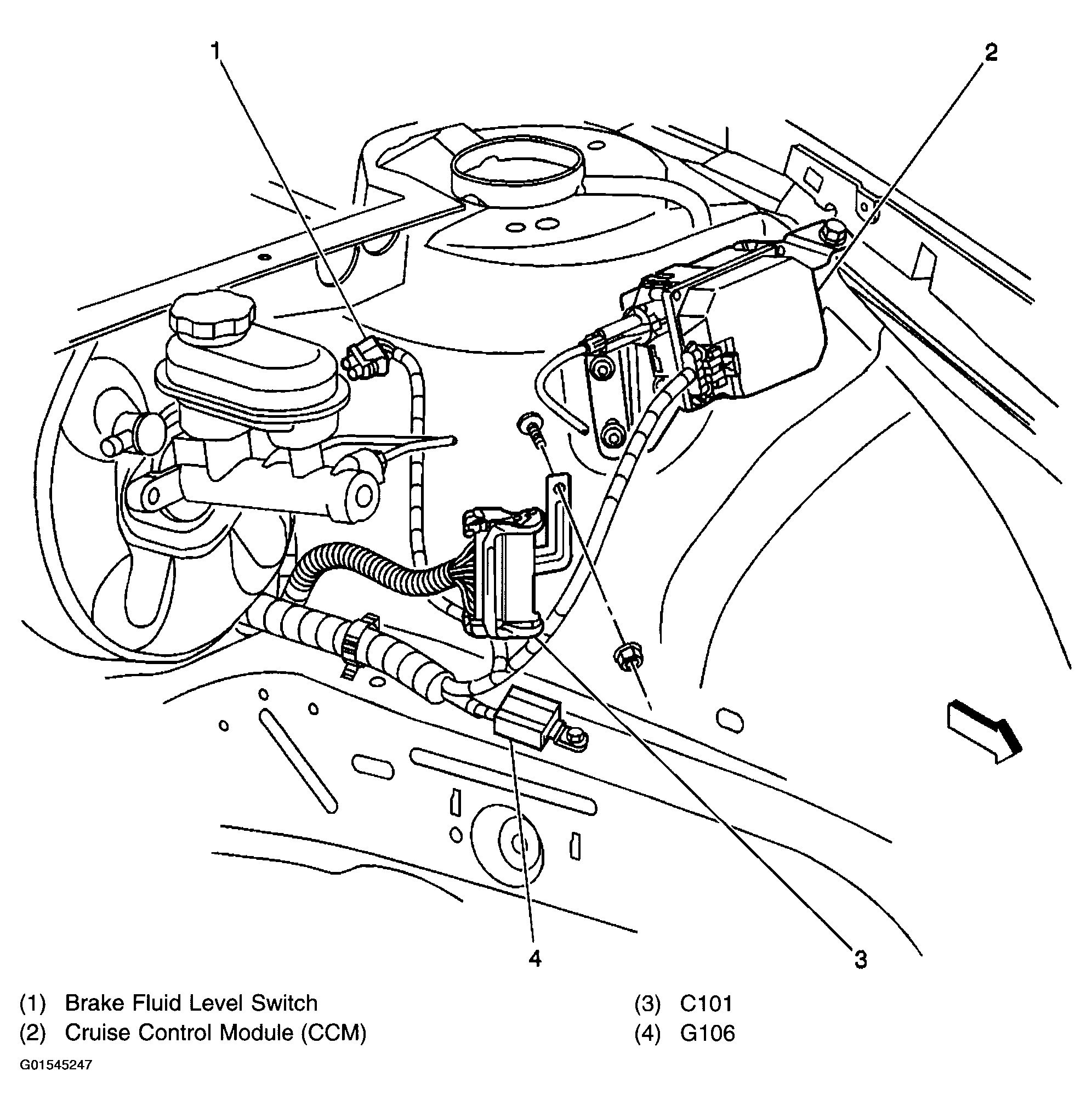

Fig 1: Removing Brake Fluid Level Switch & C101
G01545247Courtesy of GENERAL MOTORS CORP.

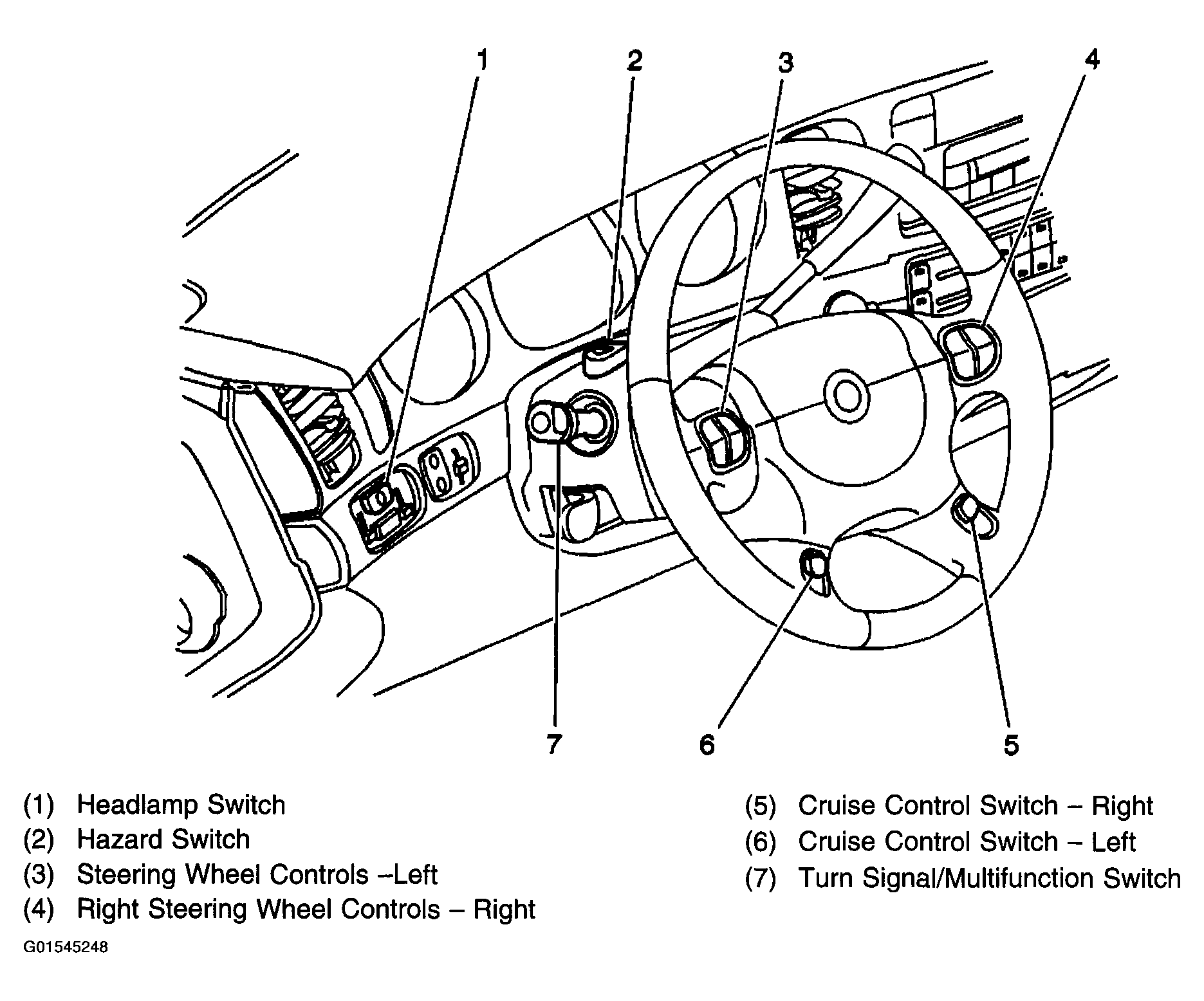

Fig 2: Locating Accessory Controls
G01545248Courtesy of GENERAL MOTORS CORP.
