Cruise Control Connector End Views

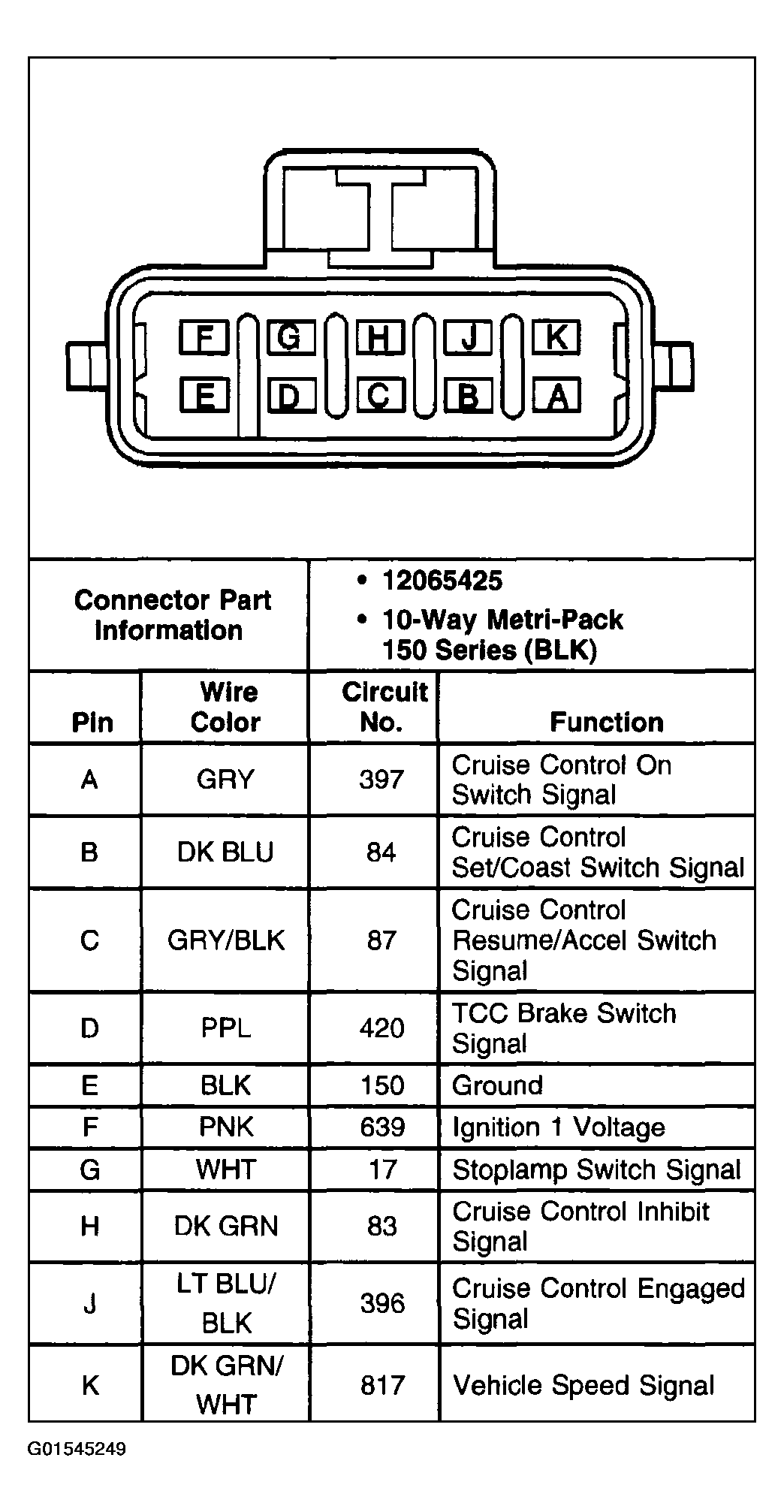

Fig 1: Identifying Cruise Control Connector End Views - Cruise Control Module (CCM)
G01545249Courtesy of GENERAL MOTORS CORP.
