Cellular Communication Component Views

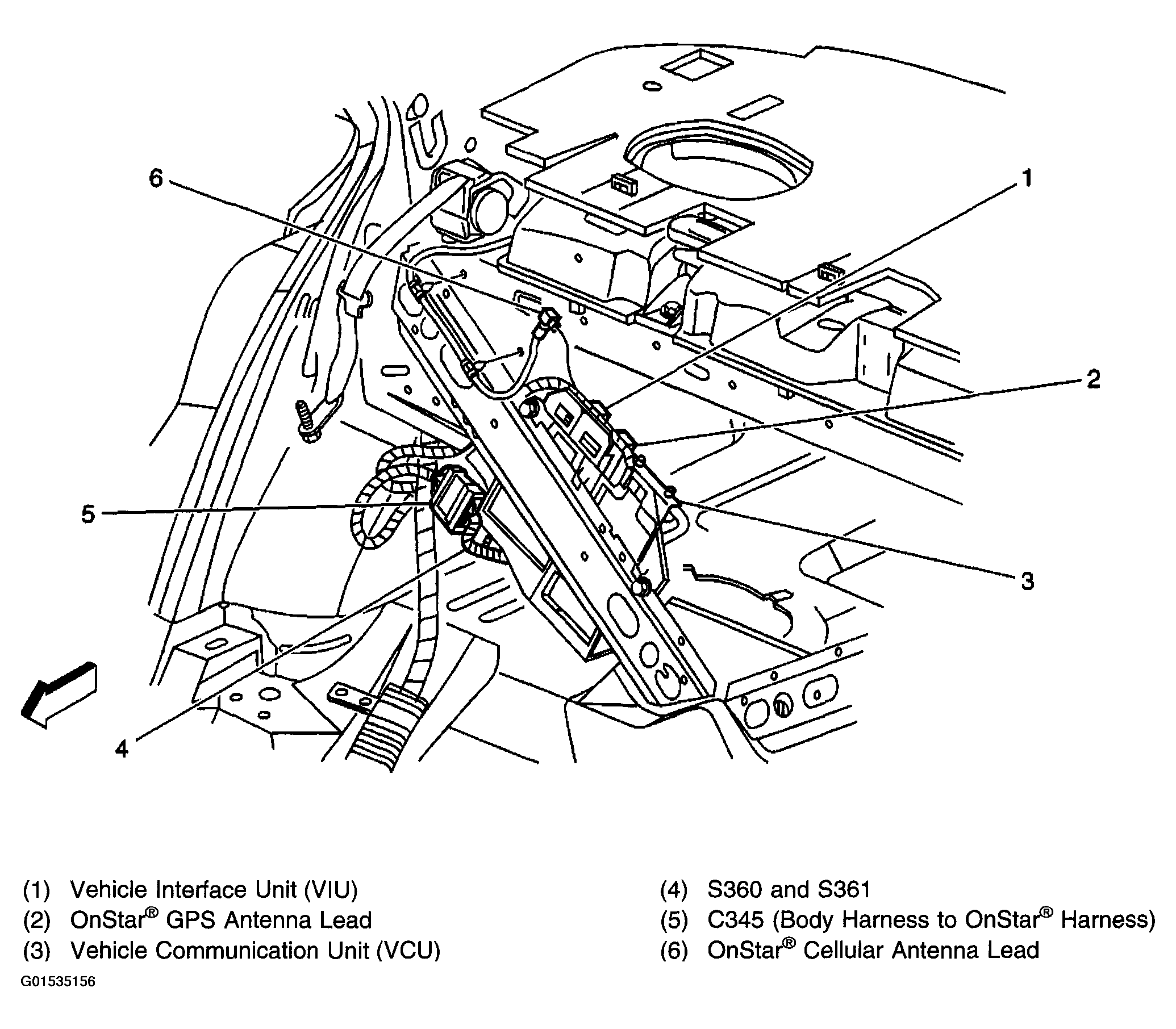

Fig 1: Component Location - Rear Compartment, Behind Rear Seat Back (W/UE1)
G01535156Courtesy of GENERAL MOTORS CORP.
