Power Seat Systems Component Views

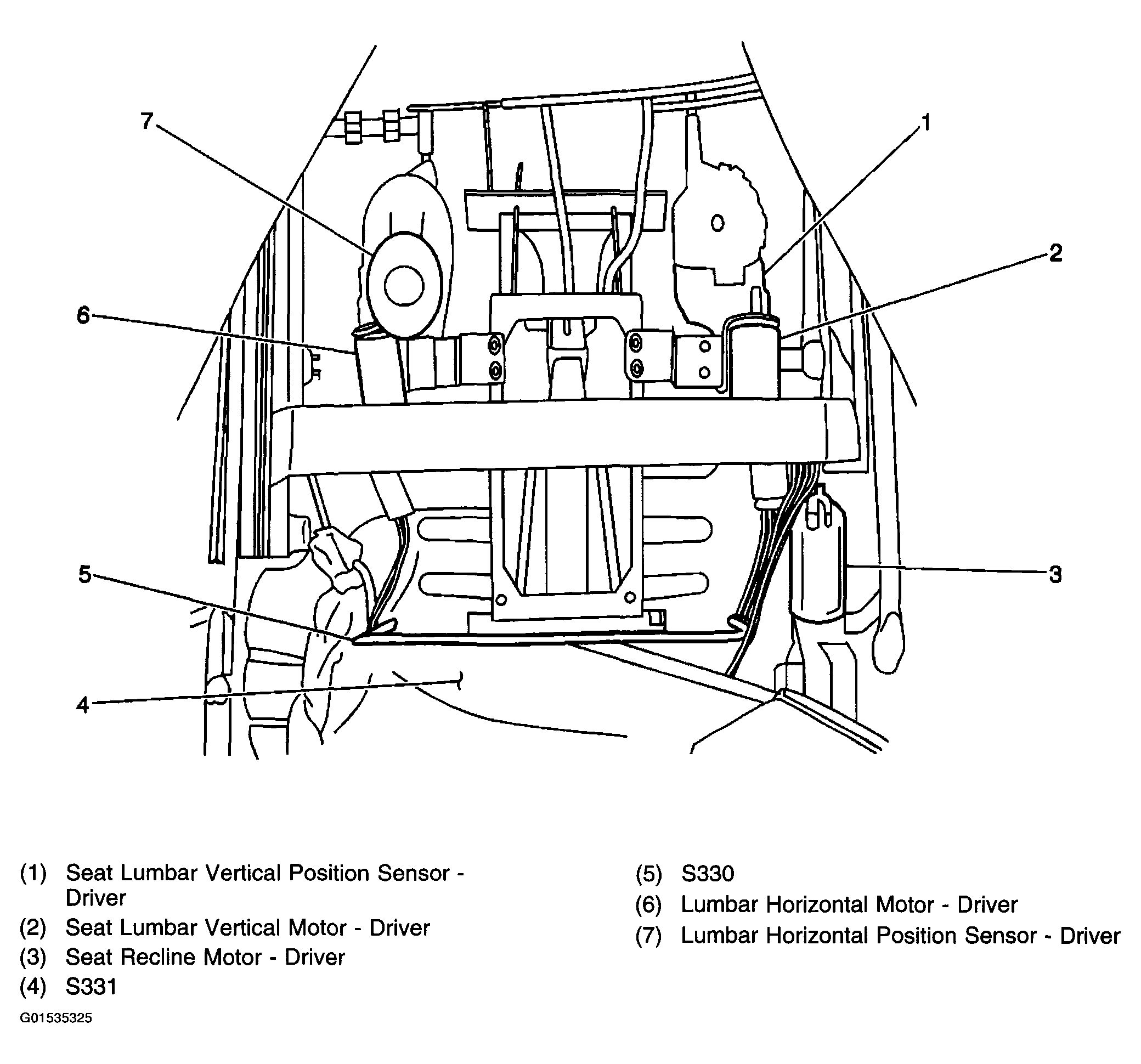

Fig 1: Power Seat Systems Component View - Left Front Seat Back
Courtesy of GENERAL MOTORS CORP.

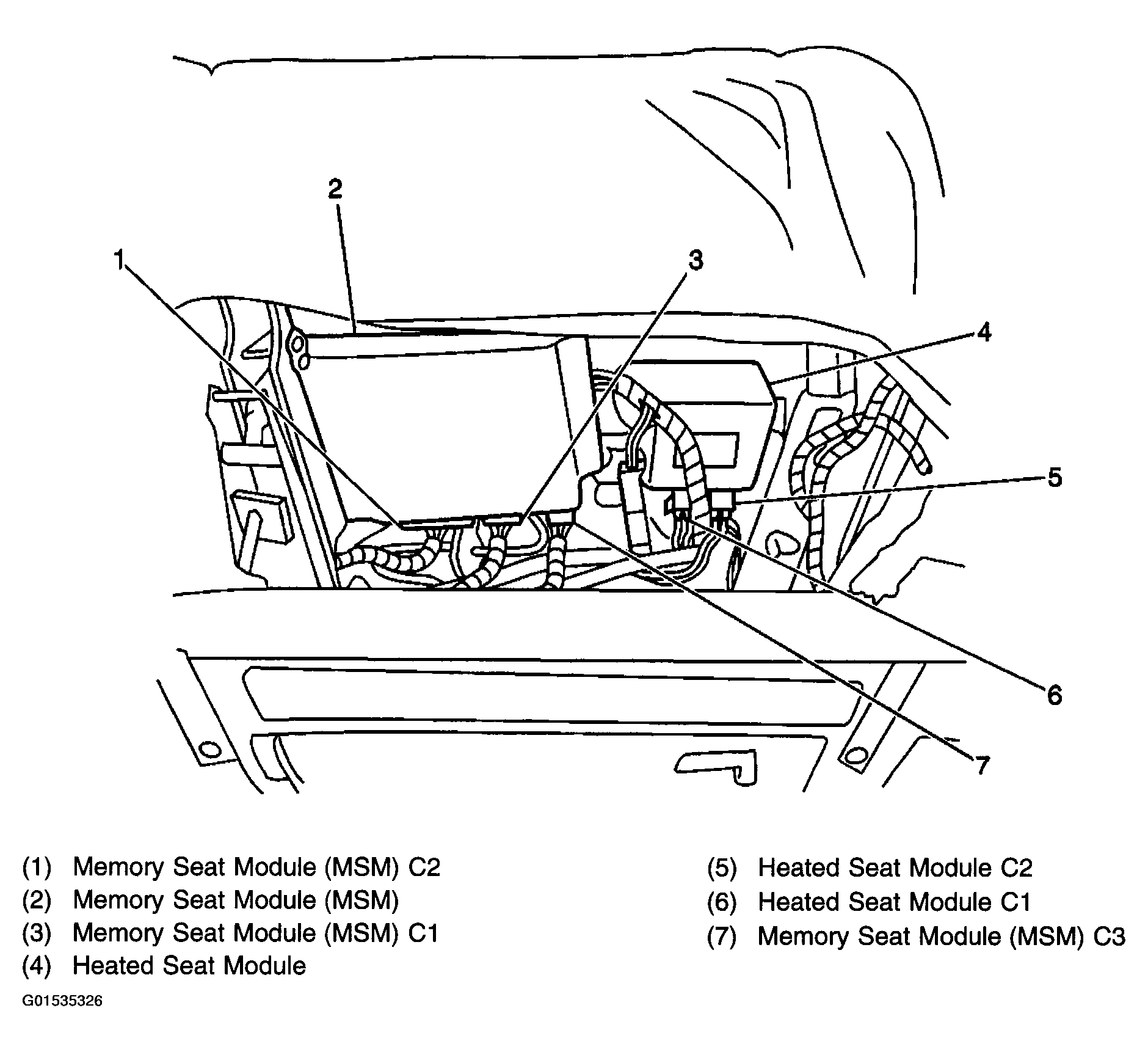

Fig 2: Power Seat Systems Component View - MSM & Heated Seat Module
Courtesy of GENERAL MOTORS CORP.

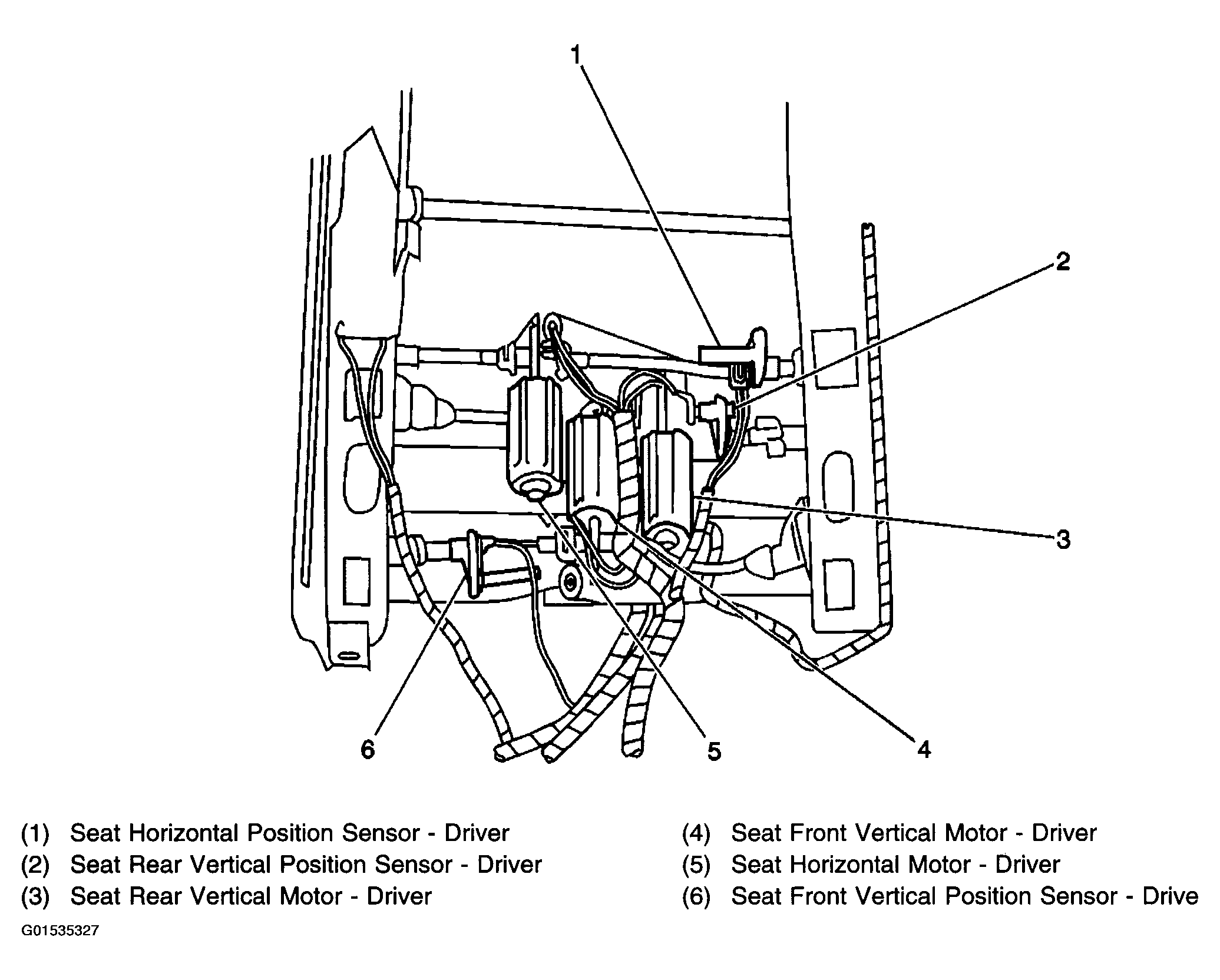

Fig 3: Power Seat Systems Component View - Left Front Seat Horizontal, Vertical Motors & Sensors
Courtesy of GENERAL MOTORS CORP.

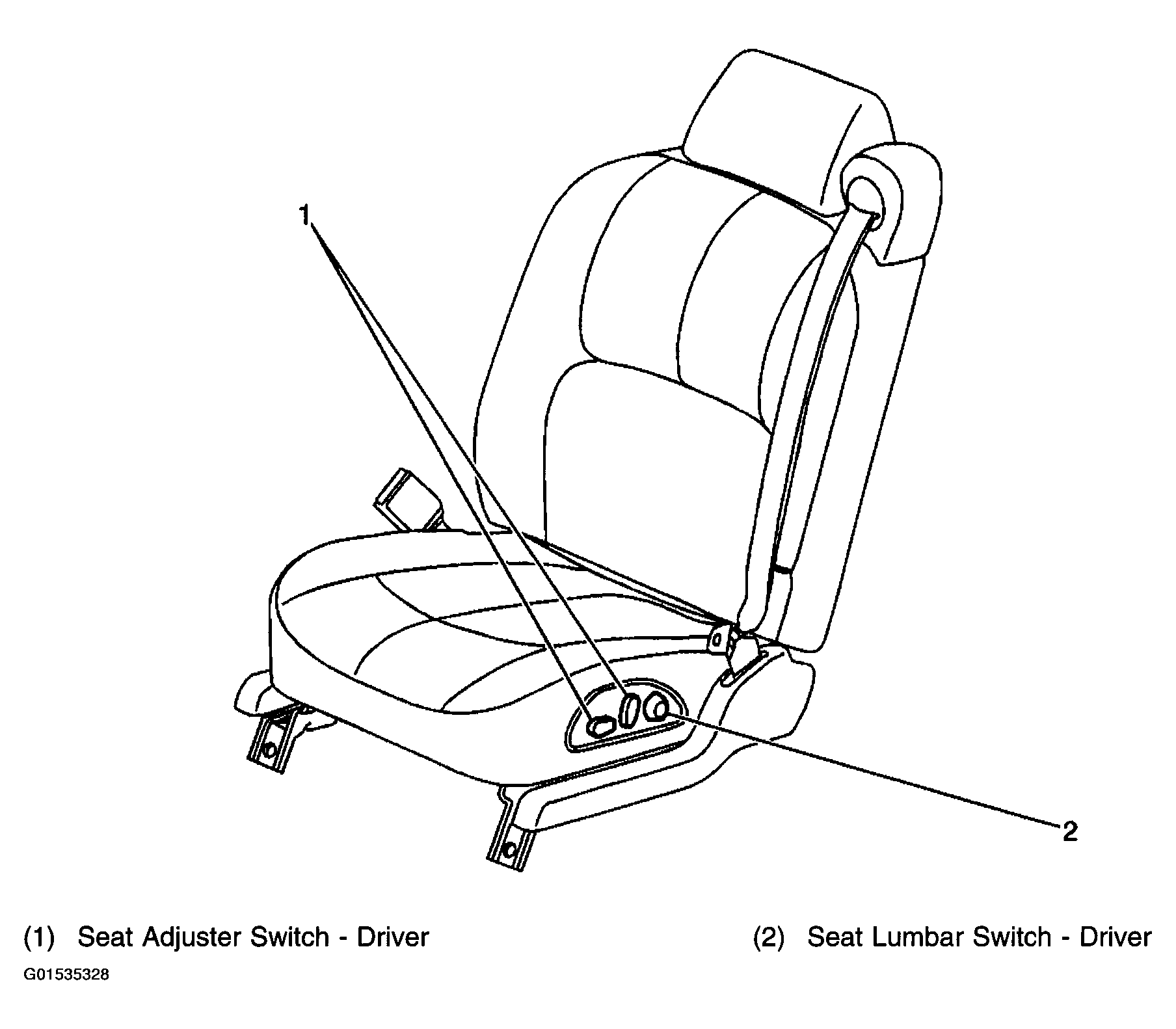

Fig 4: Power Seat Systems Component View - Left Lumbar & Seat Switch
Courtesy of GENERAL MOTORS CORP.

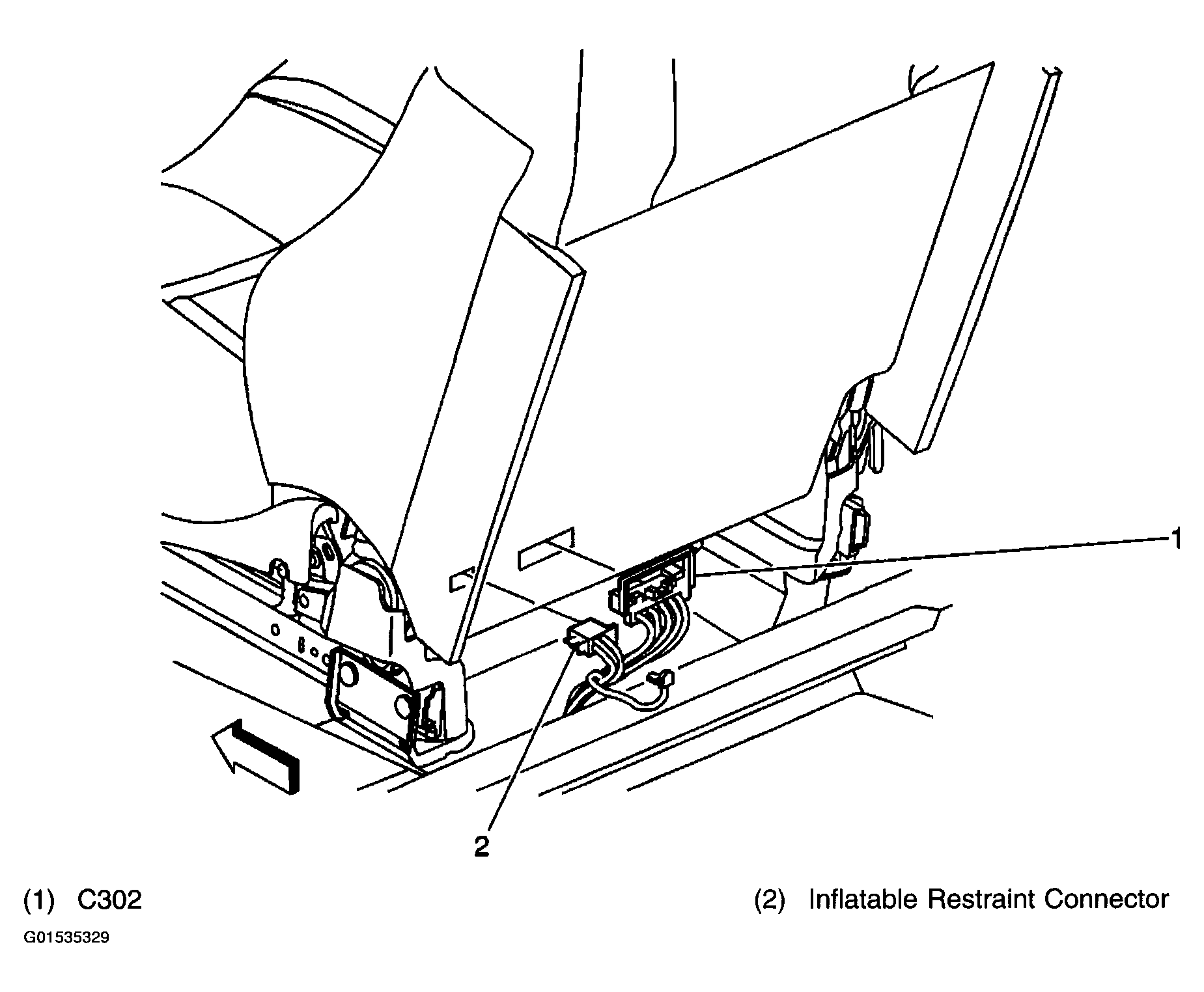

Fig 5: Power Seat Systems Component View - LH Seat Connectors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
