Installation Procedure

  1. Position the heated seat module (2) to the bottom of the seat cushion.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the heated seat module fasteners.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  3. Install the electrical connectors (3) to the heated seat module (2).
  4. Ensure the wiring harness is positioned in the same location in which it was removed.
  5. Install the seat cushion. Refer to SEAT CUSHION REPLACEMENT - FRONT  .

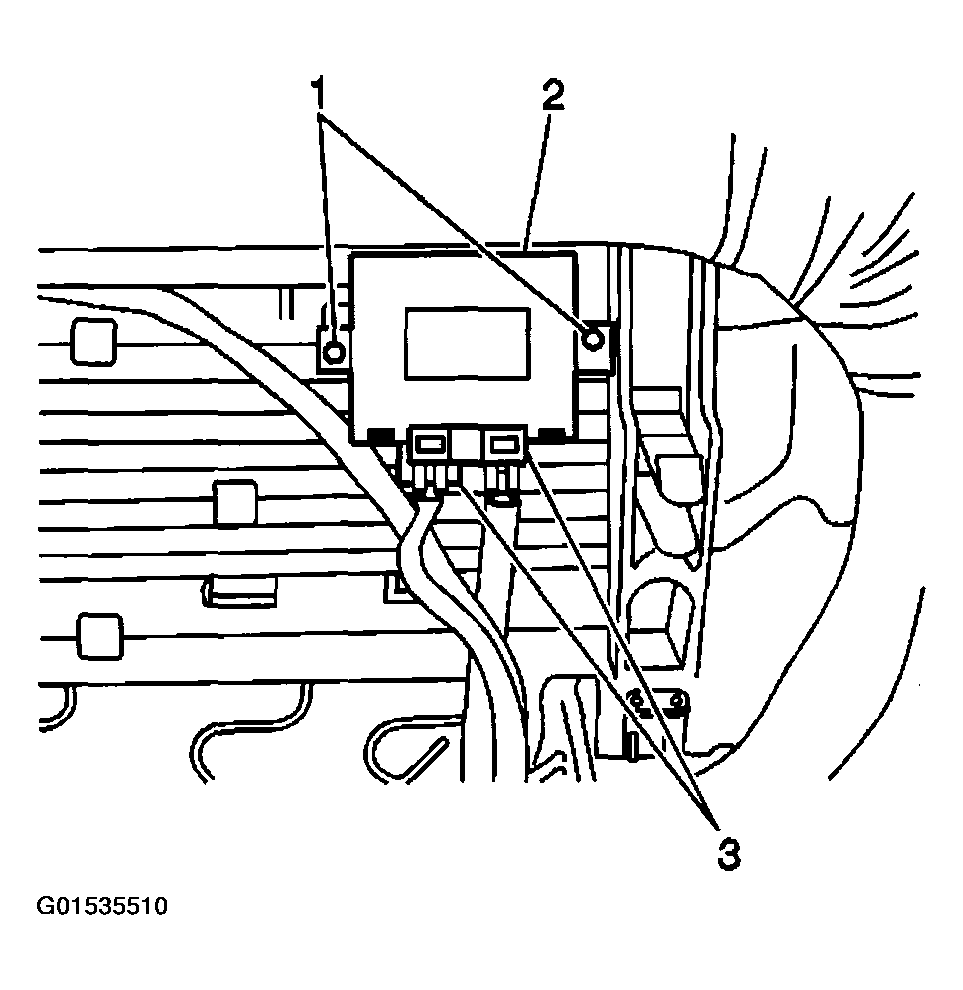

    Fig 1: Installing Heated Seat Module, Fasteners & Electrical Connectors
    G01535510Courtesy of GENERAL MOTORS CORP.
  6. Enable the SIR system. Refer to ZONE 7 or ZONE 9 .
