Connector Identification

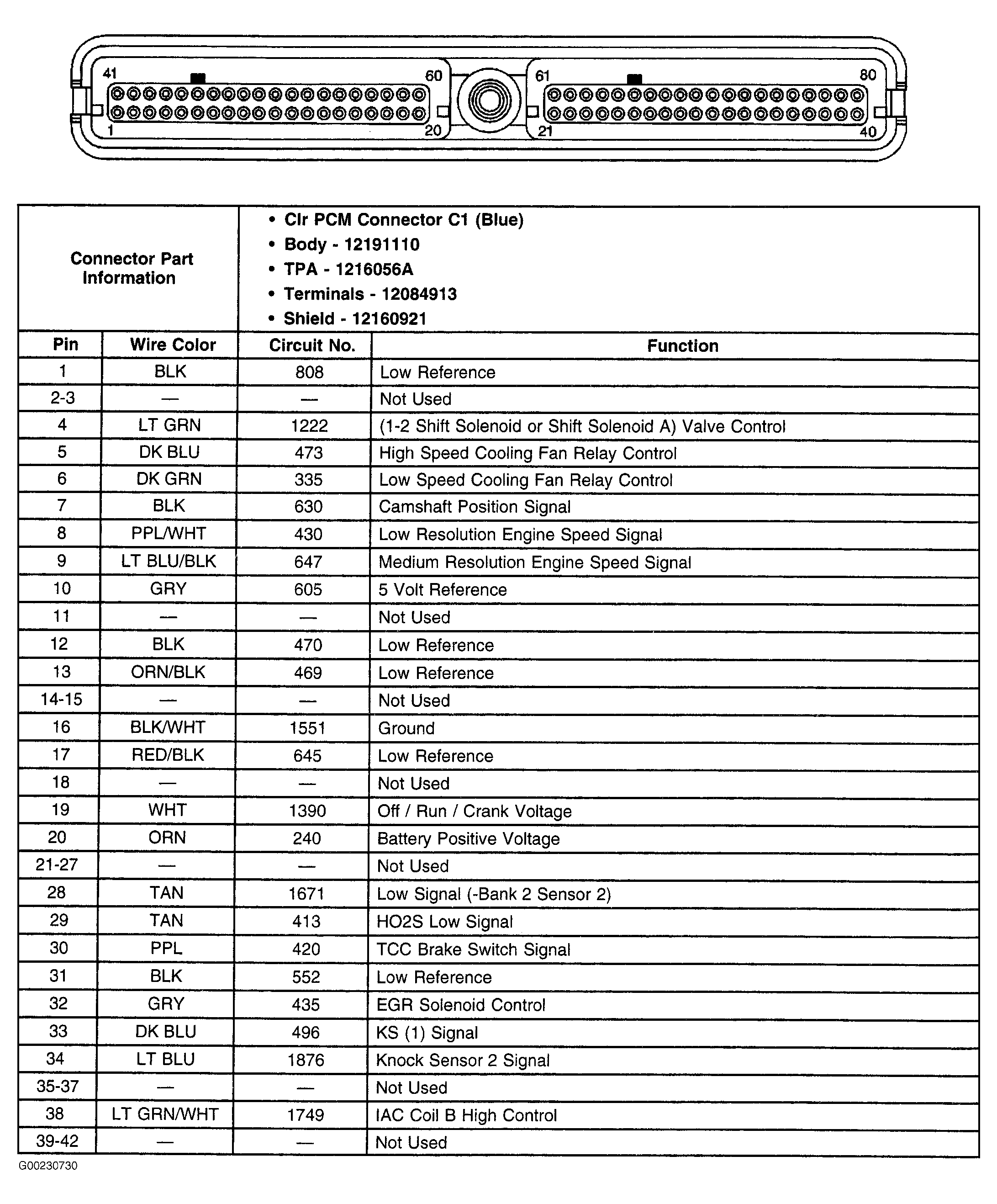

Fig 1: Identifying PCM Connector C1 (1 Of 2)
G00230730Courtesy of GENERAL MOTORS CORP.

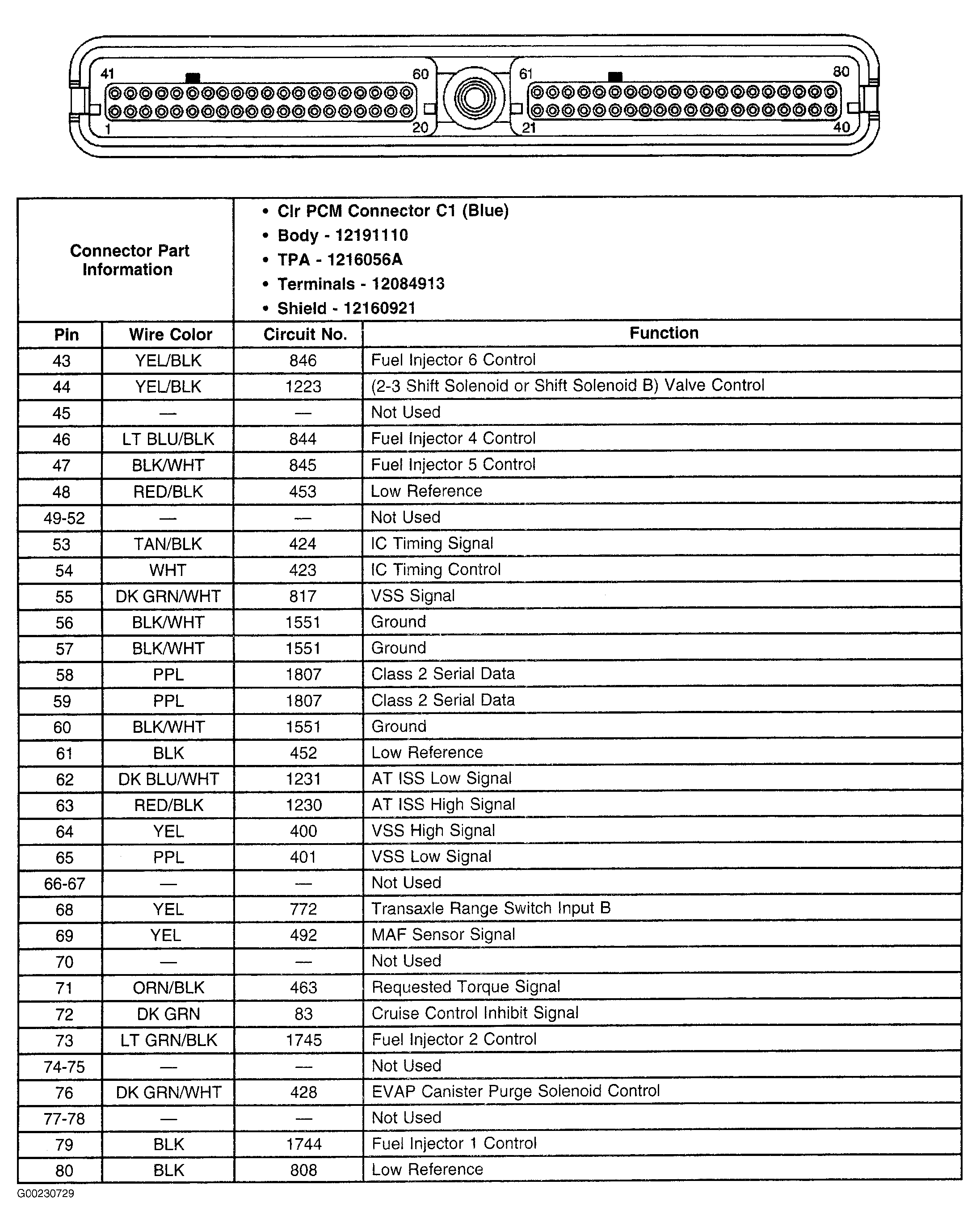

Fig 2: Identifying PCM Connector C1 (2 Of 2)
G00230729Courtesy of GENERAL MOTORS CORP.

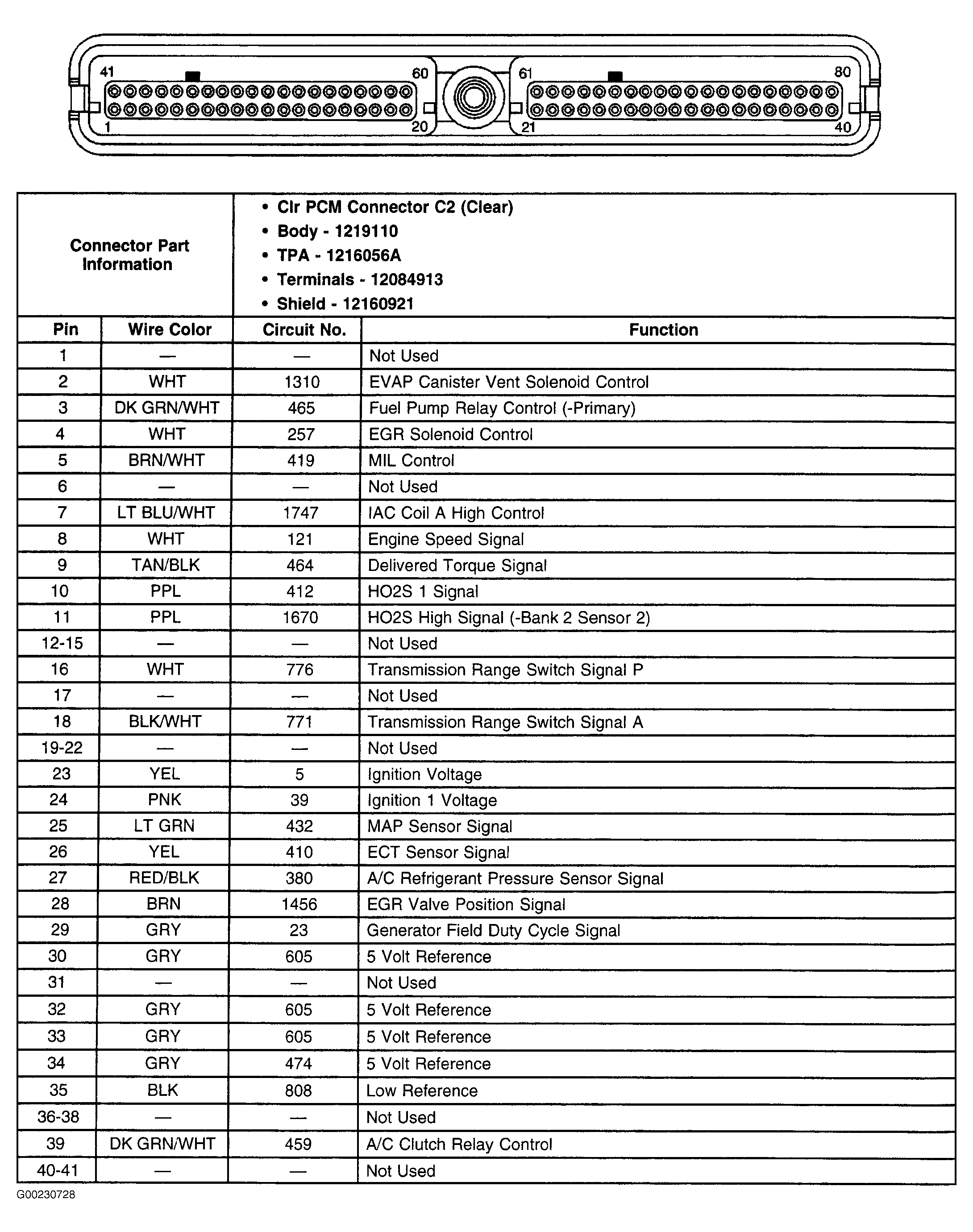

Fig 3: Identifying PCM Connector C2 (1 Of 2)
G00230728Courtesy of GENERAL MOTORS CORP.

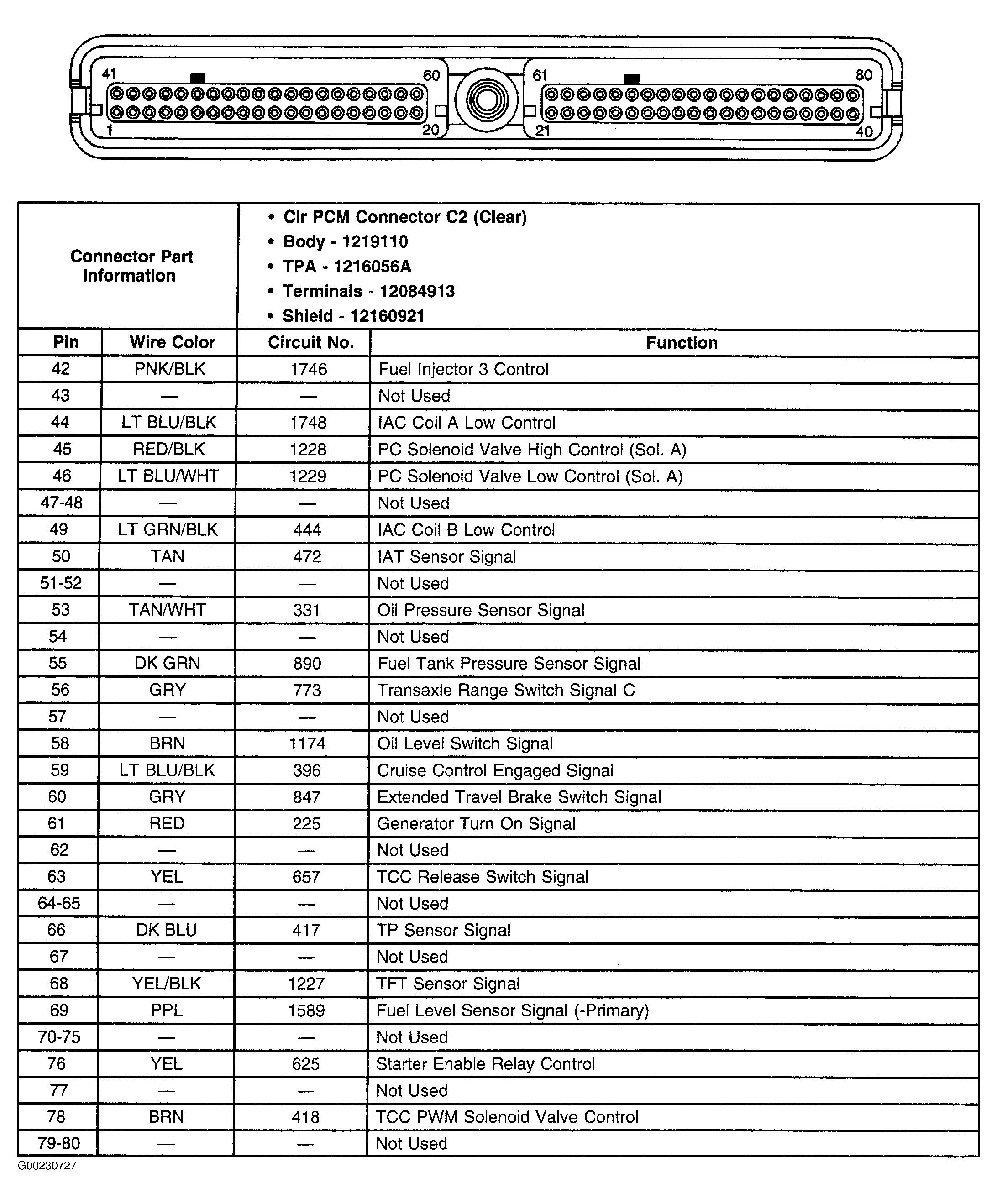

Fig 4: Identifying PCM Connector C2 (2 Of 2)
G00230727Courtesy of GENERAL MOTORS CORP.
