Body Control System Schematics

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: DIM Power and Grounds Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: DIM Ignition Inputs Schematic

Courtesy of GENERAL MOTORS CORP.

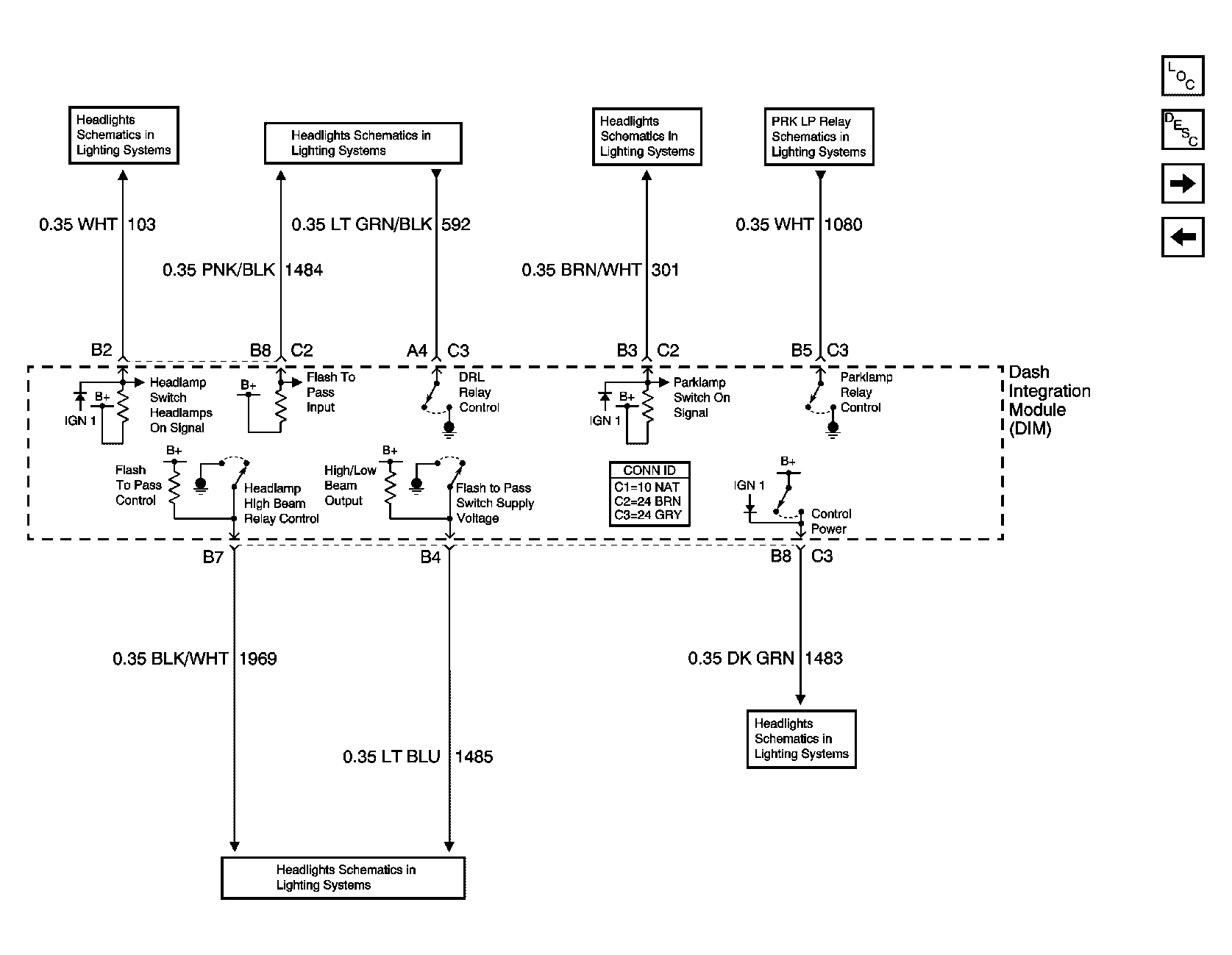

Fig 3: DIM Input/Output Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 4: DIM Input/Output Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

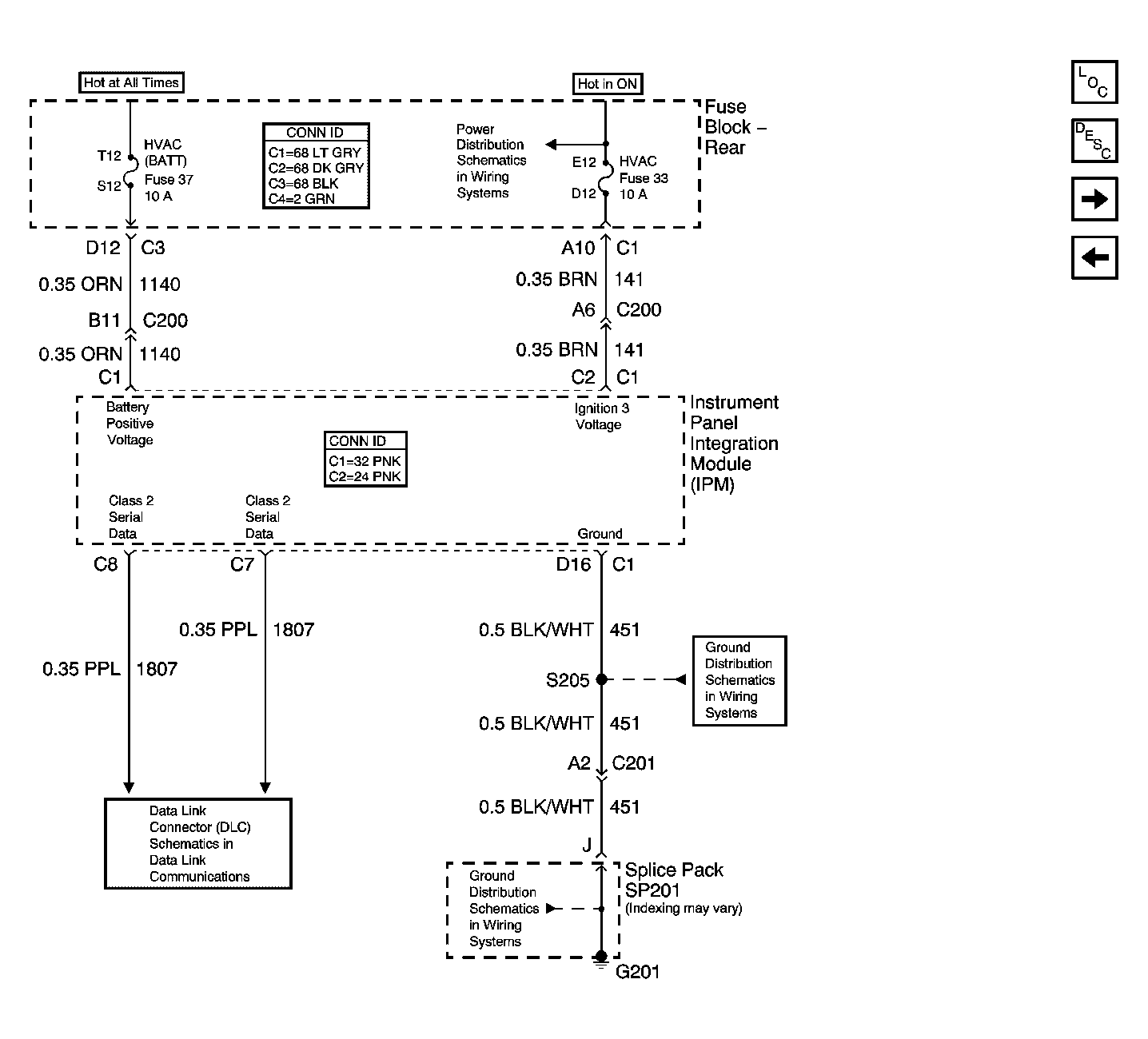

Fig 5: IPM Power and Grounds Schematic

Courtesy of GENERAL MOTORS CORP.

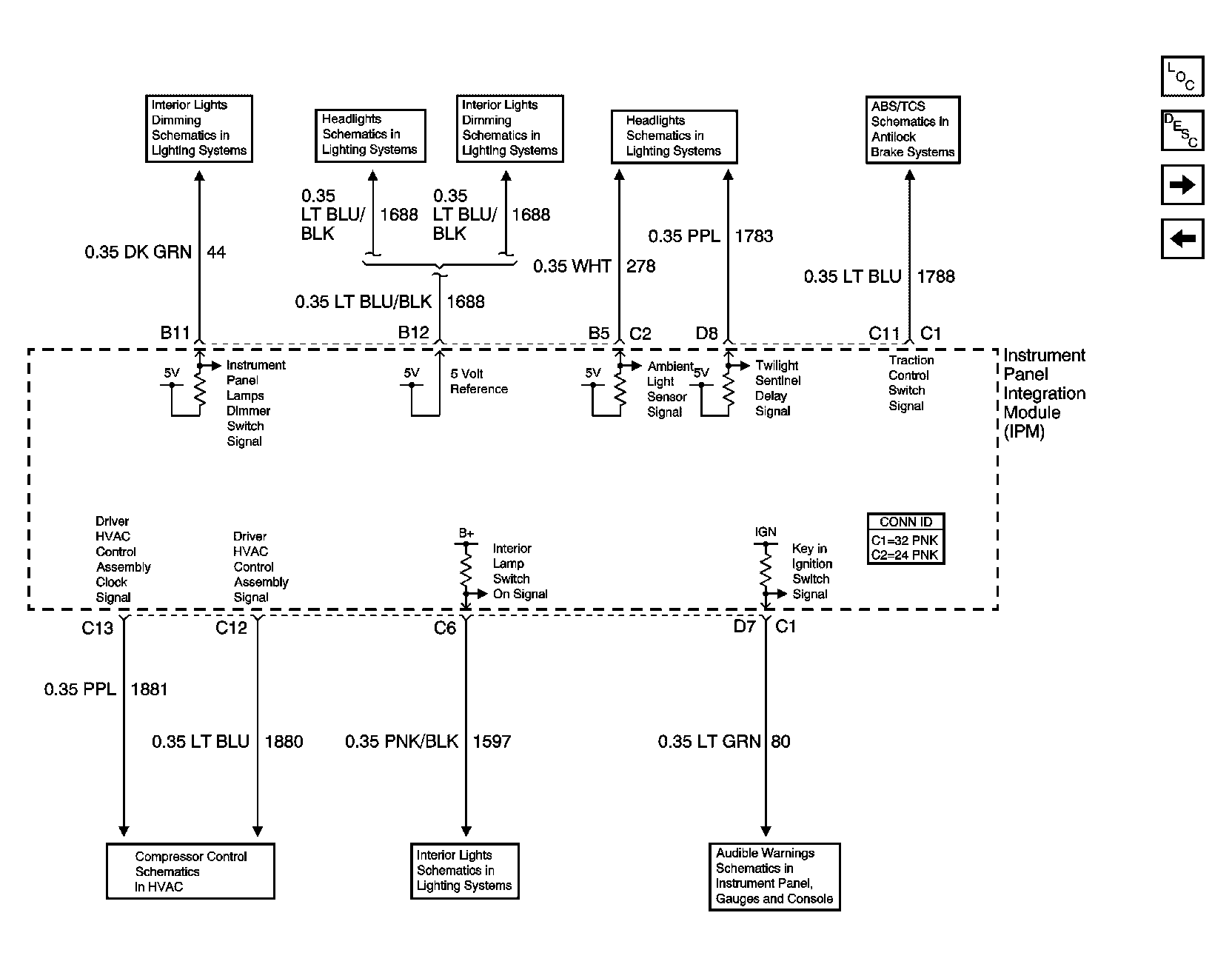

Fig 6: IPM Input/Output Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 7: IPM Input/Output Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 8: RIM Power and Grounds Schematic

Courtesy of GENERAL MOTORS CORP.

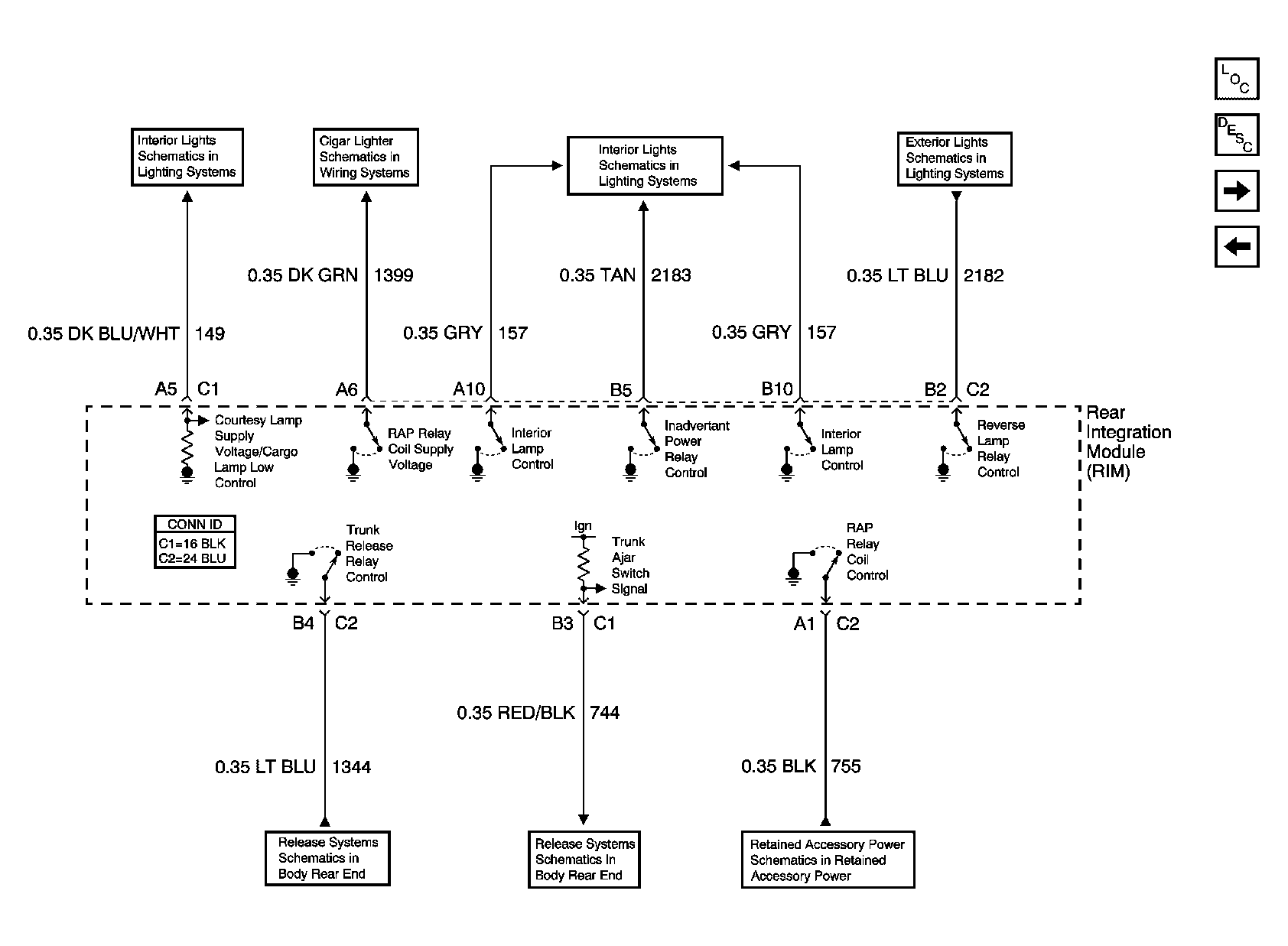

Fig 9: RIM Input/Output - 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

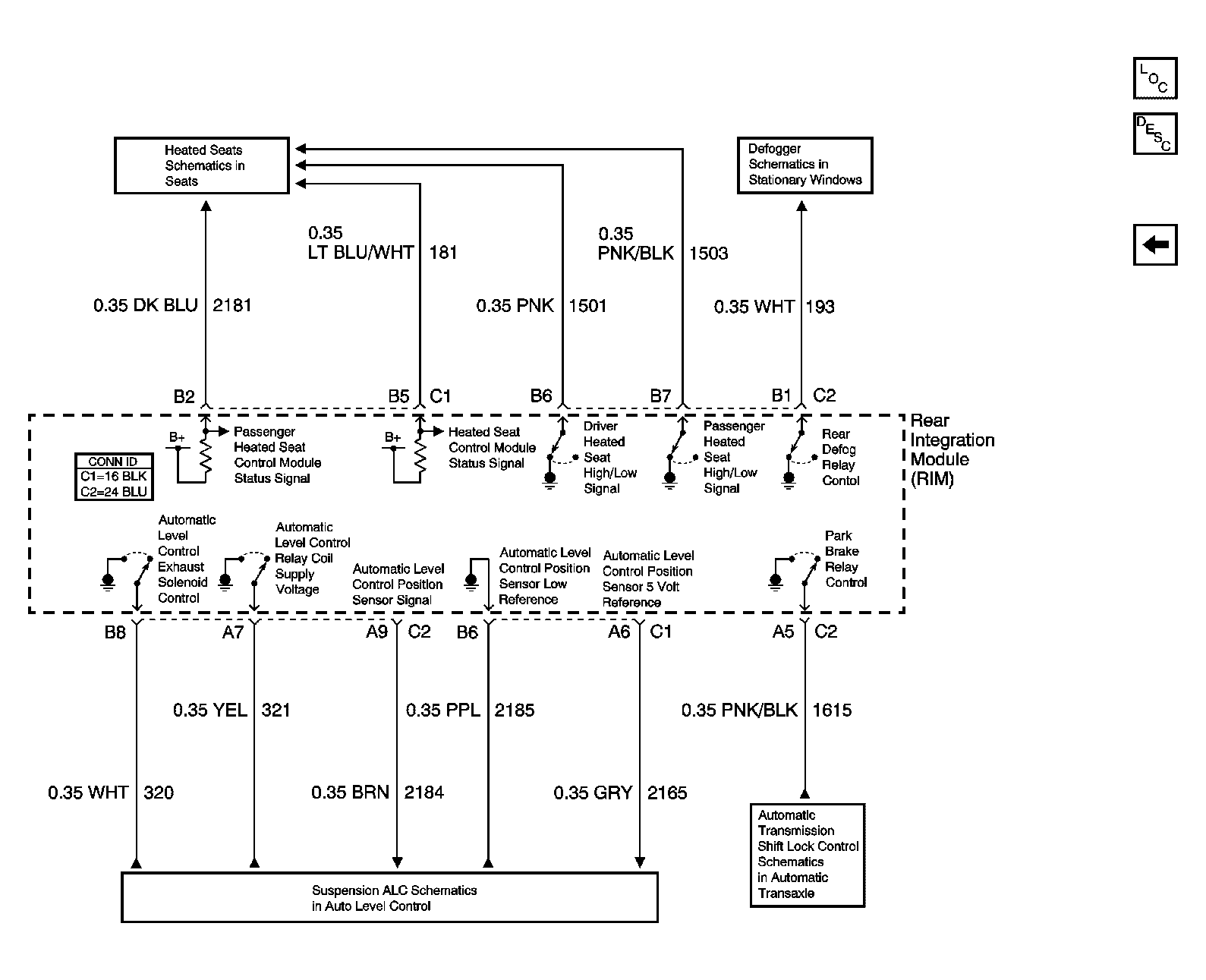

Fig 10: RIM Input/Output Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.
