System Diagram

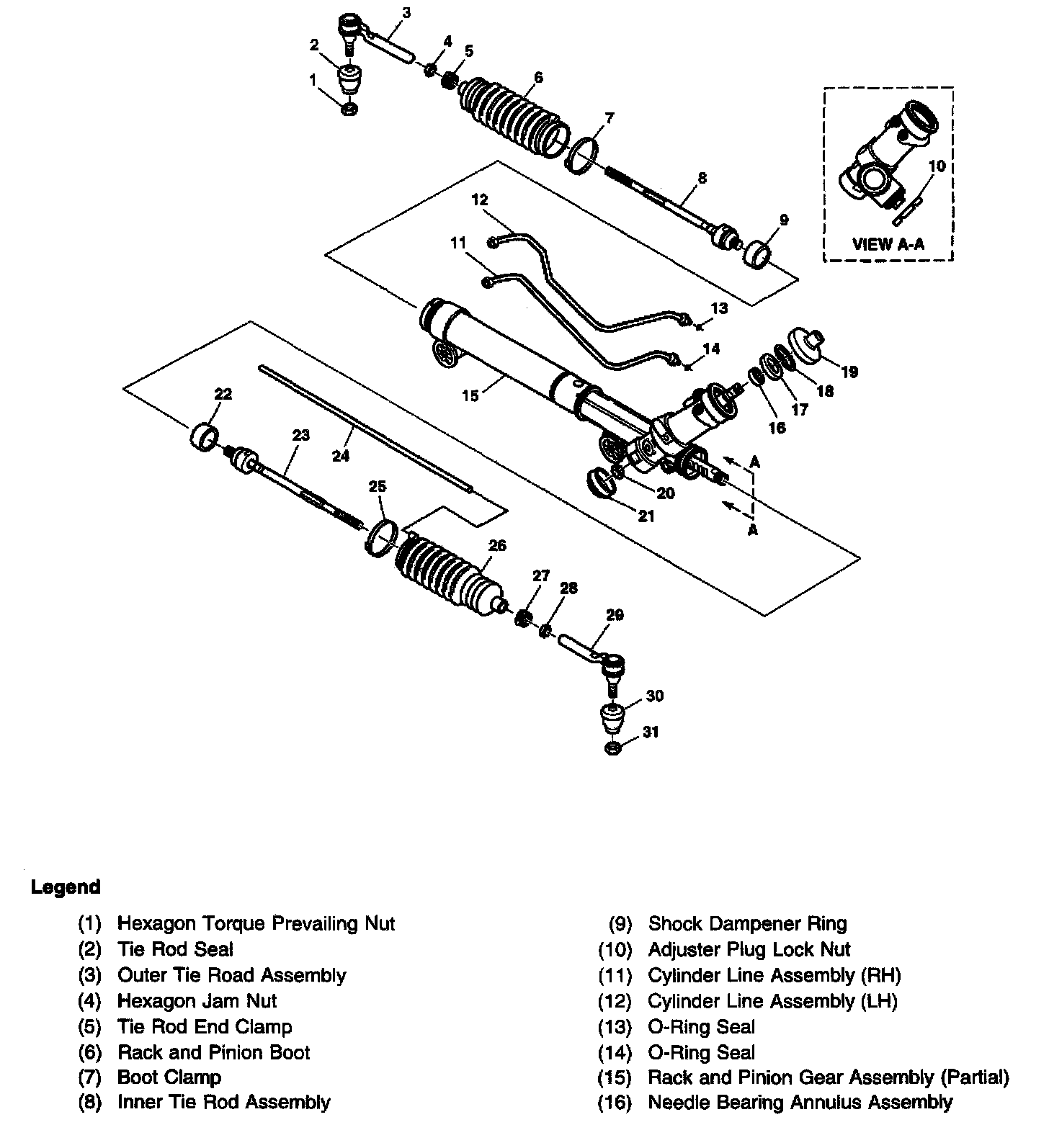

Power Steering Gear Disassembled View (Rack and Pinion)

Part 1 of 2

Part 2 of 2

Rack and Pinion Power Steering Gear

Power Steering Gear Disassembled View (CB Series Pump)

Power Steering Pump Assembly - CB Series
