Scan Tool Output Controls

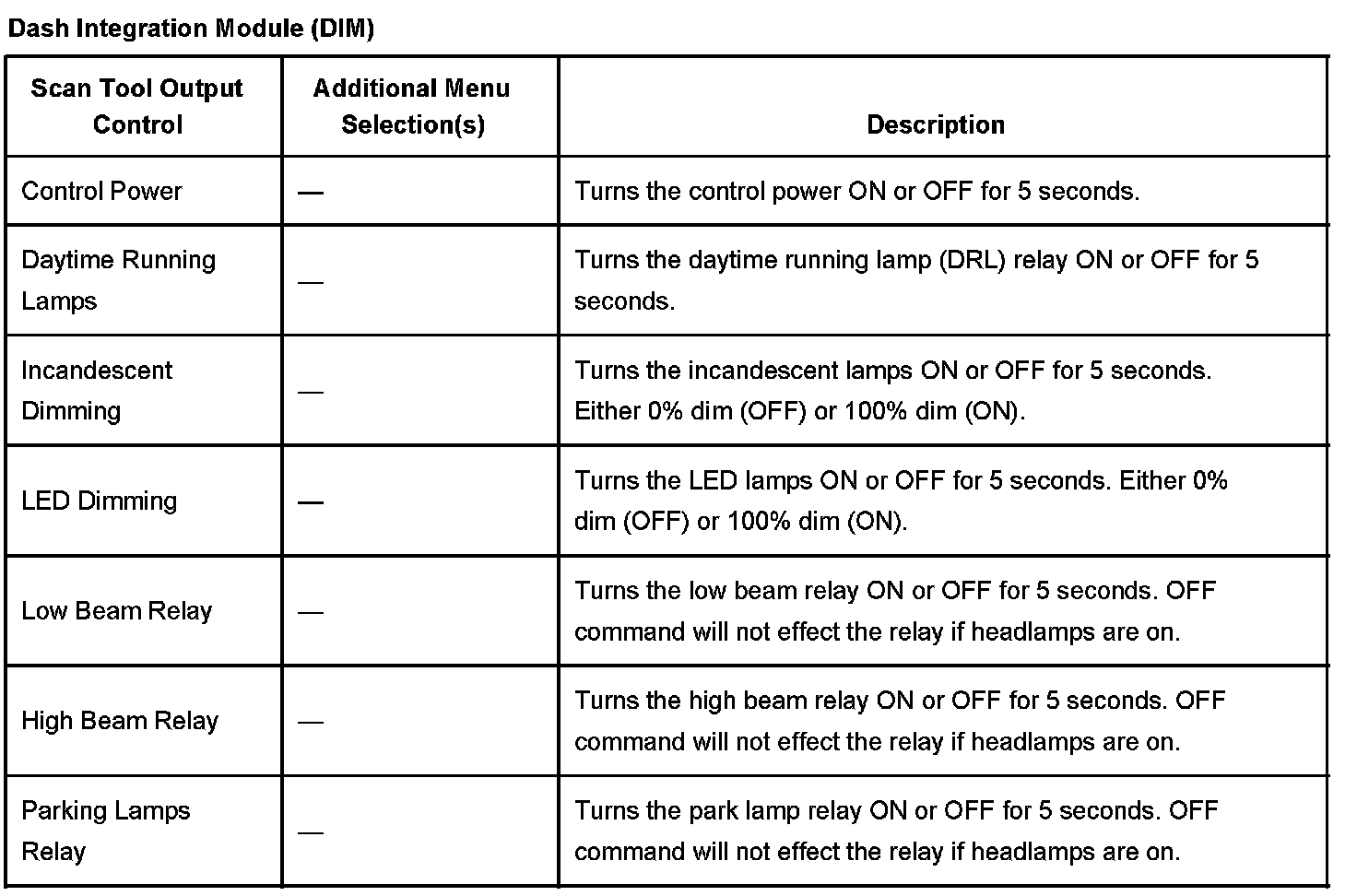

Dash Integration Module (DIM) Scan Tool Output Controls:

Head Up Display (HUD) Scan Tool Output Controls:

Instrument Panel Cluster (IPC) Scan Tool Output Controls:

Rear Integration Module (RIM) Scan Tool Output Controls:
