Installation Procedure

  1. Connect the electrical connector to the body control module (2).

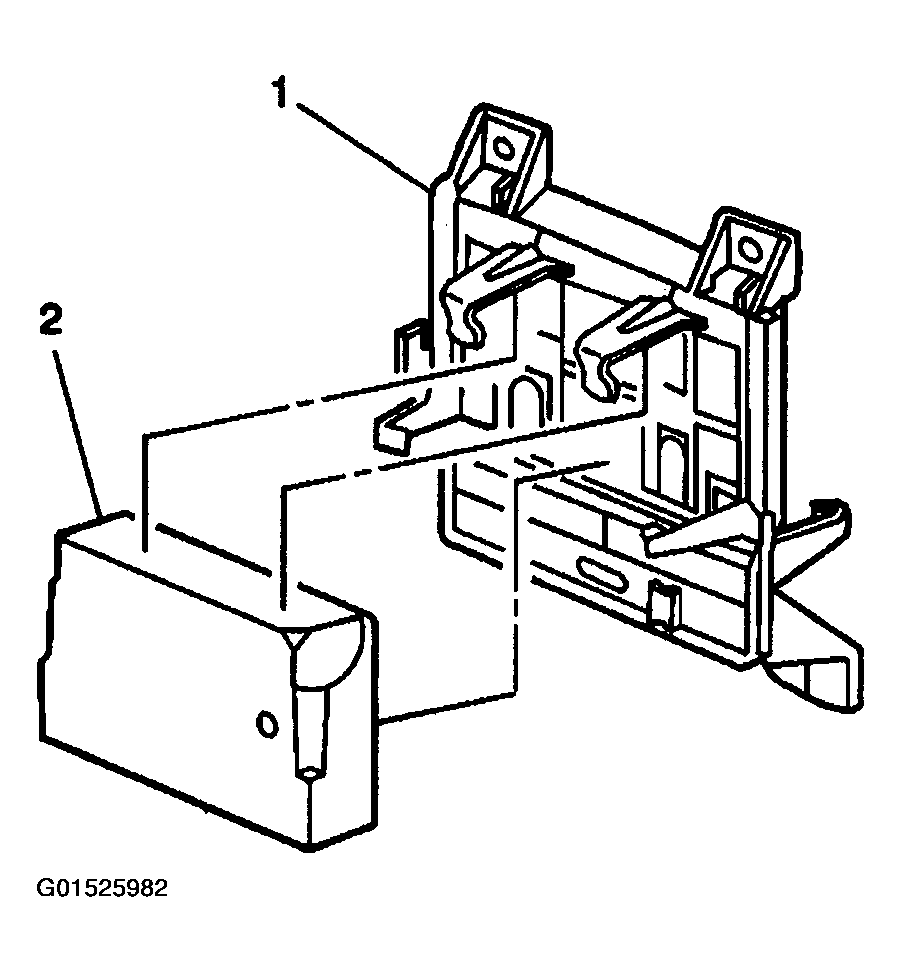

    Fig 1: Installing Body Control Module
    G01525982Courtesy of GENERAL MOTORS CORP.
  2. Install the module to the mounting bracket (1).

    Slide the module upward and slightly rearward until locking tabs engage.

  3. Install the right closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  4. Reprogram the body control module. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION  .
