Installation Procedure

Install the door latch onto the retainer (1).

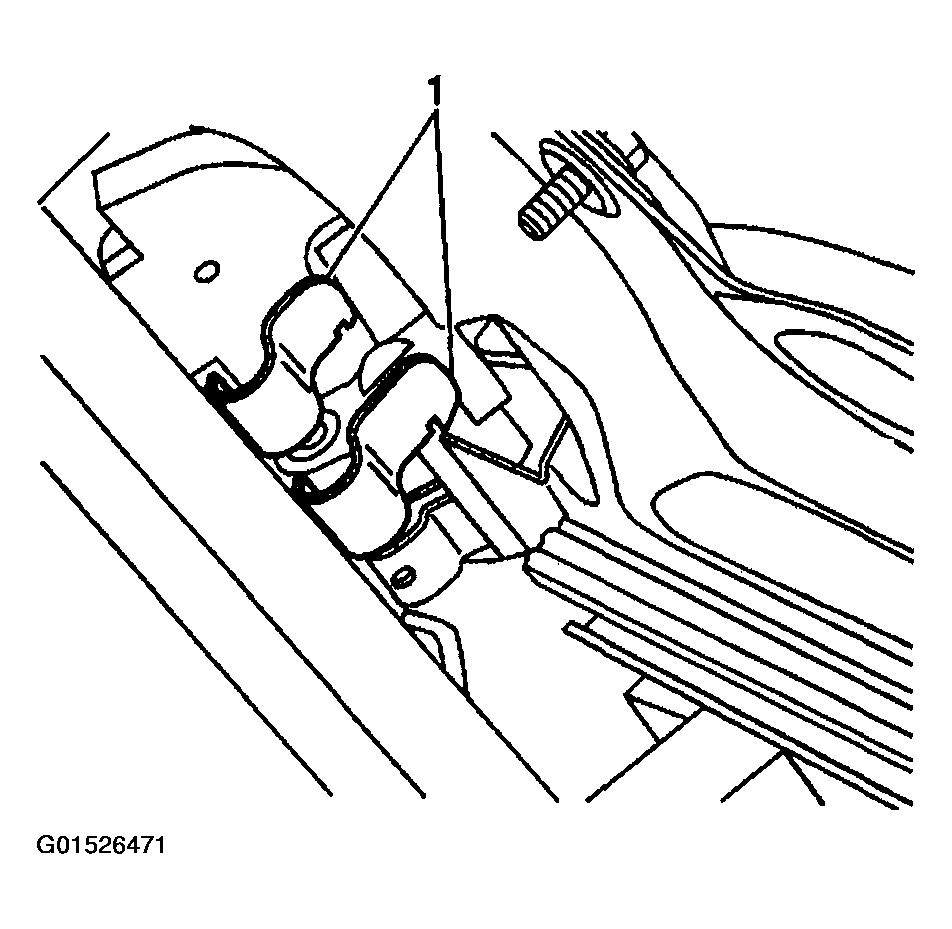

Fig 1: Identifying Door Latch
Courtesy of GENERAL MOTORS CORP.
Install the inside door handle and lock rods to the door latch.
Fasten the inside door handle and lock rods to the latch by closing the clips (1,2).

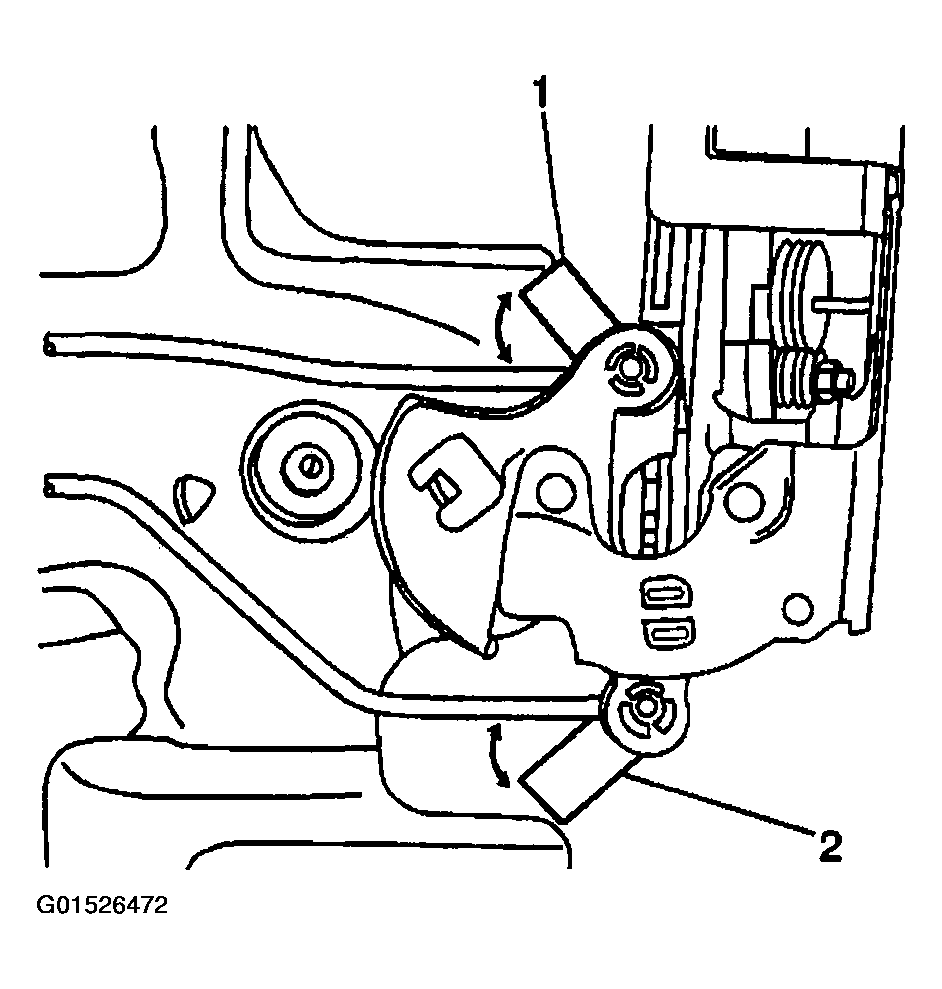

Fig 2: Connecting Inside Door Handle And Lock Rods To Latch
Courtesy of GENERAL MOTORS CORP.
Install the outside door handle rod (2) on to the retainer (1) for ease of installation.

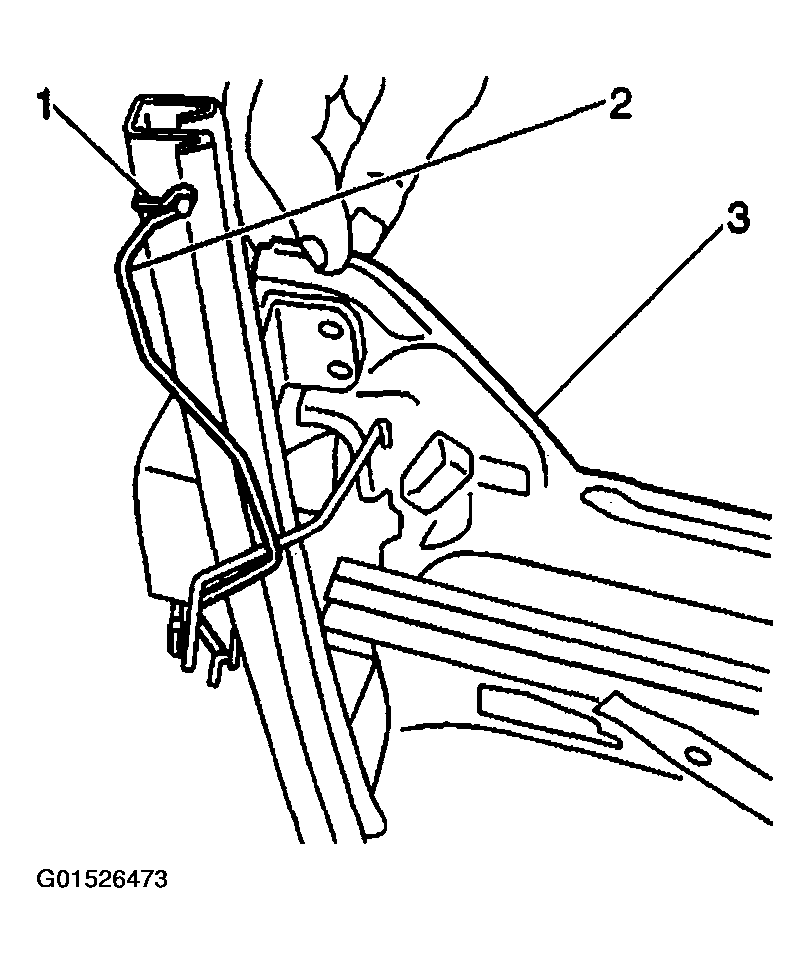

Fig 3: Installing Outside Door Handle Rod On To Retainer
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors to the door latch.
Start the fasteners (2) in the module.

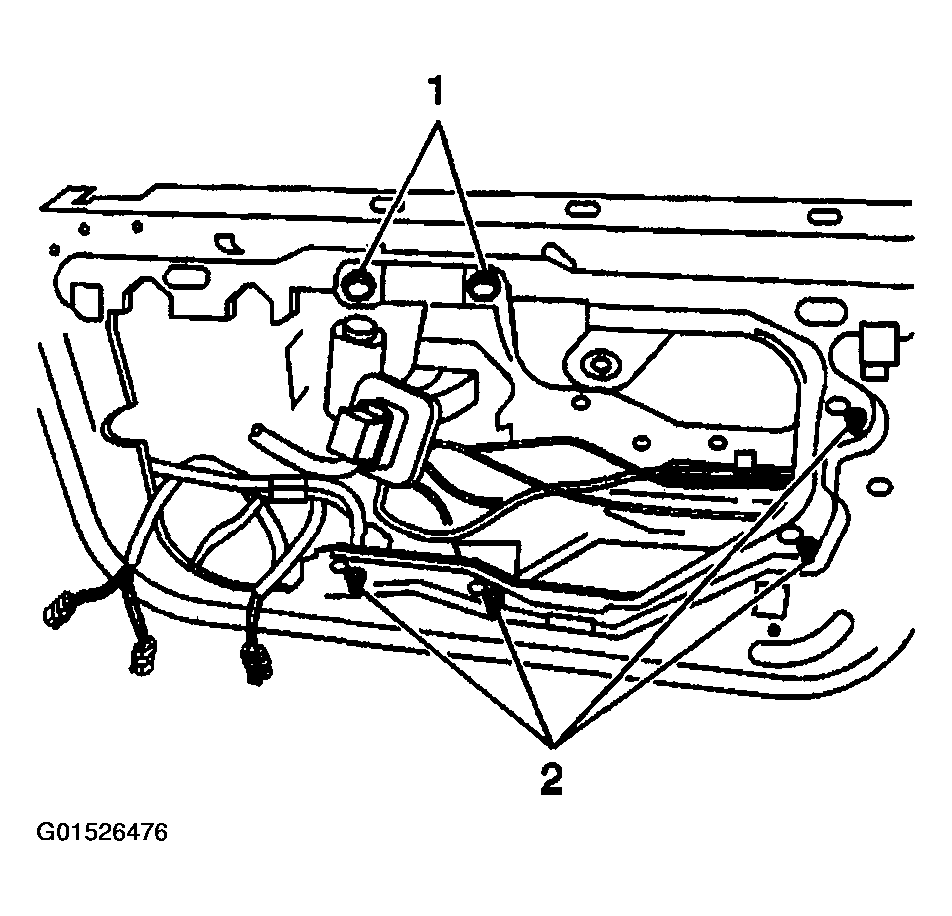

Fig 4: Locating Door Module Fasteners
Courtesy of GENERAL MOTORS CORP.
Install the module into the door.

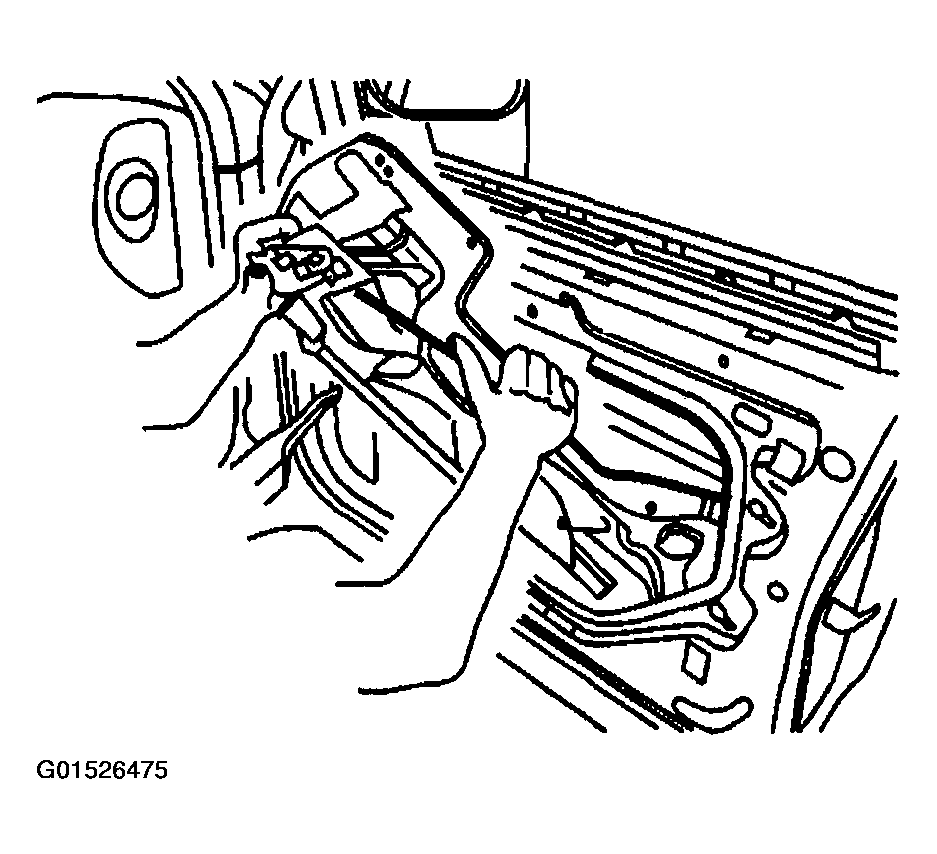

Fig 5: Installing Door Control Module Into Door
Courtesy of GENERAL MOTORS CORP.
Align the fasteners (2) installed in the module with the keyhole slots in the door.

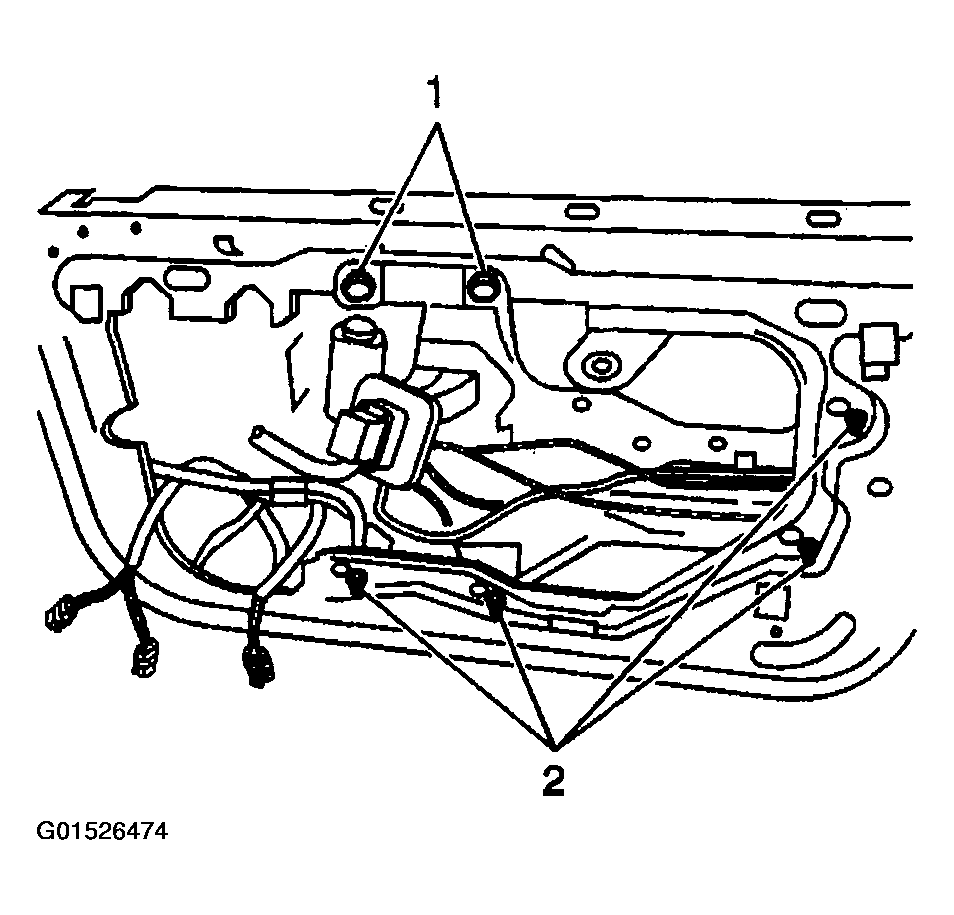

Fig 6: Locating Door Control Module Fasteners
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the remaining fasteners (1).
Tighten

Tighten the fasteners to 10 N.m (89 lb.in).
Install the 3 fasteners to the latch assembly.
Tighten

Tighten the fasteners to 10 N.m (89 lb.in).
Install the handle and lock rods to the outside door handle.
Install the window. Refer to WINDOW REPLACEMENT - FRONT DOOR .
Install the speaker assembly. Refer to SPEAKER REPLACEMENT - FRONT LOWER in Entertainment.
Install the trim panel bracket.
Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
Install the door control module. Refer to DOOR CONTROL MODULE REPLACEMENT - FRONT .
Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
