Cellular Communication Connector End Views

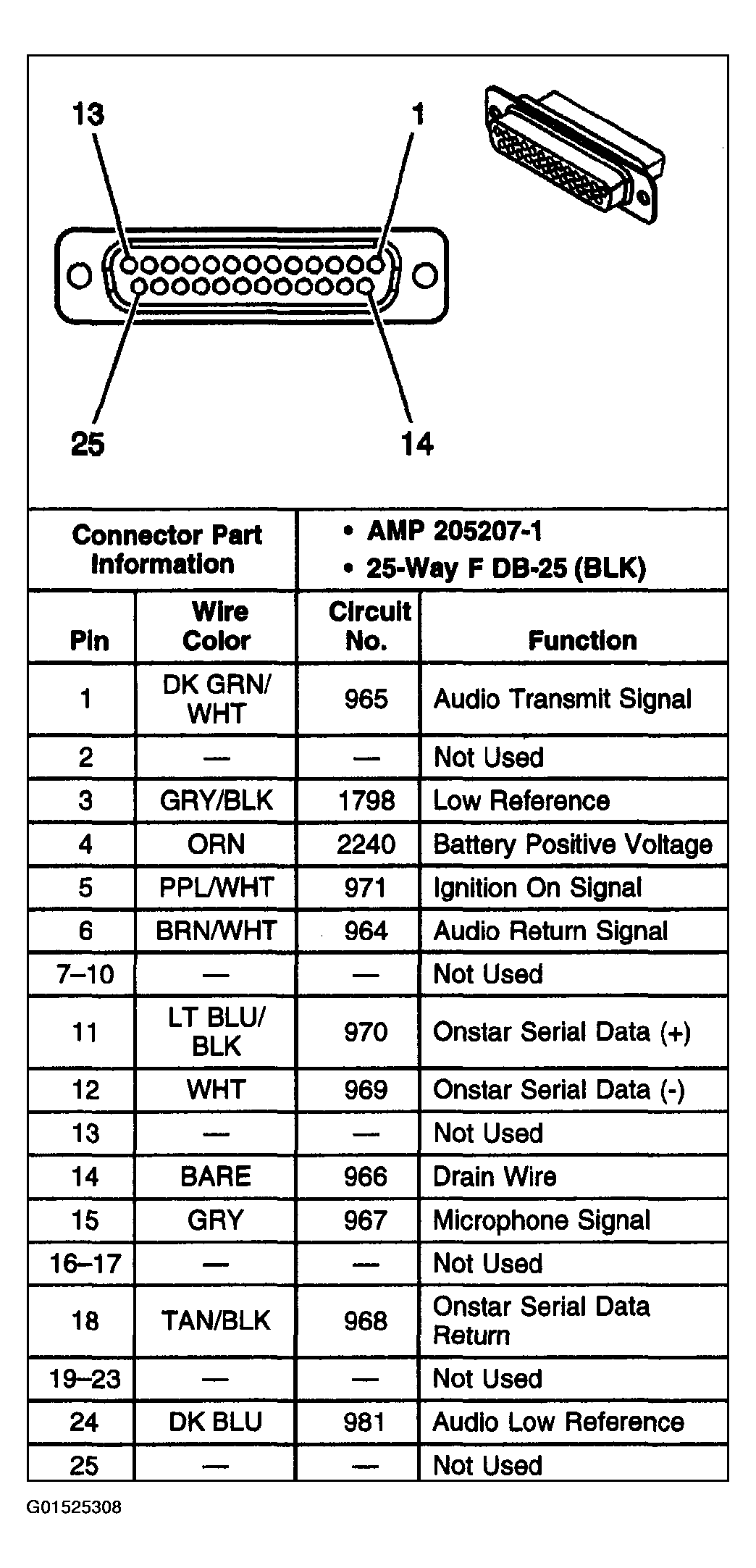

Fig 1: Vehicle Communication Unit
G01525308Courtesy of GENERAL MOTORS CORP.

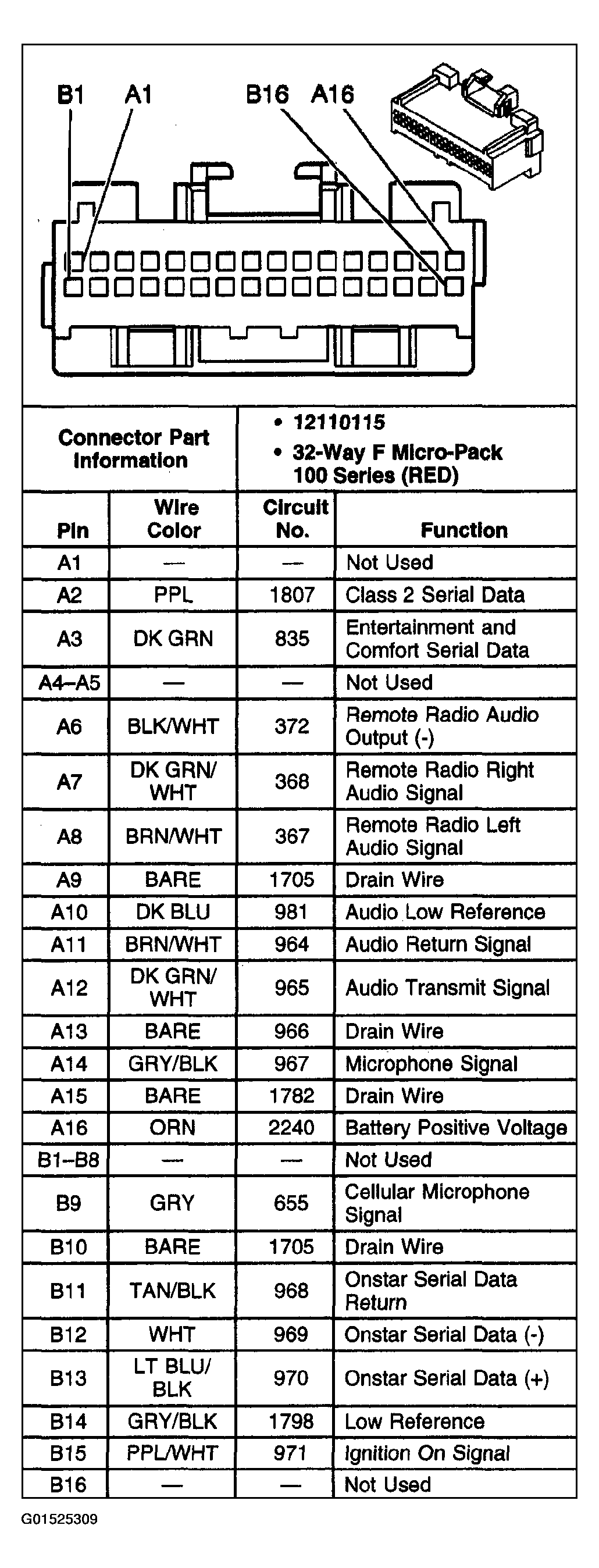

Fig 2: Vehicle Interface Unit C1
G01525309Courtesy of GENERAL MOTORS CORP.

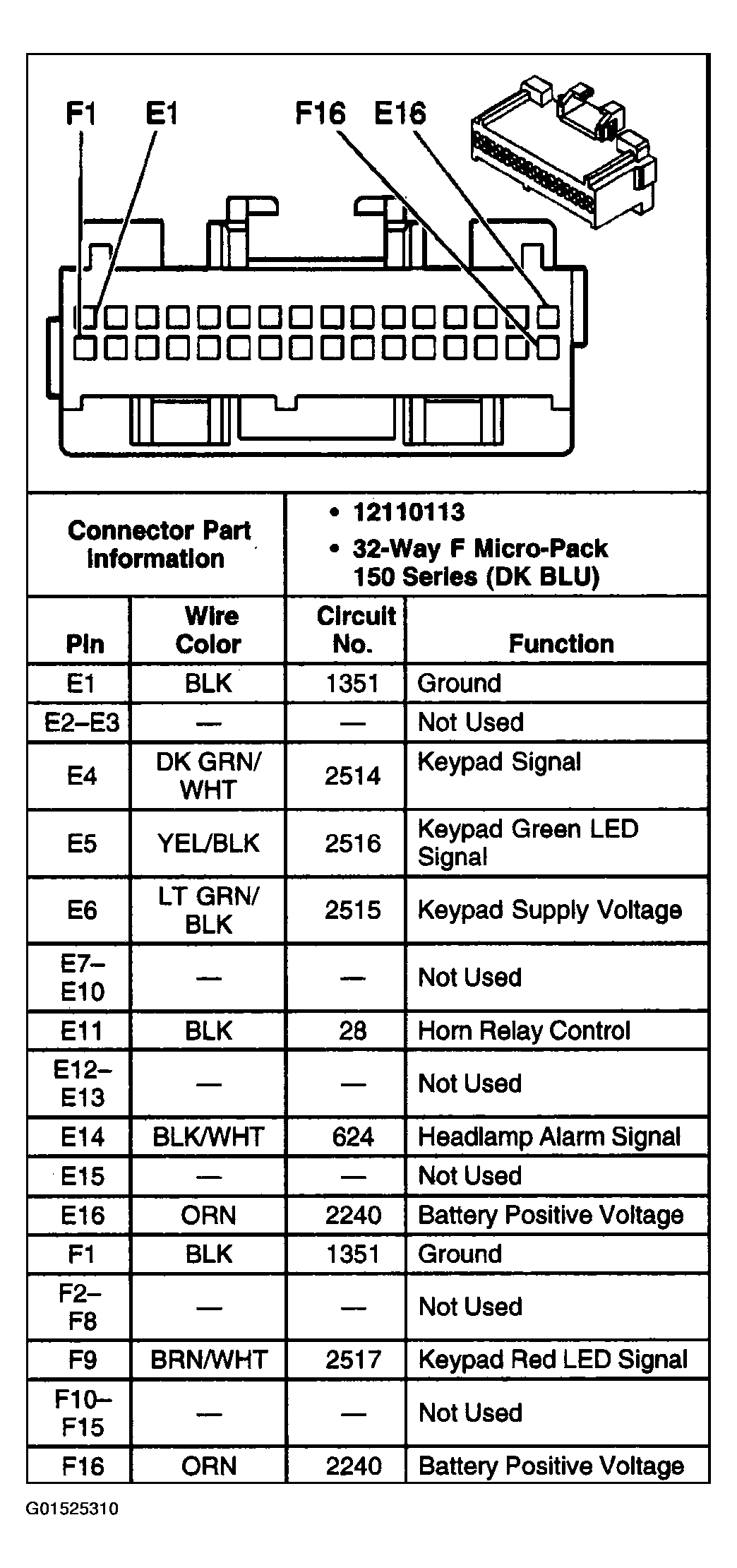

Fig 3: Vehicle Interface Unit C2
G01525310Courtesy of GENERAL MOTORS CORP.
