Power Seat Systems Component Views

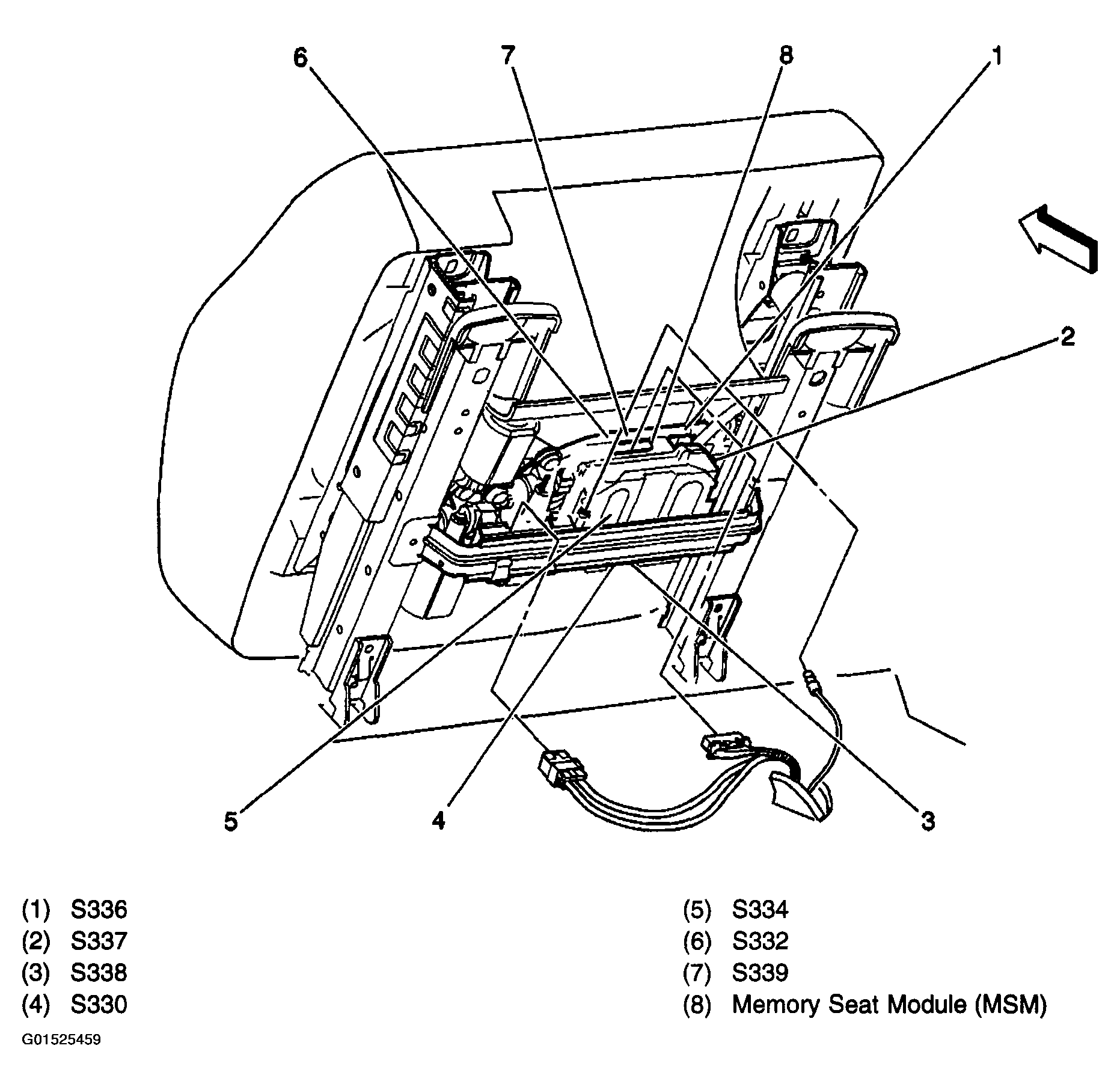

Fig 1: Passenger Compartment, Under Left Front Seat Component View
G01525459Courtesy of GENERAL MOTORS CORP.

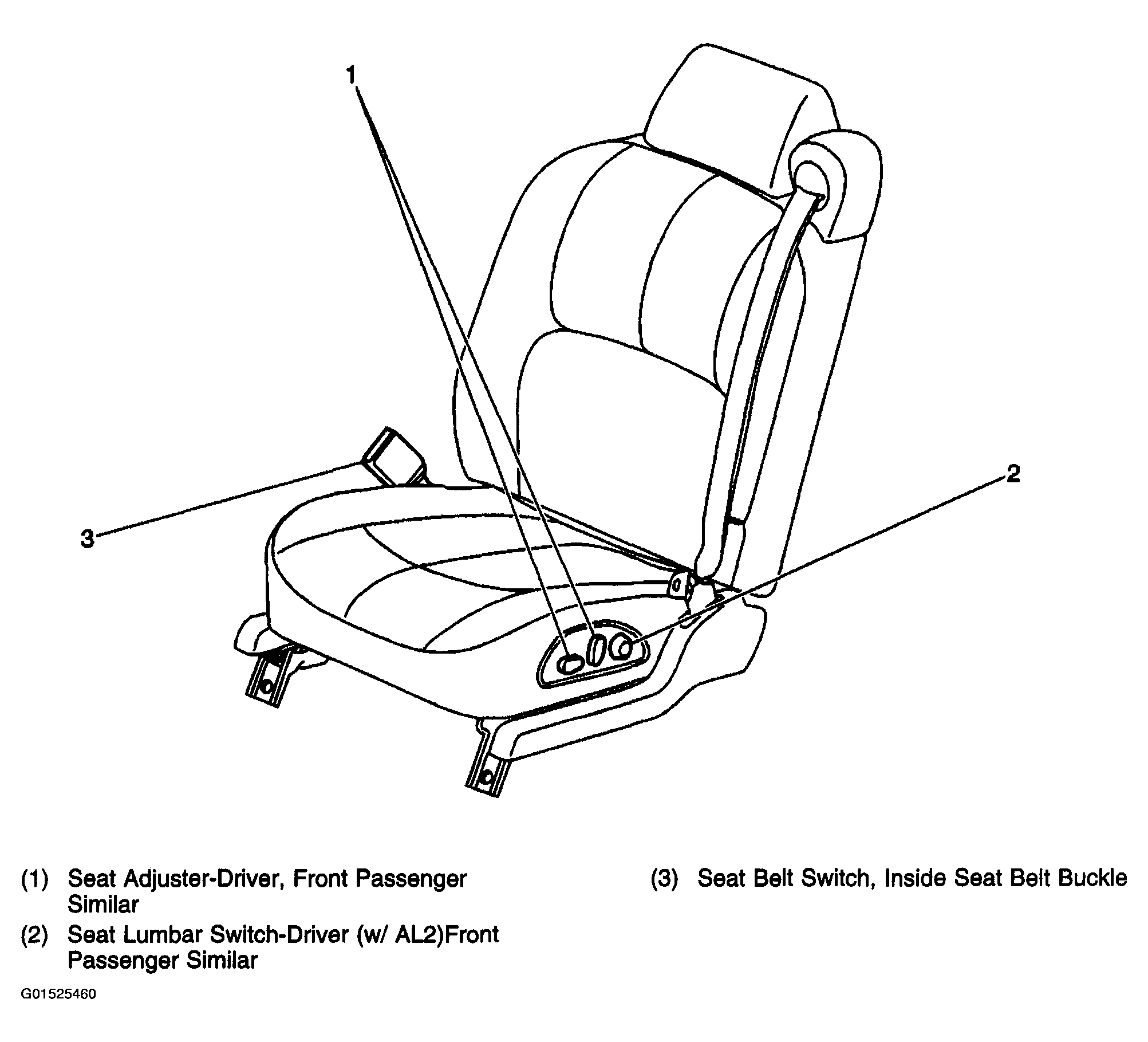

Fig 2: Driver Seat Switches Component View
G01525460Courtesy of GENERAL MOTORS CORP.

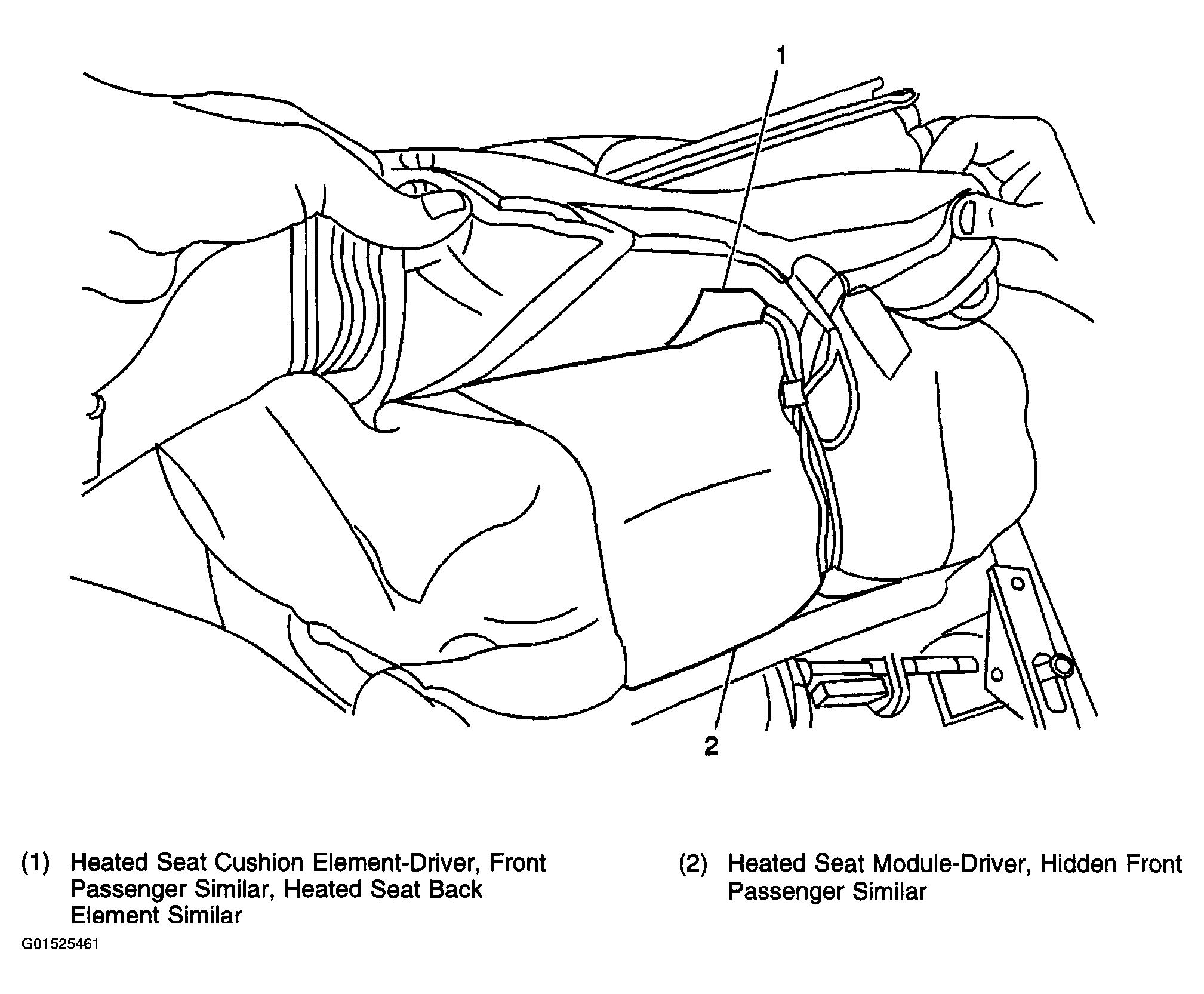

Fig 3: Driver Seat Component View
G01525461Courtesy of GENERAL MOTORS CORP.

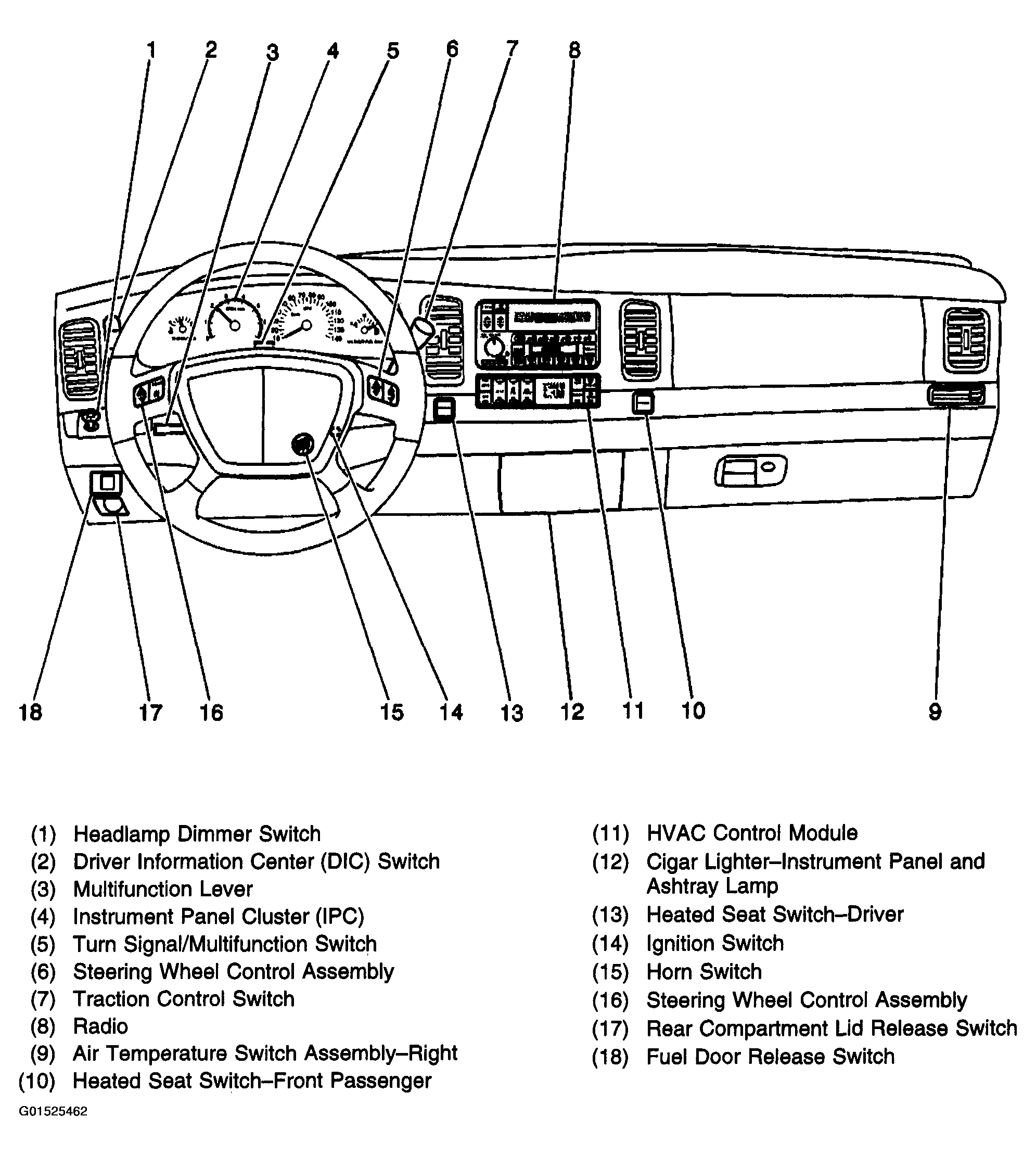

Fig 4: Passenger Compartment, Front Of IP Component View
G01525462Courtesy of GENERAL MOTORS CORP.

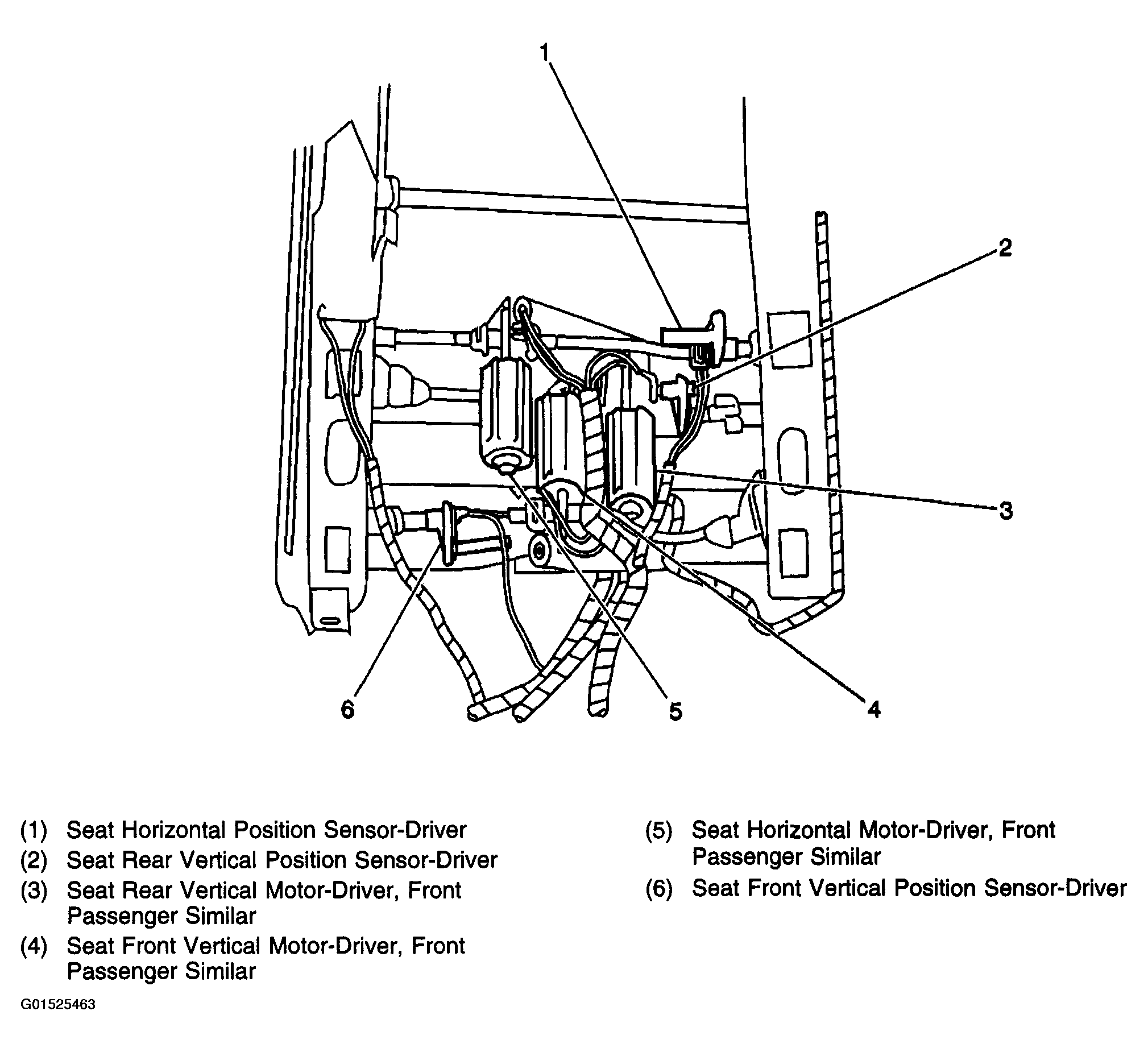

Fig 5: LH Front Seat Horizontal & Vertical Motors & Sensors Component View
G01525463Courtesy of GENERAL MOTORS CORP.

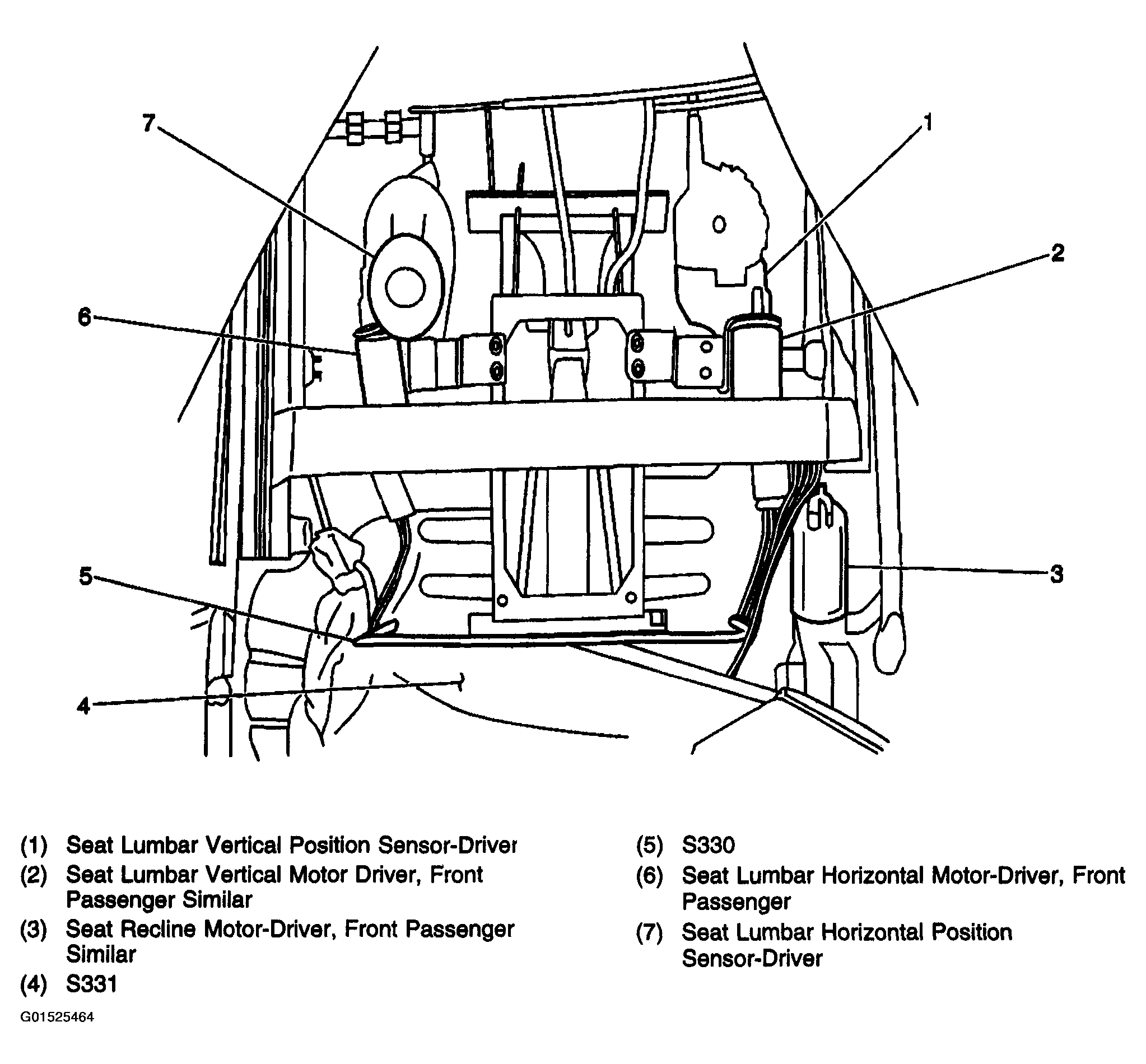

Fig 6: LH Front Seat Back Component View
G01525464Courtesy of GENERAL MOTORS CORP.

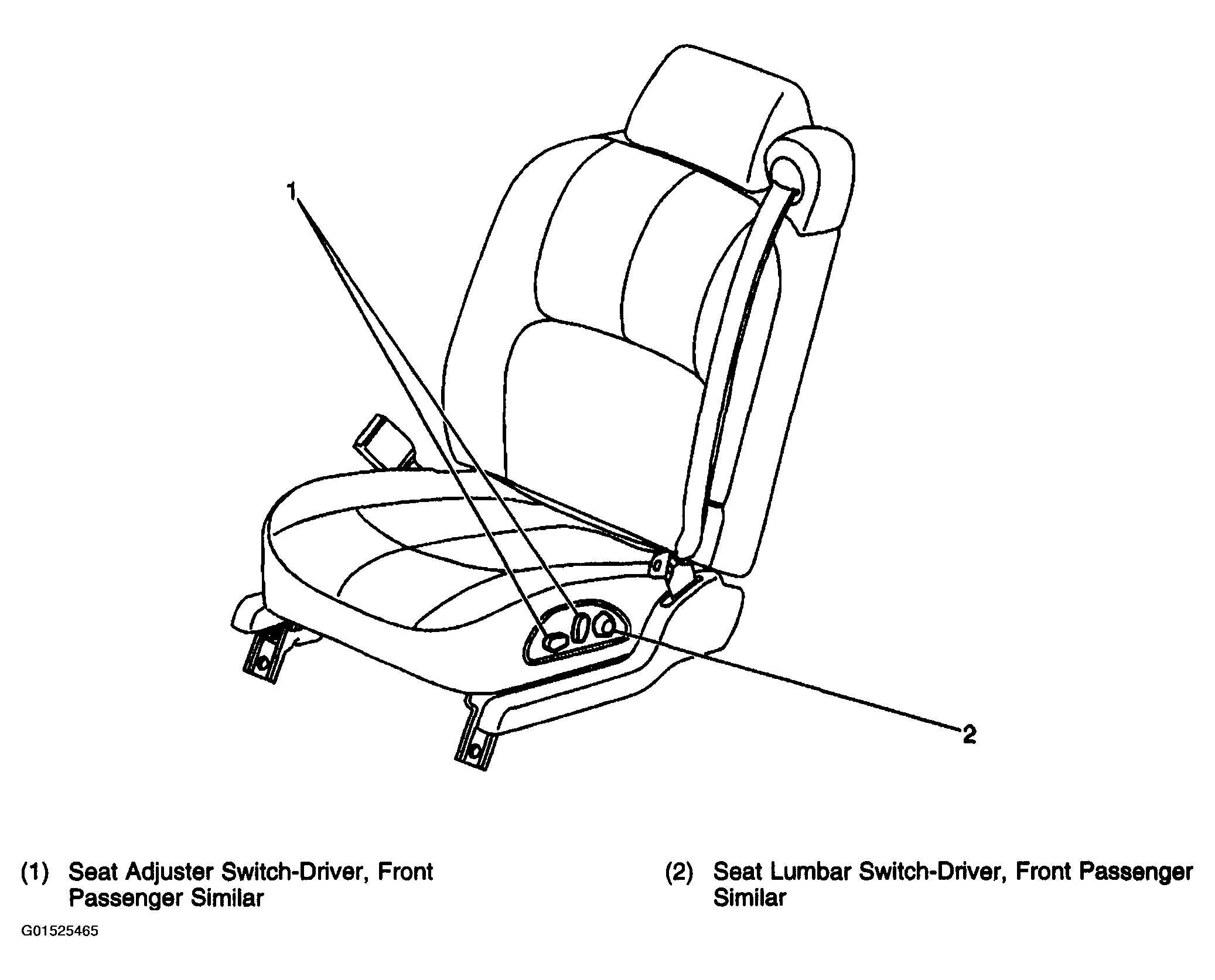

Fig 7: LH Lumbar & Seat Switch Component View
G01525465Courtesy of GENERAL MOTORS CORP.
