Power Door Systems Connector End Views

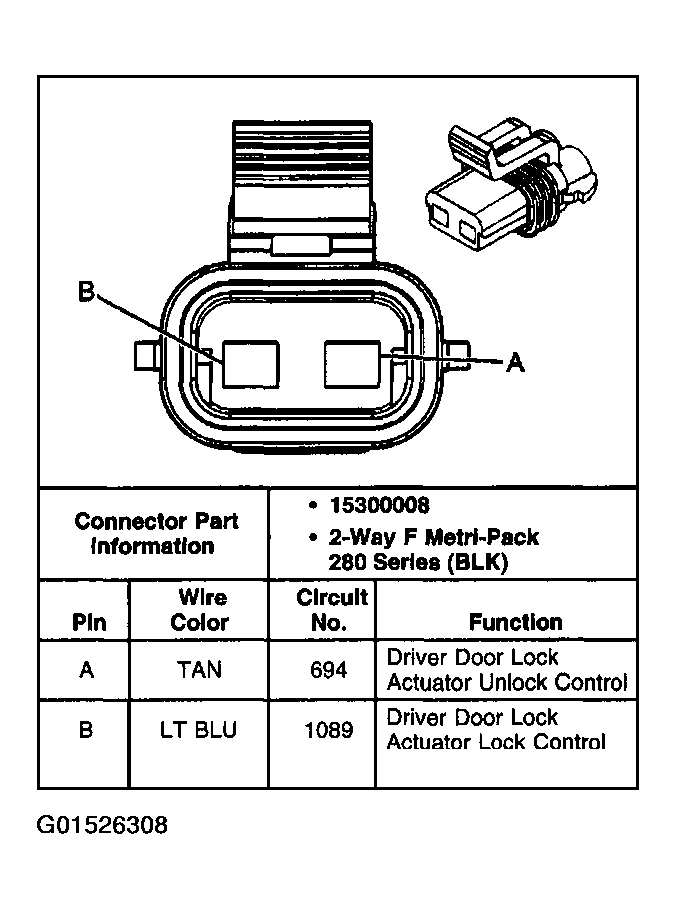

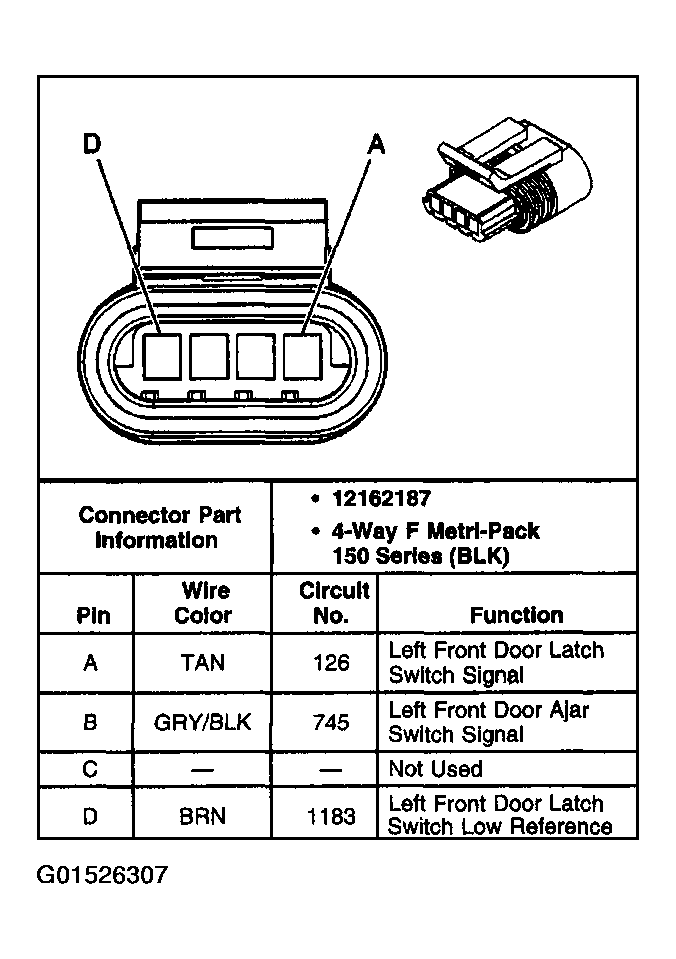

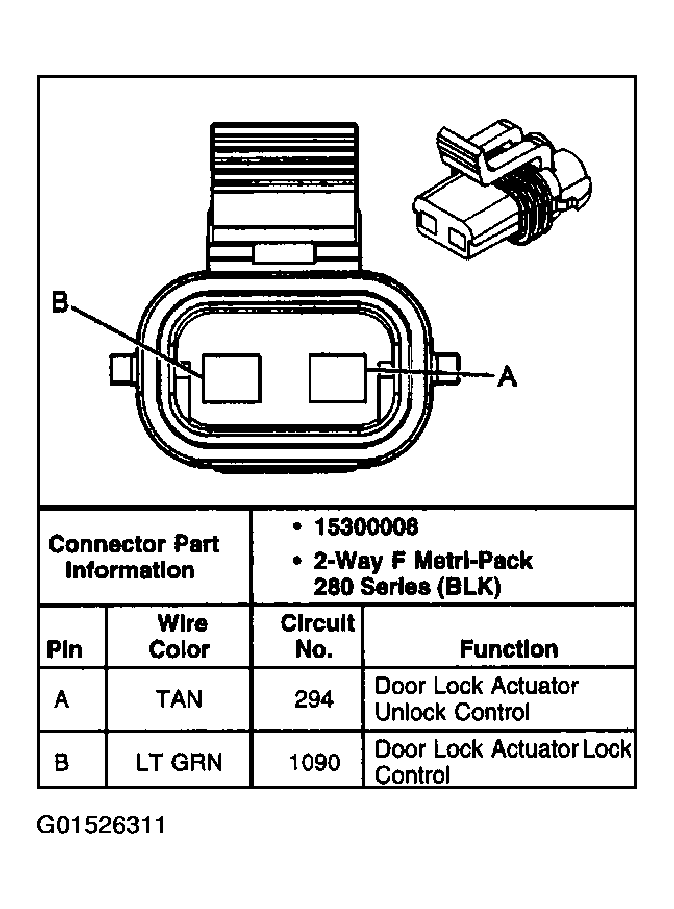

Fig 1: Door Lock Actuator (Driver C1) Connector End View
Courtesy of GENERAL MOTORS CORP.

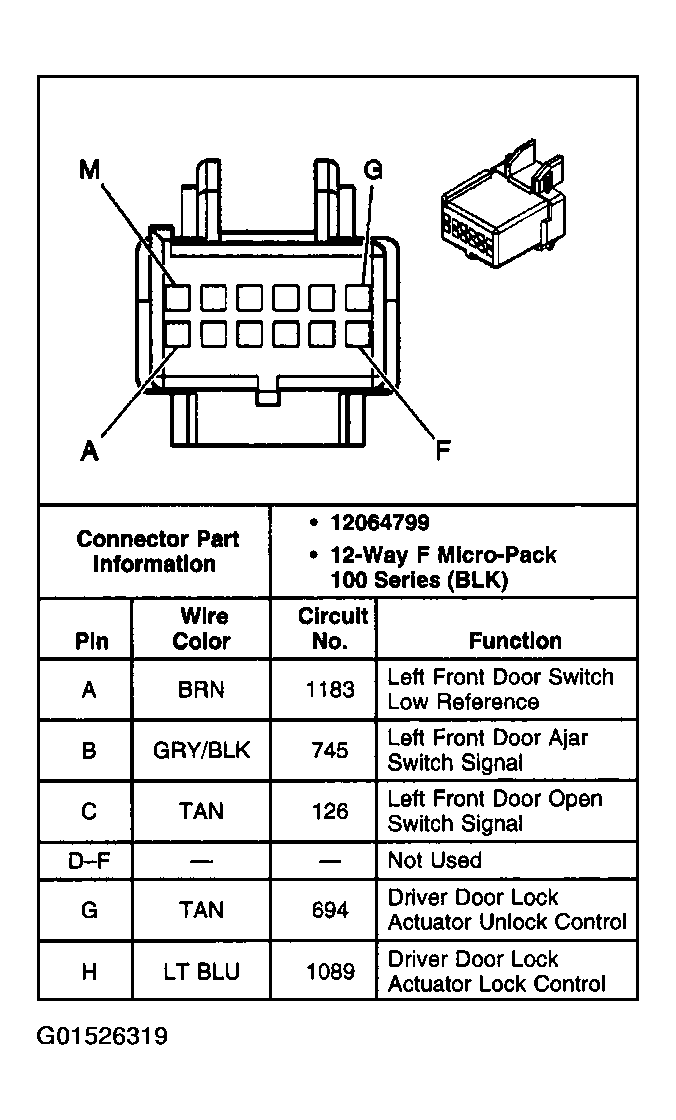

Fig 2: Door Lock Actuator (Driver C2) Connector End View
Courtesy of GENERAL MOTORS CORP.

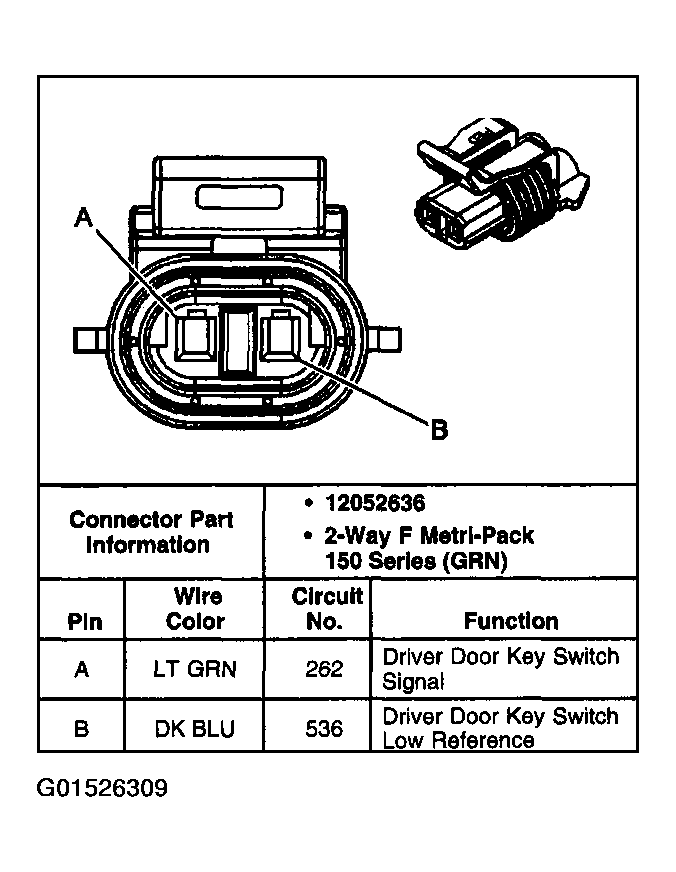

Fig 3: Door Lock Actuator (Driver C3) Connector End View
Courtesy of GENERAL MOTORS CORP.

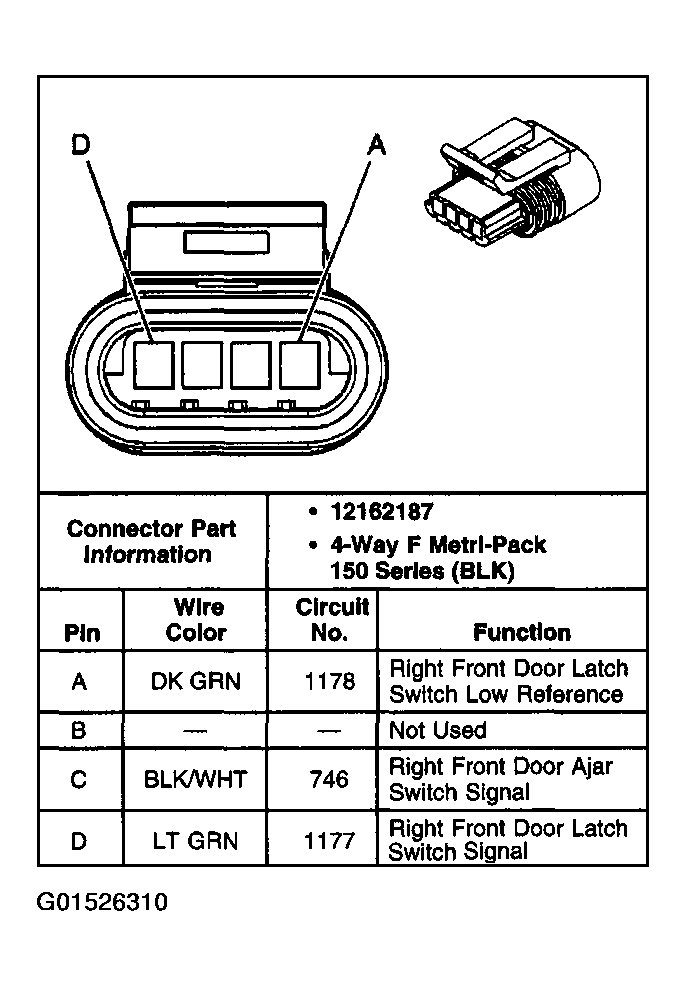

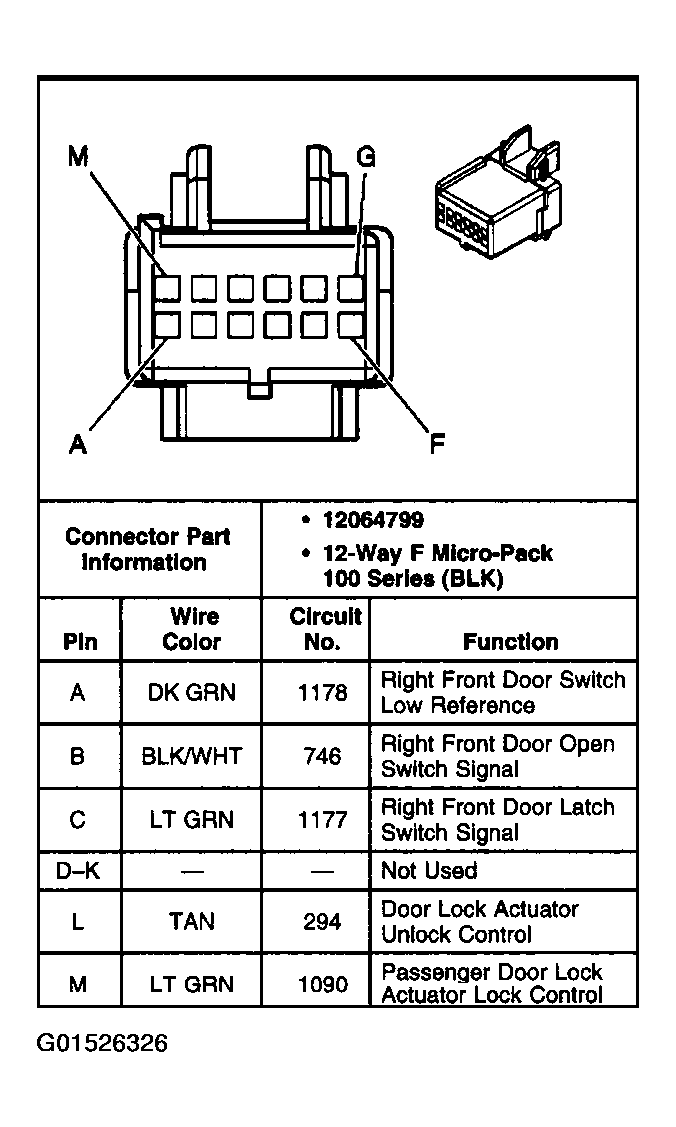

Fig 4: Door Lock Actuator (Front Passenger C1) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 5: Door Lock Actuator (Front Passenger C2) Connector End View
Courtesy of GENERAL MOTORS CORP.

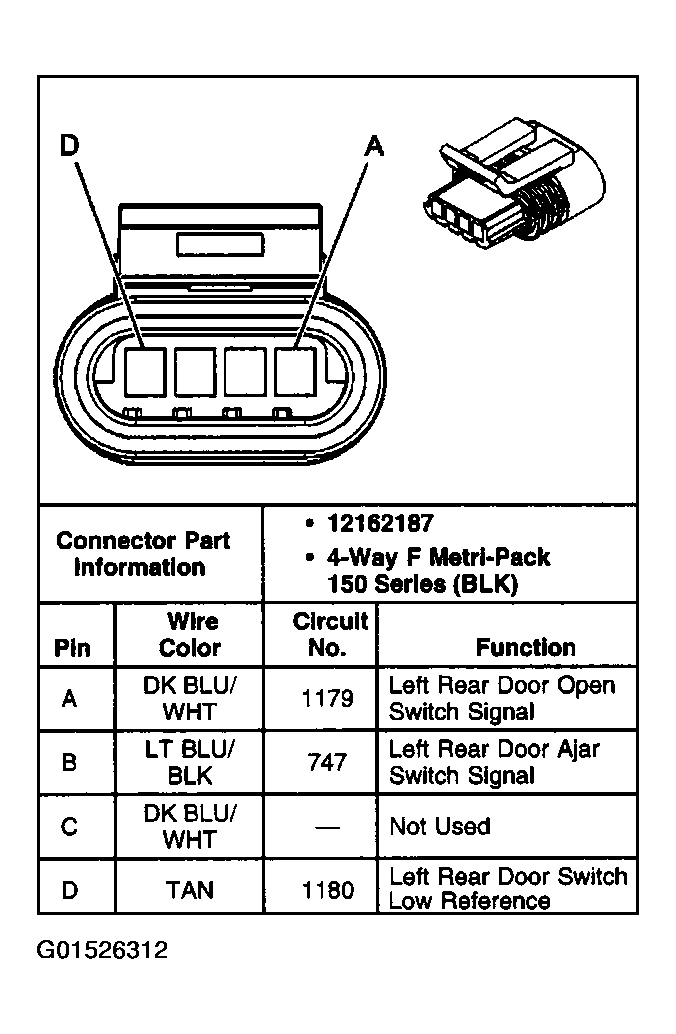

Fig 6: Door Lock Actuator (LR C1) Connector End View
Courtesy of GENERAL MOTORS CORP.

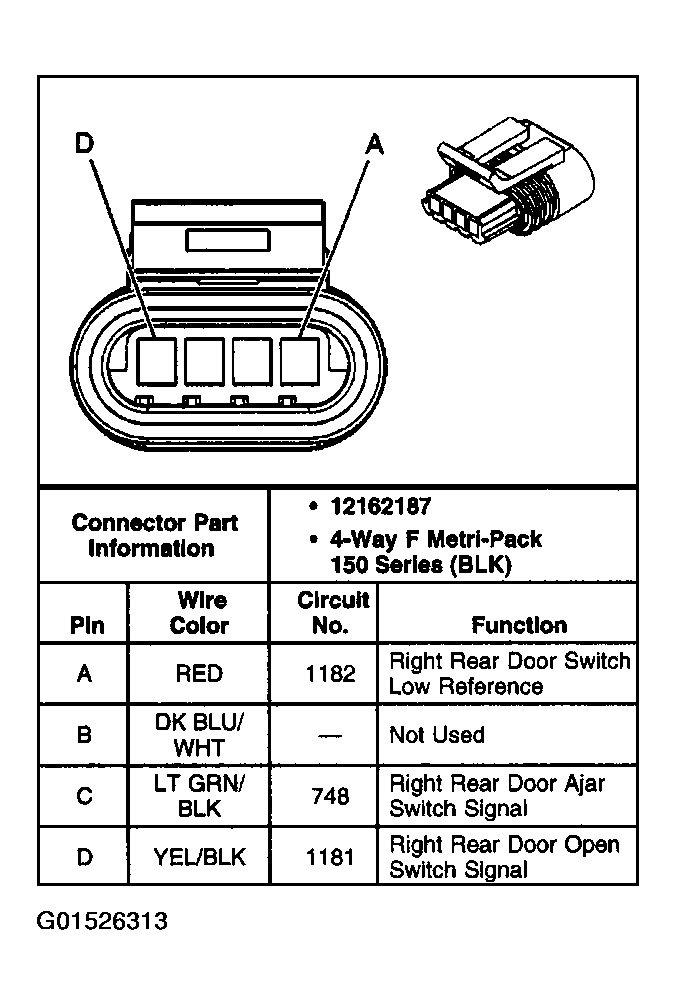

Fig 7: Door Lock Actuator (RR C1) Connector End View
Courtesy of GENERAL MOTORS CORP.

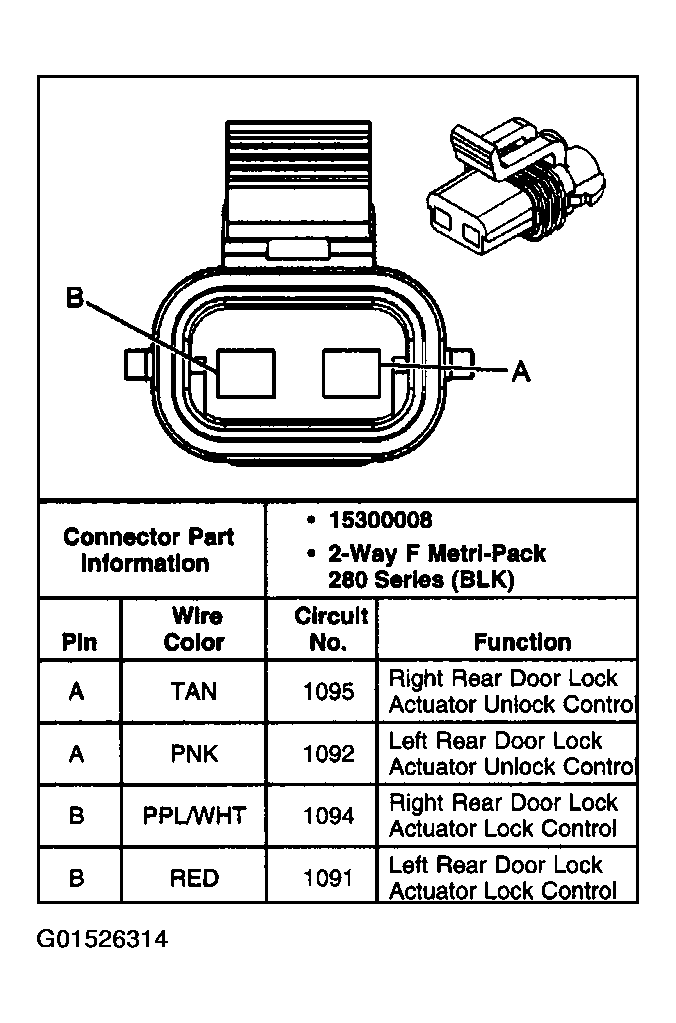

Fig 8: Door Lock Actuator (LR & RR - C2) Connector End View
Courtesy of GENERAL MOTORS CORP.

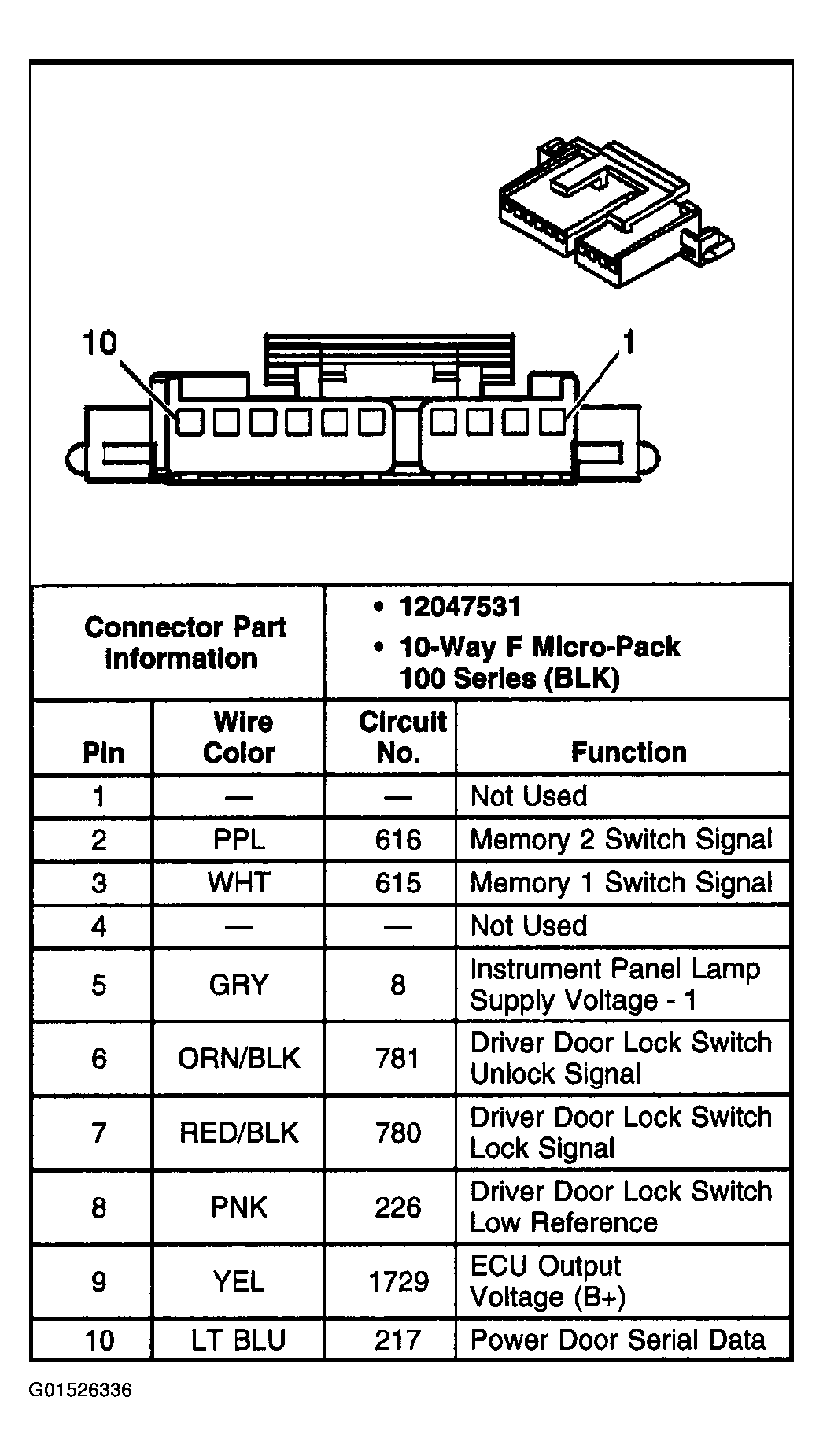

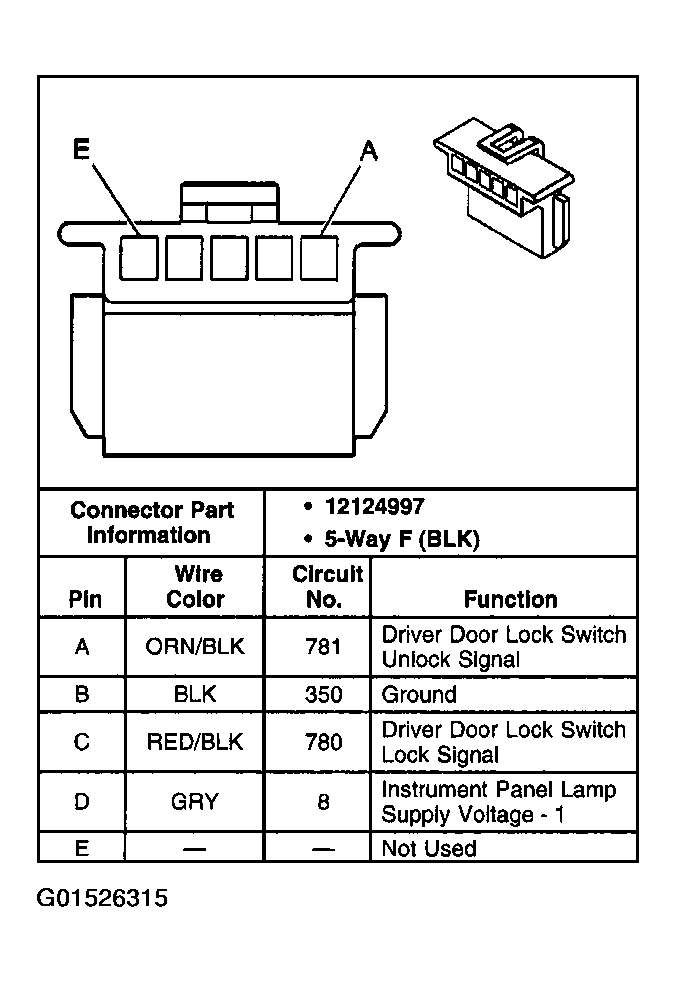

Fig 9: Door Lock Switch (Driver) Connector End View
Courtesy of GENERAL MOTORS CORP.

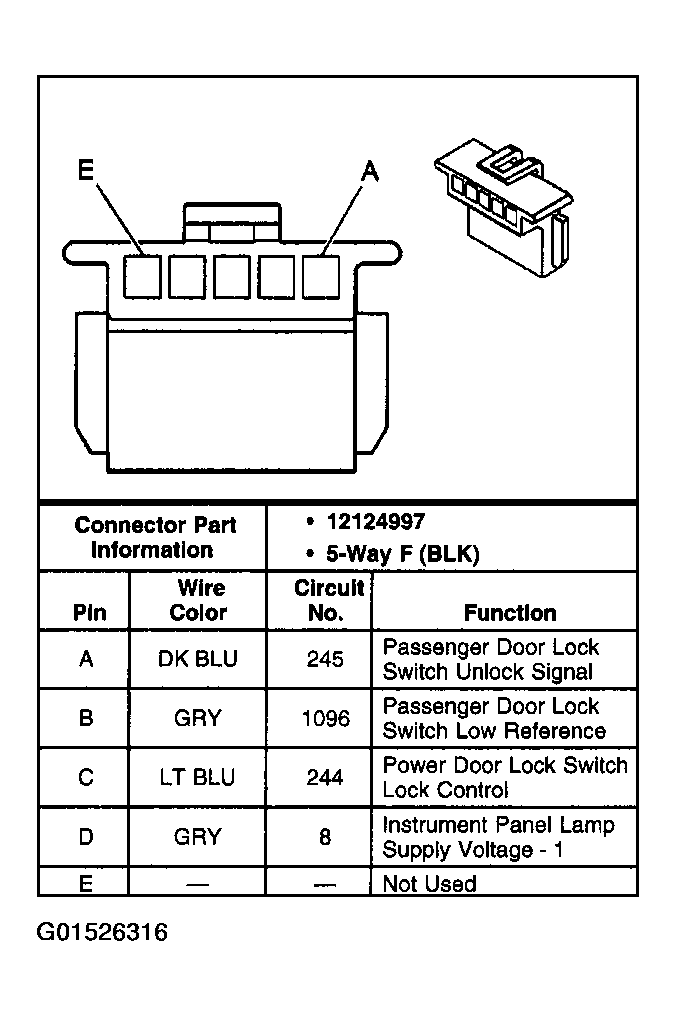

Fig 10: Door Lock Switch (Front Passenger) Connector End View
Courtesy of GENERAL MOTORS CORP.

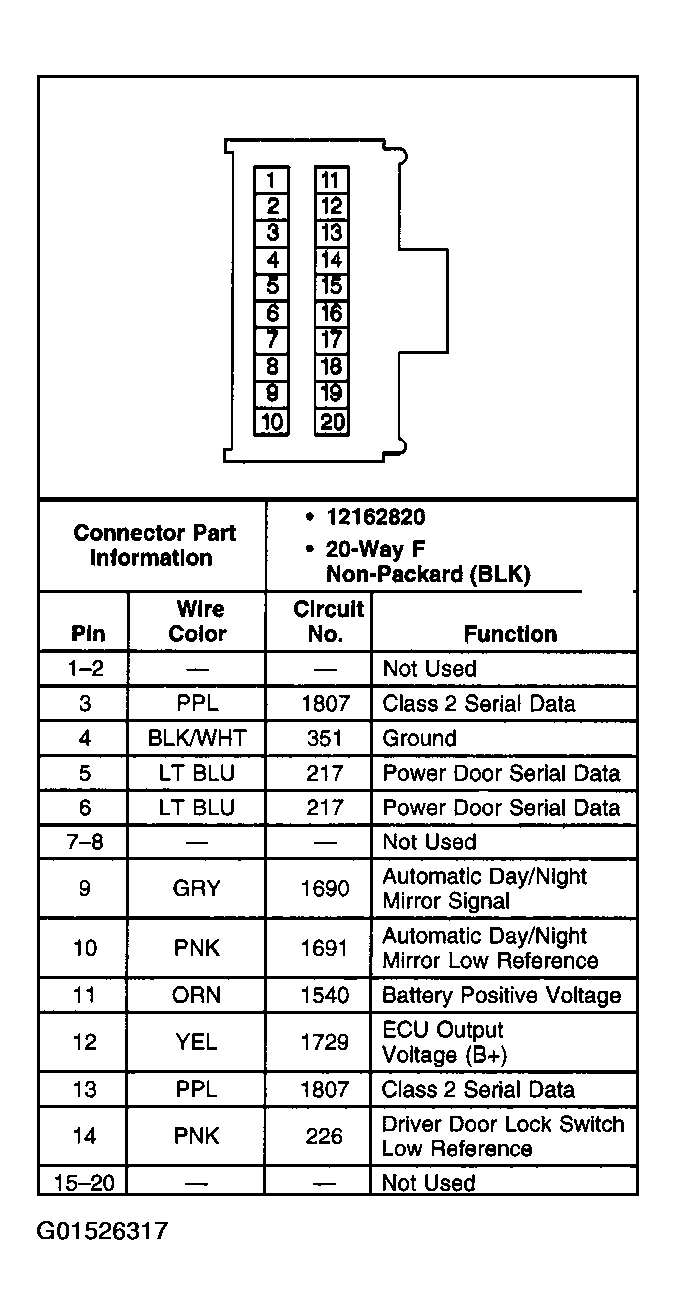

Fig 11: Driver Door Module (DDM) C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

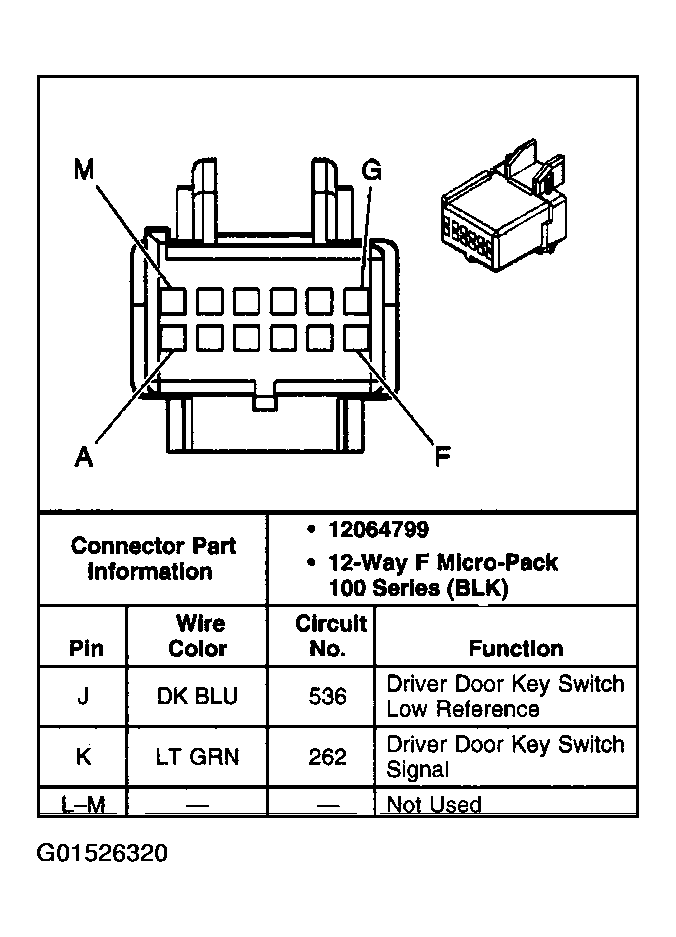

Fig 12: Driver Door Module (DDM) C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 13: Driver Door Module C3 Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Driver Door Module C3 Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Driver Door Module (DDM) C4 Connector End View
Courtesy of GENERAL MOTORS CORP.

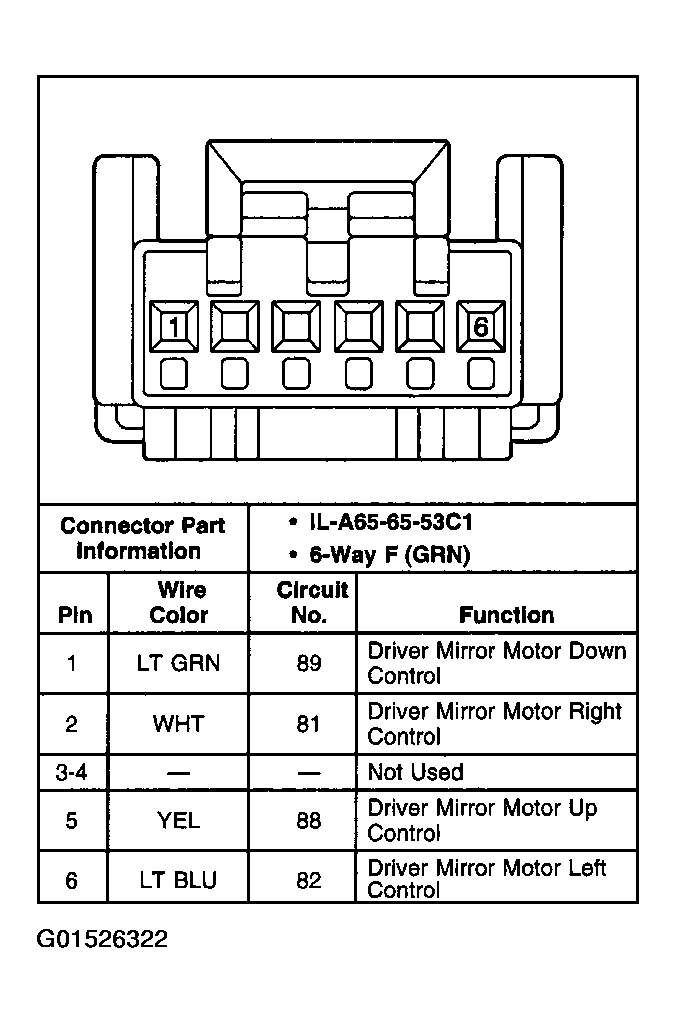

Fig 16: Driver Door Module (DDM) C5 Connector End View
Courtesy of GENERAL MOTORS CORP.

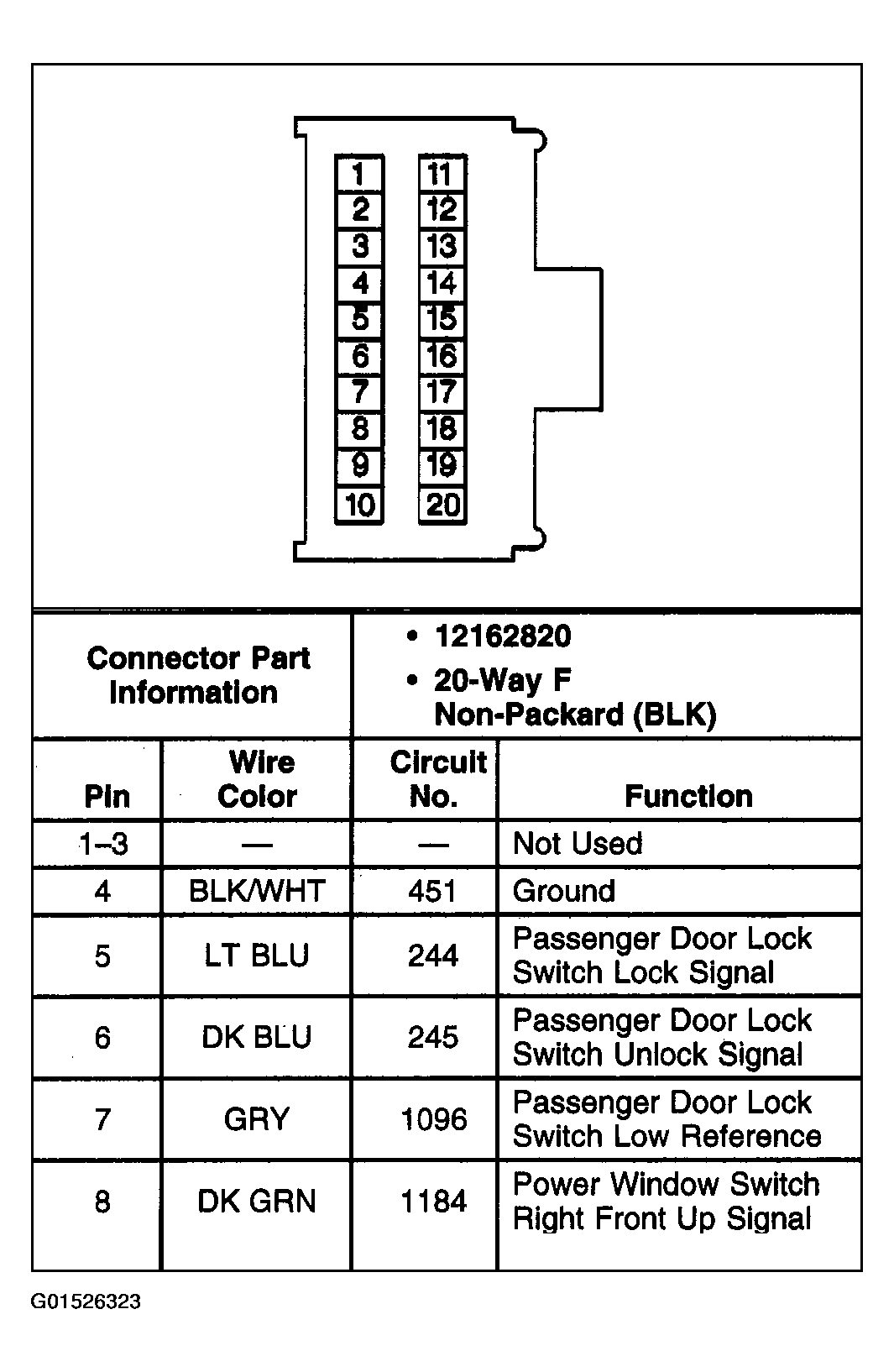

Fig 17: Passenger Door Module C1 Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

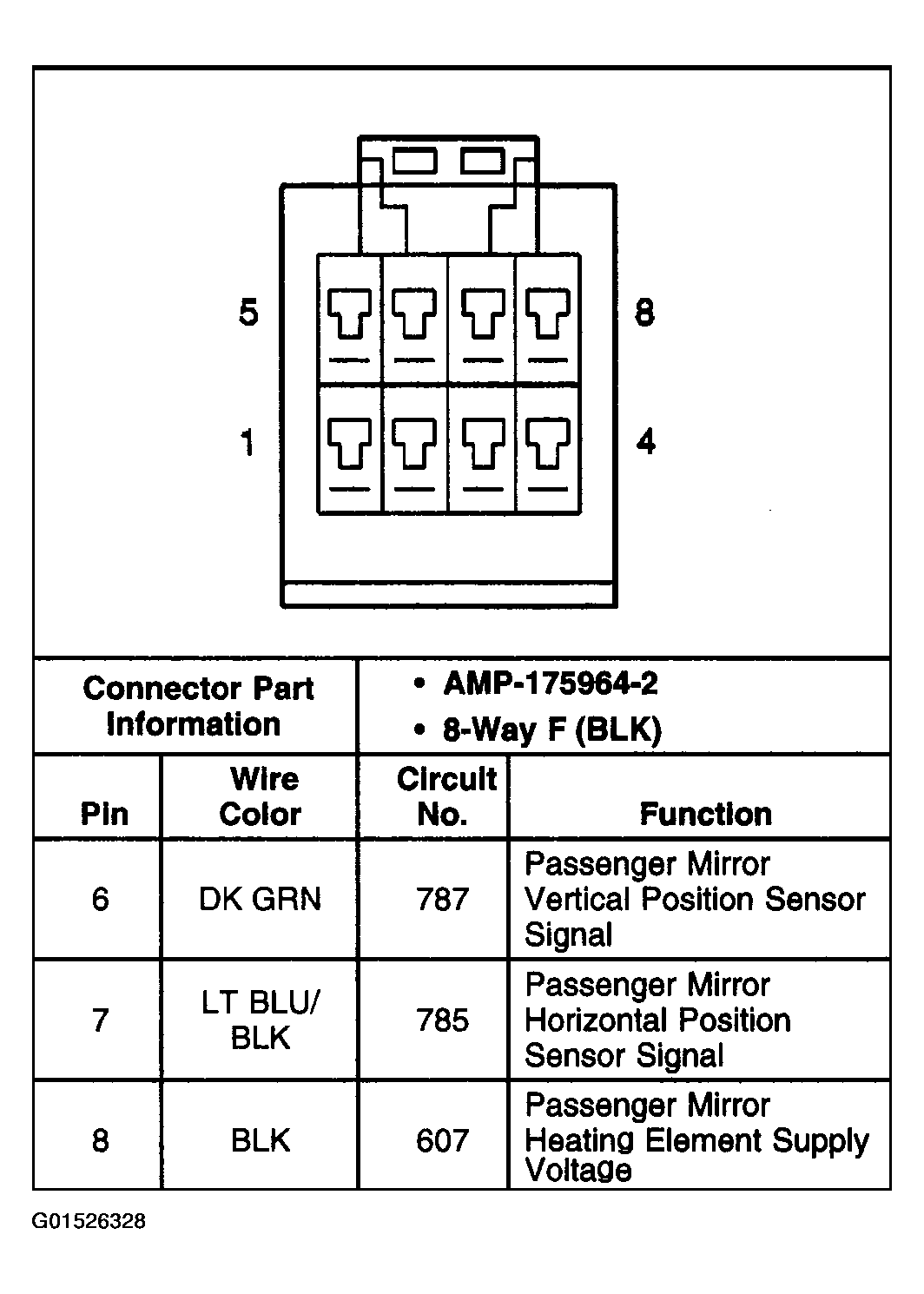

Fig 18: Passenger Door Module C1 Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Passenger Door Module (PDM) C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 20: Passenger Door Module (PDM) C3 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 21: Passenger Door Module C4 Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

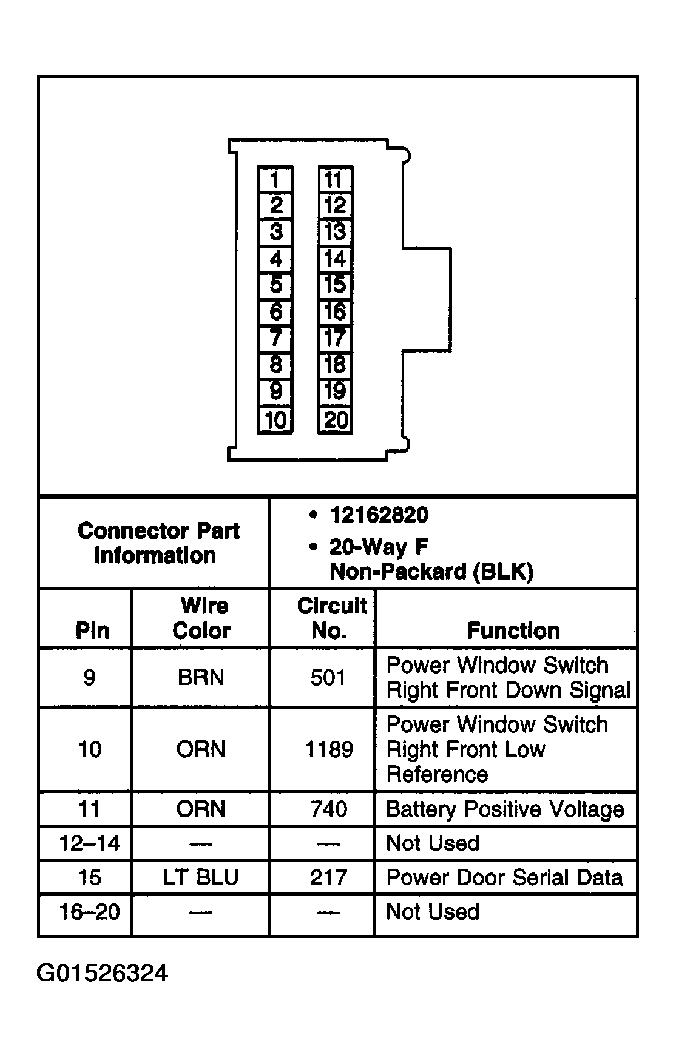

Fig 22: Passenger Door Module C4 Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

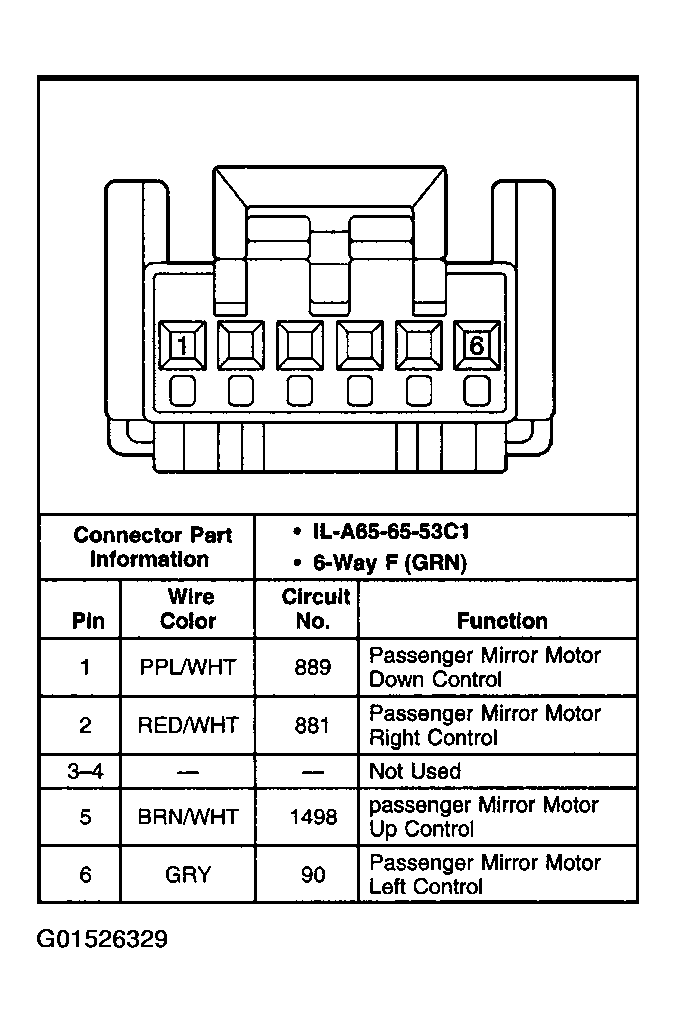

Fig 23: Passenger Door Module (PDM) C5 Connector End View
Courtesy of GENERAL MOTORS CORP.

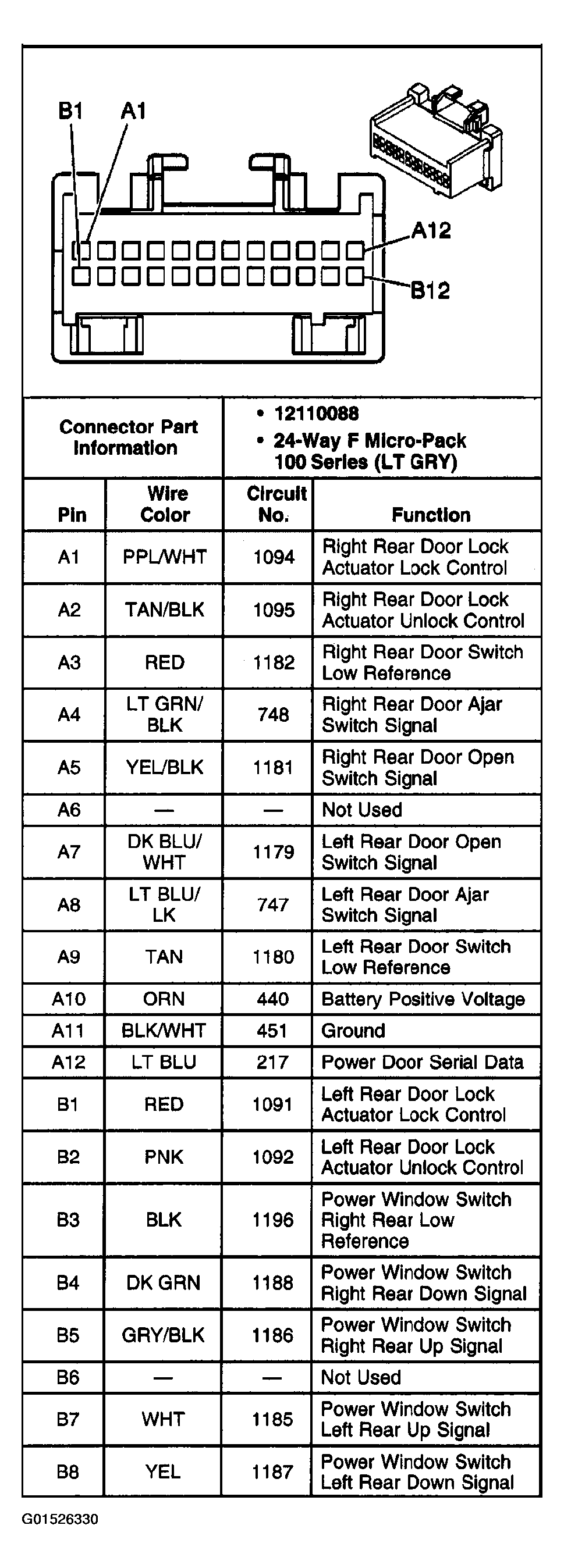

Fig 24: Rear Door Module C1 Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

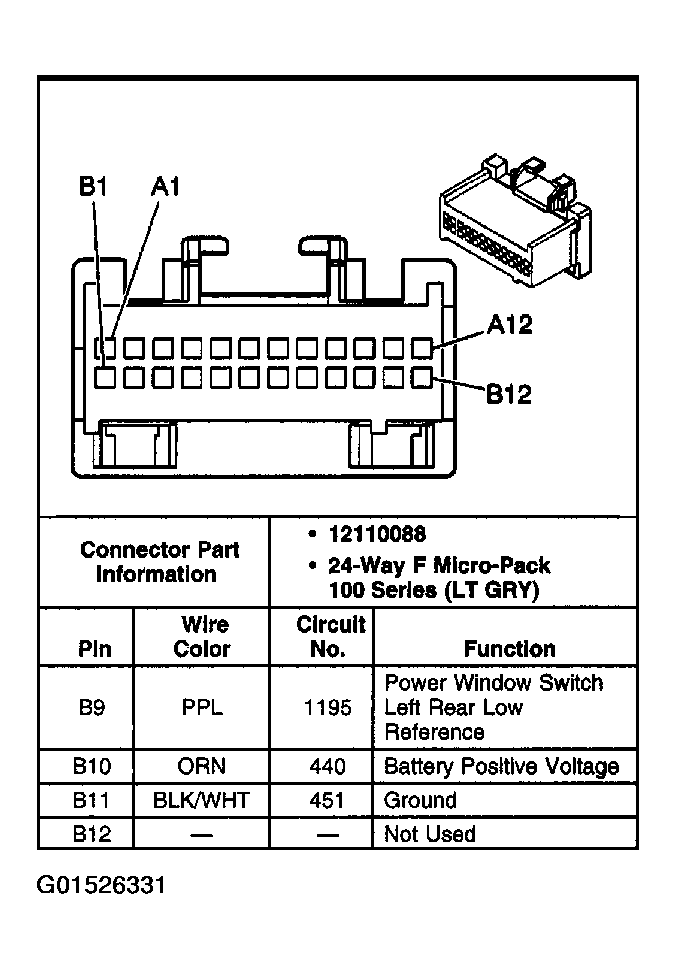

Fig 25: Rear Door Module C1 Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Rear Door Module (RDM) C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

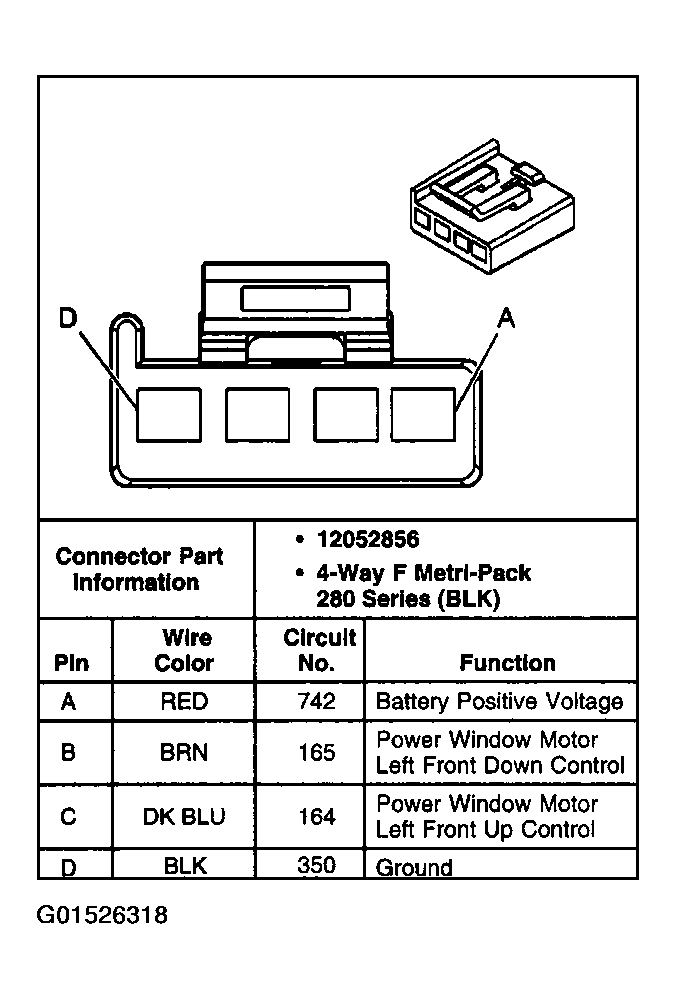

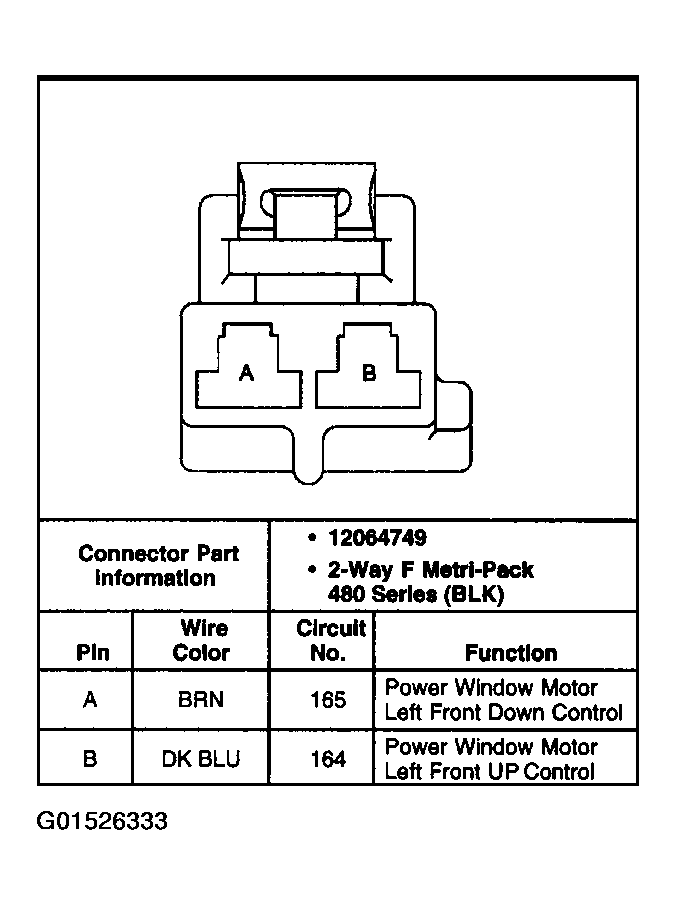

Fig 27: Window Motor (Driver) Connector End View
Courtesy of GENERAL MOTORS CORP.

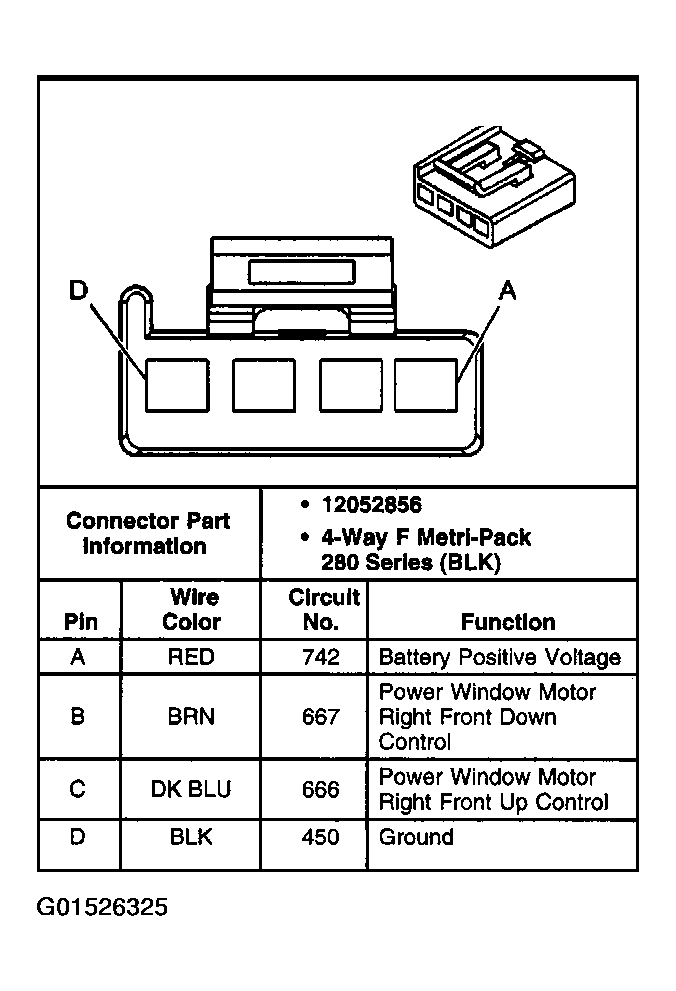

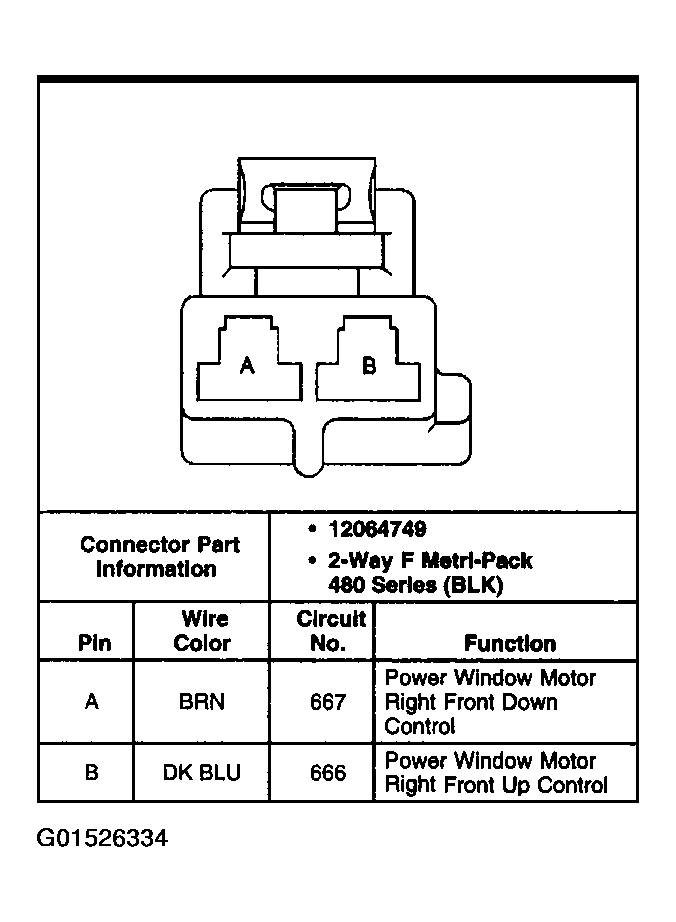

Fig 28: Window Motor (Front Passenger) Connector End View
Courtesy of GENERAL MOTORS CORP.

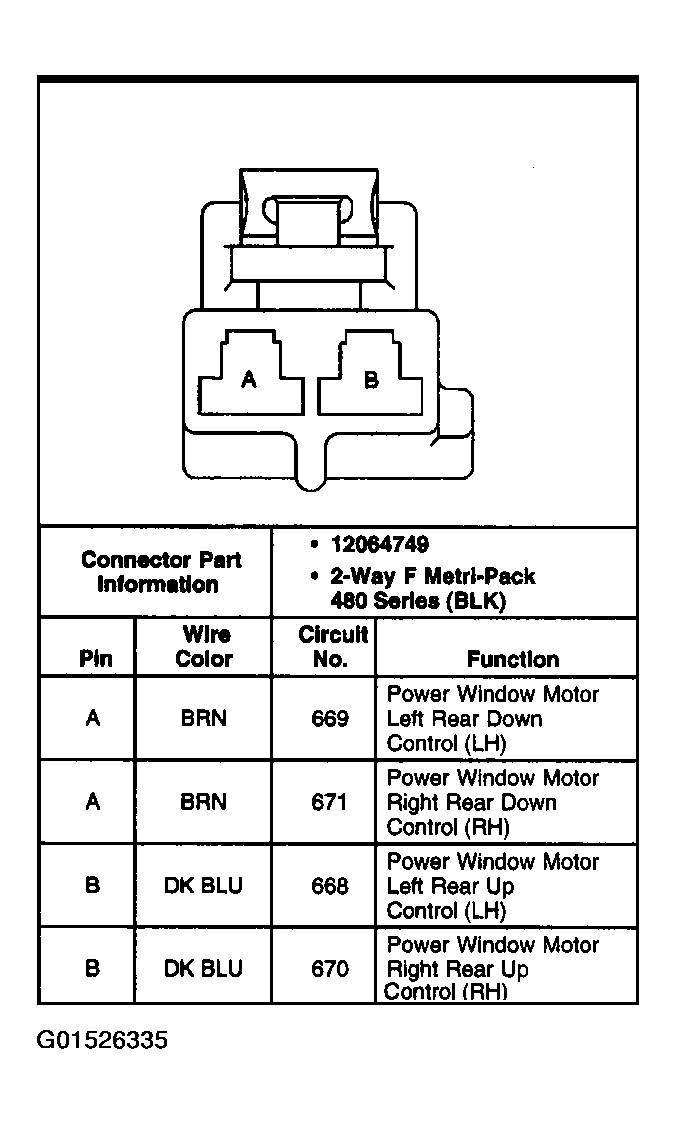

Fig 29: Window Motor (LR & RR) Connector End View
Courtesy of GENERAL MOTORS CORP.

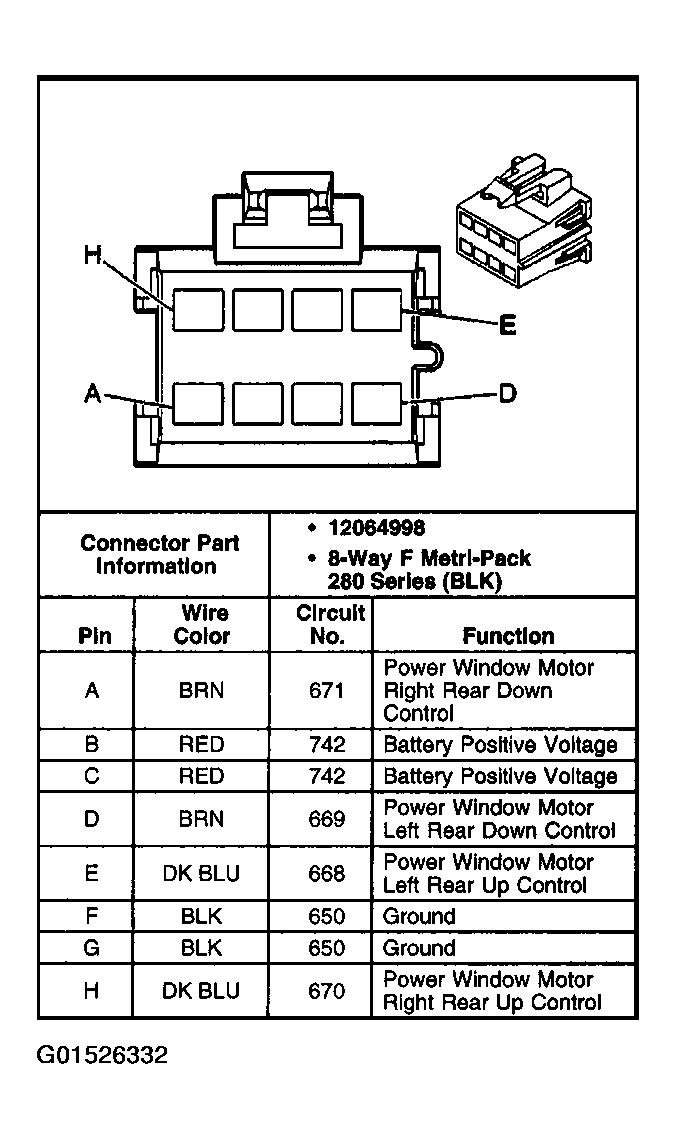

Fig 30: Window Switch (Driver) Connector End View
Courtesy of GENERAL MOTORS CORP.

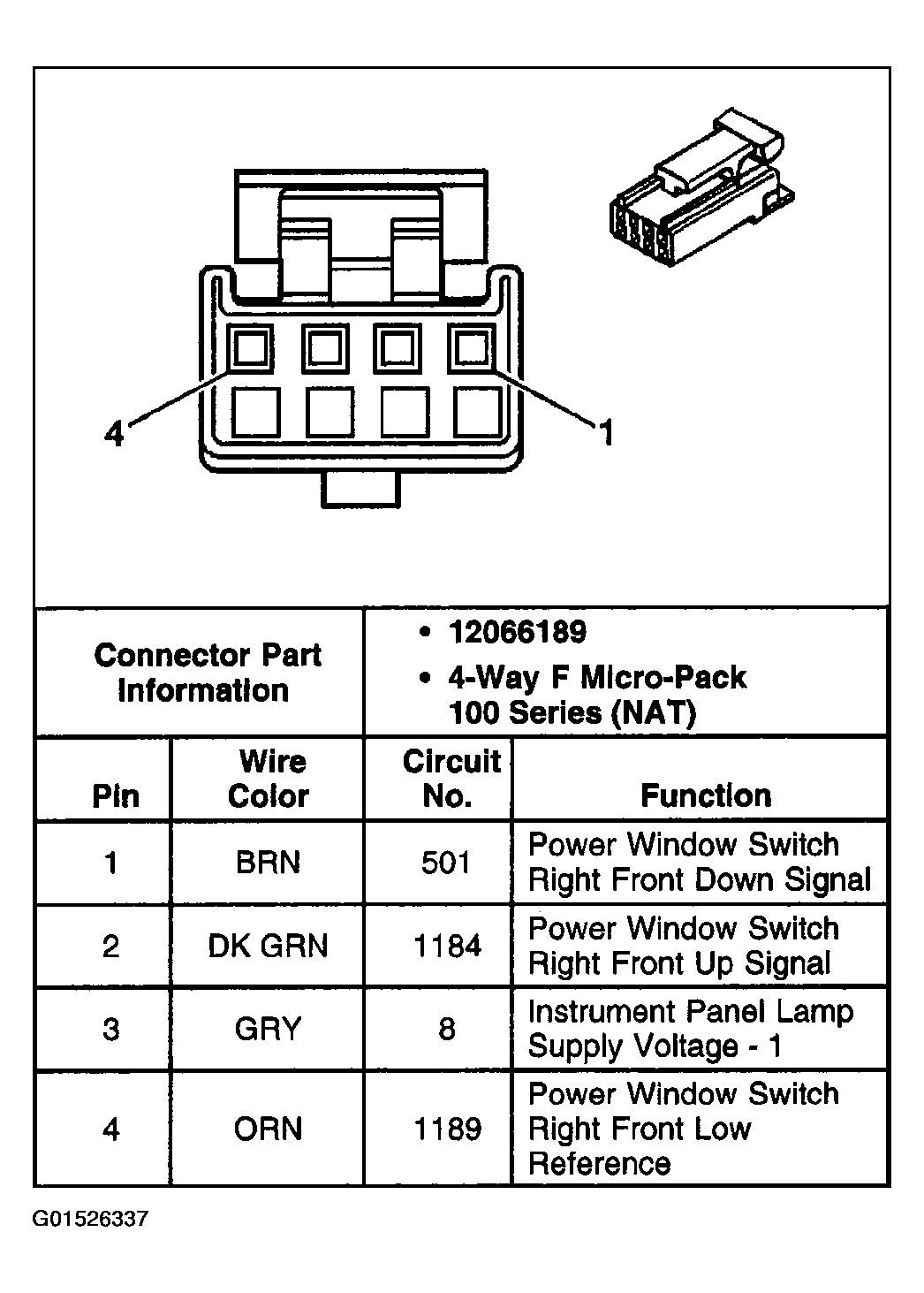

Fig 31: Window Switch (Front Passenger) Connector End View
Courtesy of GENERAL MOTORS CORP.

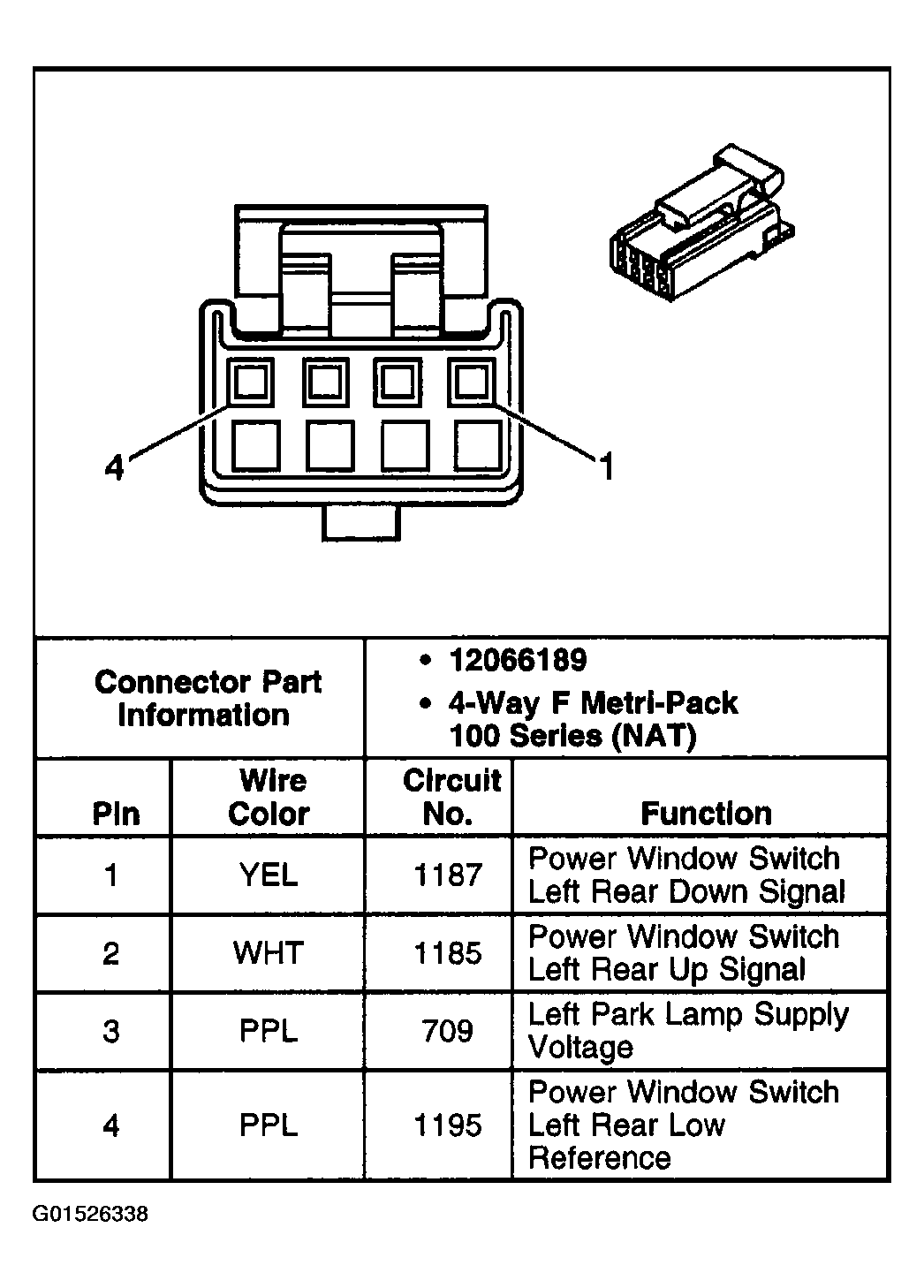

Fig 32: Window Switch (LR) Connector End View
Courtesy of GENERAL MOTORS CORP.

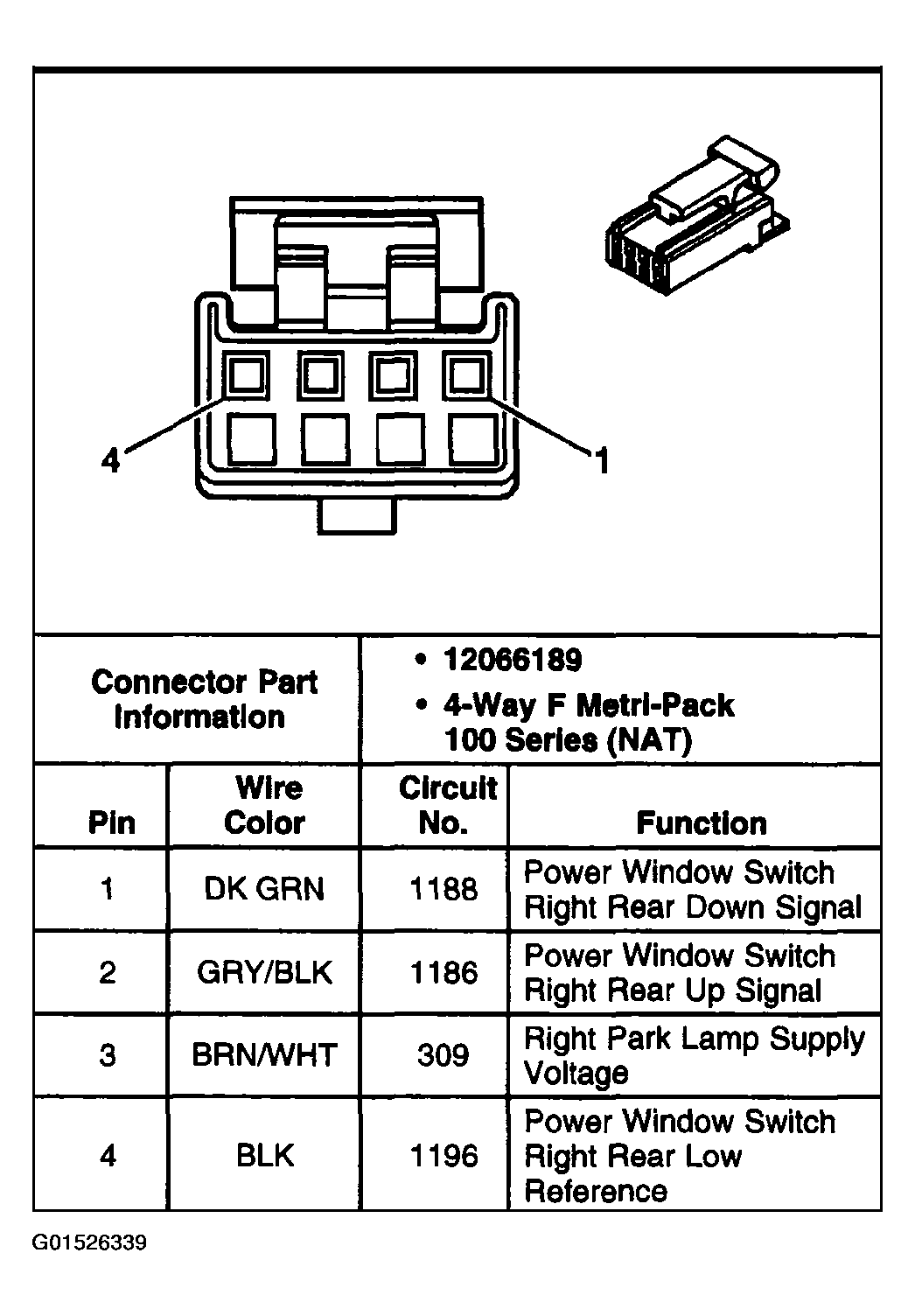

Fig 33: Window Switch (RR) Connector End View
Courtesy of GENERAL MOTORS CORP.
