Installation Procedure

Install the power steering flow control spring (2) to the power steering pump.

Fig 1: Installing Power Steering Flow Control Spring
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the power steering flow control valve assembly (3) to the power steering pump.
Tighten

Tighten the power steering flow control valve assembly (5) to 75 N.m (55 lb ft).
Install the power steering pressure hose to the power steering pump.

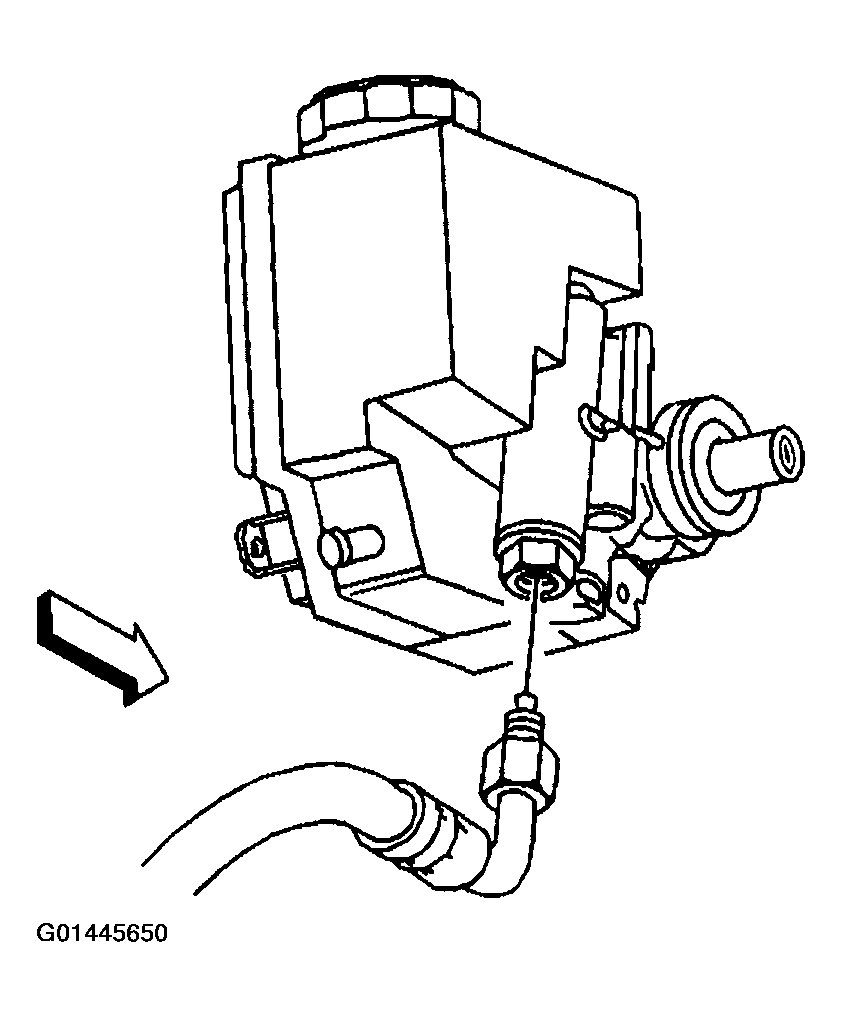

Fig 2: Installing Power Steering Pressure Hose To Power Steering Pump
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the power steering pressure hose to 27 N.m (20 lb ft).
Lower the vehicle.
Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
