Diagnostic Procedures

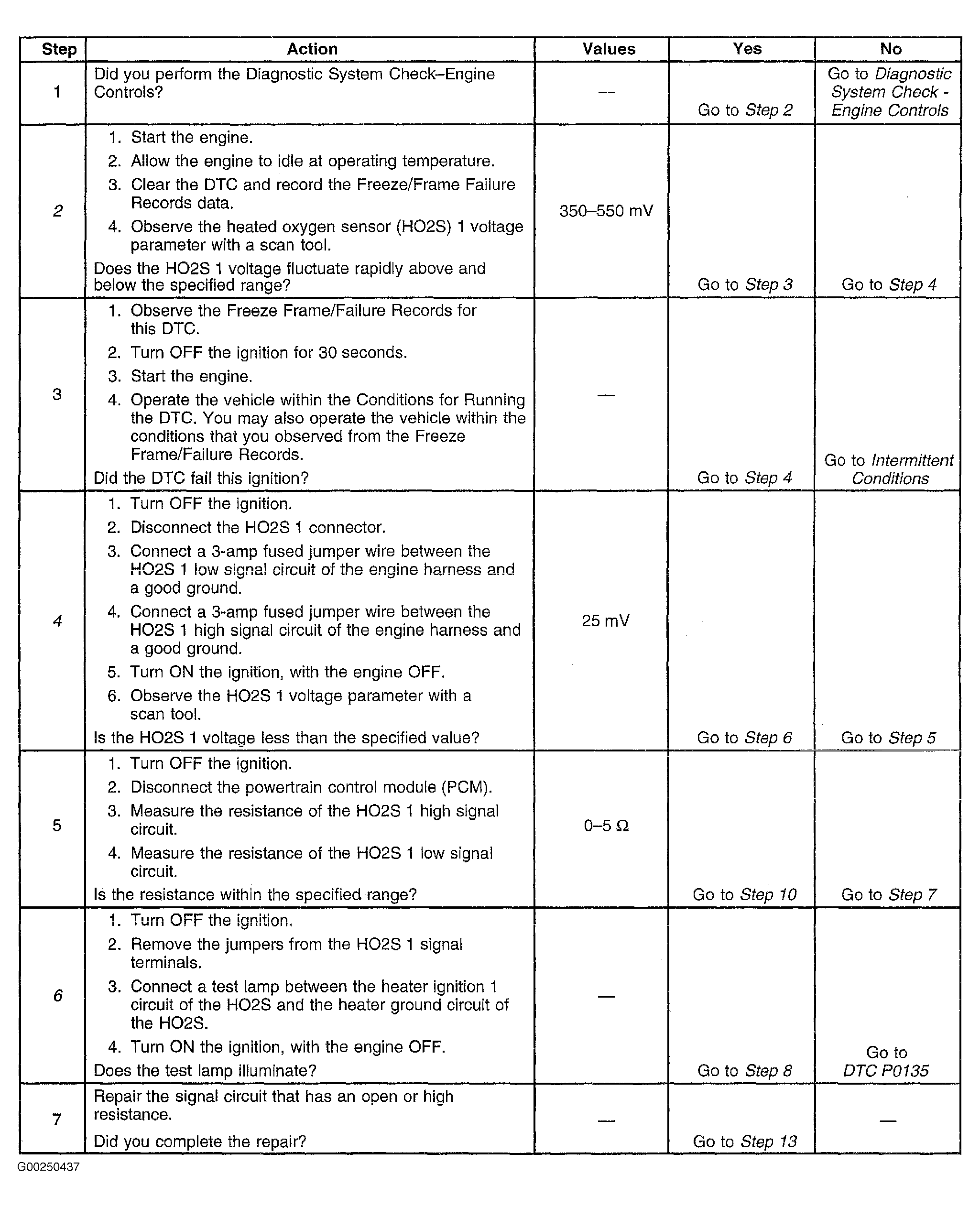

Fig 1: DTC P1134: HO2S Transition Time Ratio - Sensor 1 (Steps 1-7)
G00250437Courtesy of GENERAL MOTORS CORP.

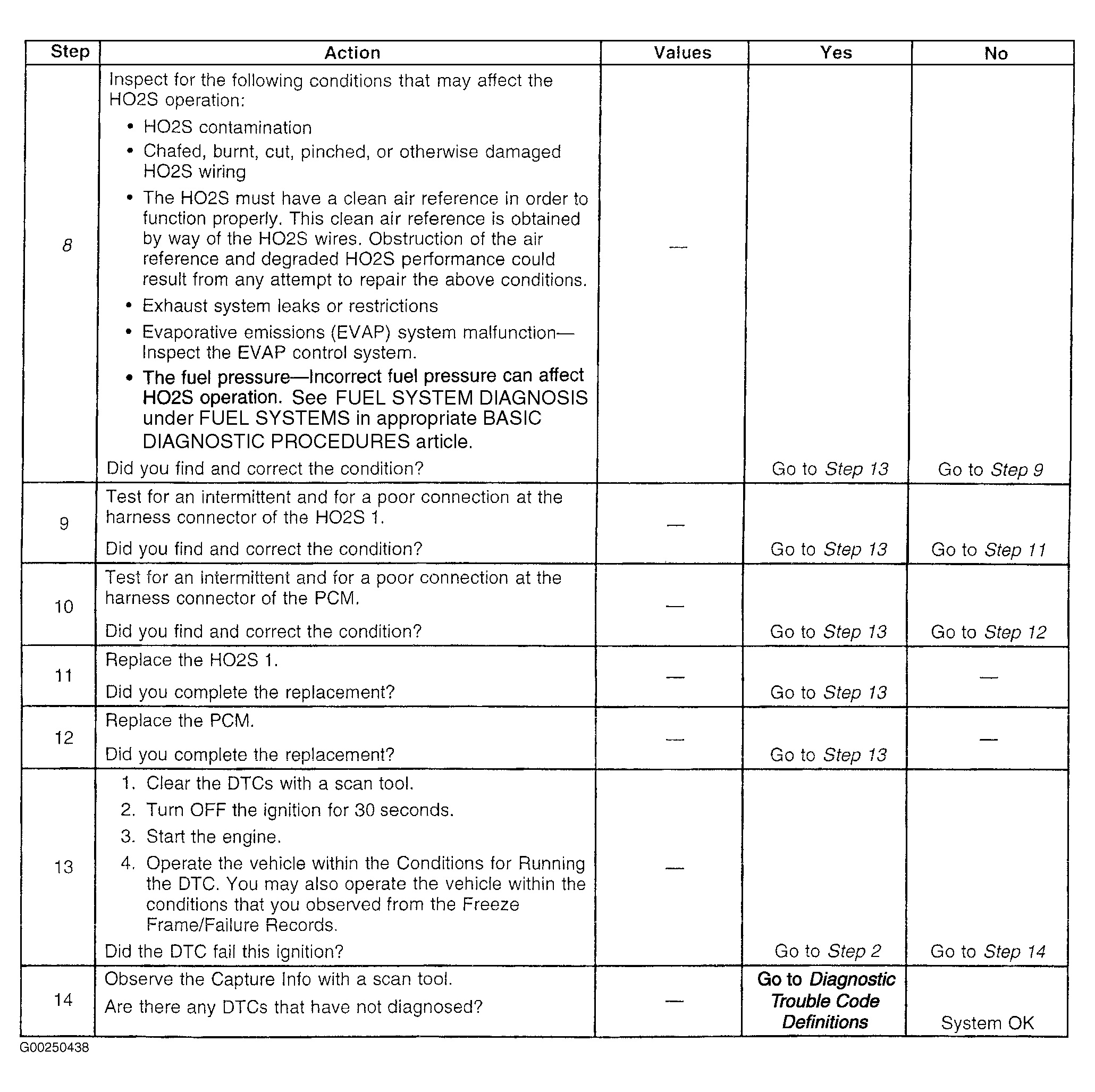

Fig 2: DTC P1134: HO2S Transition Time Ratio - Sensor 1 (Steps 8-14)
G00250438Courtesy of GENERAL MOTORS CORP.
