Power Window Switch

Window Master Switch-Driver, C1:



Window Master Switch-Driver, C2:

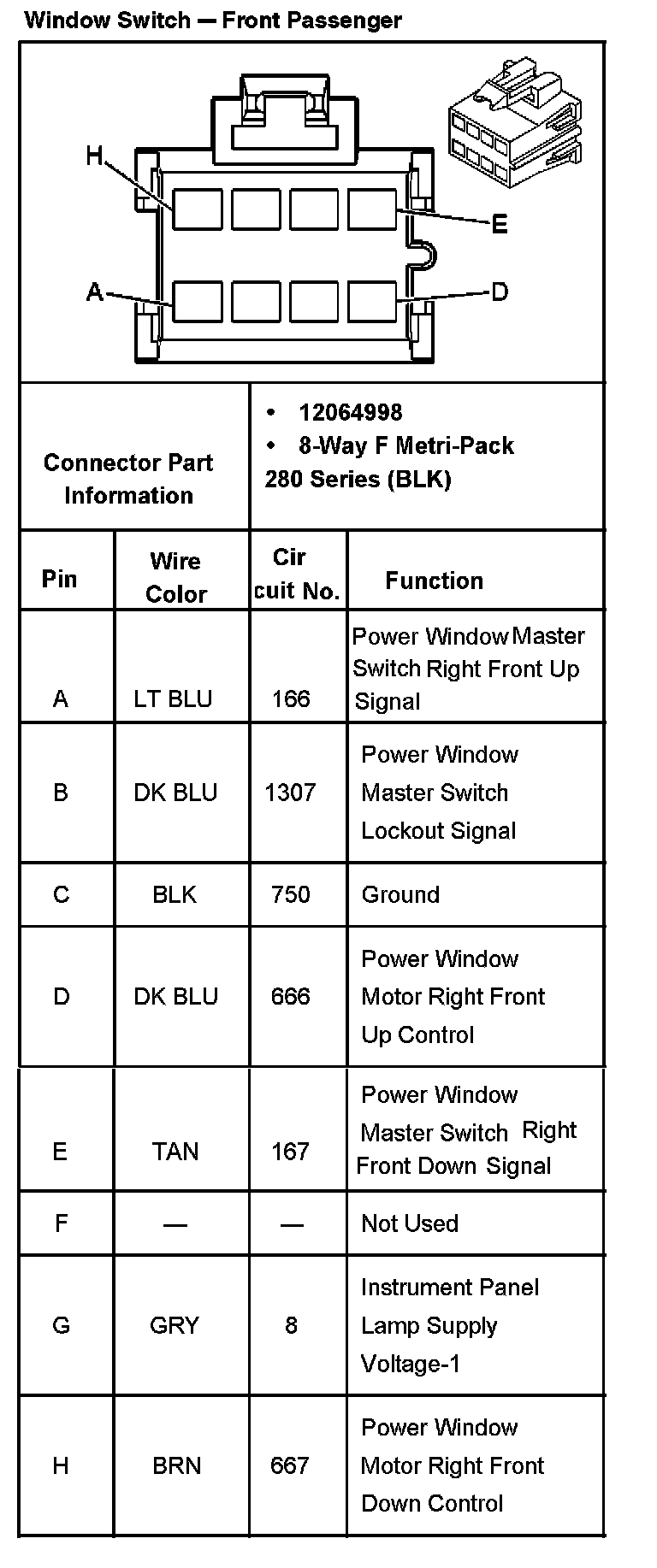

Window Switch-Front Passenger:



Window Switch-LR:



Window Switch-RR:
