Oil Pump Assembly

Part 1 Of 2:




Part 2 Of 2:

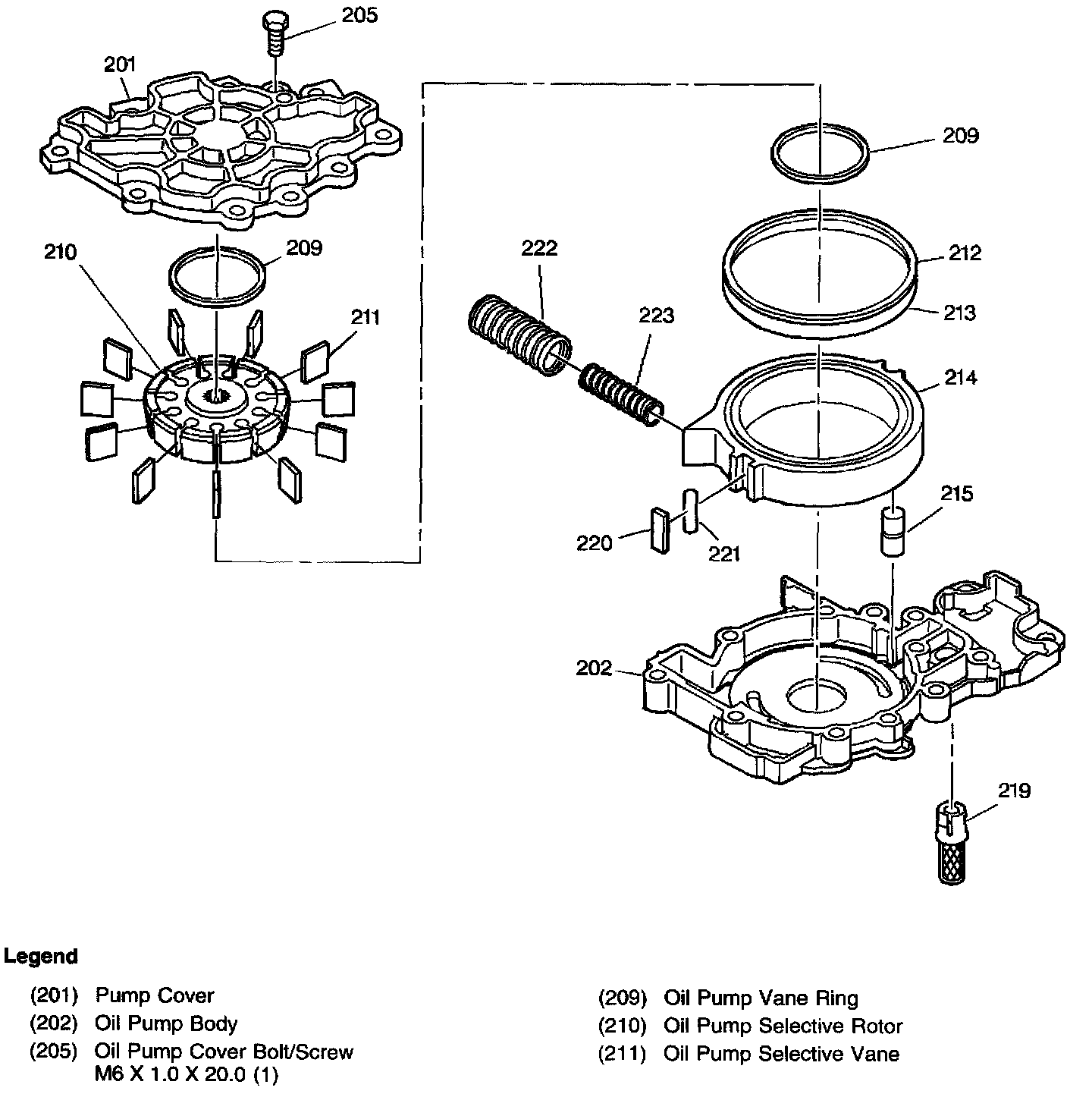

Oil Pump Assembly - 2 Piece Pump

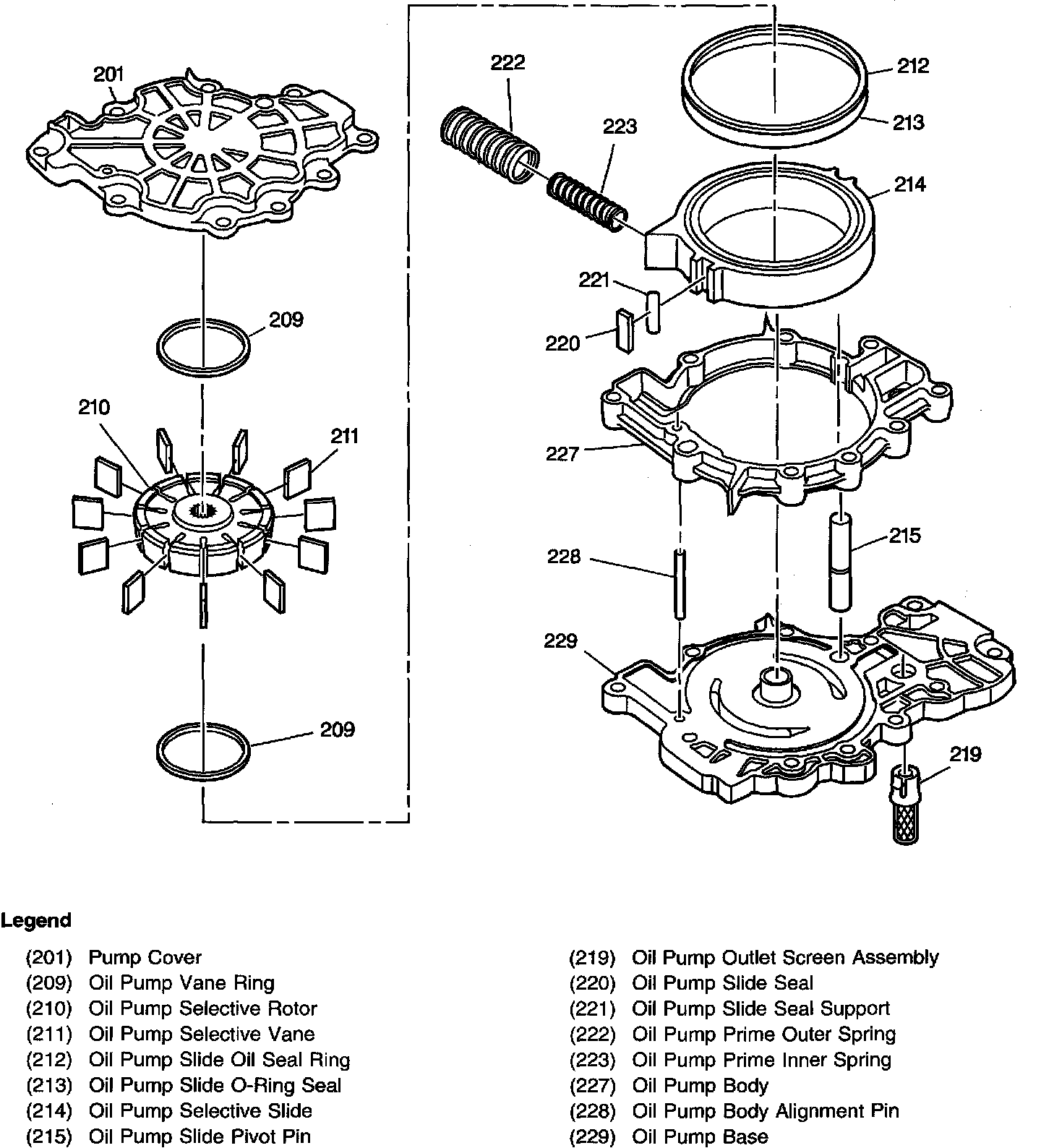

Oil Pump Assembly - 3 Piece Pump
