ABS Schematics

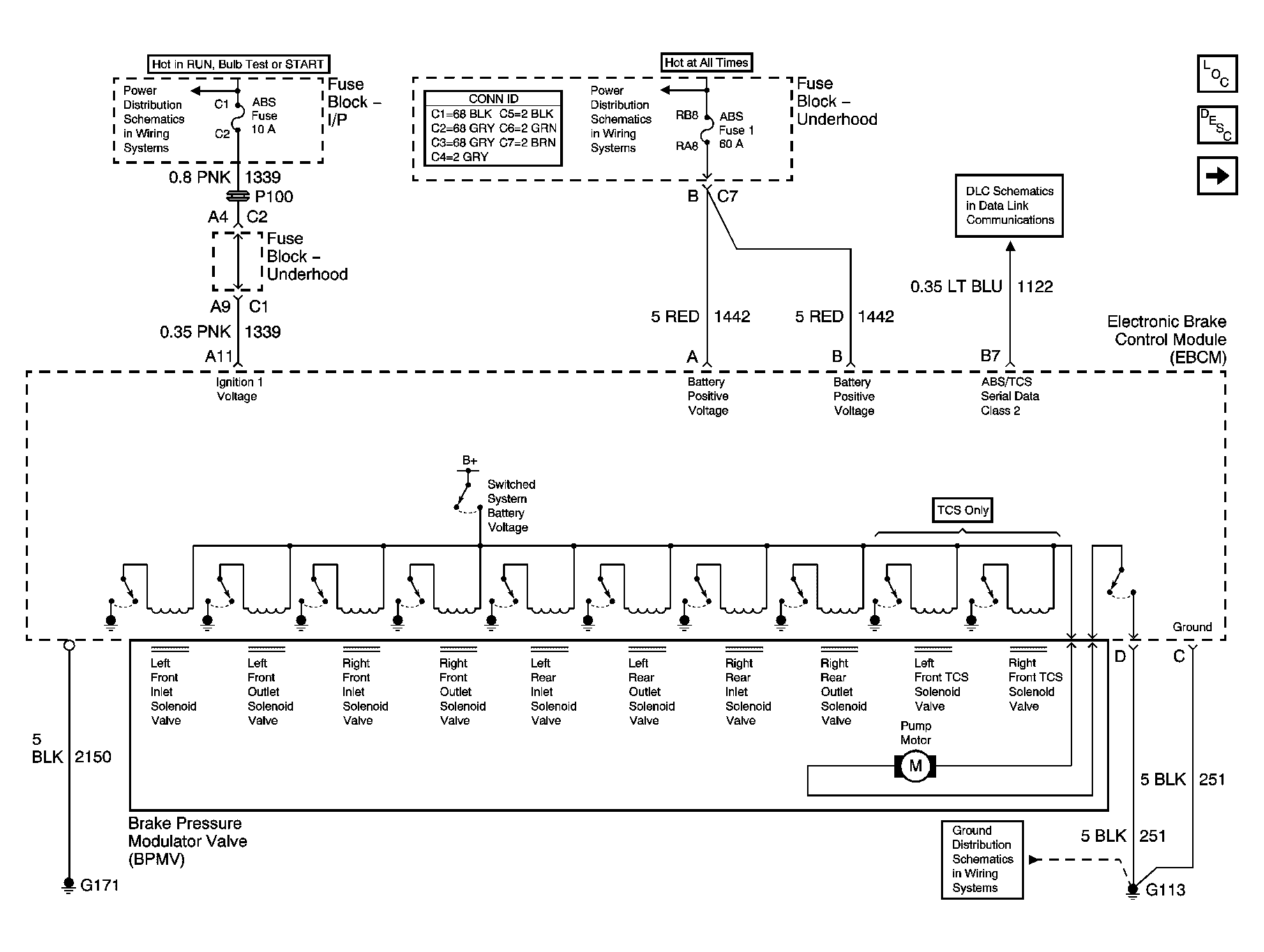

Fig 1: Power, Ground, And Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

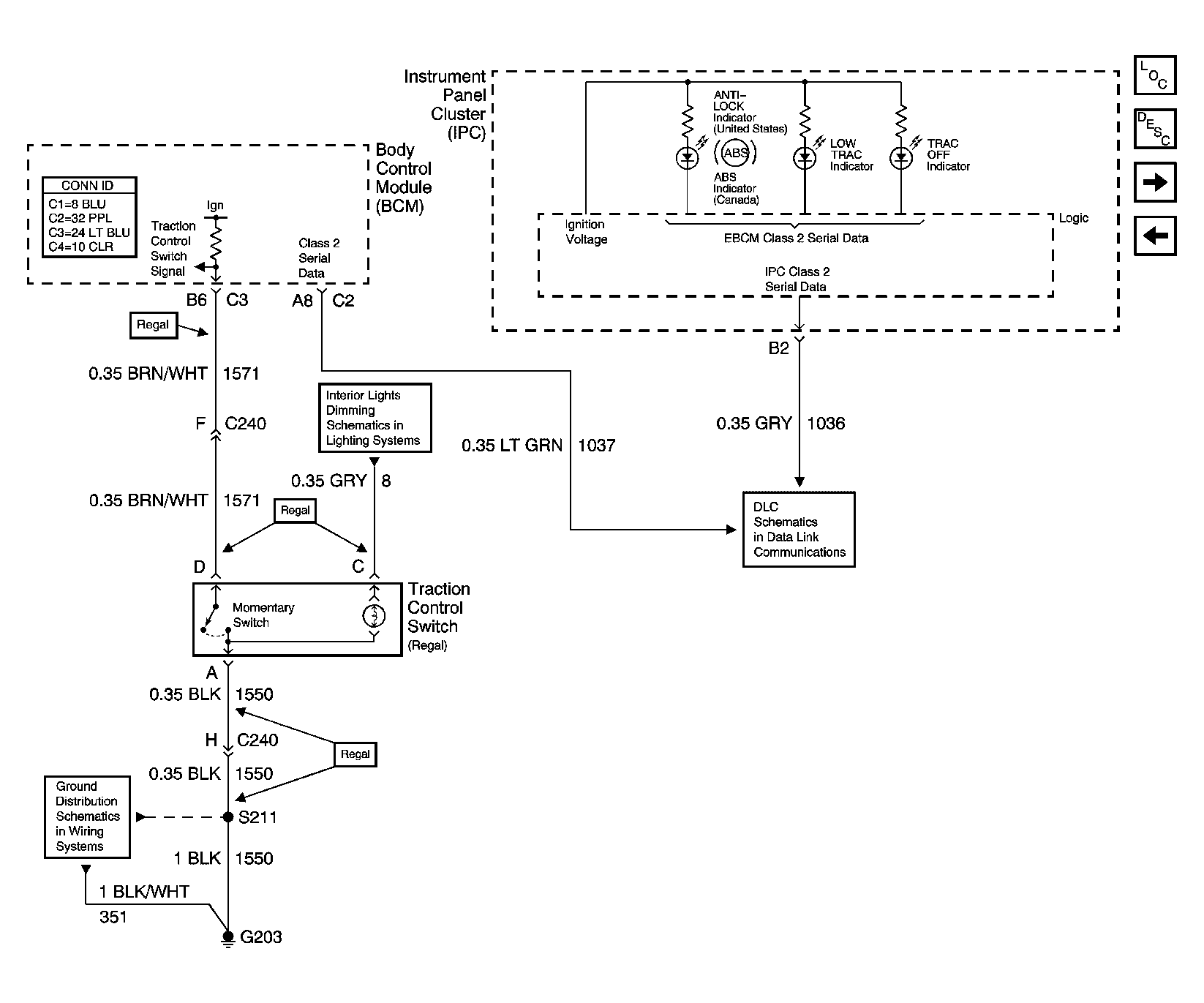

Fig 2: Indicators And Traction Control Schematic

Courtesy of GENERAL MOTORS CORP.

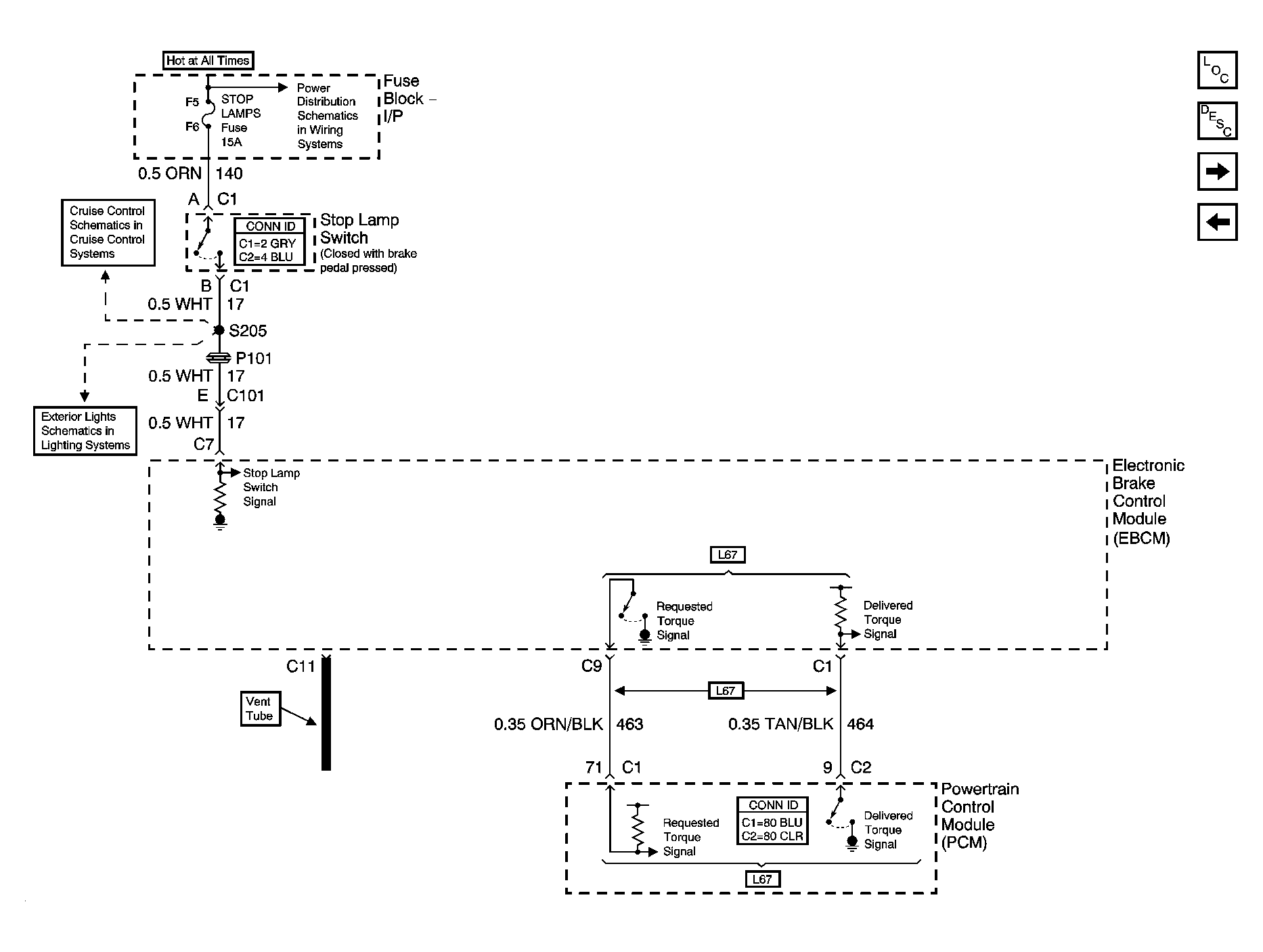

Fig 3: Stop Lamp And Torque Signals Schematic

Courtesy of GENERAL MOTORS CORP.

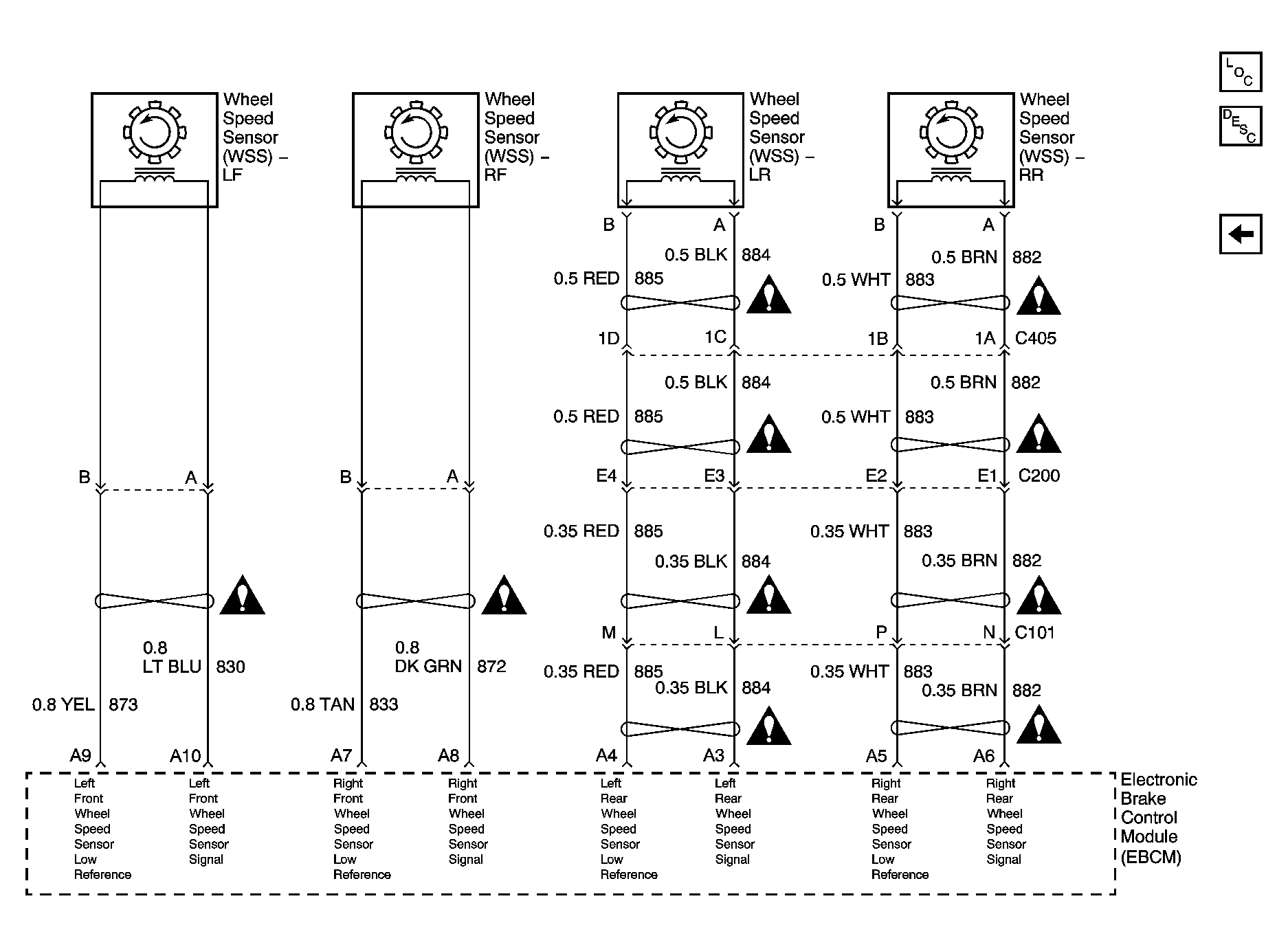

Fig 4: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
