Removal Procedure

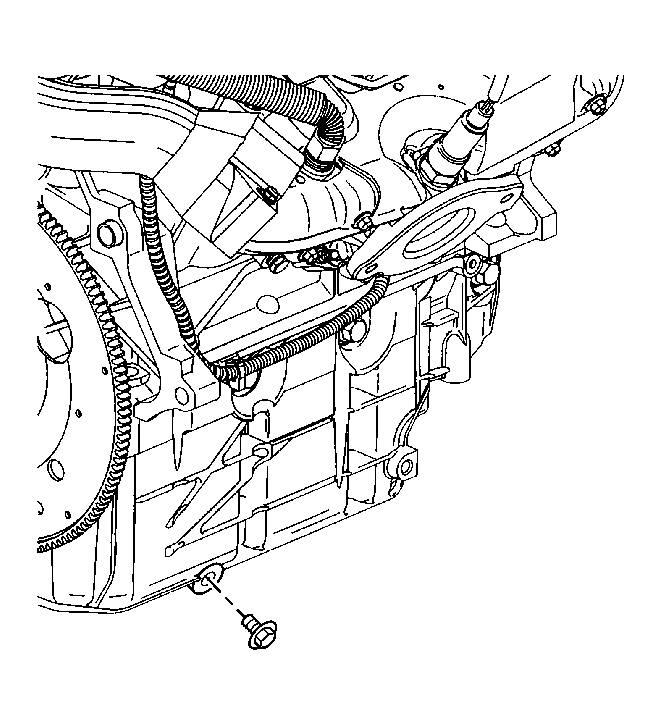

    Fig 1: View Of Engine Oil Drain Plug
    GM190542Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the engine oil drain plug and drain the engine oil.
    3. Fig 2: Oil Level Sensor Electrical Connector
    GM54406Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the engine oil level sensor electrical connector.
  4. Remove the bolt from the engine oil level sensor.
  5. Remove the engine oil level sensor from the oil pan.
