Removal Procedure

  1. Remove the front seat cushion outer trim panel. Refer to Trim Panel Replacement - Front Seat .

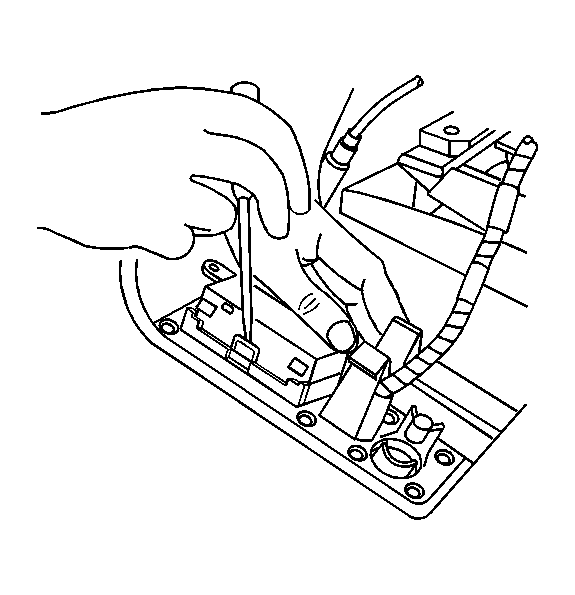

    2. Fig 1: Removing Seat Switch To Trim Pane Screws
    GM522213Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws from the seat switch to the trim panel.

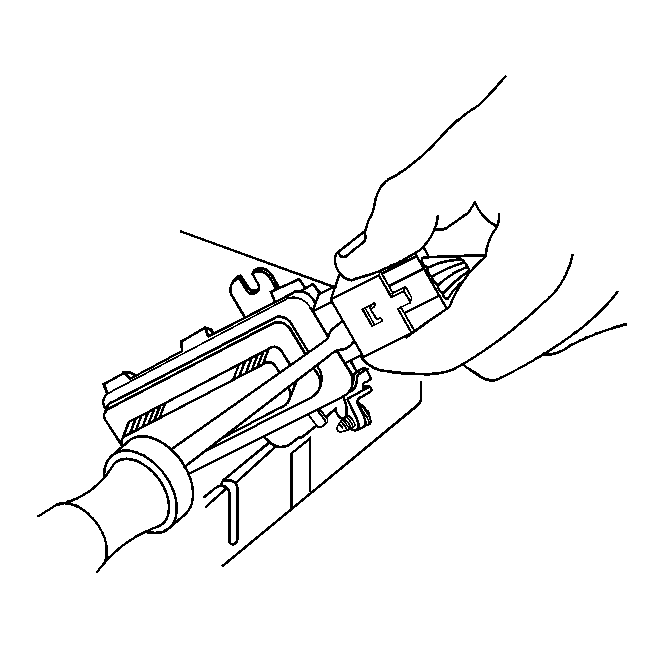

    3. Fig 2: Disconnecting Power Front Seat Switch Electrical Connector
    GM522226Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the power front seat switch.
  4. Remove the power front seat switch from the vehicle.
