Door Lock/Indicator Schematics
Fig 1: Door Lock/Indicator Schematics - Switches
Courtesy of GENERAL MOTORS CORP.

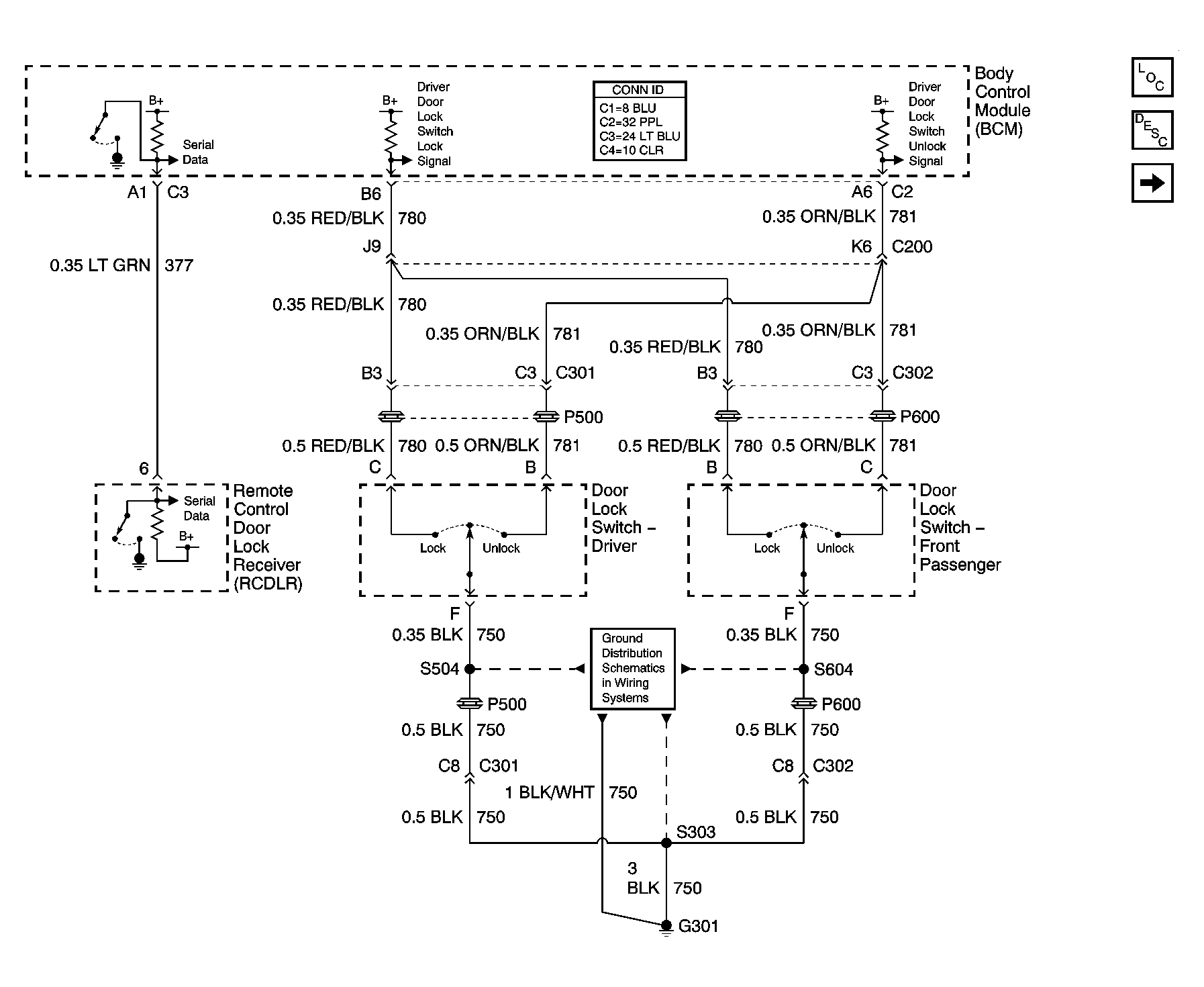

Fig 2: Door Lock/Indicator Schematics - Actuators
Courtesy of GENERAL MOTORS CORP.

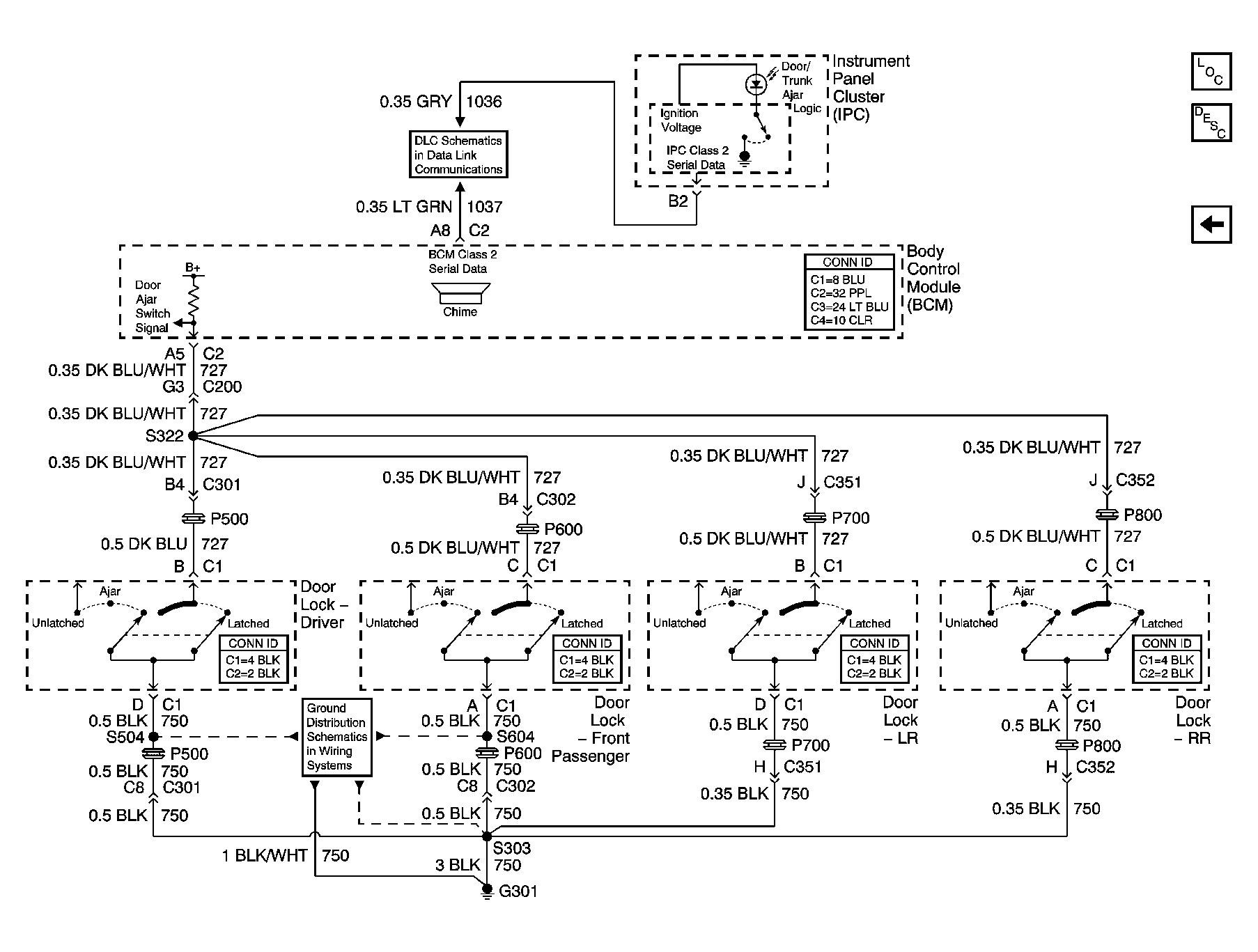

Fig 3: Door Lock/Indicator Schematics - Ajar Indicator
Courtesy of GENERAL MOTORS CORP.
