Engine Controls Schematics

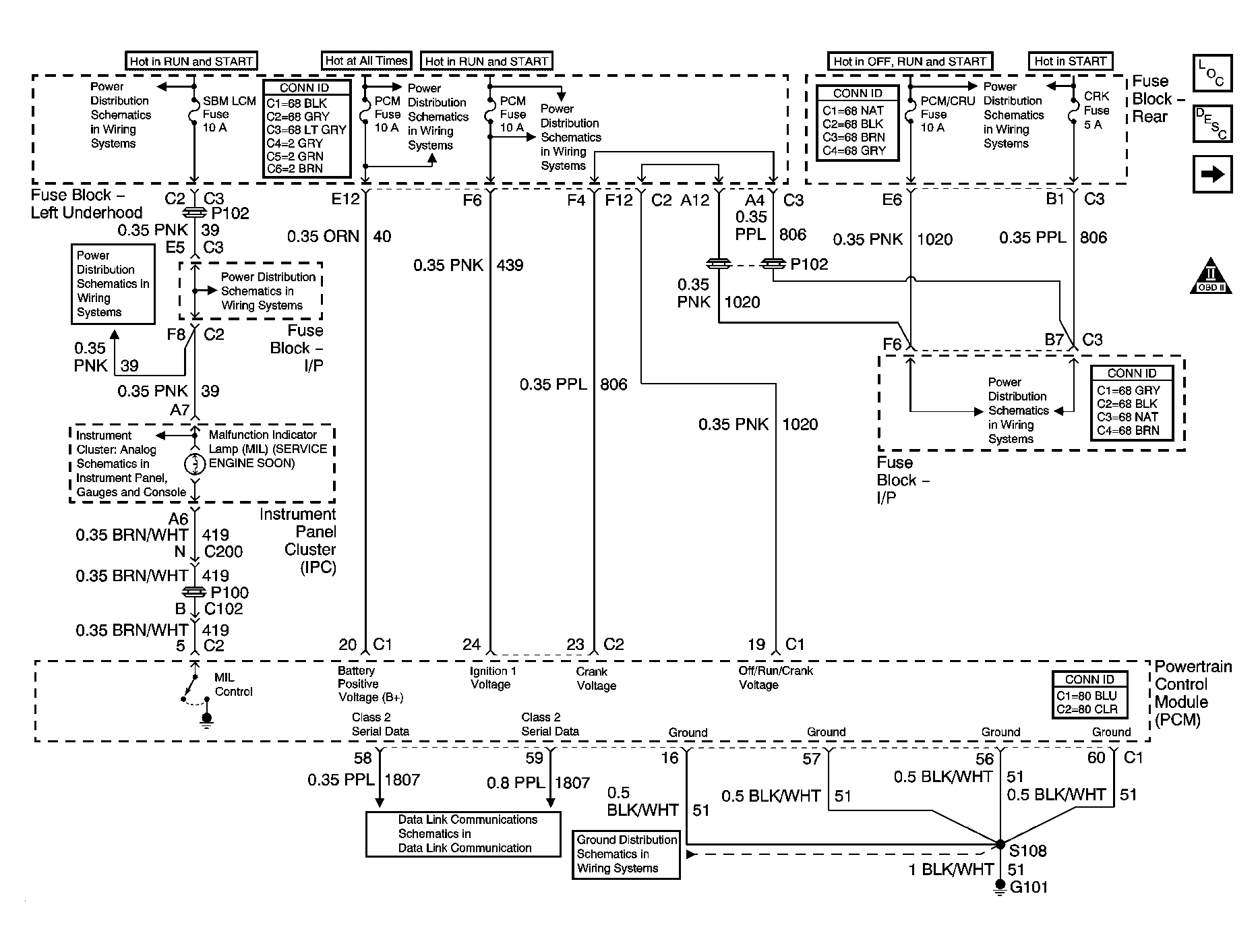

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

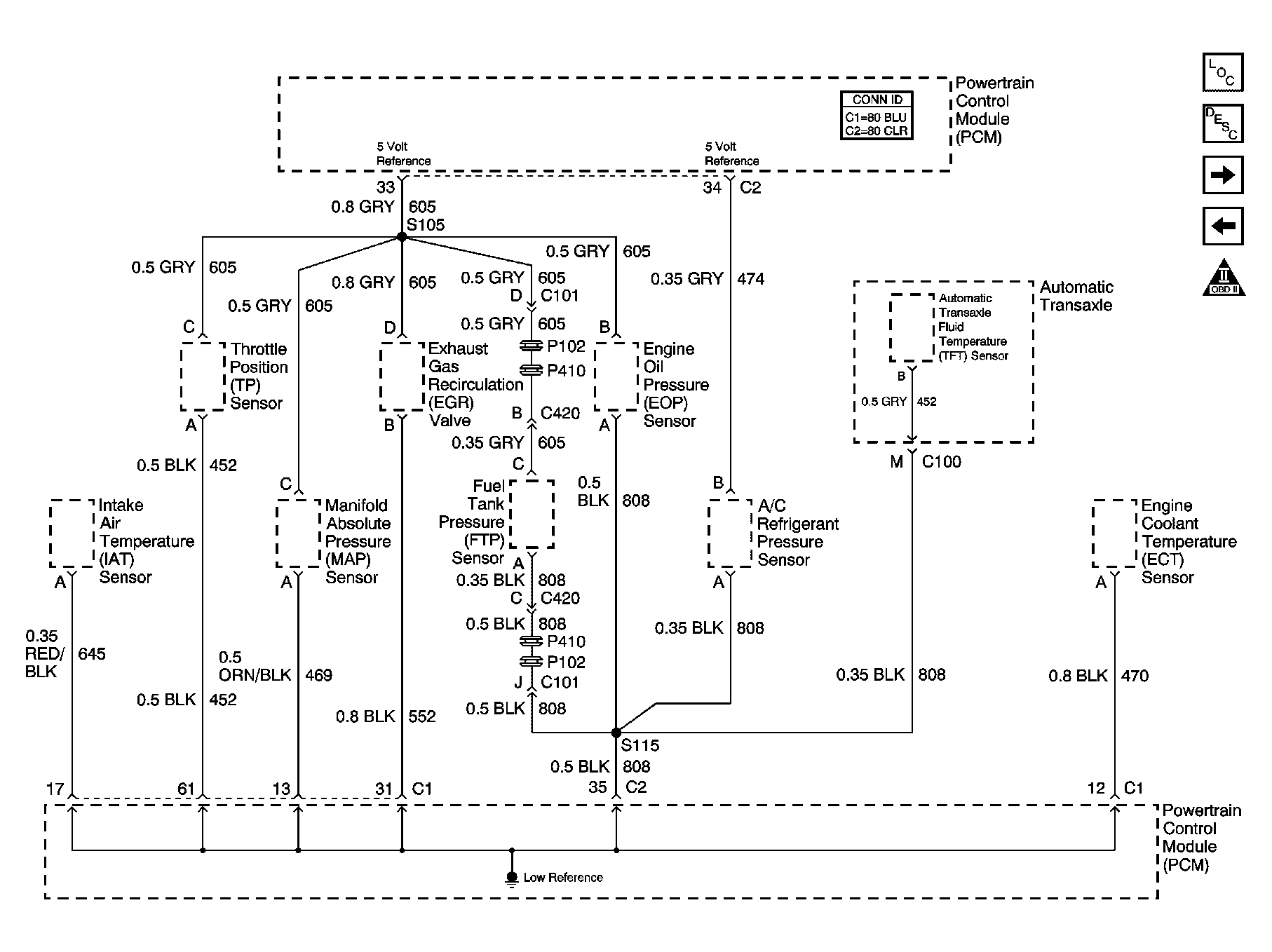

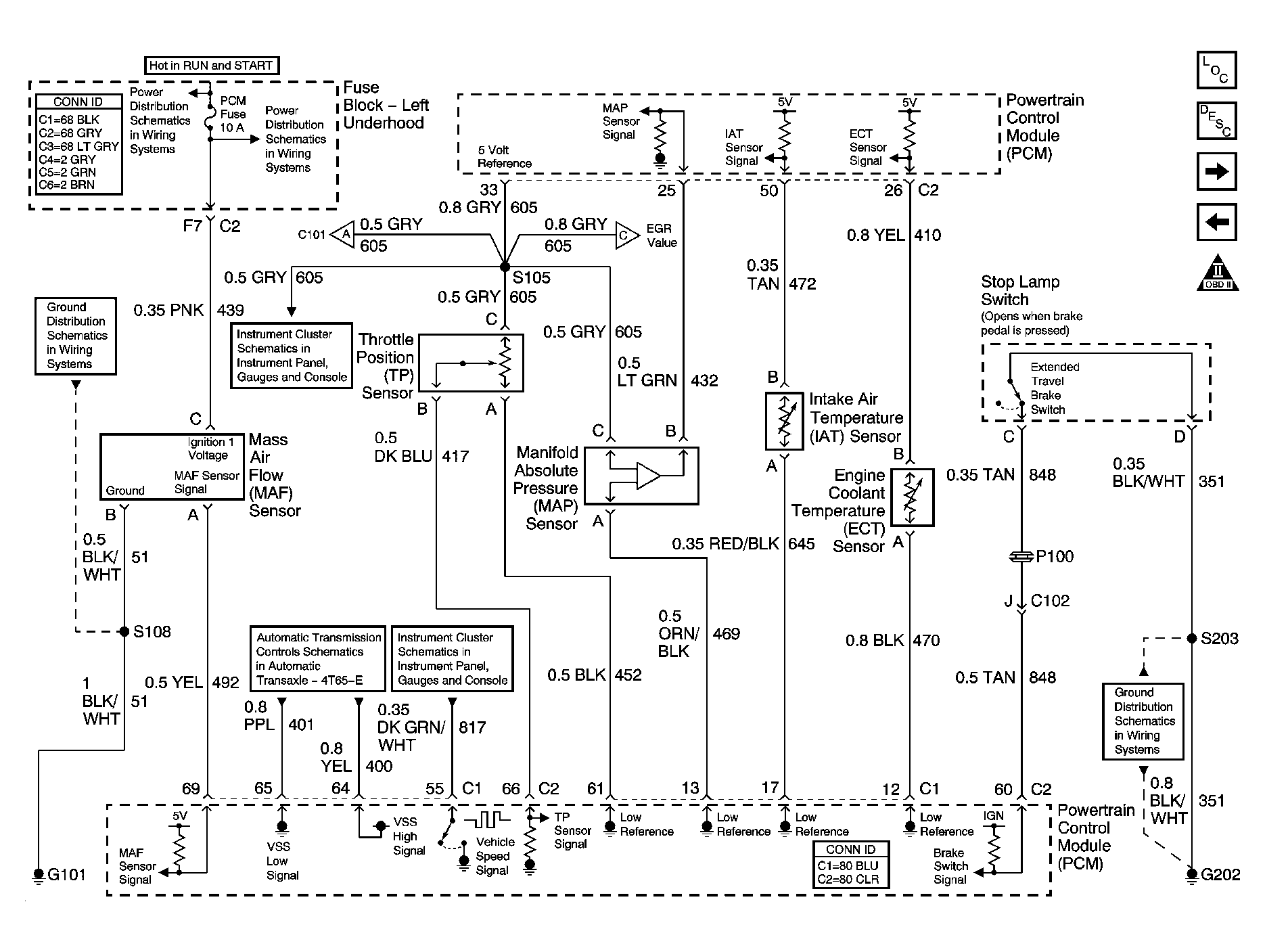

Fig 2: Engine Data Sensors- 5 Volt & Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

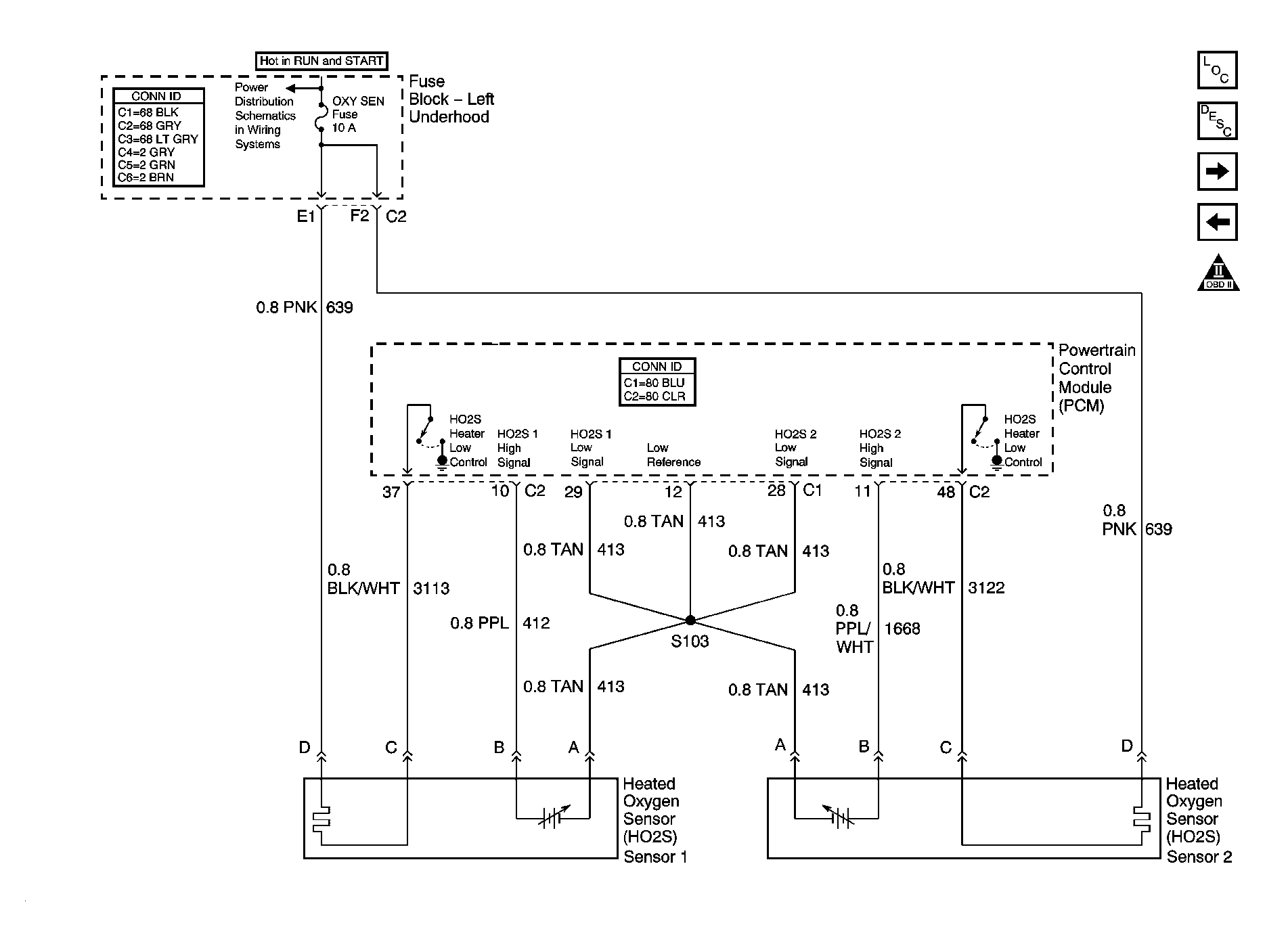

Fig 4: Engine Data Sensors- Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

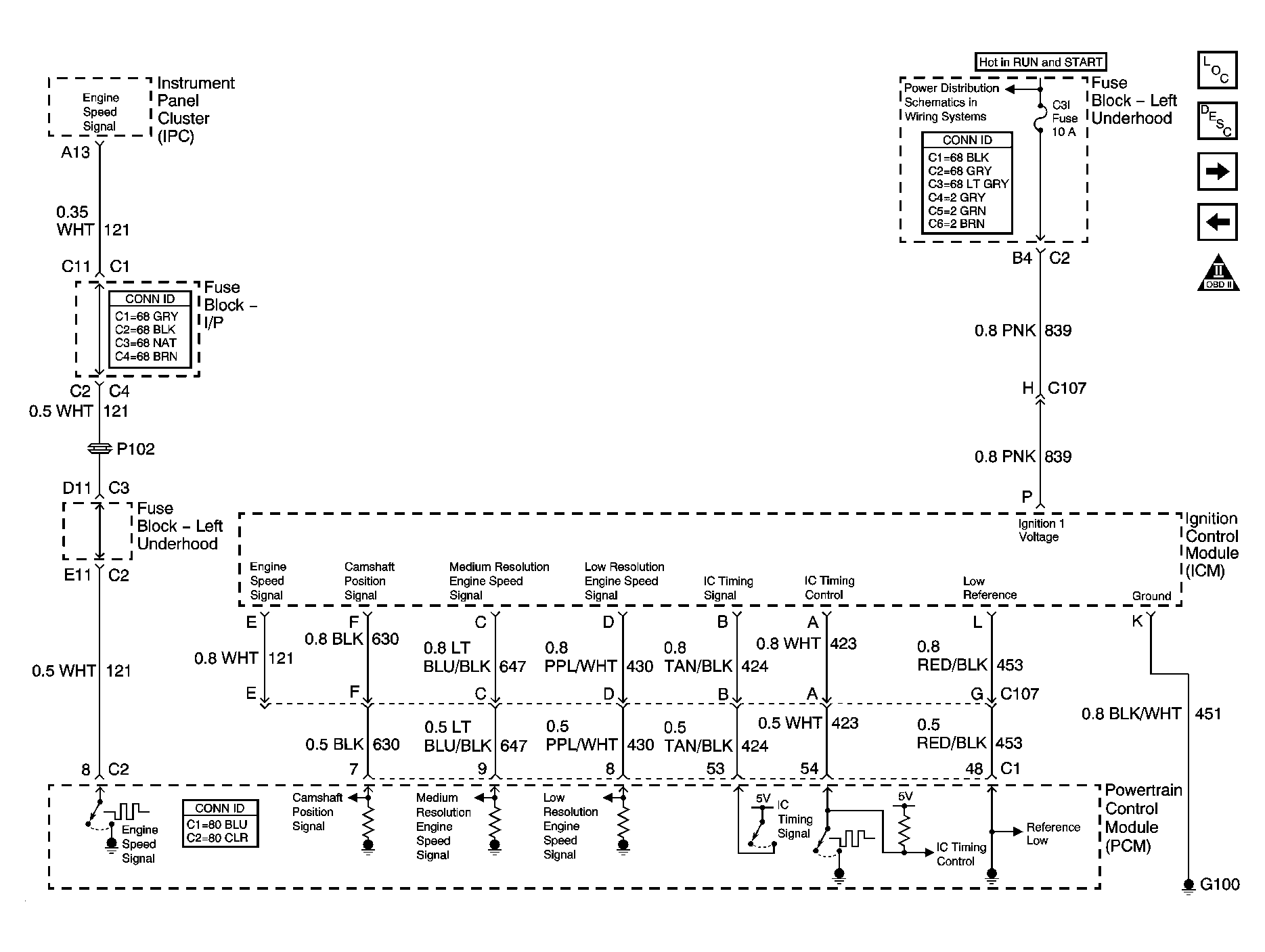

Fig 5: Ignition Controls- Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

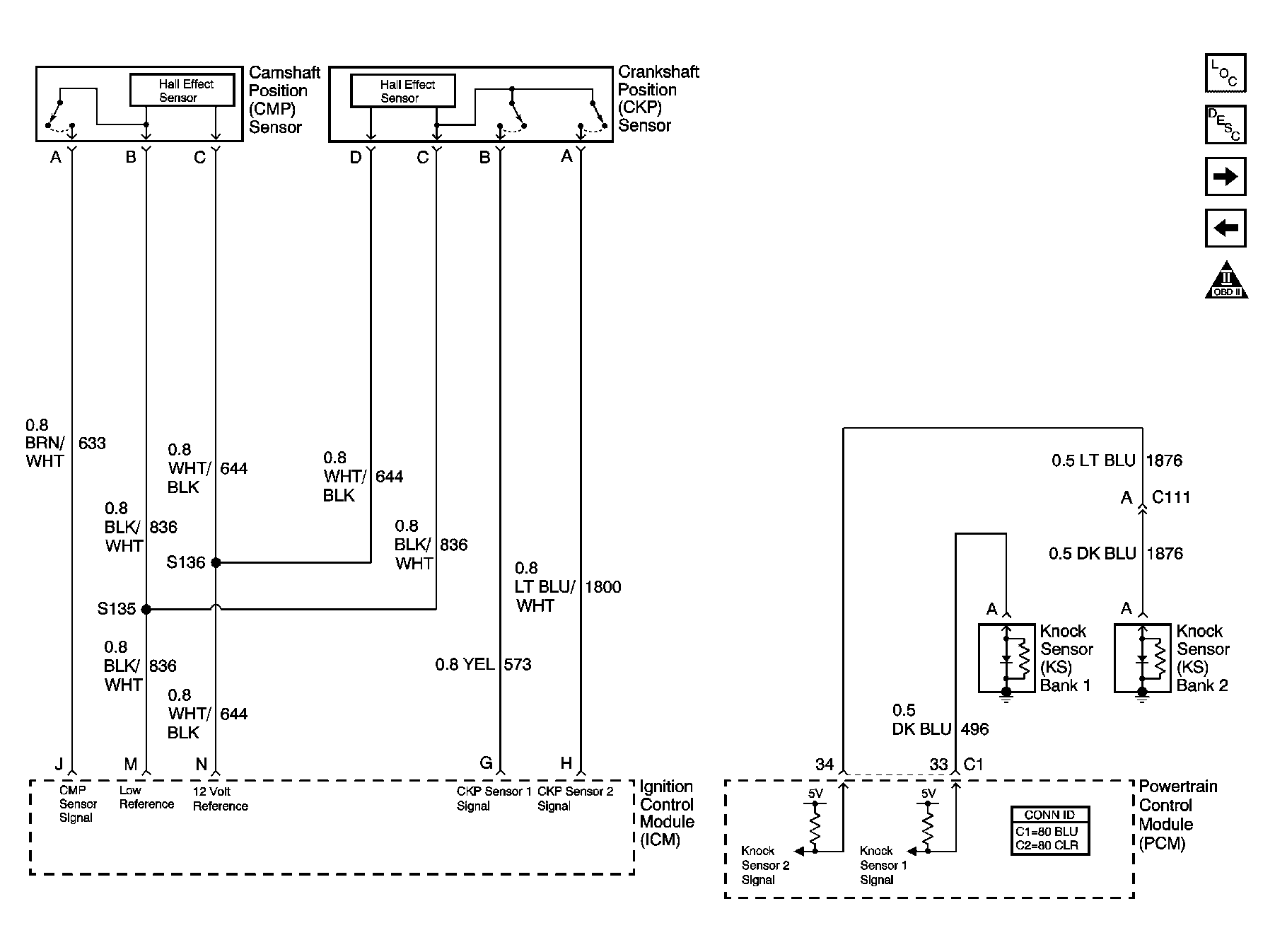

Fig 6: Ignition Controls- Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

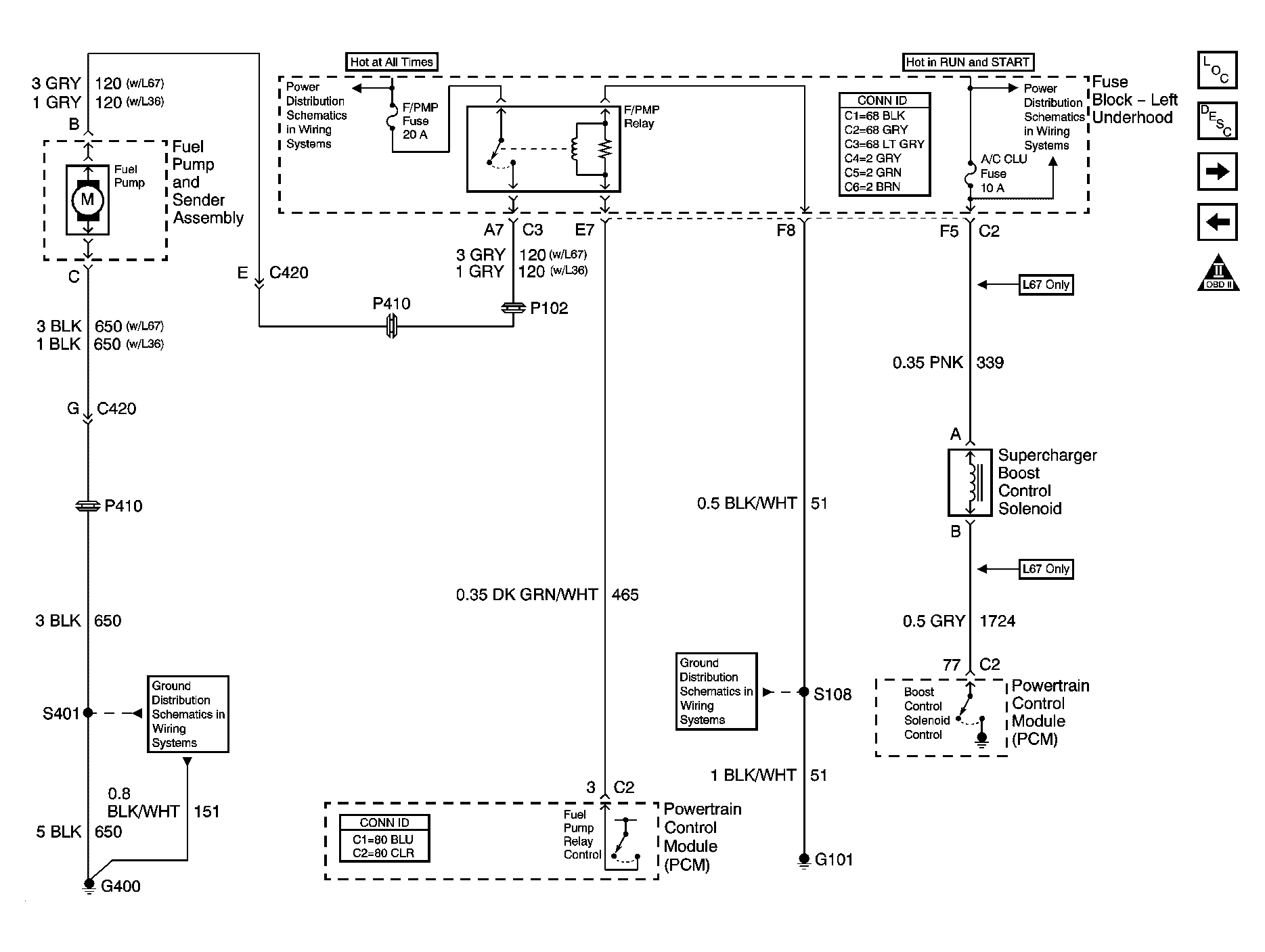

Fig 7: Fuel Controls- Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

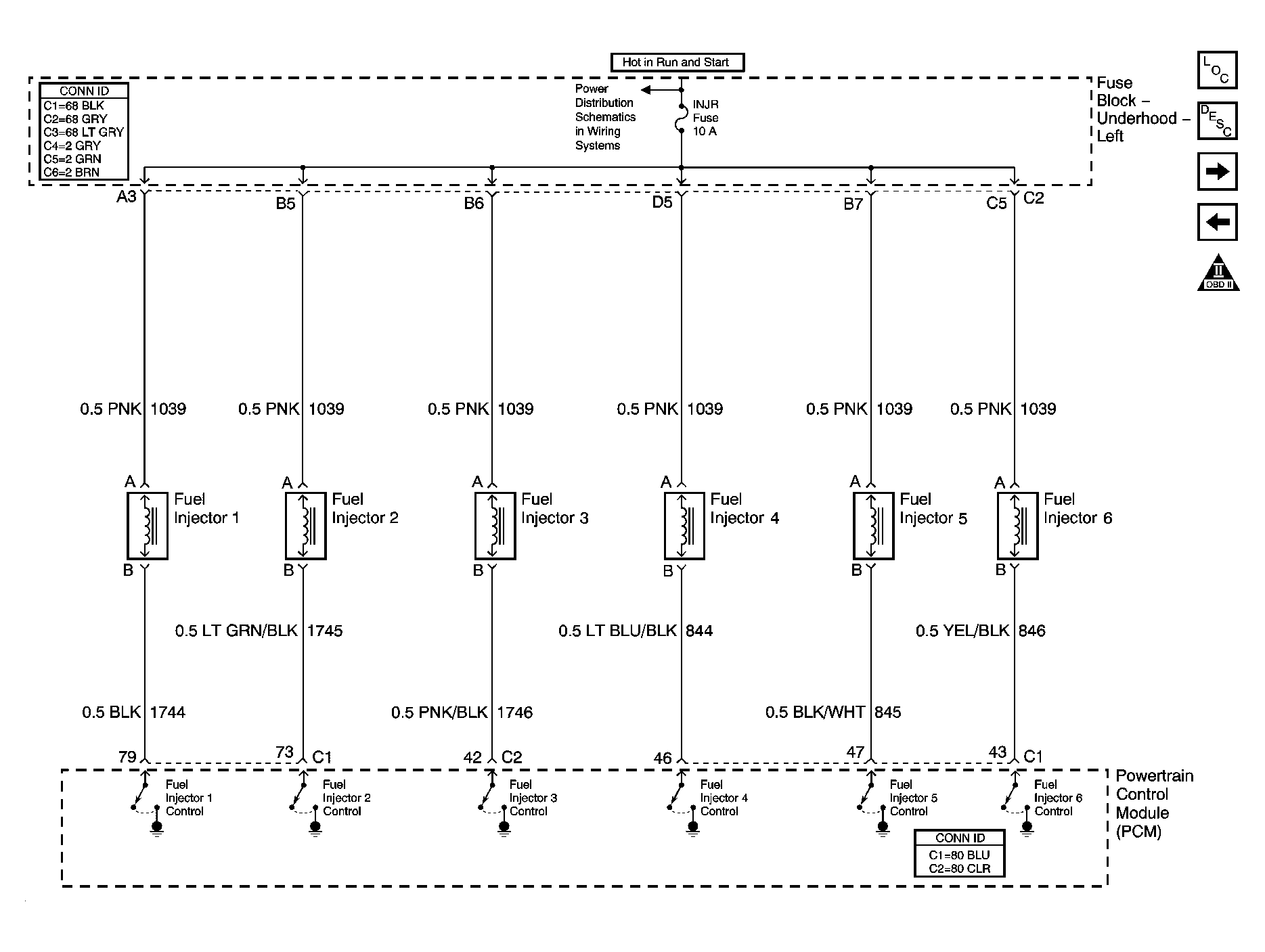

Fig 8: Fuel Controls- Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

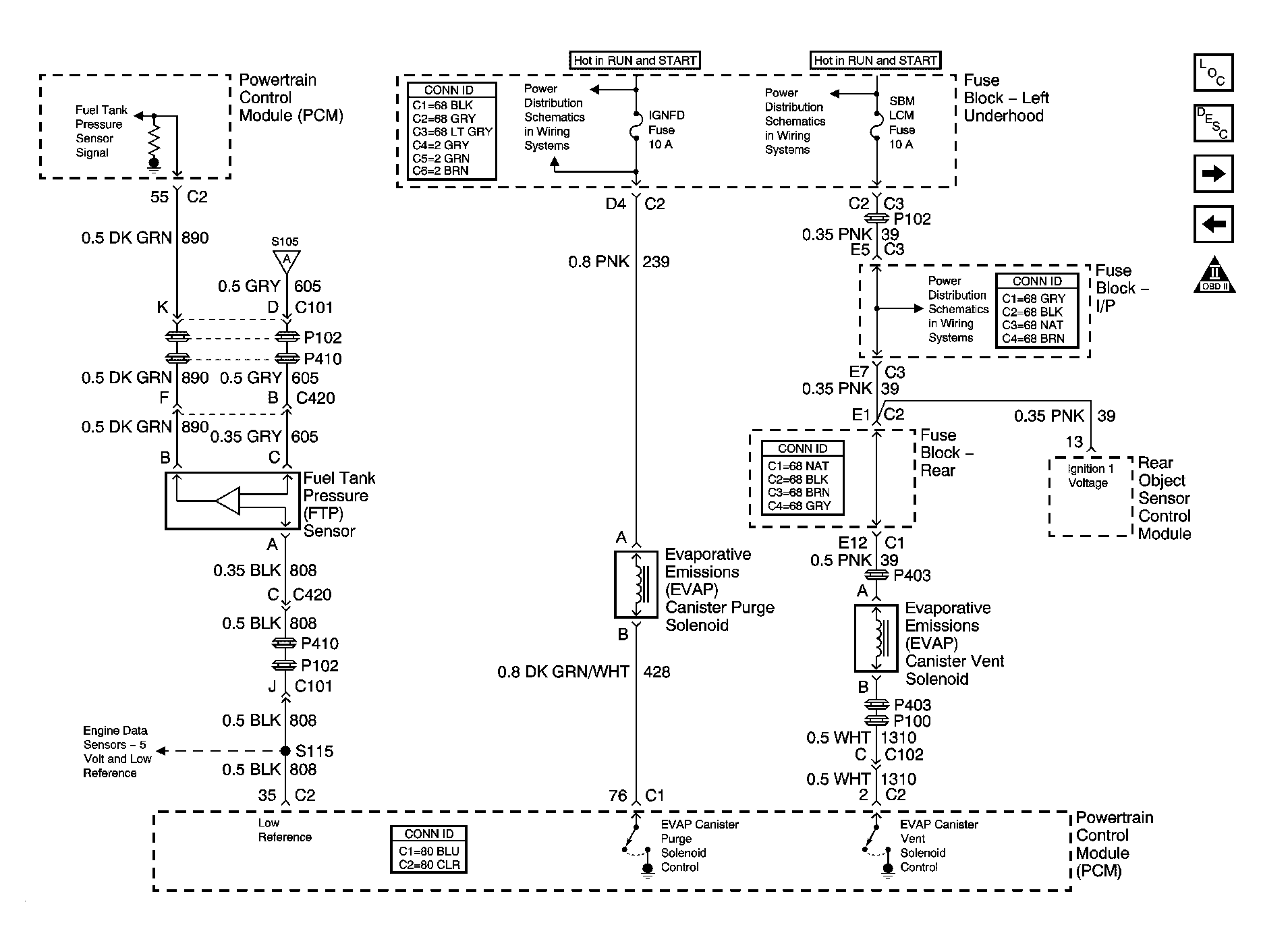

Fig 9: Fuel Controls- EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

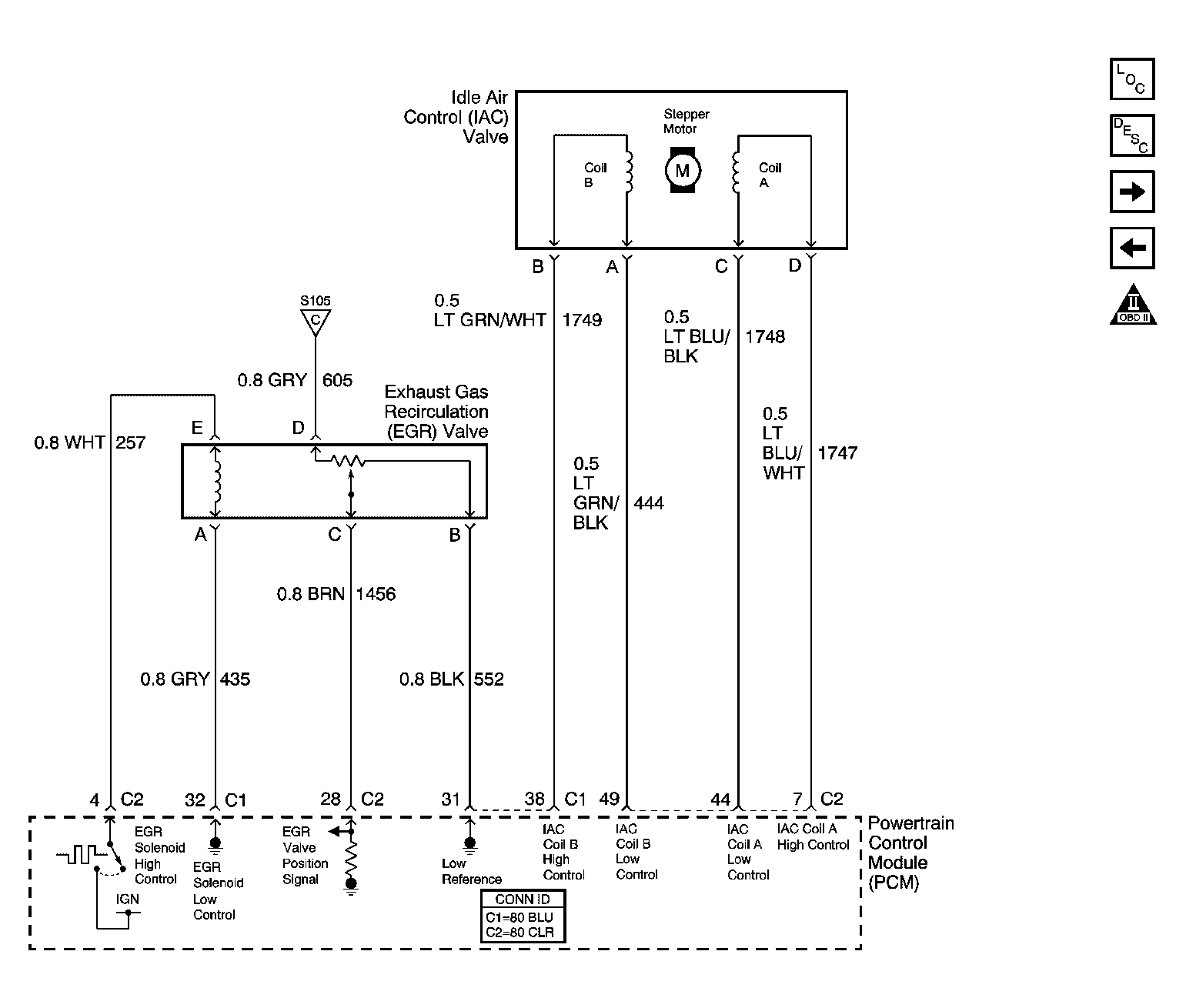

Fig 10: Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

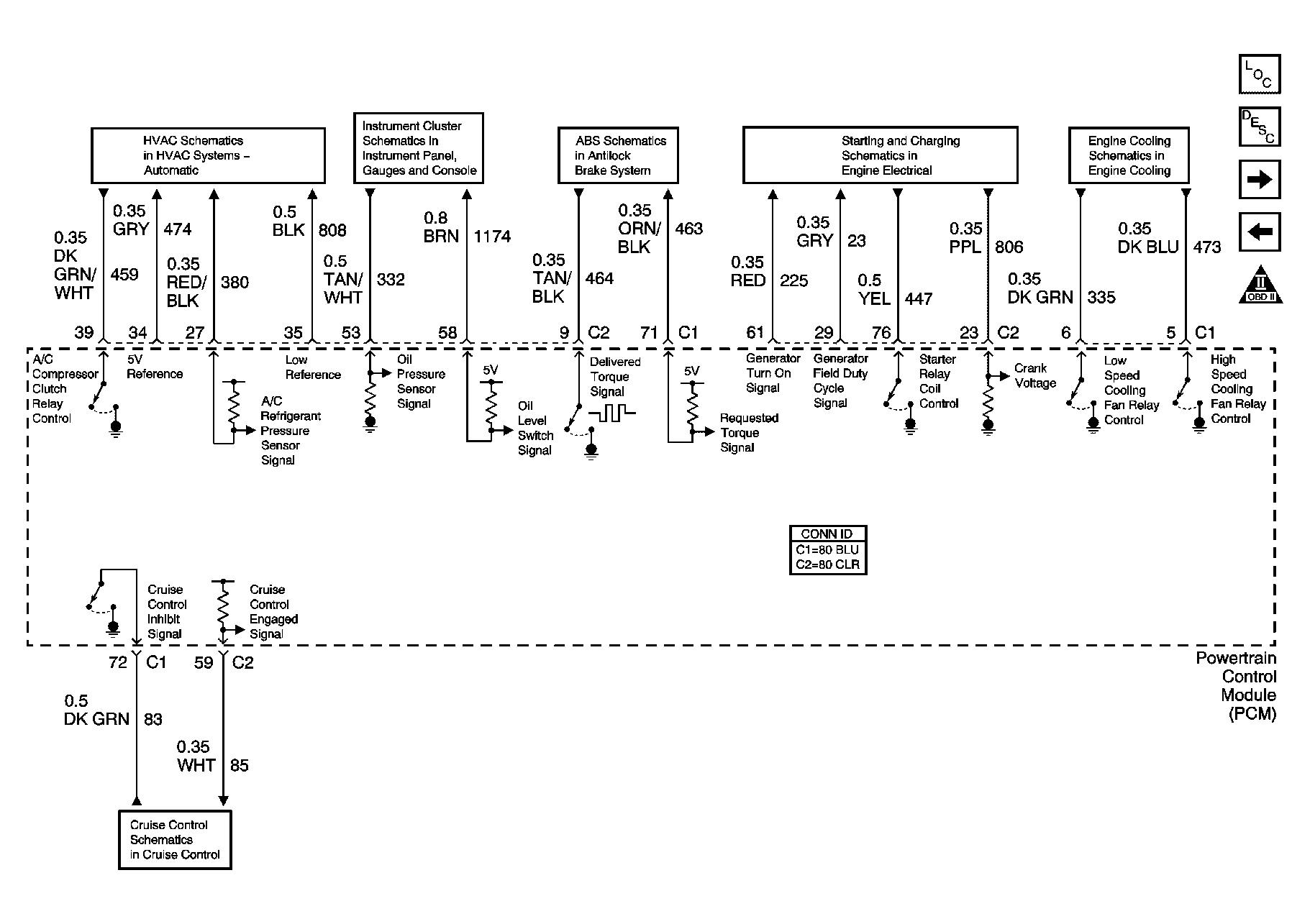

Fig 11: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

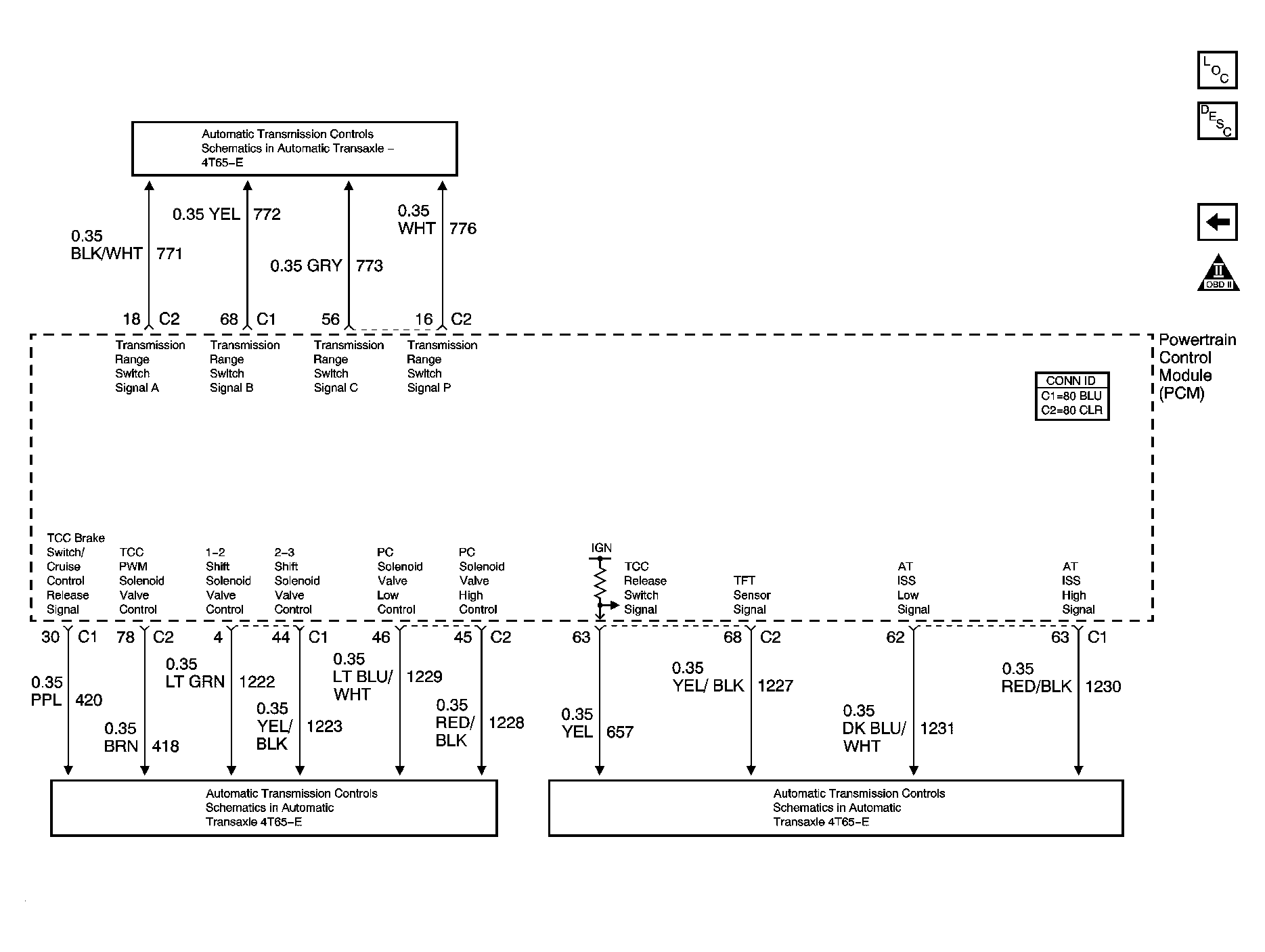

Fig 12: Transmission Controls Schematic

Courtesy of GENERAL MOTORS CORP.
