Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to Express Down Feature Caution in Cautions and Notices.

IMPORTANT: The regulator and the motor are serviced as an assembly.

Fig 1: View Of Door Trim Panel

GM63818

Courtesy of GENERAL MOTORS CORP.

Remove the door trim panel. Refer to Trim Panel Replacement - Door .

Fig 2: Water Deflector At Door Inner Panel

GM63790

Courtesy of GENERAL MOTORS CORP.

Remove the water deflector.

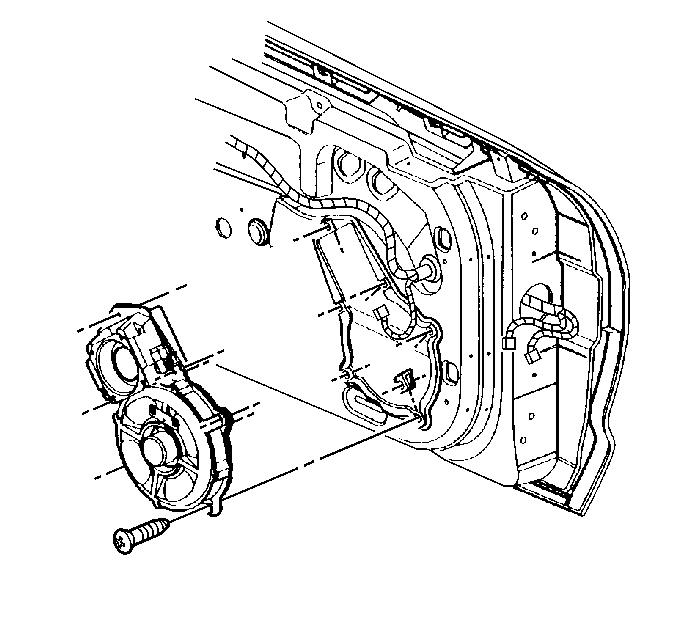

Fig 3: Radio Speaker Assembly At Door

GM63833

Courtesy of GENERAL MOTORS CORP.

Remove the radio speaker assembly from the door.
1. Disconnect the electrical/audio connector.
2. Remove the speaker retaining screws.

Fig 4: View of Window Clamp Access Plugs

GM63834

Courtesy of GENERAL MOTORS CORP.

Remove the plugs from the window clamp sight access holes.

Fig 5: View Of Door Window

GM63801

Courtesy of GENERAL MOTORS CORP.

Remove the door window. Refer to Window Replacement - Door .

Fig 6: Regulator Motor Electrical Connector

GM63808

Courtesy of GENERAL MOTORS CORP.

Disconnect the regulator motor electrical connector.

Fig 7: Large Access Plug At Under Front Of The Door

GM63803

Courtesy of GENERAL MOTORS CORP.

Remove the front plug from under the bottom of the door.

Fig 8: Regulator At Door Inner Opening

GM63807

Courtesy of GENERAL MOTORS CORP.

Mark the location of the regulator to aid in reassembly.
Remove the nuts from the regulator lower channel studs.
Remove the nuts from the regulator motor studs.
Remove the regulator rose bud clip from the door.
Remove the nuts from the upper regulator channel studs.
Fold the regulator and remove the regulator through the door inner opening.
