Power Window Switch

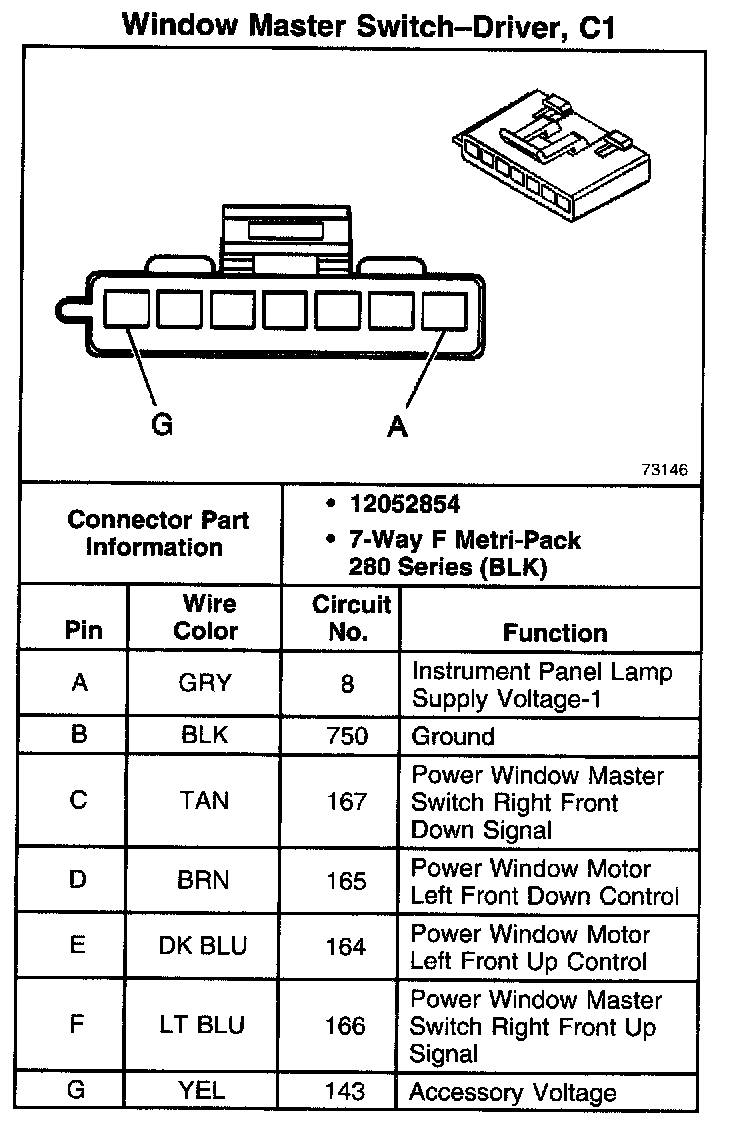

Window Master Switch - Driver, C1:

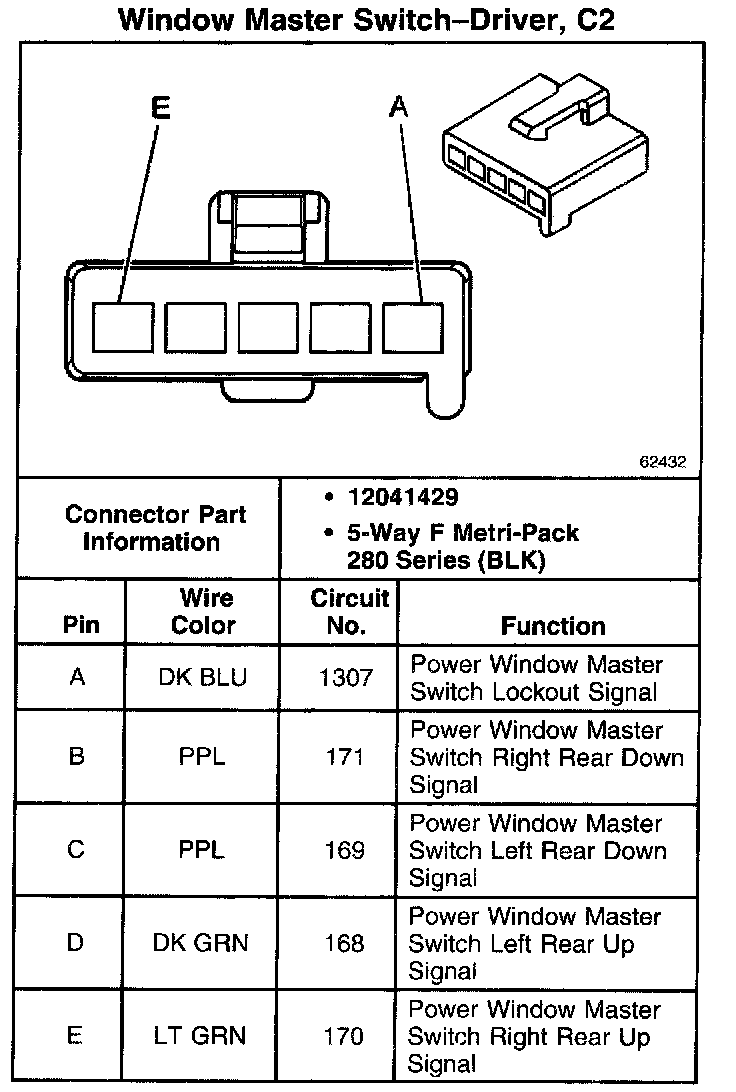

Window Master Switch - Driver, C2:

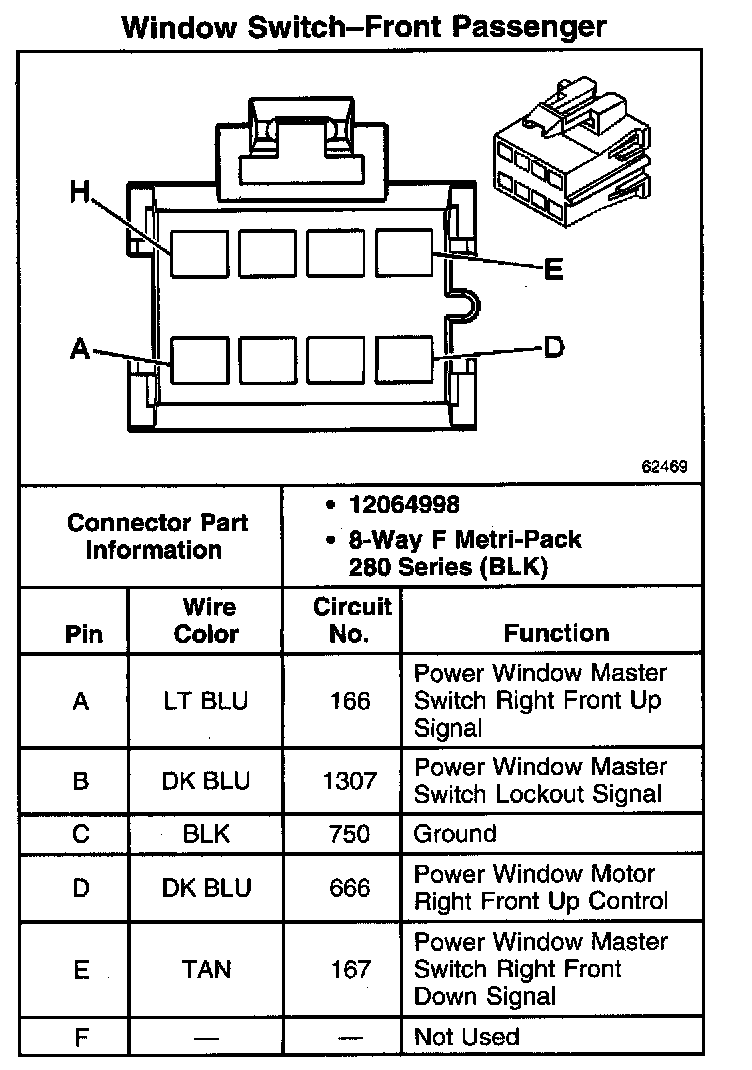

Window Switch - Front Passenger:




Window Switch - Front Passenger Part 2:

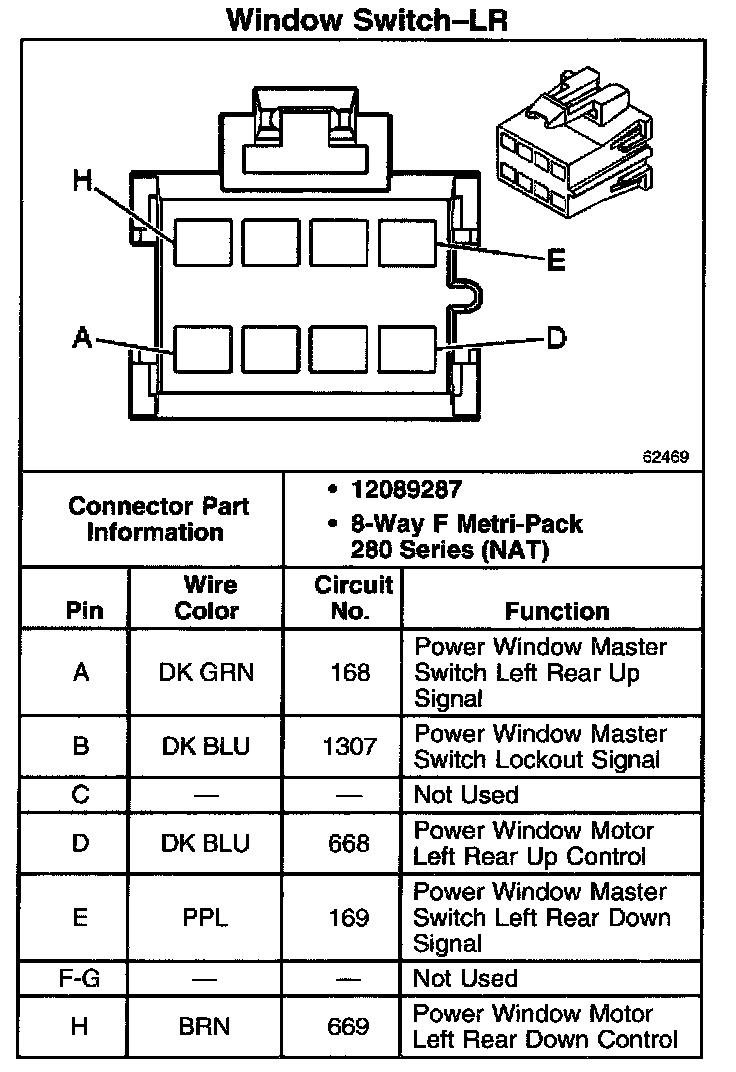

Window Switch - LR:

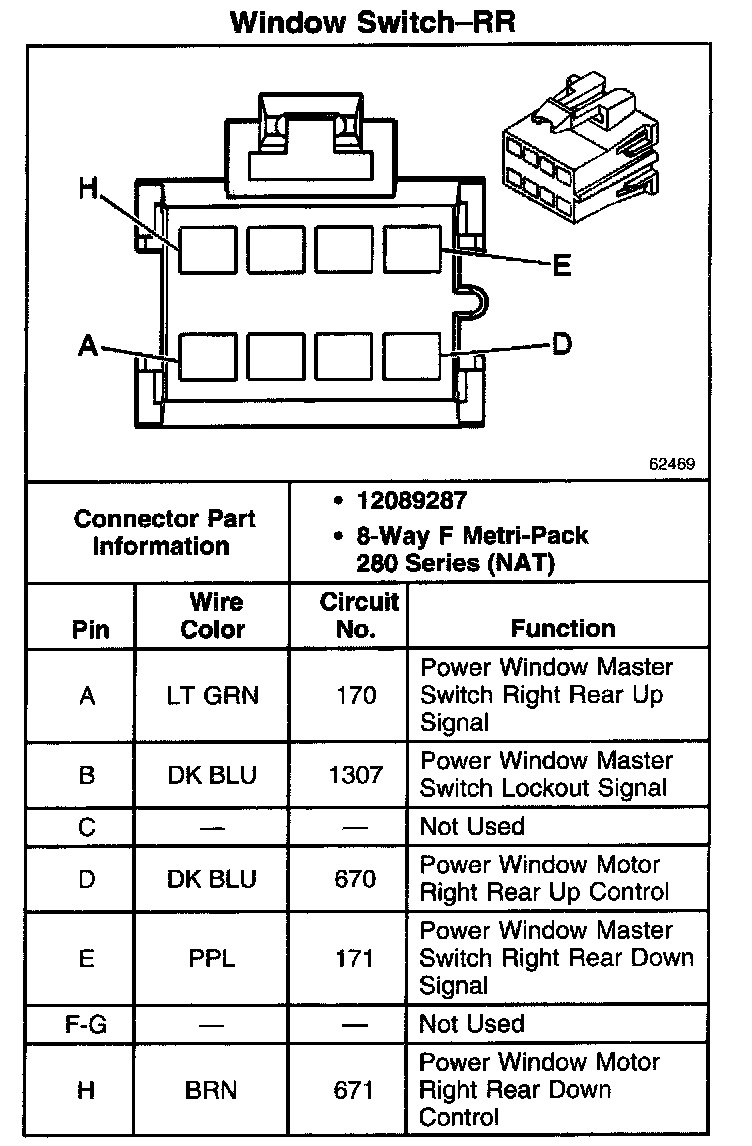

Window Switch - RR:
