Accessory Delay Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Accessory Delay Module

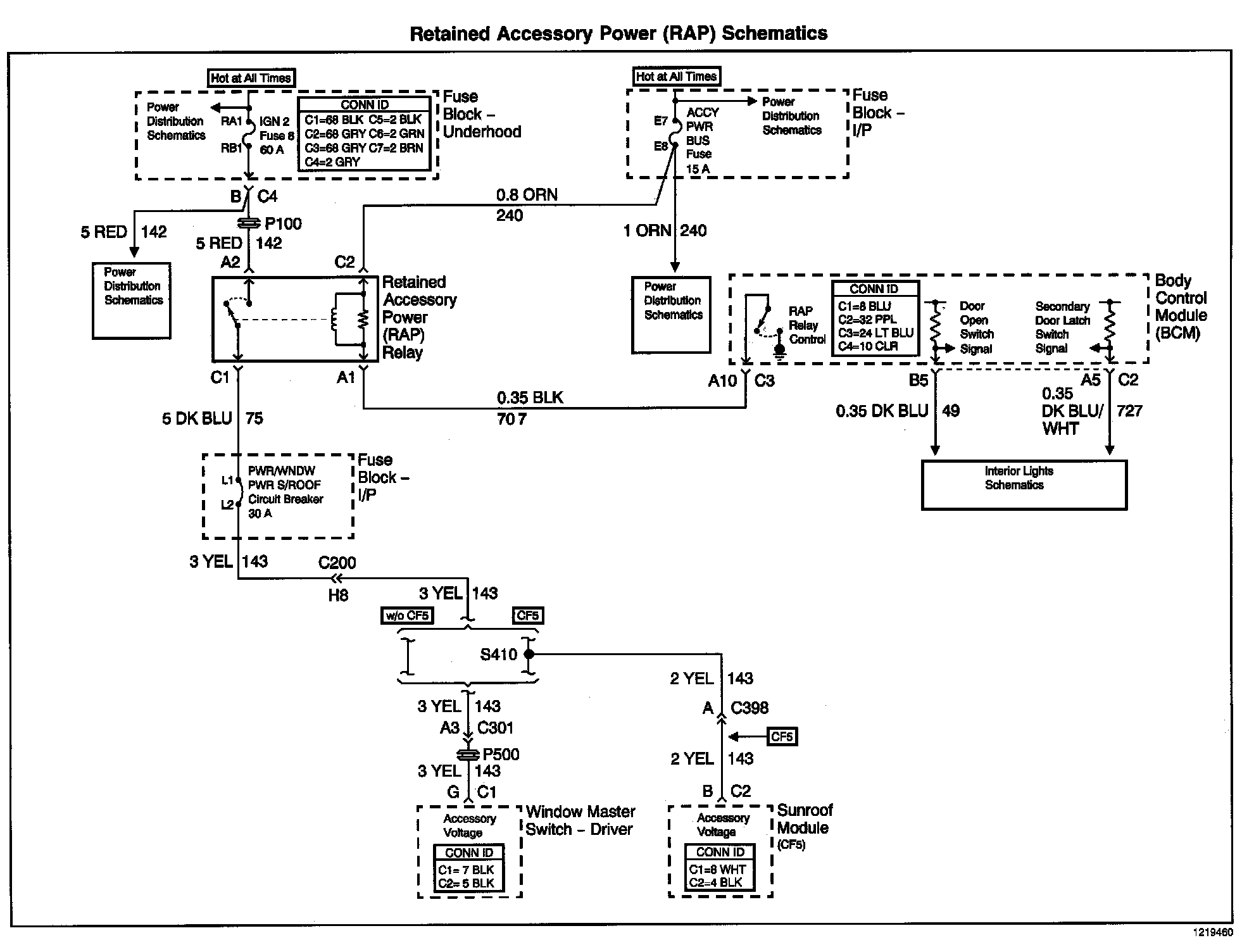

Retained Accessory Power (RAP) Diagram:
