Air Temperature Sensor ( Ambient / Intake ): Service and Repair

INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the intake air temperature (IAT) sensor electrical connector.

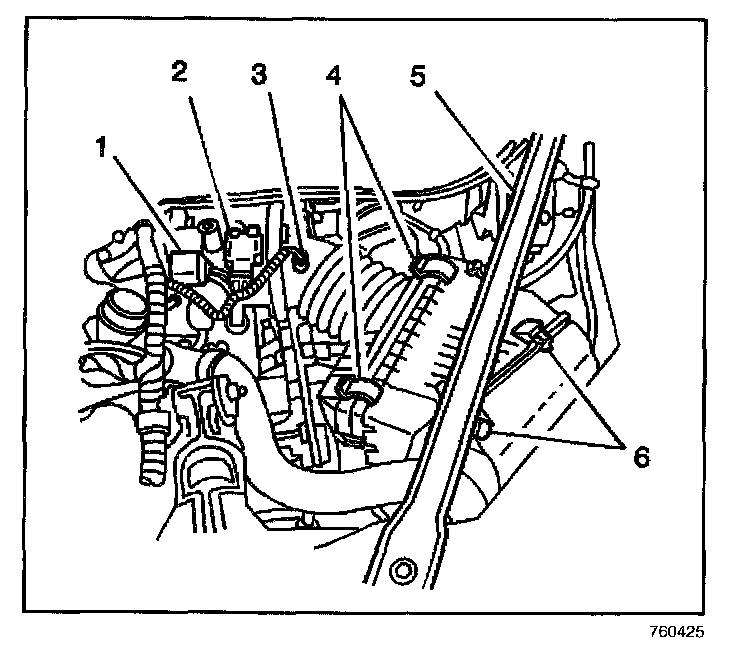

2. Remove the IAT sensor (3) with a twisting and pulling motion.

INSTALLATION PROCEDURE




1. Install the IAT sensor (3).
2. Connect the IAT sensor electrical connector.
