Transmission Control Systems

Automatic Transmission Inline 20-Way Connector End View (3.6L)

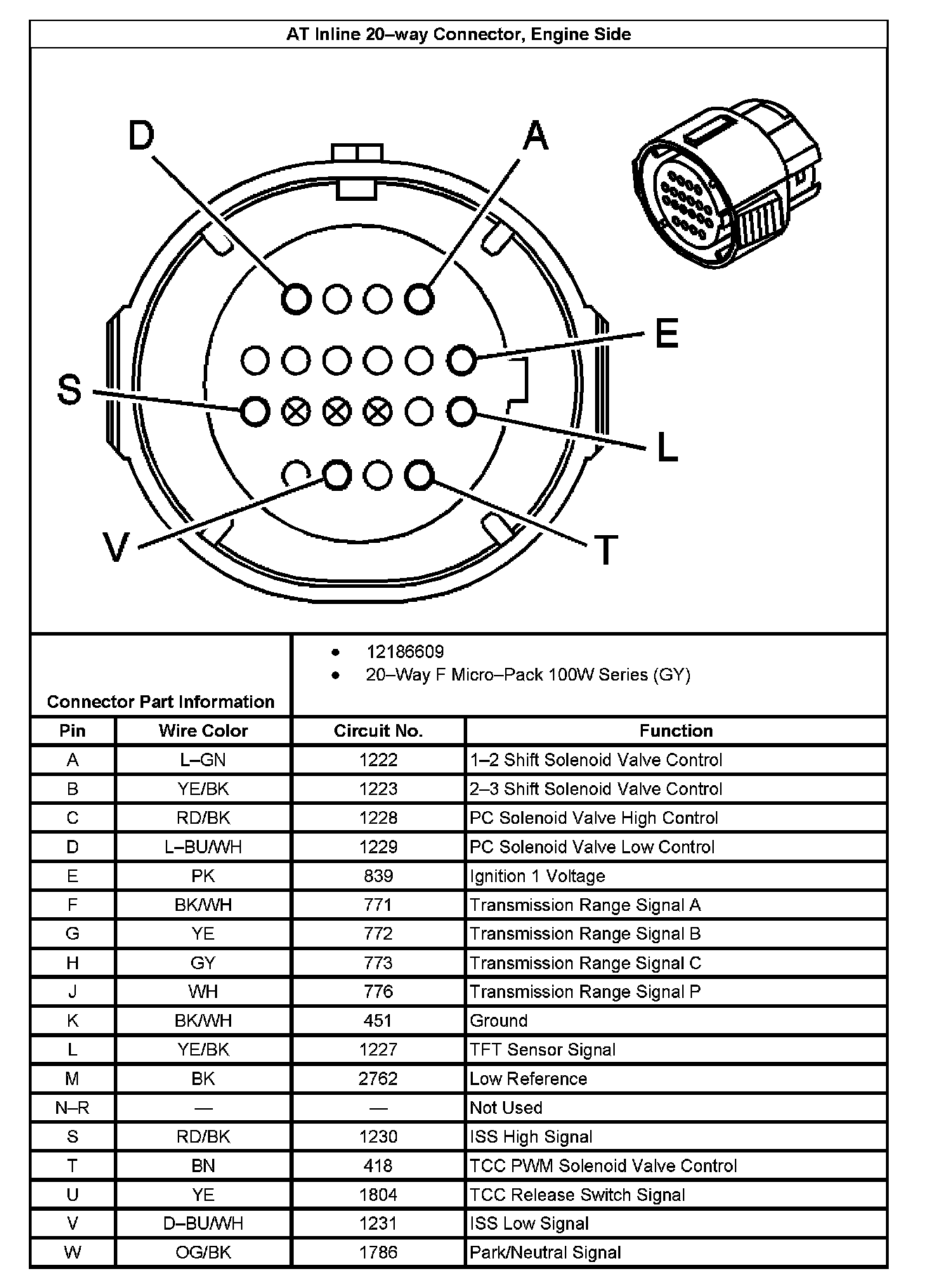

AT Inline 20way Connector, Engine Side

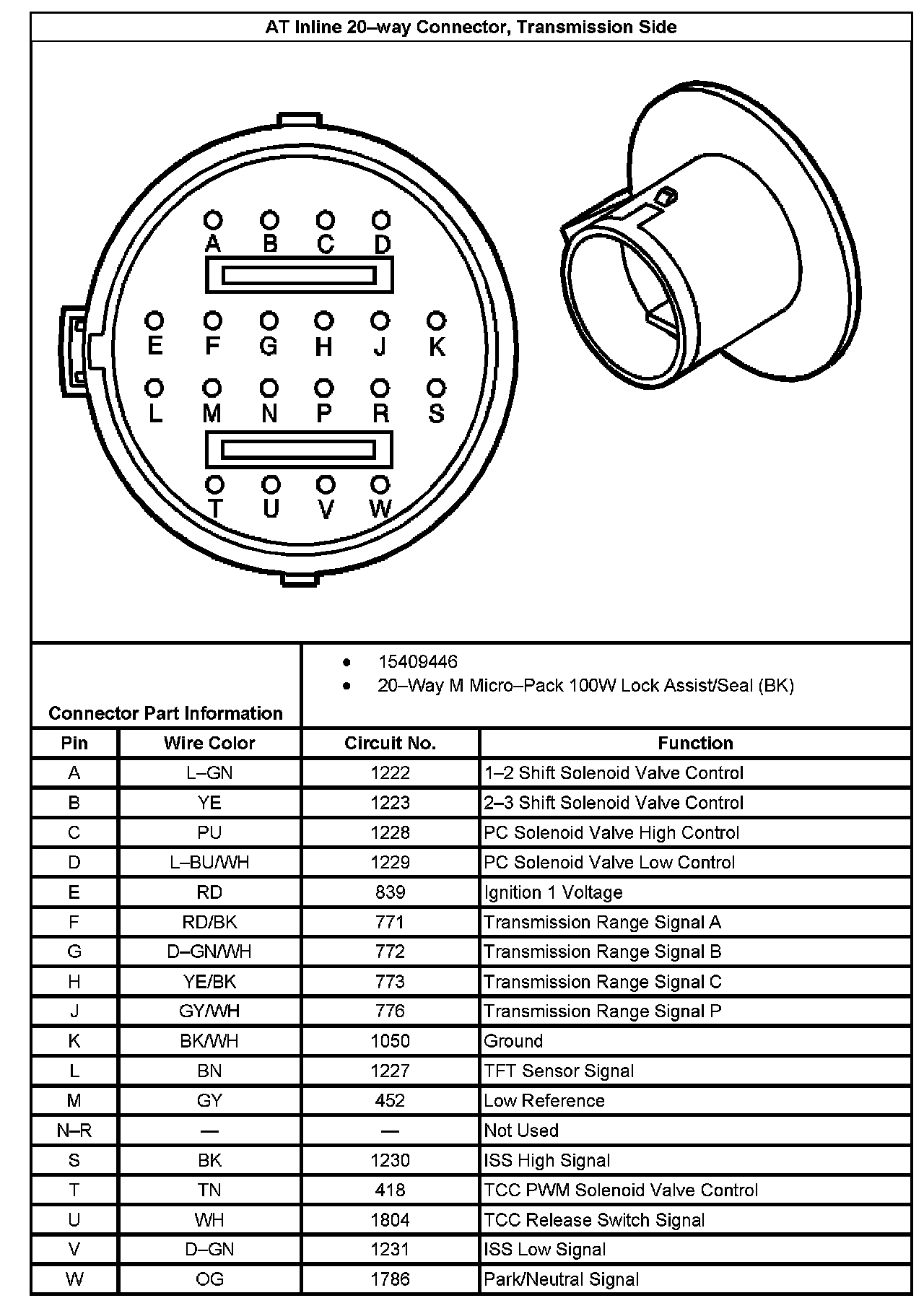

AT Inline 20way Connector, Transmission Side
