Control Module HVAC: Locations

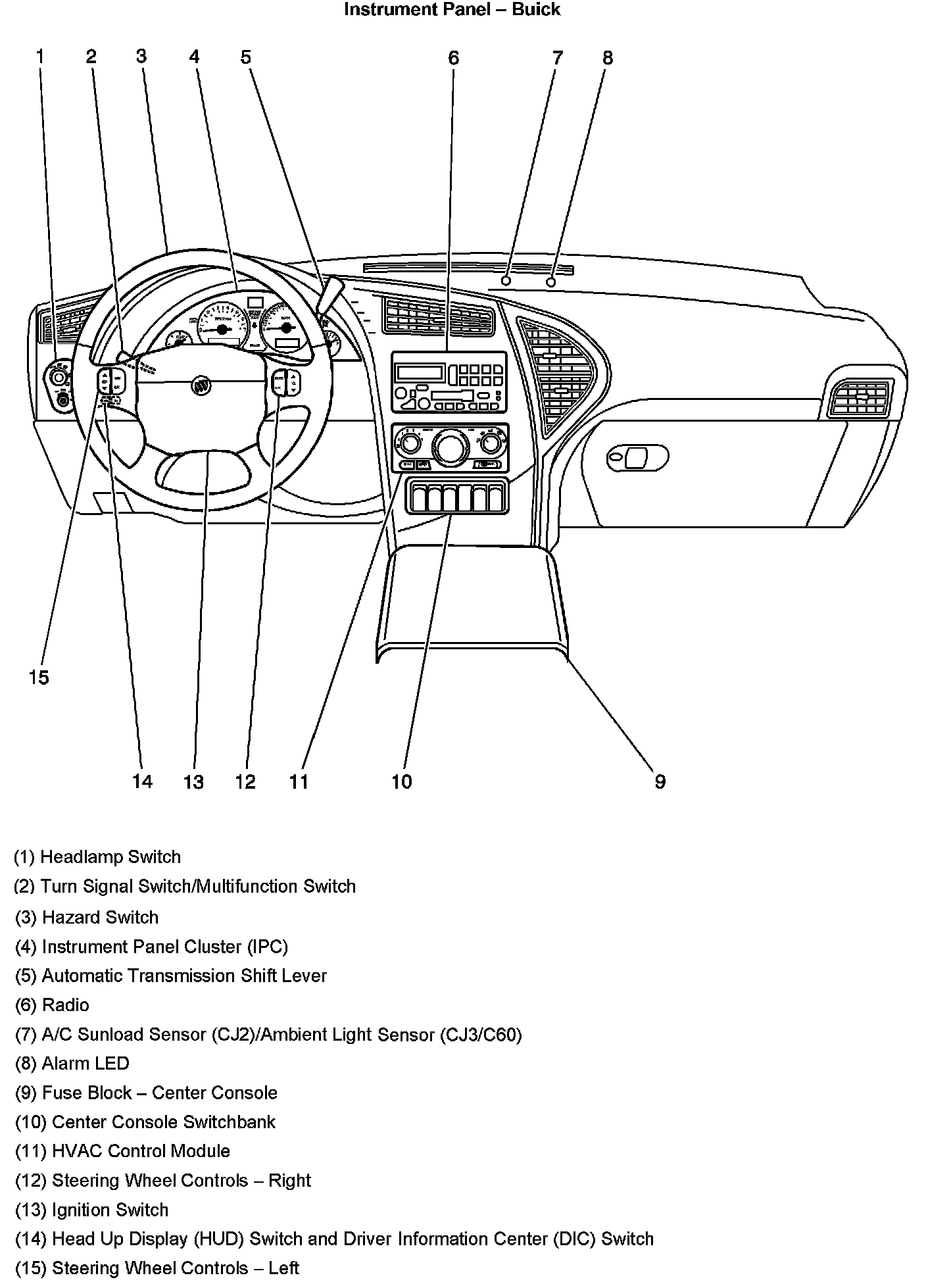

Instrument Panel:

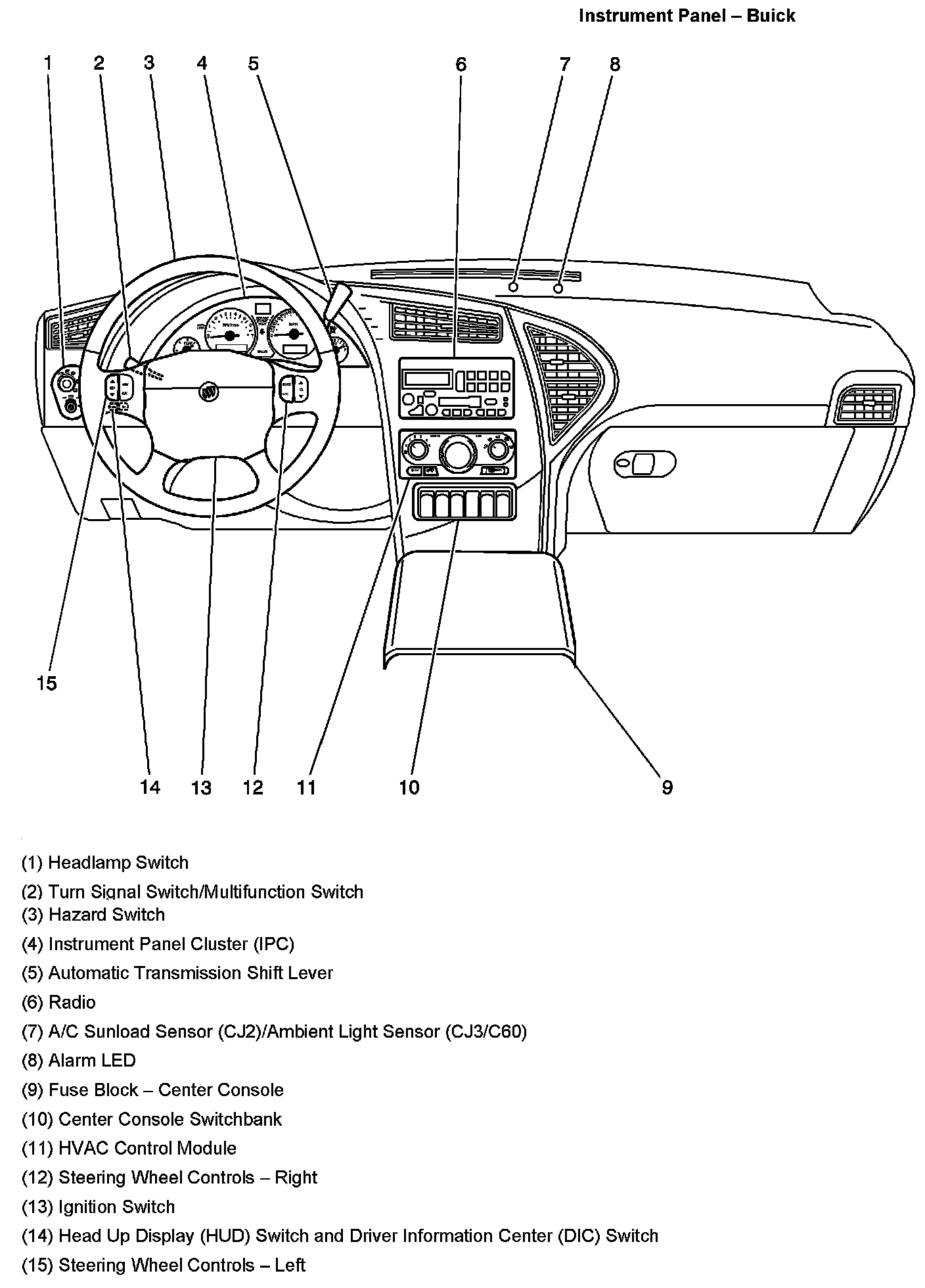

Instrument Panel:

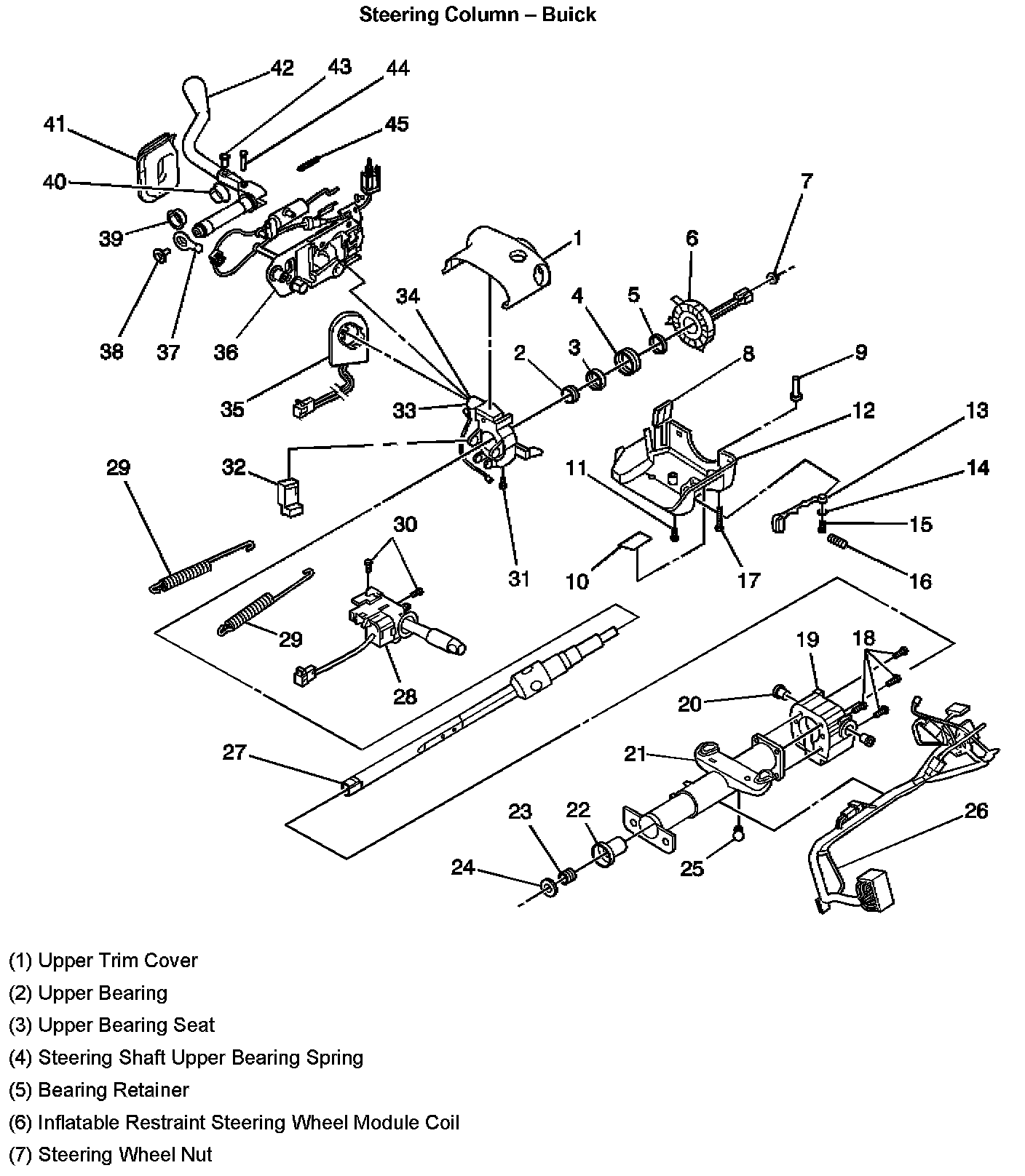

Steering Column:

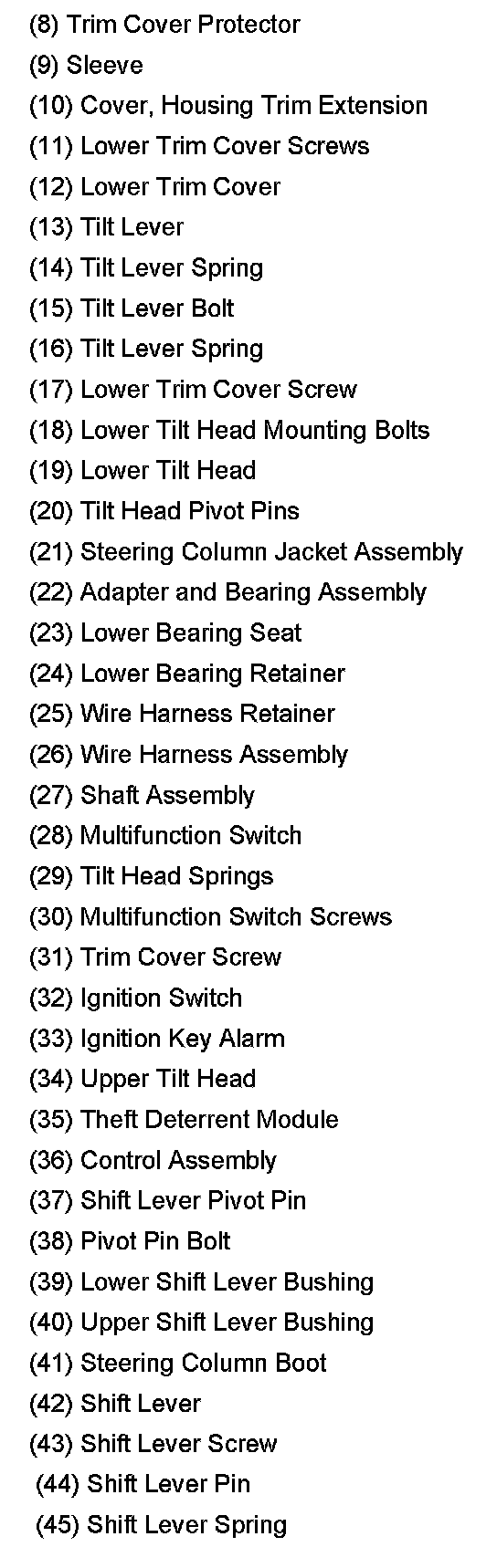

Steering Column Part 2:

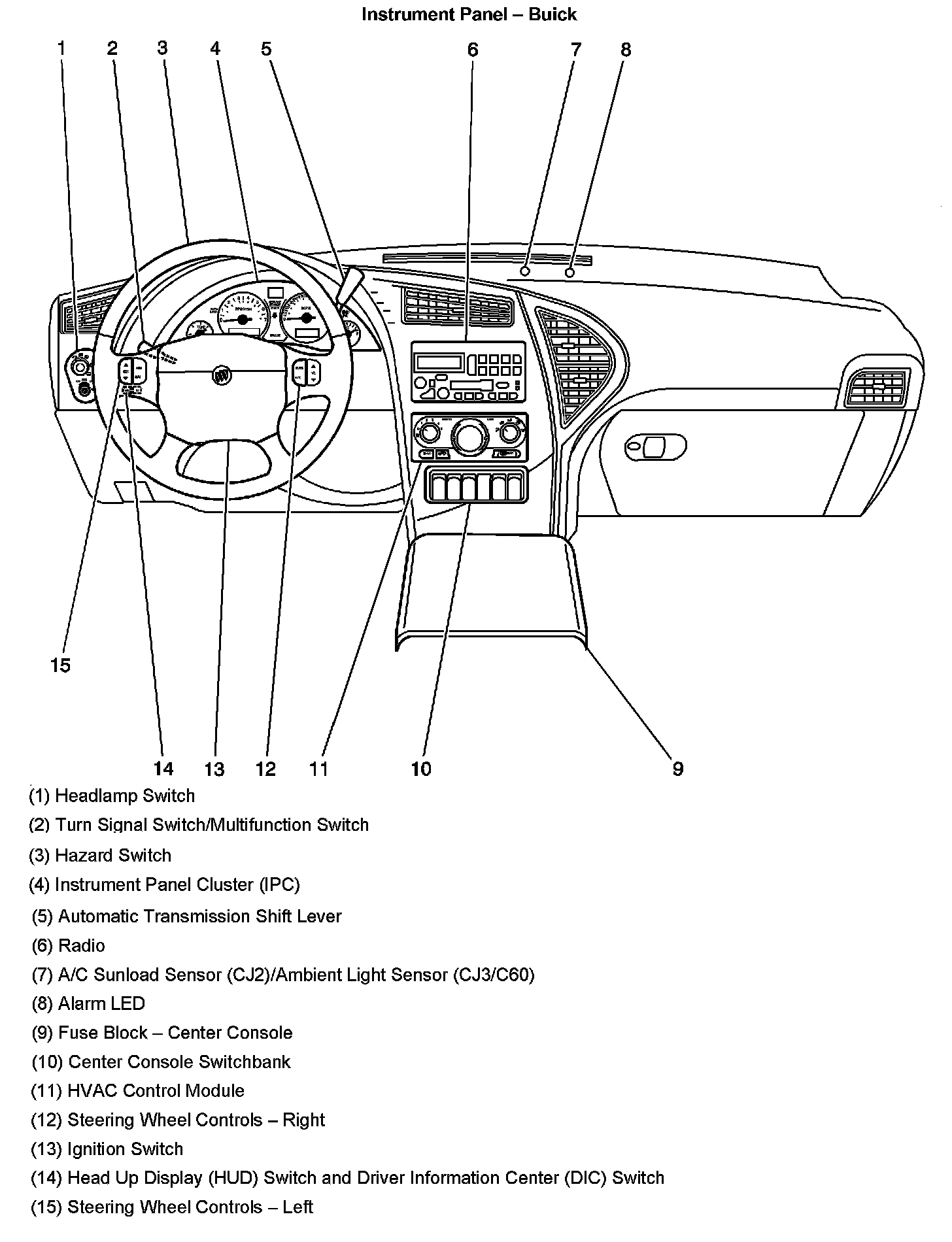

Instrument Panel:
