Inflatable Restraint Side Impact Sensor

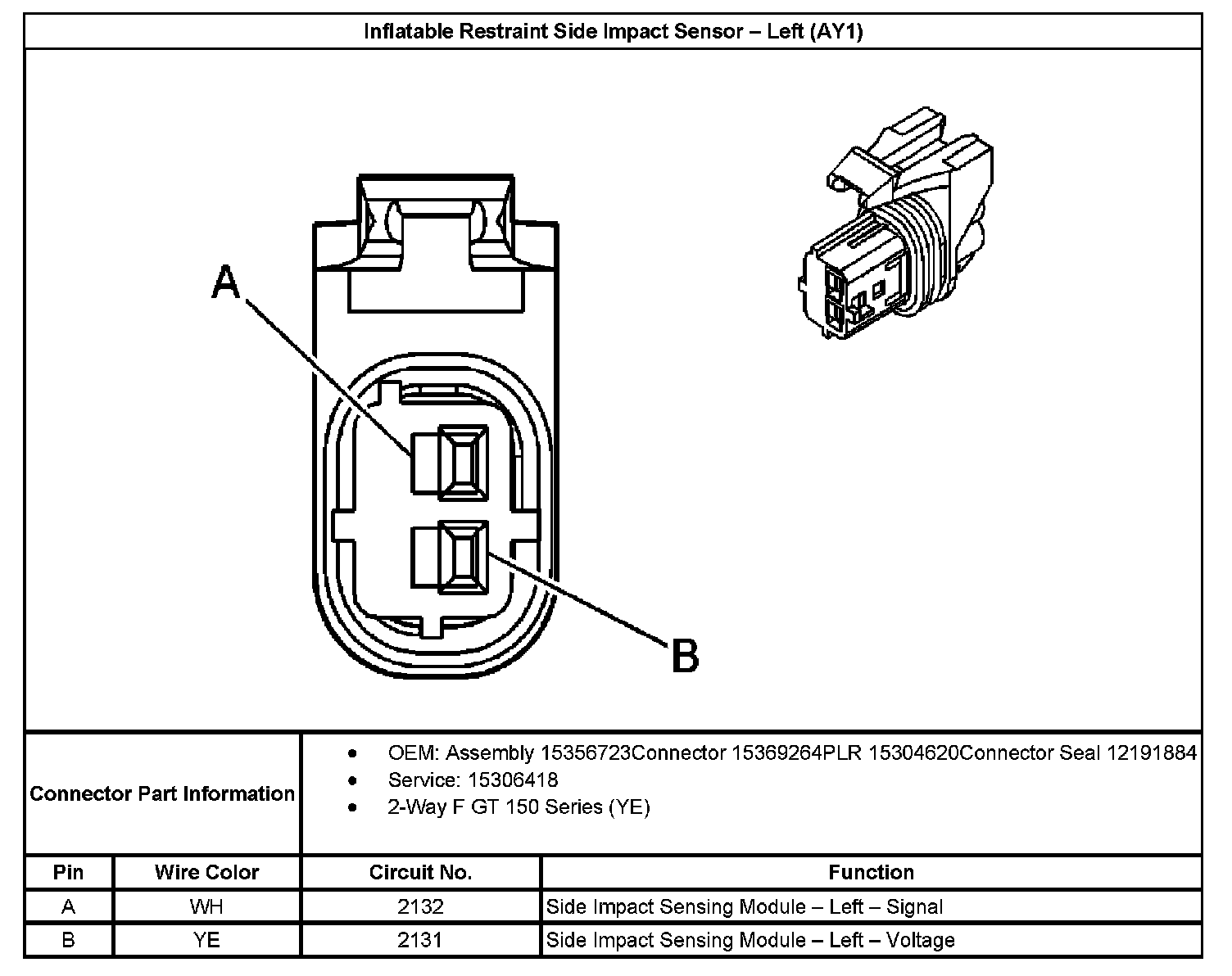

Inflatable Restraint Side Impact Sensor - Left (With RPO Code AY1):

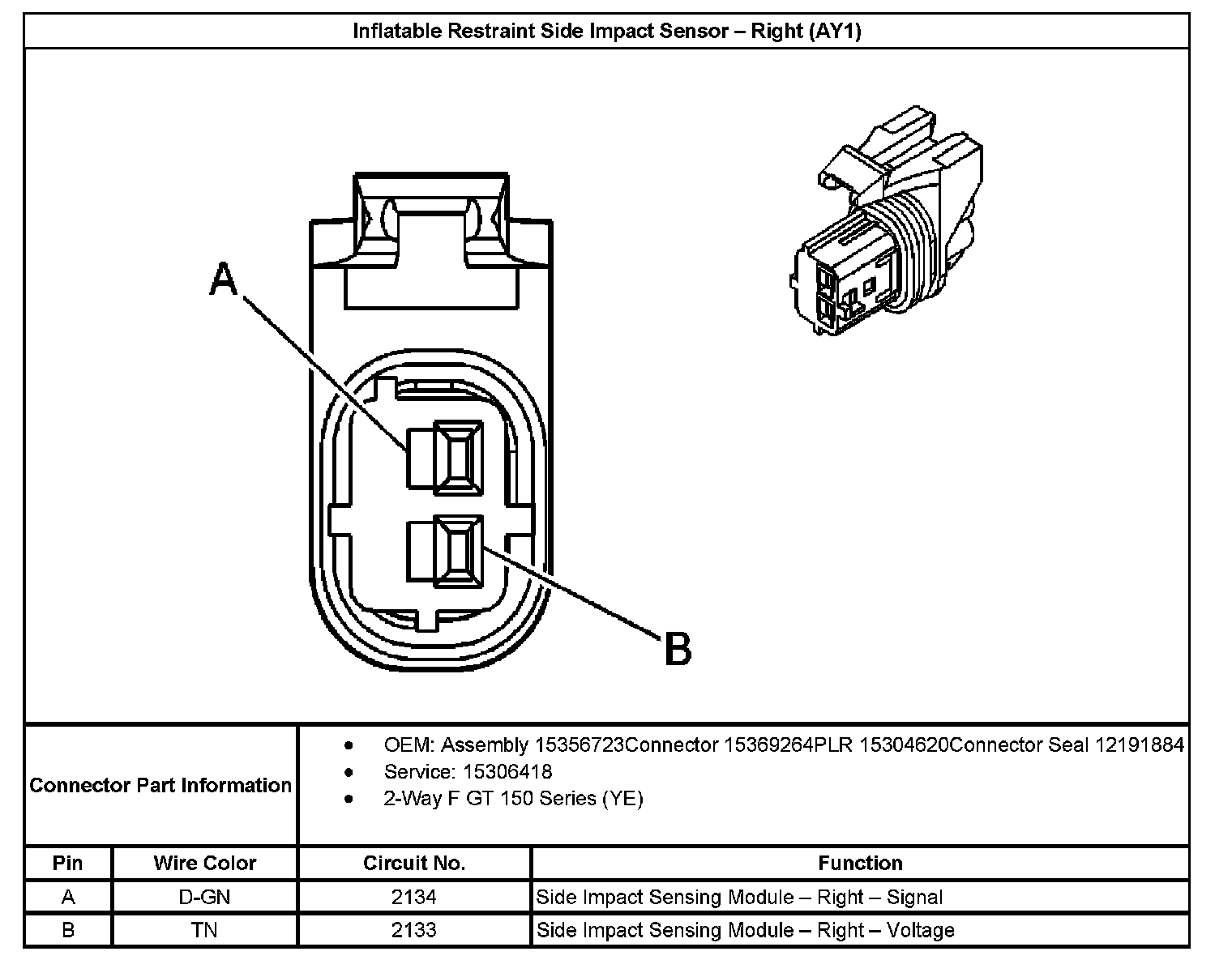

Inflatable Restraint Side Impact Sensor - Right (With RPO Code AY1):
